Philips DCD778 Manuale utente

Use 1/4"

drill

VIDEO

AUDIO

ANT

Recommended depth of cabinet

at the rear to allow for connections

2.5"

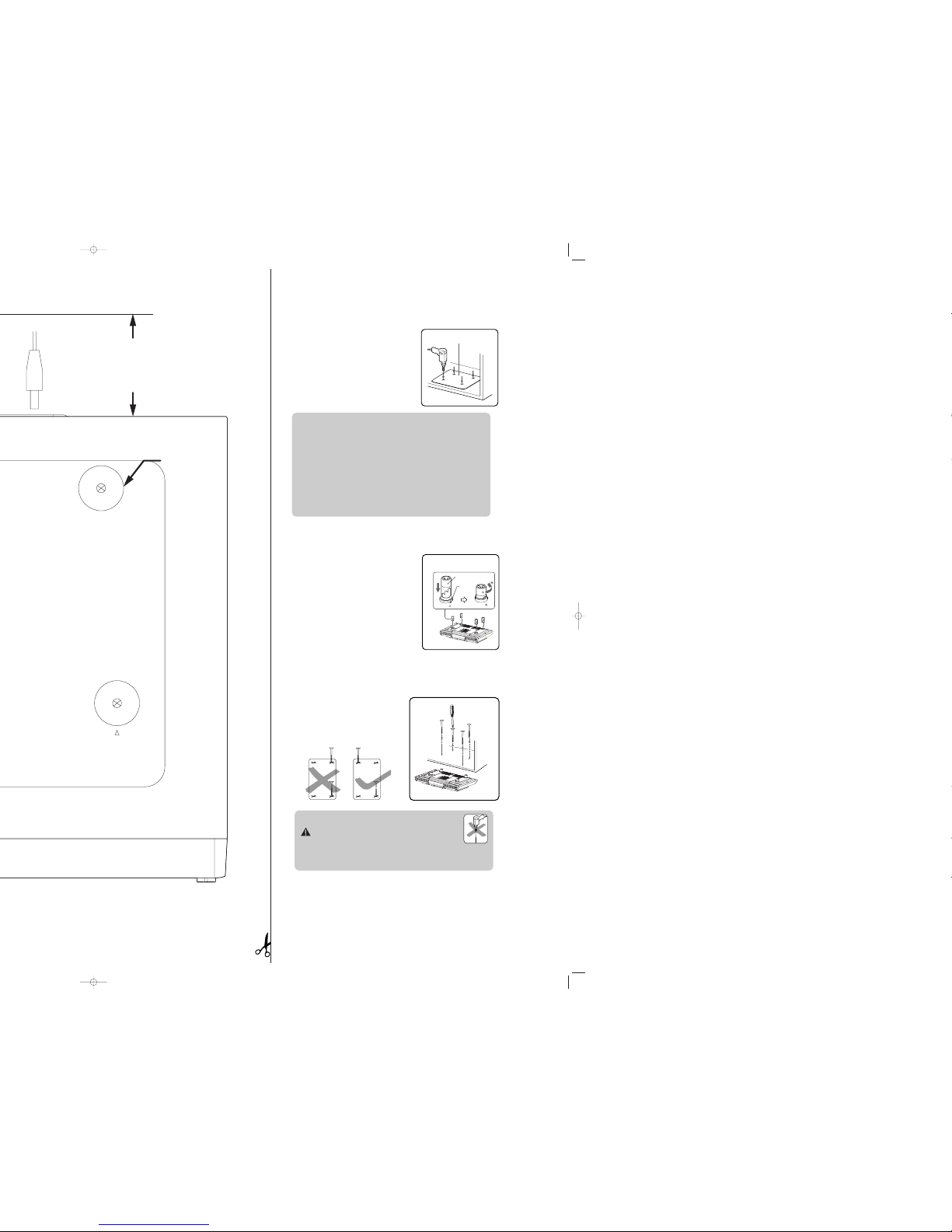

Mount it

Ask a friend to help out. An extra hand to hold the unit makes mounting easier

and quicker.

•Cut the template to fit inside the cabinet.

•Align the template border marked "FRONT"

along the front edge of your cabinet.

•Use adhesive tape to fix the template.

•Drill 1/4 inch holes, as marked Xon the tem-

plate.

•Remove the template when you finish drilling.

Using the spacers

On the spacers, there are 4 pairs of notch length

options. Depending on the thickness of you cabi-

net bottom (with/ without an overhang), these

notch lengths correspond to the 4 notch height in

the space holders, and allow you to adjust to the

best height to help you mount the unit.

•Measure the height of the cabinet bottom

and/overhang.

•Tu rn the spacer counterclockwise to determine

which of the 4 heights is most suitable: Low •

• High. Align to the arrow indication.

•Insert the spacers accordingly.

•Manually fasten the 4screws down into

the spacer holder holes to mount your

set. Start screwing at opposite corners of

the unit for better support.

Tip

To prevent damage to your set, do not use an

electric drill to secure screws when mounting!

– If the overhang is more than 1 1/4 inch, use longer screws

(not included).

Template

Spacer

L (Low)

L••H (4 heights)

Arrow

Tip

– Clean the bottom of the cabinet surface and also empty your cabinet

before mounting.

– Place the unit in a clean, safe place when drilling to avoid wood

shavings dropping into the ventilation slots.

– Use a nail to start each drill hole.

– Drill from the bottom upwards if you do not have enough room inside

the cabinet.

– Hold your drill firmly at 90owith the cabinet bottom and drill holes at

low speed.

– Clear wood shavings.

Mount_DCD778 9/2/07 19:30 Page 1
