Philips FC8261/01 Manuale utente

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC8261/01

07/10

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Grenadine Red

- Power consumption : 1400 W

(IEC) 230V

- Maximum Air displacement : 32 l/s

- Dust storage capacity : 1 L

- Cord length : 5 m

(depending on type)

- Filter system : Pleated cyclone-filtration

system

: HEPA Exhaust filter

- Noise : 85 dB

- Electronic motor speed control

ACCESSORIES

- Nozzle : All purpose floor nozzle

- Tubes : Conical chrome tubes

- Accessories : Crevice nozzle, Brush and Small nozzle

- Coupling : Conical coupling

OPTIONAL (accessories)

- FC8028 Pleated Filter cylinder 8838 028 01010

- FC8029 HEPA Exhaust filter 8838 029 01010

- Filter cleaning brush 4322 004 20130

FC8261/01

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- First remove the dust bag.

- Remove the dustcover using a screwdriver (see picture).

- When the dustcover has been removed, the 5 screws Athat

need to be unscrewed to disassemble the upper housing, are

accessible.

- After removing screw B, lift the motor cap (item 20) out of

the lower housing to be able to take out the cord winder

unit.

- To disassemble the cord winder, use TORX screwdriver

no. T10, which is one of a set consisting of T20; T15; T10;

T9; T8; T7 and T6 (code number 4822 395 50145).

- During re-assembling, take care the wires are positioned in

the guides correctly.

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn

- If the reel half spring unit is replaced, shaft Dmust be

lubricated with silicone grease. Do not apply any silicone

grease to or spill any grease on terminals (item 34) or

conductors (item 33).

- Item 7, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

ELECTRICAL DIAGRAM

SPEED

CONTROL UNIT

CORD WINDER

2-6

FC8261/01

PARTS LIST

3-6

Pos Service code Description

4322 009 09750

4322 003 29290

4322 001 73680

4322 003 29030

4322 005 20850

4322 005 20840

4322 005 19070

4322 003 28510

4322 001 73610

4322 003 28480

4322 005 20760

4322 003 28730

4322 003 28720

4322 003 28710

4322 000 68060

4322 003 28570

4322 003 28580

4322 003 28700

4322 006 23290

4322 003 28560

4322 005 20820

4322 003 28670

4322 001 73640

4322 003 28690

4322 005 21440

Dustcover Assy Grenadine Red

Container cover Grenadine Red

Sealing ring

Filter case Spectra Yellow *

Filter Spectra Yellow *

Dustbucket Spectra Yellow *

Valve assy

Side panel

Dustcover seal

Nose piece

Caster assy

Slide Artic Ice

Buttons-E Artic Ice

Actuator

Button spring

Back panel Dark raven

Switch cap

Drive wheel

PCB electronic control

Motor cap

HEPA ﬁlter Gemini

Air outlet cover HEPA

Cooling hose

Knee bend cooling tube

Lower housing assy

Pos Service code Description

4322 001 73590

4322 003 28680

4322 006 98040

4322 006 97970

4322 006 98000

4322 003 28550

4322 001 73580

4322 005 20770

4322 009 07610

4322 009 09060

4341 005 01330

4341 005 00790

4341 006 01890

4322 006 02160

4322 006 02060

4322 006 02080

4322 006 07600

4341 004 20420

4341 005 01240

4322 004 23750

4341 004 20170

4341 004 20100

4341 004 20190

4322 004 23520

4822 479 20039

4822 479 20038

Motor buffer front

Motor front support Domus

Motor Domus 240 V 1400 W

Motor Domus 230 V 1400 W

Motor Domus 220 V 1400 W (ccc)

Air guide Domus

Bufferback Gemini

Base plate assy Gemini

Real half spring unit

Real half spring unit PRC

Real half contact side

Contact plate assy

Cordset Taiwan/PRC L = 5.3 m

Cordset U.K./H.K. L = 6.3 m

Cordset Europe L = 6.3 m

Cordset Swiss L = 6.3 m

Cordset Brazil L = 7.3 m

Bend/hose assy

Bend handle

Chrome tube con. (1pcs)

Crevice nozzle con.

Small nozzle con.

Brush con.

Nozzle D272

Nozzle brush

Nozzle strip

* Standardized colour

FC8261/01

EXPLODED VIEW

4-6

FC8261/01

EXPLODED VIEW

3029282726

35÷39

5-6

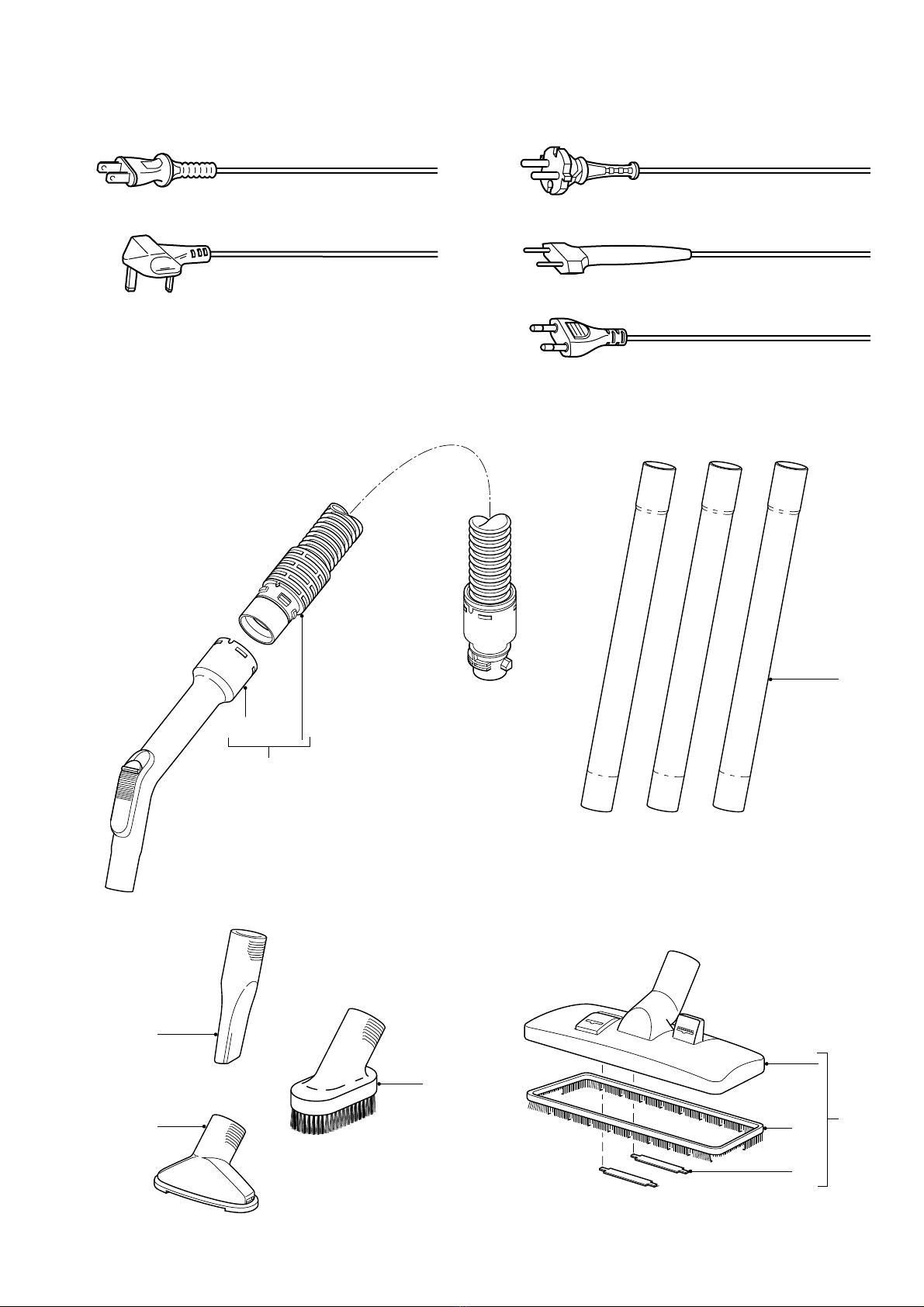

FC8261/01

EXPLODED VIEW

Taiwan / P.R.C. 35 Korea / Europe 37

Swiss 38

Brazil 39

36H.K. / U.K.

6-6
