Ringer and Speaker Volume
Speaker Volume
While in a hands-free conversation [To an Extension]
Press the [ ] or [ ] to adjust the volume 1. Press the intercom button
Handset/Headset Volume 2. Dial an extension number
While using the handset or headset [To an Outside Party]
Press the [ ] or [ ] to adjust the volume 1. Pick up the handset
Ringer Volume 2. Select a line
While on-hook or receiving a call 3. Dial the outside party's phone number
Press the [ ] or [ ] to adjust the volume
1. Go off-hook
During a Conversation 2. Press [REDIAL]
Call Hold
[To hold]
1. Press [HOLD]
2. After the confirmation tone, go on-hook party to hold
[To retrieve a call at the holding extension] 2. Press [CONF]
1. Go off-hook 3. Press 9 for an outside line plus the telephone
2. Press the flashing line button number
[To retrieve an outside call from another
extension]
1. Go off-hook 4. Wait for the person to answer
2. Press the CO button
are all connected
Call Transfer
[To an extension] Personal Speed Dialing
1. Press [TRANSFER] [To store]
2. After the confirmation tone, dial an 1. Press Intercom
extension number 2. Enter *30
3. Talk 3. Enter the personal speed dialing number
4. Hang up (2-digits)
[To an outside party] 4. Enter the 9 plus the phone number to store
1. Press [TRANSFER] 5. Press #
2. After the confirmation tone, press an 6. After
available CO button [To dial]
3. Dial an outside phone number 1. Press Intercom
4. Talk 2. Press [AUTO DIAL/STORE]
5. Hang up 3. Enter *
4. Enter the personal speed dialing number
Check Missed Calls
Call Logs
1. Go off-hook
2. Press the [ ] to cycle through Incoming
and Outgoing call log
3. Press the [ ] or [ ] to scroll through
Making Calls
Redial
5. After they answer, press [CONF] again and you
NOTE: If your calling someone internally, dial the
extension number
Conference Calling
1. Make the first call or if on an active call tell the
Calling

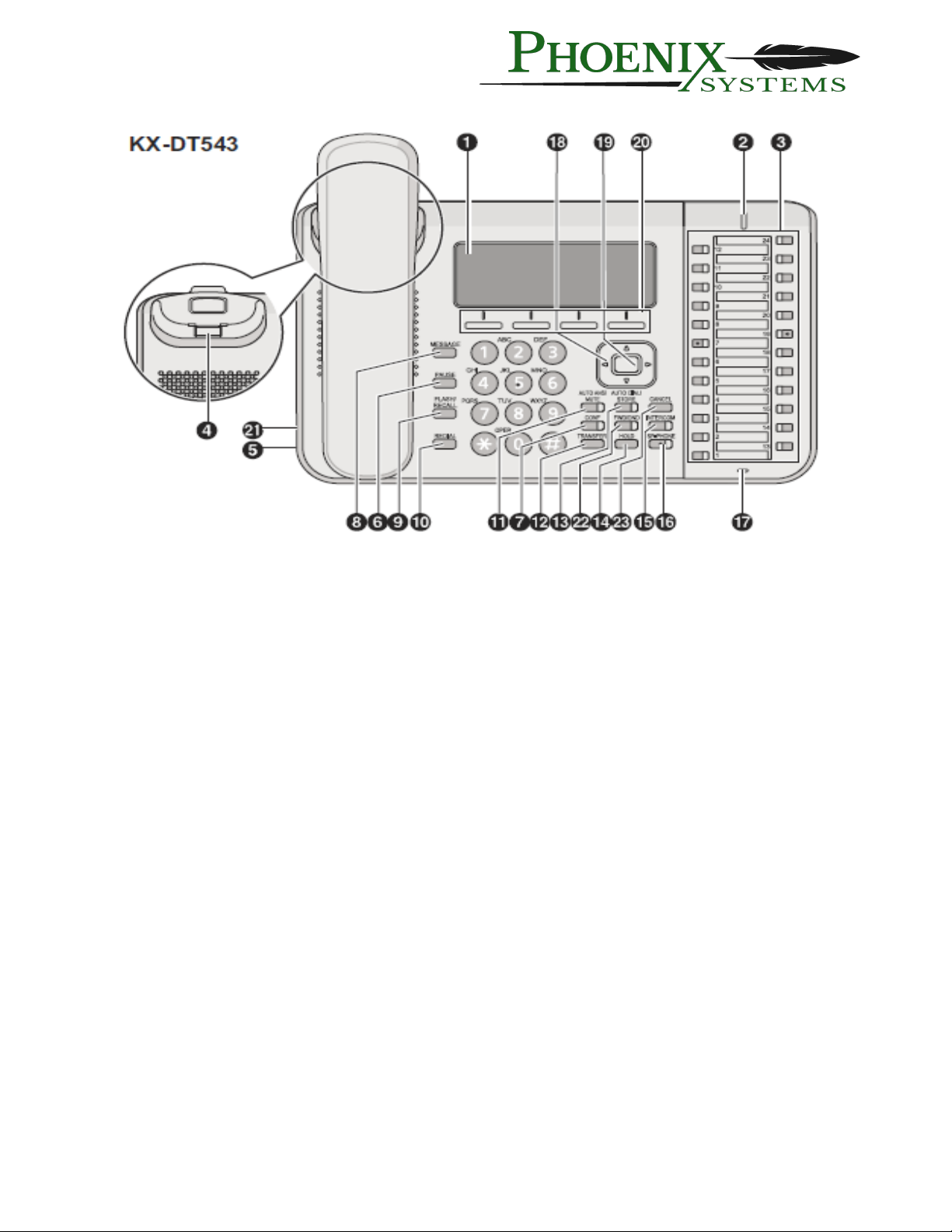

5. Headset Jack
15. INTERCOM - Used to make or receive intercom calls
14. HOLD - Places a call on hold
16. SP-PHONE - For hands-free, speakerphone
18. Navigator Key - Adjust the volume, display contrast or select menu items
17. Microphone - Used for hands-free, speakerphone
23. CANCEL - Used to cancel or exit operation
22. FWD/DND - Switch Call Forwarding or Do Not Disturb status
21. EHS (Electronic Hook Switch) - Connects to wireless headsets
20. Soft-Buttons - Dynamic function keys
19. ENTER - Used to assign the selected item
11. AUTO ANS/MUTE - To set auto-answer in hands free mode or mute microphone
10. REDIAL - Redial the last dialed number
9. FLASH/RECALL - Used to hold the current call and make another
8. MESSAGE - Not Currently Used
12. TRANSFER - To transfer a call to another party
13. AUTO DIAL/STORE - To program System and Personal speed dial numbers
1. Display
2. Lamp - Flashes Green - Internal Call, Flashes Red - External Call
3. Flexible Buttons - Used for features, status and direct selection of extension or to select an
outside line
4. Headset Hook - Flip if phone is wall mounted
6. PAUSE - Used to insert pause in a stored number
7. CONF (Conference) - Used for multi-party calling
