Pioneer DR-966 Manuale utente

Max.40XCAVUltra-SCSI

CD-ROM DRIVE UNIT

DR-966

OperatingInstructions

Pioneer Electronic Corporation

OB-U0194

StandardFeatures

•Internal5.25inchHalf-HeightCD-ROMDrive

•Ultra-SCSI/SCSI-2Interface

•Max.40XDataTransfer

Max.40XCAV;17.5X(innersideofadisc)to40X(outersideofadisc)maximum,28.8X(average)

•PowerTrayLoading

•ConformstoMPCLevel3specifications

•LowVibrationMechanism

•HighSpeedAccess: AccessTime 70msec(RandomAverage)

•HighSpeedSeek : SeekTime 60msec(RandomAverage)

•BufferMemorySize: 128kBytes

•SupportsSCAMFunction(Level1)

•SupportsKODAKPhotoCD

•SupportsSingleandMulti-Session

•SupportsCD-XAReady

•SupportsCD-IReady

•SupportsCDExtra

•SupportsVideoCD

•SupportstoreadCD-RWdiscs

•SupportsPowerSaveMode

•StereoAnalogAudioLineOutput

•DigitalAudioThroughSCSI(ReadCD-DA)

•HeadPhoneOutput&VolumeControlKnob (FrontPanel)

•Horizontal/VerticalOperation

•ForcedEjection

NameofParts/Function/Setting

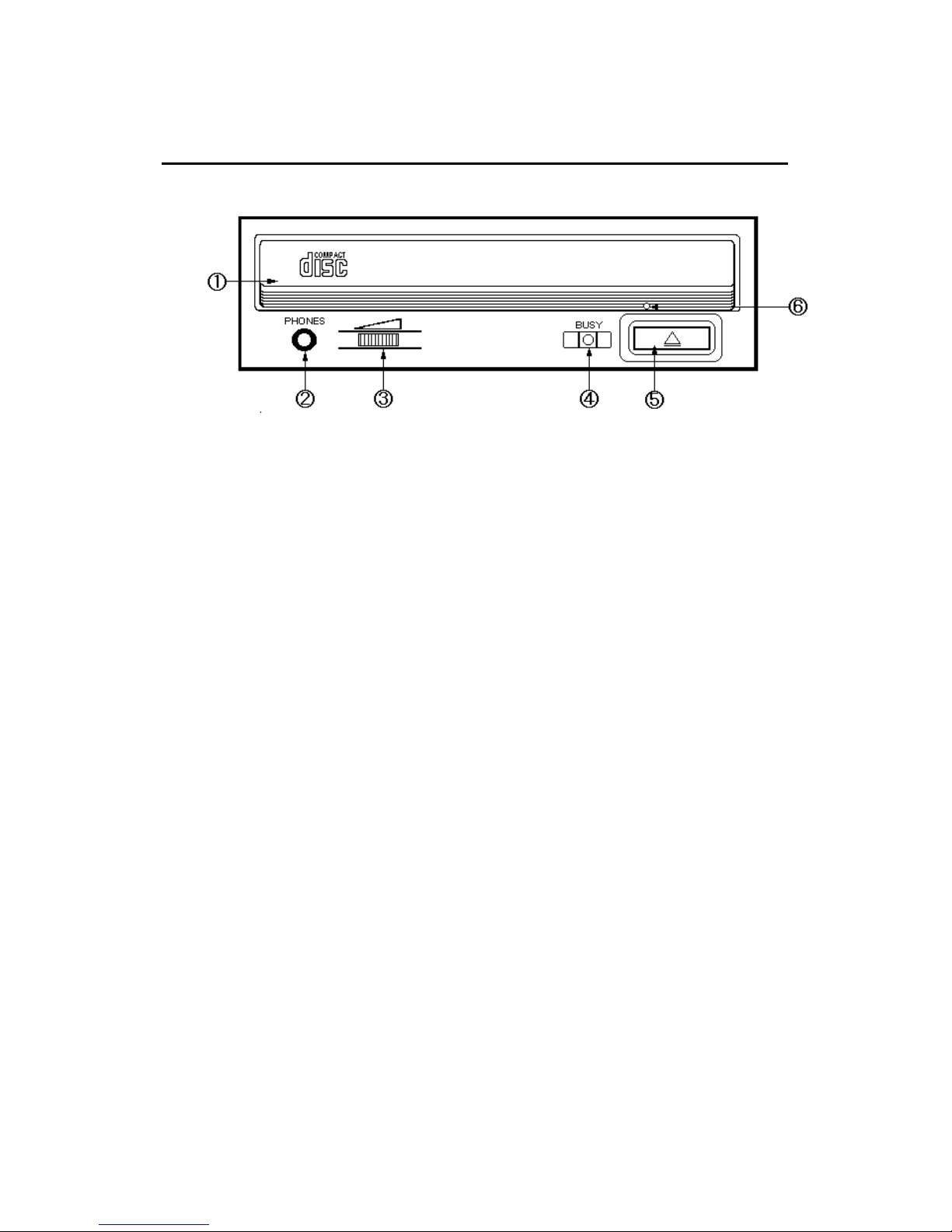

FrontPanel

1. DiscTray

Trayloading-unloadingisdonebypressingtheejectbutton.

PlacetheCD-ROMontothetraywiththelabelfacingup.

Placeadiscontotheinnerlowergrooveonthetrayincasean8cmdiscisused.

Presstheejectbuttonorpushthefrontpartofthetraygentlytoloaddisctray.

2. Head-PhoneJack(PHONES)

Stereominijackforhead-phone.

Adjust“VolumeControlKnob”minimumpositionbeforehead-phoneisconnected.

Theaudiooutputofrearpanelisactiveevenwhenhead-phoneplugisinsertedtothisjack.

3. VolumeControlKnob(Head-PhoneLevel)

Thisisthevolumecontrolknobforadjustingsoundlevelforhead-phone.

Whentheknobisturnedtotheright,thehead-phonevolumegoesup,andturnedtotheleft,the

volumegoesdown.

4. BUSYIndicator

Itislitwhendataonthediscisaccessed.

5. EjectButton

Thisbuttonisusedtoloadandunloadthetray.

6. ForcedEjectionHole

When a disc is stacked in the drive and eject button does not work to open the tray, insert a stiff rod into this

hole and gently so that the tray comes out. Unload the tray by hand then remove the disc. Do not use the

ForcedEjectHoleexcept emergencycase ,use the ejectbutton innormal operation.

Beforeexecutingthisoperation,turnoffthepowersupplyandwaitmorethan1minutetilldiscrotationisstopped.

OB-U0194

NameofParts/Function/Setting

RearPanel

1. DC Input

Name

Function

+12

PowersupplyinputofDC+12V

Ground

PowersupplyinputofDC+5V

2. SCSI Interface

ItshouldbeconnectedtotheSCSIportofthecomputer.Use50pinflattypecable.

Totallengthofthiscableislessthan6maccordingtotheSCSIspecifications.

Set “Terminator”theendofthecable.

Name

GND

-DB0

-DB5

GND

-ATN

-MSG

GND

-DB1

-DB6

GND

-SEL

GND

-DB2

-DB7

TERMPOWER

-BSY

-C/D

GND

-DB3

-DBP

-ACK

-REQ

GND

-DB4

GND

-RST

-I/O

Remarks;Theminussignindicatesactivelow.

OB-U0194

NameofParts/Function/Setting

3. DeviceConfigurationJumper

Switchturnsonbyinsertingshortsocket.

Makesurethatdrivepoweristurnedoffbeforejumpersettingischanged.

OnlyPin#2is ``on``atthetimeofshippingfromtheplant.(ThismeansSCSIID=2andTerminatorisOFF)

Name

Function

SettingSCSIID

bit0

off

bit1

off

1-3

SCSIID

bit2 off

off

Reserved

off

InternalSCSITerminatorisOFF.

TERMINATI

InternalSCSITerminatorisON.

off

SettingSectorsizeatpoweronto2048Bytes

2048/512

SettingSectorsizeatpoweronto512Bytes

off

EnableEjectButtonoffrontpanel.

DISABLE

EJECT

DisableEjectButtonoffrontpanel.

Reserved

4. AudioOutput

Aconnectorforoutputofanalogaudio.

This connector is compatible with “Molex 70553”, choose a connection cable which matches with the

connector.

Name

Function

Leftchannelaudiooutput

Ground

Rightchannelaudiooutput

OB-U0194

Specifications

1. DiscFormat

•CD-ROM Mode1

•CD-ROM XA Mode2 (form1, form2)

•PhotoCD(singleandmultiplesession)

•VideoCD(4.4x–10x)

•CD-DA(4.4x–10xatAudioPlay,8.8x–20xatReadCD-DA)

•CD-Extra

•CD-RW(readonly,4.4x–10x)

•CD-IReady

2. DiscSize

•12cm

•8cm (4Xatdatadisc,Horizontaloperationonly)

PrecautionsonplayingCDsingles(8cmdiscs)

An8cmdisccanbeplayedonlywhenthedriveishorizontalconditionandthediscissetinthe

8cmgrooveonthedisctrayatloading.

Donotuseanadapterfor8cmdiscinanyconditionsforthisdrive,ormalfunctionmayoccur.

3. Data Transfer Rate

Parameter Min. Typ. Max. Unit Note

inner 2250 2415 2625 kBytes/sec

Sustained

outer 6000 kBytes/sec

Max.40XCAVMode

Burst 20 MBytes/sec

Remarks

Maximumdatatransferrateisspecifiedwithadiscof1.2m/slinearvelocity.

4. Buffer Memory Size

•128kBytes

5. AccessTime/SeekTime

Parameter Min. Ave. Max. Unit Note

AccessTime

140

msec

Random

Average

CD-ROMMode1Disc

RandomSeekTime

msec

Random Average

FullStrokeSeekTime 160 300 msec

OB-U0194

Specifications

6. InitializingTime/StartingTime/FinishingTime

Parameter Specification Note

InitializingTime

Lessthan10sec

The period from a disc is set in the drive till it becomes

pauseconditionafterinitialization.

StartingTime

Lessthan10sec

The period from stop condition after fi

nishing

initializationtillitbecomespauseconditionbyexecuting

startcommand.

FinishingTime Lessthan7sec

The period from pause condition till disc rotation is

stoppedbyissuingstopcommand.

7. LoadingTime/UnloadingTime

Parameter Specification Note

LoadingTime Lessthan4sec

The period from a disc starts loading till it is clumped in

thedrive.

UnloadingTime Lessthan4sec

The time of disc unloading with stop condition by

Pressingtheejectbutton.

8. AudioCharacteristic

Item Specification Note

Lineout 0.7 ±0.1Vrms 10kohmLoad

Output level

HeadphoneOut

0.45

0.2Vrms

32ohmLoad

S/NRatio Lineout Over80dB JISA-Weighted

20kHzLPFON

ChannelSeparation Lineout Over65dB

FrequencyResponse Lineout 20Hz~20kHz +1/-3dB

THD

Lineout

Lessthan0.1%

1kHz0dB

20kHzLPFON

Dimensions/Weight/Packing

1. Dimensions/Weight

lDimensions:W148mmxD207.5mmx42.3mm

lNetWeight:0.9kg

PioneerElectronicCorporation

4-1,Meguro1-chome,Meguro-ku,Tokyo153,Japan
