Pioneer AVIC-X920BT Manuale utente

ORDER NO.

PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2010

CRT4529

FLASH MEMORY MULTIMEDIA AV NAVIGATION RECEIVER

AVIC-X920BT

/XNUC

This service manual should be used together with the following manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual,

refer to the following manual(s).

Model No. Order No. Mech. Module Remarks

AVIC-Z110BT/XN/UC CRT4399

CX-3250 CRT4300 LS1 DVD Mech.Module:Circuit Descriptions, Mech. Descriptions, Disassembly

K-ZZZ. FEB. 2010 Printed in Japan

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.

and any use of such marks by Pioneer Corporation is under license.

Other trademarks and trade names are those of their respective owners.

is a trademark of DVD Format/Logo Licensing Corporation.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC

1234

1 234

SAFETY INFORMATION

WARNING

This product may contain a chemical known to the State of California to cause cancer, or birth defects or

other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

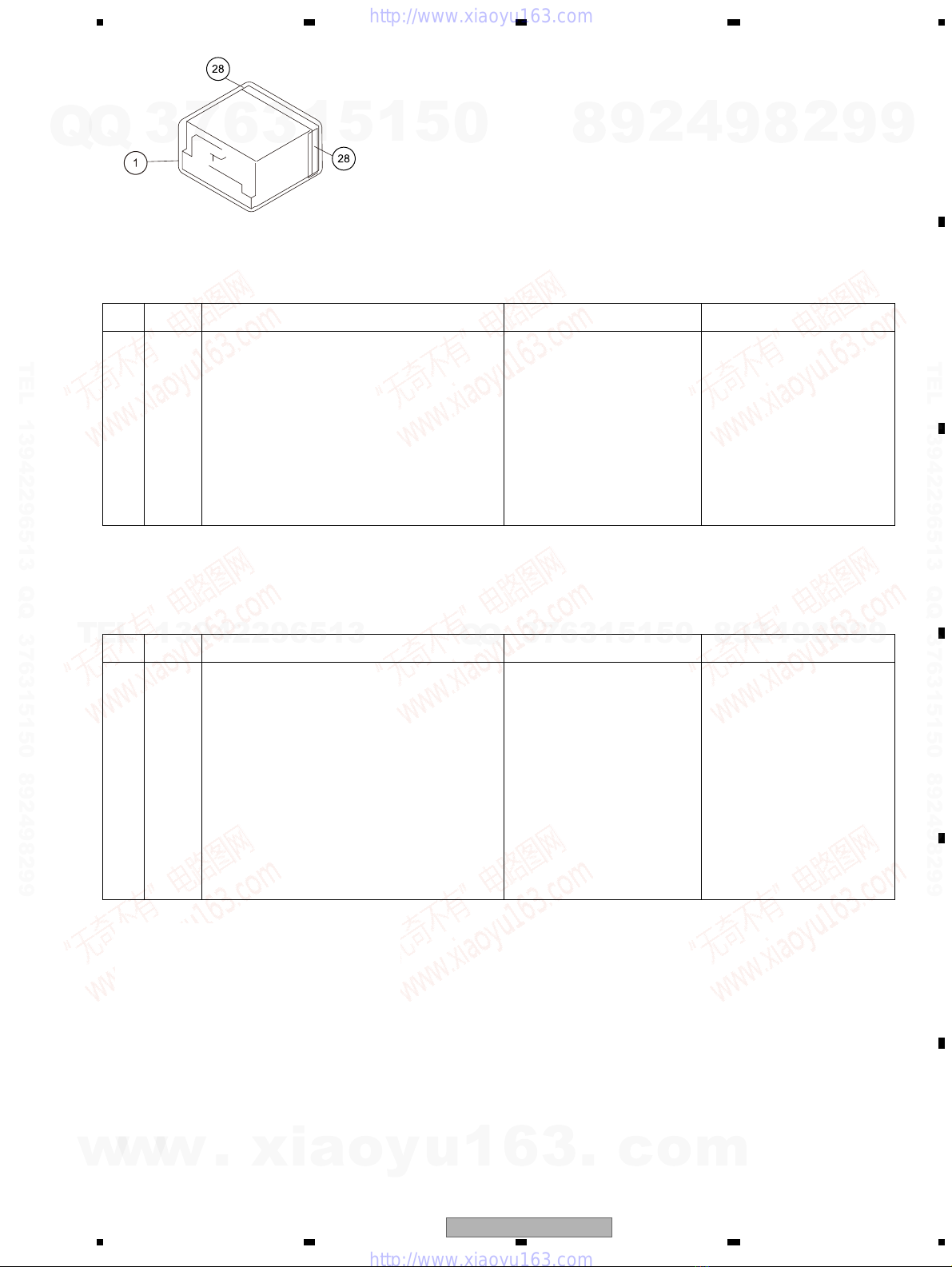

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 170)

PACKING SECTION PARTS LIST *:Non spare part

Mark No. Description AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

1 Polyethylene Bag CEG1359 CEG1402

2 Unit Box CHG6940 CHG7320

3 Contain Box CHL6940 CHL7320

4 Protector CHP3827 CHP3966

5 Sub Unit Box Assy CHX2124 CHX2172

6 Cord CDE6825 Not used

7 Cord CDP1157 Not used

8 Cord Assy CDP1194 CDP1304

16 Connector CKX1049 Not used

17 IM CD-ROM Not used CPJ1300

22 GPS Antenna Assy CXE2705 CXE3204

25 Sheet CZN7151 CZN8510

26-1 Owner's Manual CRB3035 CRB3203

26-2 Owner's Manual CRB3036 CRB3204

26-3 Quick Start Guide CRB3037 CRD4459

26-4 Quick Start Guide CRB3038 Not used

26-6 Installation Manual CRD4418 CRD4460

26-7 Caution Card CRP1310 Not used

27 Cord Assy CDP1095 CDP1307

28 Sheet Not used CNN3437

Owner's Manual,Installation Manual

CONTENTS OF CD-ROM (Operation Manual), CPJ1300

All operation manuals are supplied in PDF files by the CD-ROM.

Regarding the availability of paper manual, contact Pioneer Service representative in your region.

Part No. Language

CRB3203 English

CRB3204 French

CRD4459 English, French

CRD4460 English, French

Part No. Language

* CRB3201 English

* CRB3202 French

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC 3

5 678

5678

EXTERIOR(1)(Page 172)

EXTERIOR(1) SECTION PARTS LIST

Mark No. Description AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

7 Shield CND4940 Not used

13 Sheet CNN3148 Not used

14 Sheet CNN3149 Not used

16 Navi Unit CWN3985 CWN5119

20 Service CC Assy CXX2854 CXX2656

21 Holder Unit CXE2706 Not used

22 Chassis Unit CXE1612 CXE2755

24 DVD Mechanism Module(LS1) CXK6802 CXK6803

EXTERIOR(2)(Page 174)

EXTERIOR(2) SECTION PARTS LIST

Mark No. Description AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

2 Screw BMZ26P160FCC BMZ26P160FTC

5 Cord CDE6825 Not used

6 Cap CNS1472 Not used

7 Resistor RS1/2PMF102J Not used

8 Cord Assy CDP1194 CDP1304

9 Cap CNW1490(x13) CNW1490(x11)

10 Audio Unit CWN4335 CWN5121

11 Screw BMZ26P060FTB BMZ26P060FTC

12 Shield CND4926 Not used

18 Cord Assy CDP1095 CDP1307

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC

1234

1 234

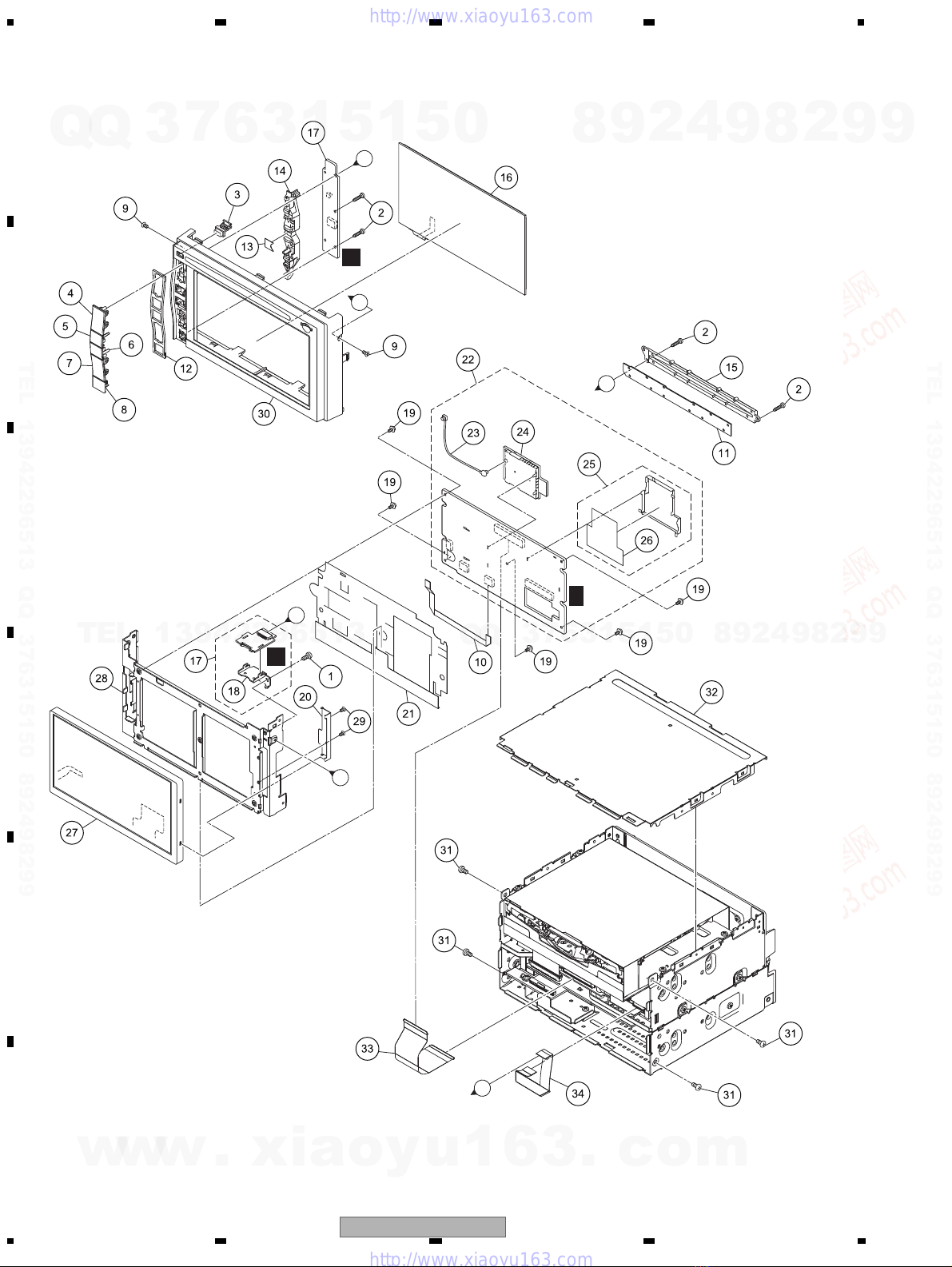

EXTERIOR(3)(Page 176)

(1/2)

(2/2)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC 5

5 678

5678

Mark No. Description Part No.

1 Screw BMZ26P050FTC

2 Screw BPZ20P080FTC

3 Button(EJECT) CAI2743

4 Button(VOL) CAI2744

5 Button(HOME) CAI2745

6 Button(MODE) CAI2746

7 Button(TRK) CAI2747

8 Button(VOICE) CAI2748

9 Screw(M2 x 3) CBA1877

10 FFC CDE9159

11 Cover CNN3240

12 Cushion CNN3261

13 Sheet CNN3321

14 Lighting Conductor CNW1817

15 Holder CNW1820

16 Touch Panel CSX1154

17 Keyboard SD Unit CWN5126

18 Holder Unit CXE2948

19 Screw AMZ20P040FTC

20 Holder CND5522

21 Insulator CNN3257

22 Monitor Unit CWN5128

23 Cord Assy CDE9158

24 Bluetooth Module CWX3931

25 Shield Unit CXE2163

26 Insulator CNN2822

27 LCD Panel CWX3895

28 Holder Unit CXE2756

29 Screw JJZ20P020FTC

30 Grille Unit CXE3197

31 Screw BMZ26P050FTC

32 Case CNB3636

33 Flexible PCB CNQ3615

34 FFC CDE9160

EXTERIOR(3) SECTION PARTS LIST

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC

1234

1 234

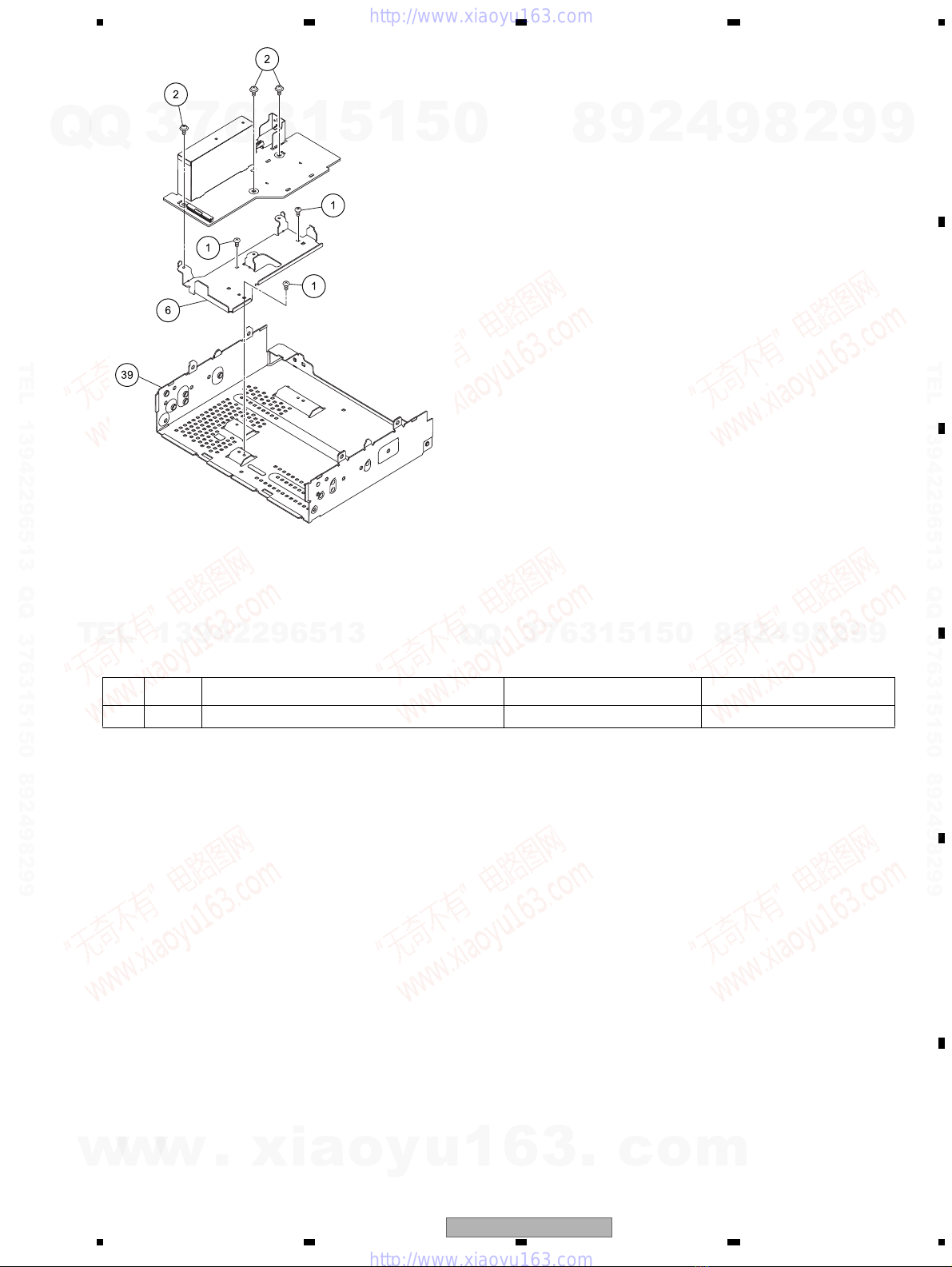

EXTERIOR(4)(Page 178)

EXTERIOR(4) SECTION PARTS LIST

Mark No. Description AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

3 FFC CDE8899 Not used

4 Bracket CND4916 Not used

5 Bracket CND4917 Not used

6 Bracket CND5037 CND5600

7 Tuner IF Unit CWN4824 CWN5125

9 Shield CND5426 CND5721

14 Drive Unit CXE1522 Not used

15 Screw AMZ26P030FTC Not used

16 Screw BMZ20P020FTC Not used

17 Screw(M2 x 3) CBA1527 Not used

18 Washer CBF1039 Not used

19 Screw EBA1051 Not used

20 Spring EBH1684 Not used

21 Spring EBL1033 Not used

22 Spring EBL1034 Not used

23 Cord(Purple) EDC1026 Not used

24 Cord(Green) EDC1027 Not used

25 Bracket ENC1604 Not used

26 Arm ENV1615 Not used

27 Roller ENV1619 Not used

28 Arm ENV1623 Not used

29 Rack ENV1629 Not used

30 Gear ENV1630 Not used

31 Gear ENV1631 Not used

32 Gear ENV1632 Not used

33 Holder ENV1634 Not used

34 Gear ENV1635 Not used

35 Chassis Unit EXA1688 Not used

36 Motor Unit EXA1692 Not used

37 Frame Unit EXA1693 Not used

38 PCB Assy(Service) EXX1060 Not used

39 Chassis Not used CNA3164

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC 7

5 678

5678

DVD MECHANISM MODULE(Page 180)

DVD MECHANISM MODULE SECTION PARTS LIST

Mark No. Description AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

72 DVD Core Unit YWX5014 YWX5015

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC

1234

1 234

ELECTRICAL PARTS LIST (Page 310)

TUNER IF UNIT

Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

Q491 Transistor 2SB1260 Not used

Q492 Transistor IMX1 Not used

Q493 Transistor UMD3N Not used

D494 Diode RSX201L-30 Not used

D495 Diode HZU7R5(B1) Not used

D496 Diode HZU6R2(B1) Not used

CN491 Connector CKS6095 Not used

R492 RS1/10SR0R0J Not used

R493 RS1/10SR0R0J Not used

R494 RS1/10SR473J Not used

R495 RS1/10SR473J Not used

R496 RS1/16SS223J Not used

R497 RS1/10SR101J Not used

R498 RS1/10SR181J Not used

R499 RS1/16SS471J Not used

R500 RS1/16SS271J Not used

R501 RS1/16SS332J Not used

R506 RS1/16SS303J Not used

R512 RS1/10SR0R0J Not used

R514 RS1/16SS0R0J Not used

R516 RS1/16SS0R0J Not used

R531 Not used RS1/16SS0R0J

C492 CKSSYB153K16 Not used

C493 100 uF/16 V CCH1565 Not used

C494 CKSRYB105K10 Not used

For the information of the parts that are added to this model, please refer to the following manual (CRT4399).

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC 9

5 678

5678

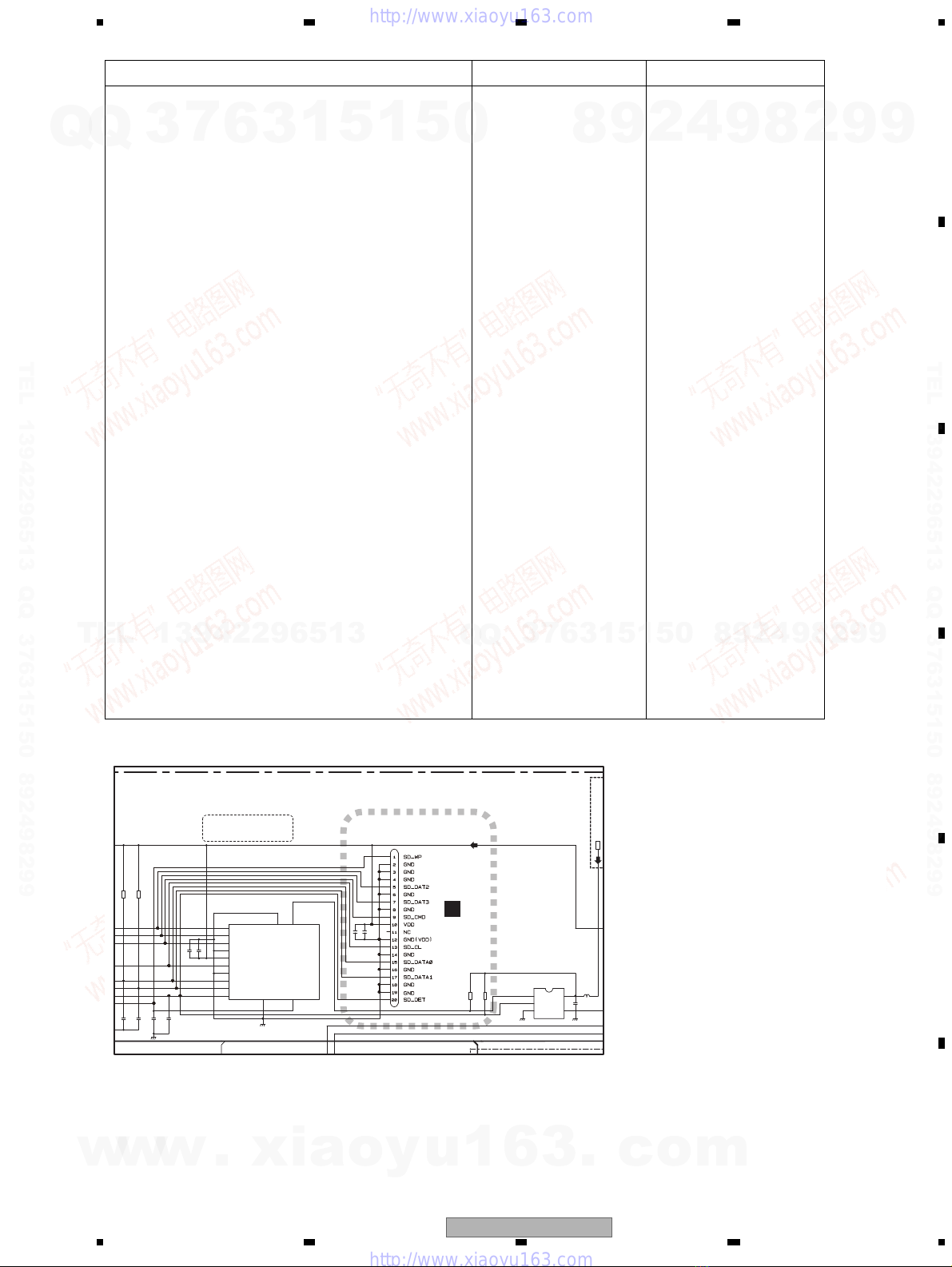

SERVICE CC ASSY

Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

IC4403 IC PEH224B8 CWW2235

IC4602 IC TC7SH86FUS1 Not used

D4601 Diode RB520G-30 Not used

L4601 Inductor CTF1736 Not used

CN4601 Connector CKS6214 Not used

CN4602 Not used DKN1556

R4115 RS1/16SS470J RS1/16SS560J

R4287 Not used RS1/16SS0R0J

R4288 RS1/16SS0R0J Not used

R4289 Not used RS1/16SS0R0J

R4290 RS1/16SS0R0J Not used

R4609 RS1/16SS152J RS1/16SS0R0J

R4610 RS1/16SS330J RS1/16SS0R0J

R4611 Not used RS1/16SS0R0J

R4612 RS1/16SS104J Not used

R4613 RS1/16SS104J Not used

R4781 RS1/16SS221J Not used

C4004 CKSRYB104K10 CKSRYB104K16

C4609 CKSRYB104K50 Not used

C4613 CKSSYB473K10 CKSSYB473K16

C4614 CKSSYB104K10 Not used

C4621 CKSSYB473K10 CKSSYB473K16

C4622 CKSSYB473K10 CKSSYB473K16

C4623 CKSSYB473K10 CKSSYB473K16

C4624 CKSSYB473K10 CKSSYB473K16

C4625 CKSSYB473K10 CKSSYB473K16

C4626 CKSSYB473K10 CKSSYB473K16

C4925 CKSSYB333K10 CKSSYB333K16

TDO

GNDD

C4657

C4605 NM

C4606 NM

C4609

0.1u/50

C4611

C4607

0.1u/10

C4608

0.1u/10

GNDD

R4776 10k

R4775 10k

IC4602

TC7SH86FUS1

GND

3Y4

VCC

GNDD

BUP3

L4601

CTF1736-

GNDD

C4614

0.1u/10

R4613

100k

R4612

100k

C4610

C4612

CN4601

1SD_DATA3

2SD_CMD

3GND

4VDD

5SD_CL

6GND2

7SD_DATA0

8SD_DATA1

TER_2

9SD_DATA2

12 SD_W 11

SD_DET2

13 TER

14 SD_DET

4601-4615

SD3

EXOR

4771-4780

SD CARD BLOCK

33V

(1608)

DKN1556-A

CN4602

CN5952

Page 230 Address 4B

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVIC-X920BT/XNUC

1234

1 234

NAVI UNIT

Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-X920BT/XNUC

Q5003 Chip Transistor DTC114EUA LTC114EUB

Q5102 Transistor 2SA1576A Not used

Q5103 Transistor 2SC4081 Not used

Q5105 Transistor UMF23N Not used

Q5106 Transistor 2SB1184F5 Not used

Q5107 Digital Transistor DTC143EUA Not used

Q5108 Transistor 2SA1587 2SA1579

Q5109 Chip Transistor DTC114EUA LTC114EUB

Q5110 Transistor IMX1 Not used

Q5111 Digital Transistor DTC143EUA LTC143EUB

Q5113 Transistor 2SA1576A LSA1576UB

Q5114 Chip Transistor DTC114EUA LTC114EUB

Q5116 Chip Transistor DTC114EUA LTC114EUB

Q5201 Transistor 2SA1576A LSA1576UB

Q5202 Chip Transistor DTC114EUA LTC114EUB

Q5304 Transistor 2SA1576A LSA1576UB

D5003 Diode RB551V-30 Not used

D5203 Diode UDZS18(B) Not used

D5204 Diode EDZ5R6(B) Not used

D5205 Diode EDZ5R6(B) Not used

D5251 Diode MALS180X Not used

D5253 Diode MALS180X Not used

D5254 Diode MALS180X Not used

D5502 Diode UDZS5R6(B) Not used

L5310 Inductor CTF1736 Not used

F5251 EMI Filter CCG1067 CCG1289

F5252 EMI Filter CCG1067 CCG1289

F5253 EMI Filter CCG1060 CCG1290

VA5201 Varistor AVR-M1608C270KT2AB Not used

VA5202 Varistor AVR-M1608C270KT2AB Not used

VA5203 Varistor AVR-M1608C270KT2AB Not used

VA5204 Varistor AVR-M1608C270KT2AB Not used

CN5603 Connector CKS6123 CKS6226

R5104 RS1/10SR682J Not used

R5105 RS1/10SR153J Not used

R5107 RS1/10SR103J Not used

R5108 Not used RS1/10SR330J

R5109 RS1/10SR330J Not used

R5110 RS1/16SS223J Not used

R5111 RS1/8SQ472J Not used

R5112 Not used RS1/4SA0R0J

R5113 RS1/10SR153J Not used

R5114 RS1/4SA331J Not used

R5115 RS1/4SA331J Not used

R5118 RS1/16SS224J Not used

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Altri manuali per AVIC-X920BT

Indice

Altri manuali Pioneer Ricevitore

Pioneer

Pioneer VSX-1021-K Manuale utente

Pioneer

Pioneer Elite SC-25 Manuale per l'uso e la cura

Pioneer

Pioneer S-HTD510 Manuale utente

Pioneer

Pioneer XV-HTD520 Manuale utente

Pioneer

Pioneer VSX-1017AV-K Manuale utente

Pioneer

Pioneer XR-A4800 Manuale utente

Pioneer

Pioneer AVH-P6600DVD Manuale utente

Pioneer

Pioneer SC-07 - Elite AV Network Receiver Manuale utente

Pioneer

Pioneer SPH-C19BT Manuale utente

Pioneer

Pioneer VSX-816-K Manuale utente

Pioneer

Pioneer XV-DV525 Istruzioni utente

Pioneer

Pioneer VSX-D909S Manuale utente

Pioneer

Pioneer DVH-345UB Manuale utente

Pioneer

Pioneer VSX-521-K Manuale utente

Pioneer

Pioneer SC-1523-K Manuale utente

Pioneer

Pioneer VSX-33TX Manuale utente

Pioneer

Pioneer VSX-815-S/-K Manuale utente

Pioneer

Pioneer XV-HTD520 Manuale utente

Pioneer

Pioneer VSX-1020-K Manuale utente

Pioneer

Pioneer VSX-1018AH-K 7 Manuale utente

Pioneer

Pioneer VSX-828-K, VSX-828-S, VSX-528- Manuale utente

Pioneer

Pioneer DMH-A345BT Manuale utente

Pioneer

Pioneer VSX-819H-S Manuale utente

Pioneer

Pioneer XV-DV515 Istruzioni utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
