Pioneer VSX-D510 Manuale utente

ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2001

RRV2454

T – ZZR APR. 2001 Printed in Japan

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS........2

2. SCHEMATIC DIAGRAM .......................................8

3. PCB CONNECTION DIAGRAM..........................12

Model No. Order No. Remarks

VSX-D510/KUXJI RRV2426

¶This service manual should be used together with the following manual(s):

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

VSX-D510

VSX-D510-G

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage can be converted by

VSX-D510 VSX-D510S-G VSX-D510-G the following method.

SDPWXJI –– AC110V/120-127V/220V/240V With the voltage selector

BXJI –– AC110V/120-127V/220V/240V With the voltage selector

HLXJI – – AC220-230V AC240V, ∗

∗:Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "LineVoltage Selection" described

in this Manual.

VSX-D510,VSX-D510-G

1. CONTRAST OF MISCELLANEOUS PARTS

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to mark on product are used for disassembly.

Reference Nos. indicate the pages and Nos. in the service manual for the base model.

NOTES:

When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

561

473

R50

1R0

5621

560

47k

0.5

RD1/4PU J

RN2H K

RS1P K

56 x 101

47 x103

R50

1R0

561

473

5.62k RN1/4PC F562 x 1015621

CONTRASTTABLE

VSX-D510/SDPWXJI, VSX-D510-G/BXJI, HLXJI and VSX-D510/KUXJI are constructed the same except for the

following :

Part No.

Ref. No. Mark Symbol and Description VSX-D510 VSX-D510 VSX-D510-G VSX-D510-G Remarks

/KUXJI /SDPWXJI /BXJI /HLXJI

PCB ASSEMBLIES

NSP AMP&PS ASSY XWK3015 XWK3017 XWK3017 XWK3018

P5- 3 AMP INPUT ASSY AWX7382 XWZ3387 XWZ3387 XWZ3387

P5- 4 AMP&PRIMARY ASSY XWZ3372 XWZ3374 XWZ3374 XWZ3375

P5- 5 REGULATOR ASSY AWX7493 XWZ3384 XWZ3384 XWZ3384

P5- 6 TRANS 2 ASSY AWX7468 XWZ3403 XWZ3403 XWZ3403

VOLTAGE SELECT SW ASSY Not used XWZ3393 XWZ3393 Not used No. 1

NSP COMPLEX ASSY XWK3001 XWK3003 XWK3003 XWK3004

P7- 1 FRONT ASSY XWZ3336 XWZ3338 XWZ3338 XWZ3339

MECHA SW ASSY Not used XWZ3358 XWZ3358 XWZ3358 No. 2

TRANS 4 ASSY Not used XWZ3369 XWZ3369 XWZ3369 No. 3

PACKING SECTION

P3- 4 NSP Warranty Card ARY7045 Not used Not used Not used

P3-11 Packing Case XHD3145 XHD3153 XHD3155 XHD3154

P3-12 Operating Instructions (English) XRB3002 Not used Not used Not used

P3-12 Operating Instructions Not used XRB3037 XRB3037 XRB3037

(English/Spanish/Chinese)

Caution 220V Label Not used ARR1003 ARR1003 Not used

AC Plug Adapter Not used Not used AKX7011 Not used Accessories

EXTERIOR SECTION

P5- 7 FM/AM TUNER Unit AXX7046 AXX7047 AXX7047 AXX7047

P5-10 Power Transformer (AC120V) XTS3043 Not used Not used Not used

P5-10 Power Transformer (AC220-230V) Not used Not used Not used XTS3046

P5-10 Power Transformer Not used XTS3048 XTS3048 Not used

(AC110V/120-127V/220V/240V)

P5-11 Fuse (FU1 : 10A/120V) REK1087 Not used Not used Not used

P5-11 Fuse (FU1 :T2.5A/250V) Not used Not used Not used REK1026

P5-11 Fuse (FU1 :T6.3A/250V) Not used REK1030 REK1030 Not used

P5-18 Strain Relief CM-22C AEC7317 AEC7317 CM-22B

P5-19 AC Power Cord VDG1075 XDG3010 XDG3010 VDG1077

P5-20 Fuse (FU2 : 8A/120V) REK1086 Not used Not used Not used

P5-22 Push Rivet AEC7025 Not used Not used Not used

P5-24 Rear Panel XNC3074 XNC3082 XNC3082 XNC3083

P5-25 Bonnet Case XZN3111 XZN3112 XZN3114 XZN3114

VSX-D510,VSX-D510-G

Part No.

Ref. No. Mark Symbol and Description VSX-D510 VSX-D510 VSX-D510-G VSX-D510-G Remarks

/KUXJI /SDPWXJI /BXJI /HLXJI

P5-30 NSP Heat Sink 0.4 ANH7109 XNH3022 XNH3022 XNH3022

P5-31 Top Cover XME3004 Not used Not used Not used

P5-33 Rubber Sheet AEB1111 AEB1111 Not used Not used

P5-35 NSP Fuse Card AAX7096 XAX3218 XAX3218 AAX7277

NSP Fuse Card Not used AAX7277 AAX7277 Not used No. 4

Insulator (Front side) Not used Not used PNW2766 PNW2766 No. 5

Fuse (FU2, FU3 :T2.5A/250V) Not used REK1026 REK1026 Not used No. 6

Voltage Selector Not used AKX-507 AKX-507 Not used No. 7

F.F.C(J22:3P/30V) Not used XDD3061 XDD3061 XDD3061 No. 8

Fan Motor Not used XXM3002 XXM3002 XXM3002 No.9

Fan Holder R4 Not used XNG3040 XNG3040 XNG3040 No.10

Heat Sink Assy Not used XNH3023 XNH3023 XNH3023 No.11

FRONT PANEL SECTION

P7- 6 Front Panel XMB3029 XMB3038 XMB3030 XMB3030

P7- 7 Sub Button XAD3068 XAD3068 XAD3069 XAD3069

P7- 9 Name Plate PAM1776 PAM1776 PAM1779 PAM1779

P7-11 Select Knob XAB3008 XAB3008 XAB3009 XAB3009

P7-12 Volume Knob XAB3011 XAB3011 XAB3012 XAB3012

P7-13 Power Button XAD3062 XAD3062 XAD3063 XAD3063

Power Button MG Not used AAD7442 AAD7491 AAD7491 No.12

P7-14 Sub Panel XAK3169 XAK3169 XAK3170 XAK3170

P7-15 Jog Button XAD3065 XAD3065 XAD3066 XAD3066

P7-18 Diplay Panel XAK3172 XAK3172 XAK3186 XAK3186

Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.

÷For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “PCB PARTS LIST”, “2. SCHEMATIC DIAGRAM”

and “3. PCB CONNECTION DIAGRAM”.

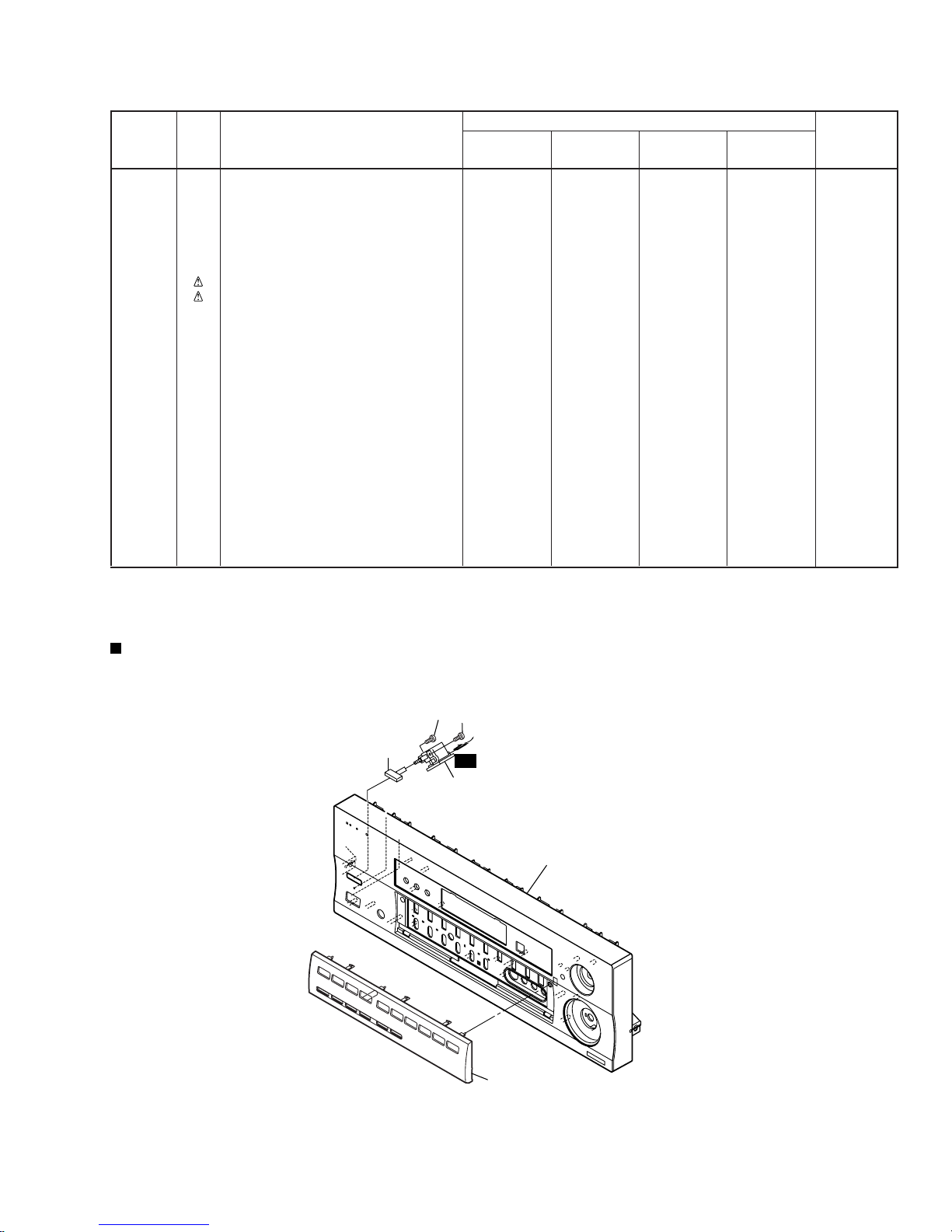

EXPLODEDVIEWS

÷FRONT PANEL SECTION

Front Panel

Sub Panel

No.12

No.2

PPZ30P080FMC

VSX-D510,VSX-D510-G

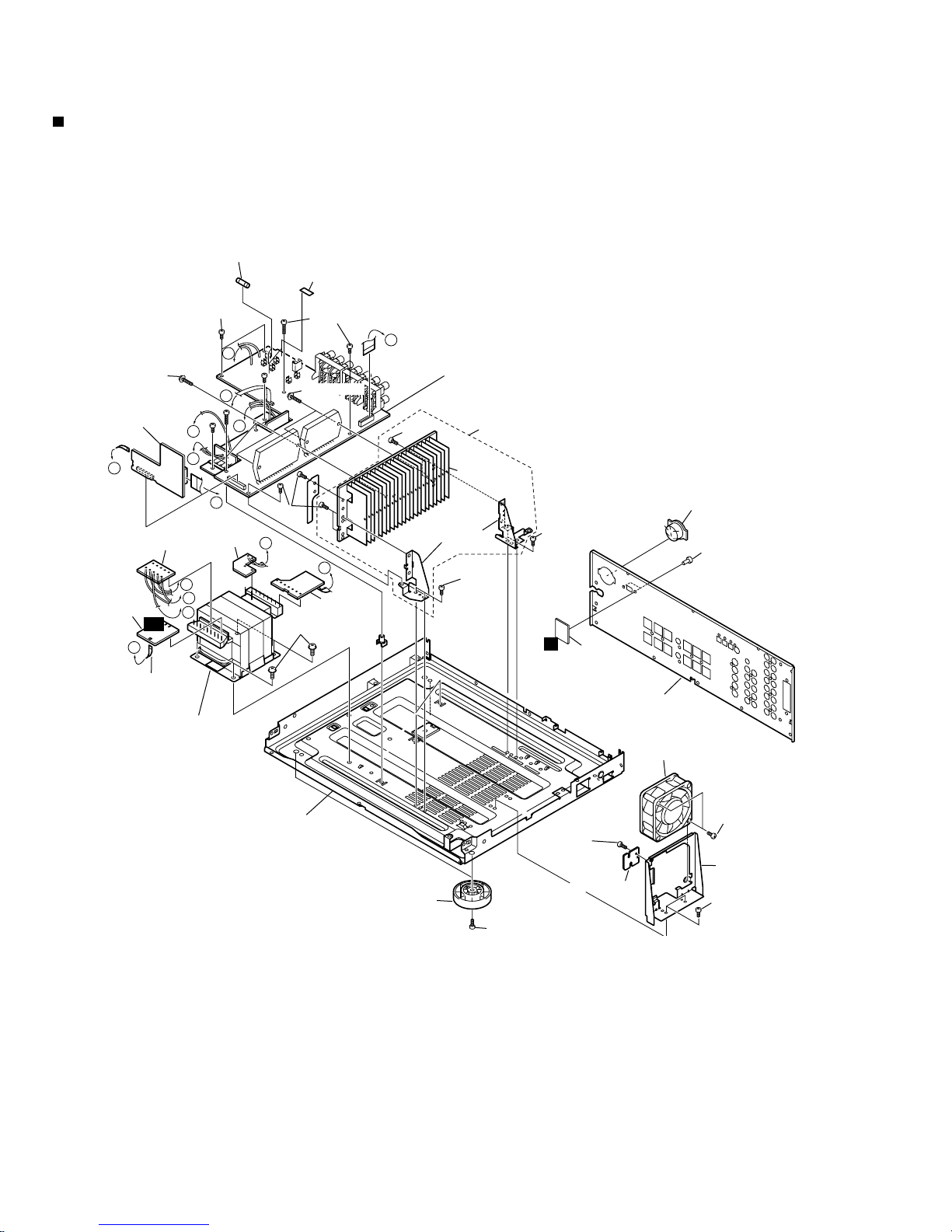

EXPLODEDVIEWS

Rear Panel

Under Base

AMP&PRIMARY

ASSY

AMP INPUT

ASSY

No.4

No.6

Screw

ABA7043

Screw

FBT40P080FZK

Screw

Screw_BBZ30P080FMC

Notes : No Indicated parts is

No.1

No.3

No.8

No.7

No.11

No. 9

No.10

Binder Assy

No.5

Heat Sink

Heat Sink Angle

Trans 3 Trans 1

Trans 2

ABA7043

Power Transformer

÷EXTERIOR SECTION

VSX-D510,VSX-D510-G

CONTRAST OF PCB ASSEMBLIES

XWZ3403 and AWZ7468 are constructed the same except for the following :

TRANS 2 ASSY

Mark Symbol and Description Part No. Remarks

AWZ7468 XWZ3403

IC851, IC852 (1.6A) AEK7012 Not used

IC851, IC852 (4A) Not used AEK7018

AMP&PRIMARY ASSY

XWZ3374, XWZ3375 and XWZ3372 are constructed the same except for the following :

Mark Symbol and Description Part No. Remarks

XWZ3372 XWZ3374 XWZ3375

IC701, IC702 (125mA) AEK7020 Not used Not used

IC52 (315mA) Not used AEK7003 AEK7003

Q701 2SC4793 2SD1859X 2SD1859X

Q702 2SA1837 2SB1238X 2SB1238X

D605, D605, D633, D634 MTZJ16A-T MTZJ8.2A MTZJ8.2A

D721, D722, D723, D724 Not used S5688G-T S5688G-T

D751, D755, D757 Not used 1SS133 1SS133

D754 1SS133 Not used Not used

T51 STANDBY TRANSFORMER ATT7057 ATT7038 ATT7037

C613, C614, C637, C663, C664 Not used Not used CCCSL101J50

C701, C702 ACH7137 ACH7137 ACH7134

C751, C752, C755, C761, C762 CFTYA104J50 CFTYA224J50 CFTYA224J50

C753, C754, C756, C763, C764 Not used CFTYA224J50 CFTYA224J50

C757, C758, C759, C765, C766 Not used Not used CQMBA472J50

C769, C770 Not used Not used CKPUYB102K50

R51 RCN1080 Not used Not used

R711 RS2LMF392J RS2LMF332J RS2LMF332J

R701, R702 RD1/4PU562J RD1/4PU682J RD1/4PU682J

R703, R704 RD1/4PU183J RD1/4PU623J RD1/4PU623J

R707, R708 Not Used RD1/4PU184J RD1/4PU184J

CN751 SPEAKER TERMINAL 6-P XKE3007 AKE7061 AKE7061

CN752 SPEAKER TERMINAL 4-P XKE3006 XKE3005 XKE3005

51 1P AC SOCKET AKP1060 Not used Not used

52 3P CABLE HOLDER Not used 51048-0300 51048-0300

NSP 53 3PI TOP POST Not used AKC-081 Not used

CN784 10P SOCKET KP250NA10 KP250NA10 Not used

H701, H702 FUSE CLIP AKR7001 Not used Not used

H53–H56 FUSE CLIP Not used AKR7001 Not used

XWZ3384 and AWZ7493 are constructed the same except for the following :

REGULATOR ASSY

Mark Symbol and Description Part No. Remarks

AWZ7493 XWZ3384

D805– D808 S5688G-T Not used

VSX-D510,VSX-D510-G

XWZ3387 and AWX7382 are constructed the same except for the following :

AMP INPUT ASSY

Mark Symbol and Description Part No. Remarks

AWX7382 XWZ3387

IC251 Not used NJM4558D-D

Q257 Not used 2SA933S

Q251, Q256 Not used 2SC2878

Q252 Not used 2SD1858X

Q254 Not used KRA103M

Q253, Q255 Not used KRC103M

D251, D252 Not used 1SS133

D253 Not used MTZJ27D

D254 Not used MTZJ5.1B

C251 Not used CEANP470M25

C254 Not used CEAT101M25

C252, C253 Not used CKPUYF103Z25

R269 Not used RD1/4PU102J

R251- R255, R258, R259, R262, R266, R268 Not used RD1/4PU104J

R257 Not used RD1/4PU164J

R261 Not used RD1/4PU222J

R265 Not used RD1/4PU223J

R263 Not used RD1/4PU471J

R264, R267 Not used RD1/4PU472J

R260 Not used RD1/4PU754J

CN251 3P CONNECTOR Not used 52044-0345

CN254 17P CONNECTOR Not used 52044-1745

CN252 PLUG 3-P Not used KM250MA3L

CN253 16P SOCKET Not used KP200TA16L

CN290 17P CONNECTOR 52044-1745 Not used

CN291 16P SOCKET KP200TA16L Not used

FRONT ASSY

R407 Not used RS1/16S472J RS1/16S472J

R409 RS1/16S0R0J Not used Not used

R428 RS1/16S472J Not used RS1/16S472J

R429 Not used RS1/16S0R0J RS1/16S751J

Mark Symbol and Description Part No.

XWZ3336 XWZ3338 XWZ3339 Remarks

XWZ3338, XWZ3339 and XWZ3336 are constructed the same except for the following :

VSX-D510,VSX-D510-G

PCB PARTS LIST

Mark No. Description Part No.

MECHA ASSY (XWZ3358)

SWITCHES AND RELAYS

S591 ASG7014

CAPACITORS

C591, C592 CGSQYF103Z50

OTHERS

CN591 3P JUMPER CONNECTOR 52151-0310

TRANS 4 ASSY (XWZ3369)

SWITCHES AND RELAYS

IC891,IC892 PROTECTOR(630mA) AEK7006

D891 S1WB(A)60SD

CAPACITORS

C891, C892 CEAT471M35

OTHERS

CN891 3P CONNECTOR 52045-0345

VOLTAGE SELECT SW ASSY

SWITCHES

S51 VOLTAGE SELECTOR AKX1033

VSX-D510,VSX-D510-G

1234

REGULATOR ASSY

(XWZ3384)

CN101

A1/3

CN302

2/2F

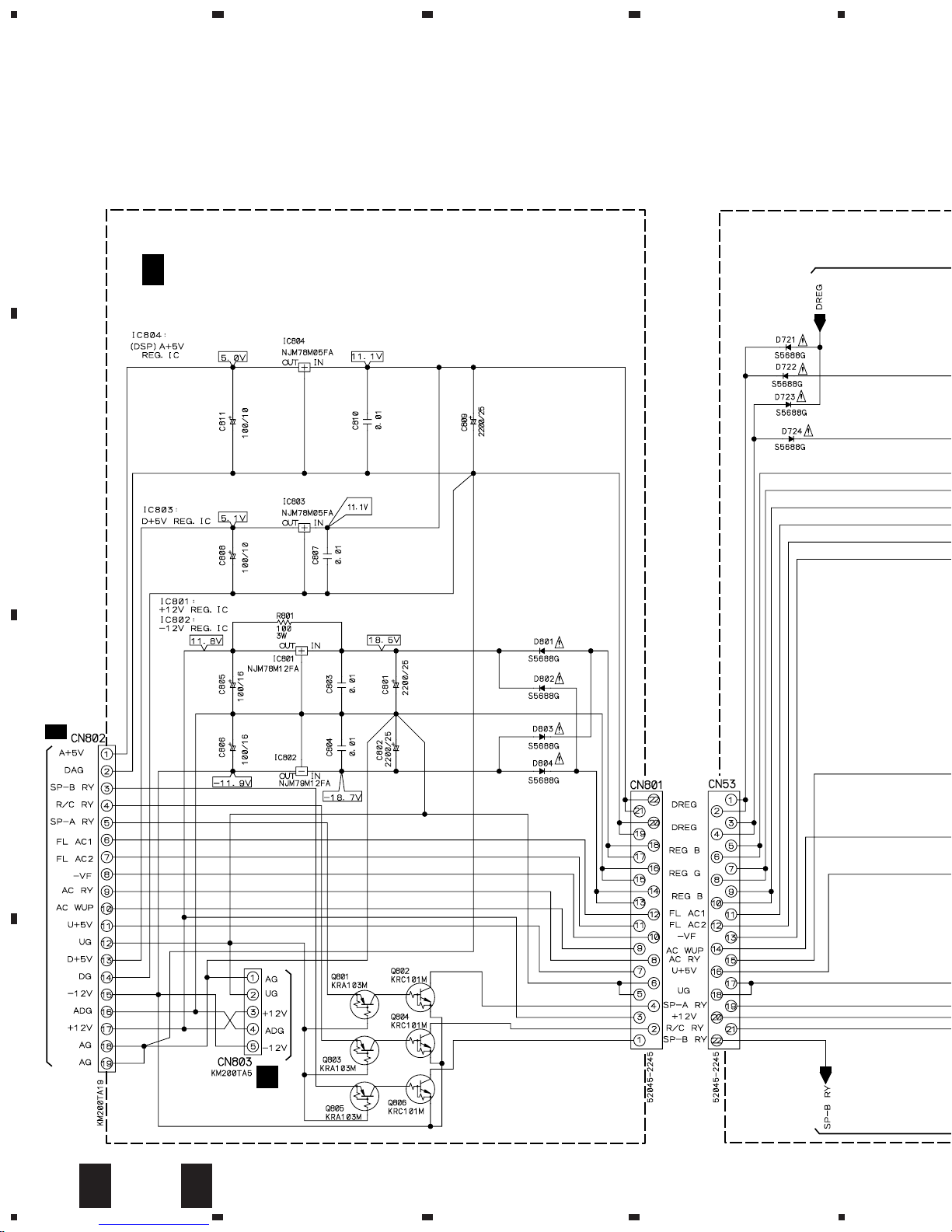

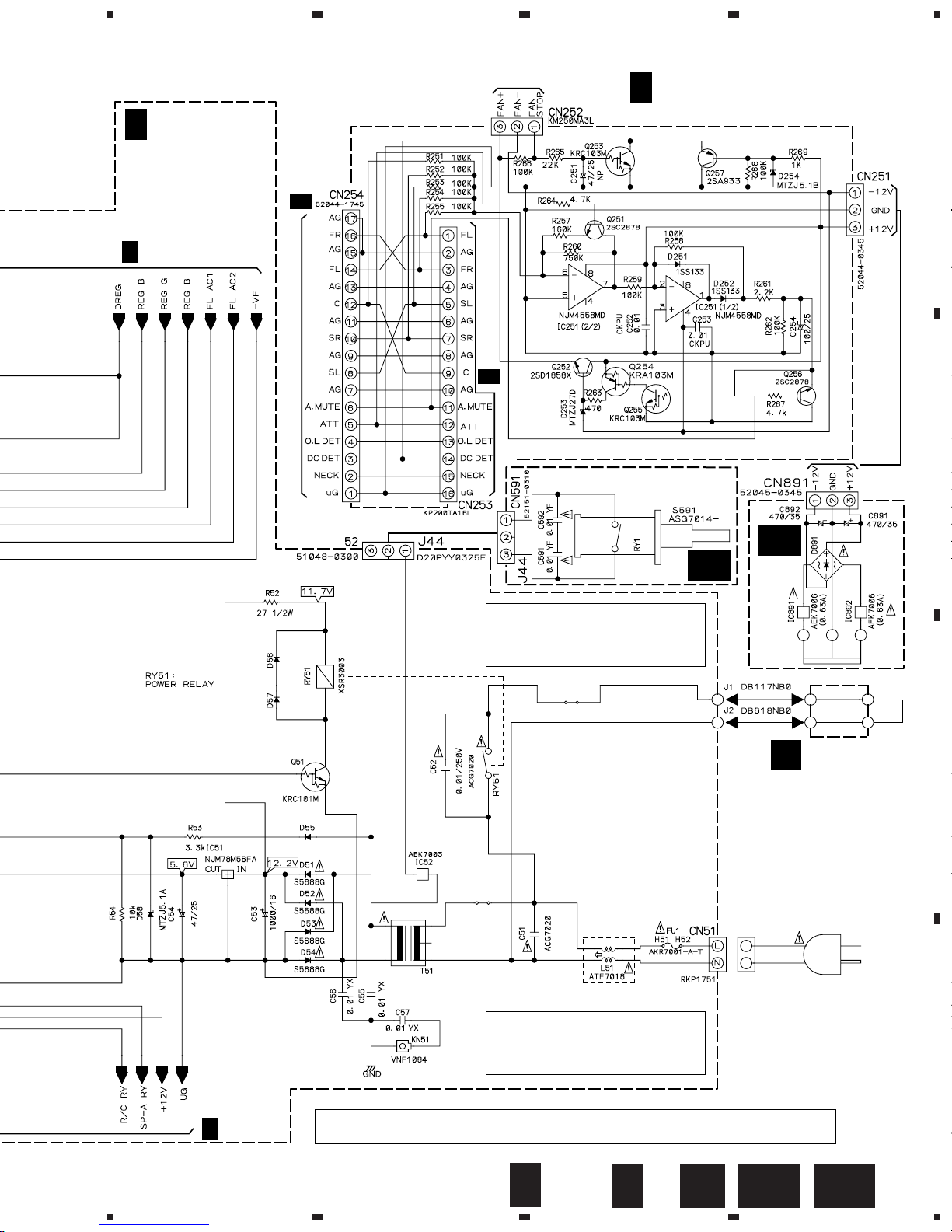

2.1 AMP&PRIMARY (2/2), REGULATOR, AMP INPUT,TRANS1, MECHA SW and

TRANS4 ASSYS

2. SCHEMATIC DIAGRAM

VSX-D510,VSX-D510-G

5678

LIVE

REK1026 (T2.5A)

ATT7037

• NOTE FOR FUSE REPLACEMENT

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE AND RATINGS ONLY.

CAUTION -

CAUTION : FOR CONTINUED PROTECTION

AGAINST RISK OF FIRE.

REPLACE ONLY WITH SAME TYPE

NO. 491.315 FOR IC52 MFD, BY

LITTELFUSE INC.

AMP&PRIMARY

ASSY

(/HLXJI:XWZ3375)

B2/2F

AMP INPUT ASSY

(XWZ3387)

B1/2

NEUTRAL

AC POWER CORD

SDPWXJI : XDG3010

BXJI : VDG3010

HLXJI : VDG1077

TRANS1

ASSY

(XWZ3390)

GA GB

TRANS4 ASSY

(XWZ3369)

MECHA SW ASSY

(XWX3358)

CN106

A1/3

CN601

B1/2

CAUTION : FOR CONTINUED PROTECTION

AGAINST RISK OF FIRE.

REPLACE ONLY WITH SAME TYPE

NO. 491.630 FOR IC891 AND IC892

MFD, BY LITTELFUSE INC.

FAN MOTOR

POWER TRANSFORMER

2/2F

VSX-D510,VSX-D510-G

1234

SDPWXJI and

BXJI : REK1026 (T2.5A)

SDPWXJI and

BXJI : REK1026 (T2.5A)

SDPWXJI and

BXJI : ATT7038 AC POWER CORD

SDPWXJI,BXJI : XDG3010

POWER TRANSFORMER

LIVE

NEUTRAL

CAUTION : FOR CONTINUED PROTECTION

AGAINST RISK OF FIRE.

REPLACE ONLY WITH SAME TYPE

NO. 491.315 FOR IC52 MFD, BY

LITTELFUSE INC.

CN591

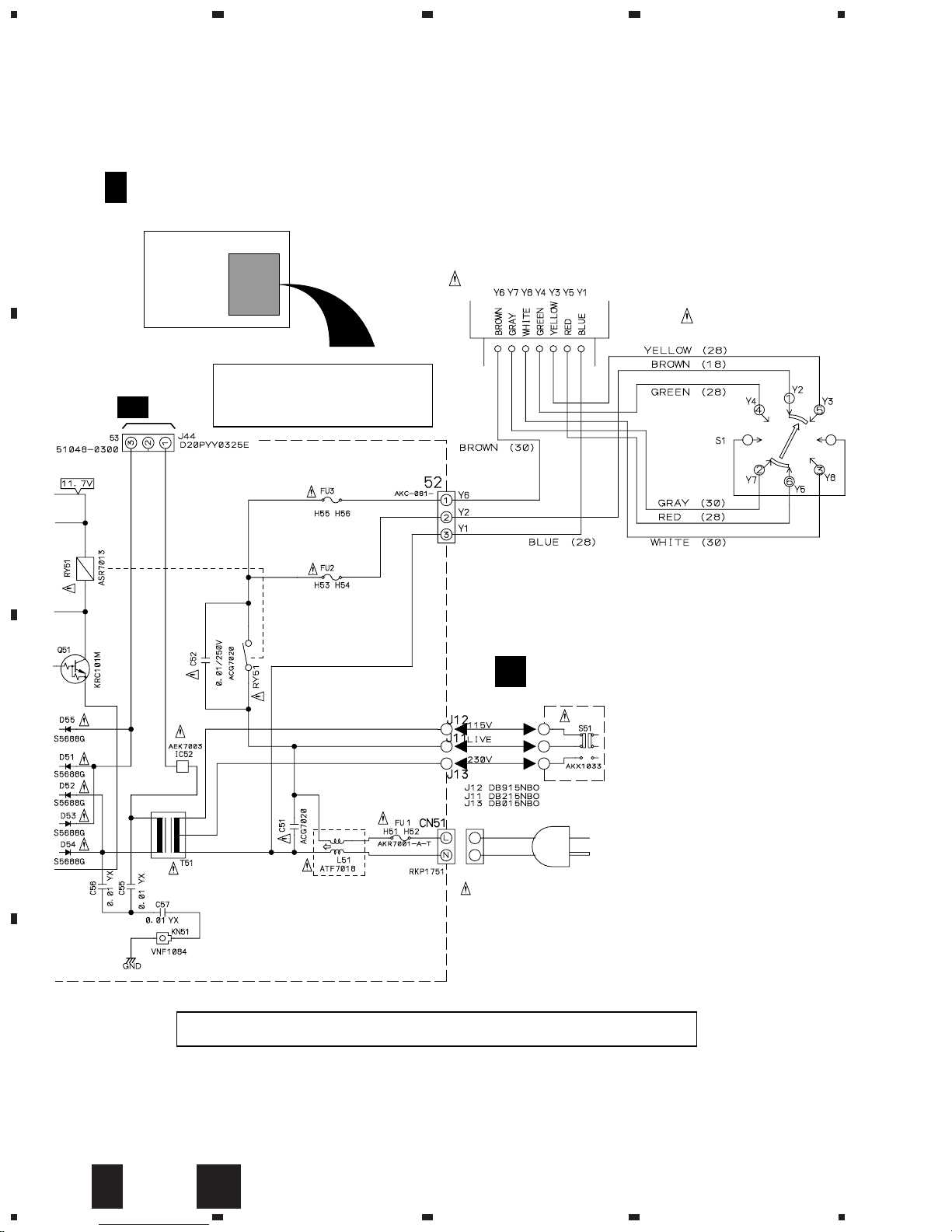

VOLTAGE SELECT

SW (AKX-507)

AMP&PRIMARY ASSY (SDPWXJI and BXJI types : XWZ3374)

2/2F

VOLTAGE SELECT SW ASSY

(SDPWXJI, BXJI TYPE : XWZ3393)

SDPWXJI and

BXJI : REK1030 (T6.3A)

• NOTE FOR FUSE REPLACEMENT

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE AND RATINGS ONLY.

CAUTION -

2.2 AMP&PRIMARY (2/2) and VOLTAGE SELECT SW ASSYS

2/2F

Altri manuali per VSX-D510

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pioneer Ricevitore

Pioneer

Pioneer SX-727 Manuale tecnico

Pioneer

Pioneer VSX-S300-k Manuale utente

Pioneer

Pioneer MVH-290DAB Manuale utente

Pioneer

Pioneer ANH-P9R-BK Manuale utente

Pioneer

Pioneer AVH-X2700BS Manuale per l'uso e la cura

Pioneer

Pioneer VSX-522-K Manuale utente

Pioneer

Pioneer Super Tuner IIID AVH-P5200BT Manuale utente

Pioneer

Pioneer AVH-P4200DVD Manuale utente

Pioneer

Pioneer DMH-160BT Manuale utente

Pioneer

Pioneer Super Tuner IIID AVH-P5200BT Manuale utente

Pioneer

Pioneer SPH-10BT Manuale utente

Pioneer

Pioneer VSX-422-K Manuale utente

Pioneer

Pioneer VSX-9110TXV Manuale utente

Pioneer

Pioneer VSX-D512 Manuale utente

Pioneer

Pioneer VSX-918V Manuale utente

Pioneer

Pioneer X-CM52BT-K Manuale utente

Pioneer

Pioneer MVH-X375 Manuale utente

Pioneer

Pioneer VSX-415-K Manuale utente

Pioneer

Pioneer VSX-D514-K Manuale utente

Pioneer

Pioneer SC-LX901 Manuale di installazione e funzionamento

Pioneer

Pioneer VSX-818V Manuale utente

Pioneer

Pioneer VSX-1123-K Manuale utente

Pioneer

Pioneer AVH-2550NEX Manuale utente

Pioneer

Pioneer XV-DV360 Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
