PJLink MAX-WU55S Manuale utente
1
LCD Projector
MAX-WU55S/MAX-WU55SH
MAX-WU55SE/MAX-WU55SF
User's Manual
Operating Guide – Technical
Supported signals for COMPUTER IN
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 W-XGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
1920 x 1080 Full HD (60Hz) 67.5 60 VESA
2
Supported signals for HDMI
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 W-XGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
720(1440) x 480i 480i 15.7 60 CEA
720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
Supported signals
3
Supported signals
NOTE • Be sure to check jack type, signal level, timing and resolution
before connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some
cases. Refer to the number of display pixels above.
• The signal will be converted to the projector’s panel resolution before being
displayed. The best display performance will be achieved if the resolutions of
the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a
composite sync or a sync on G.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
4

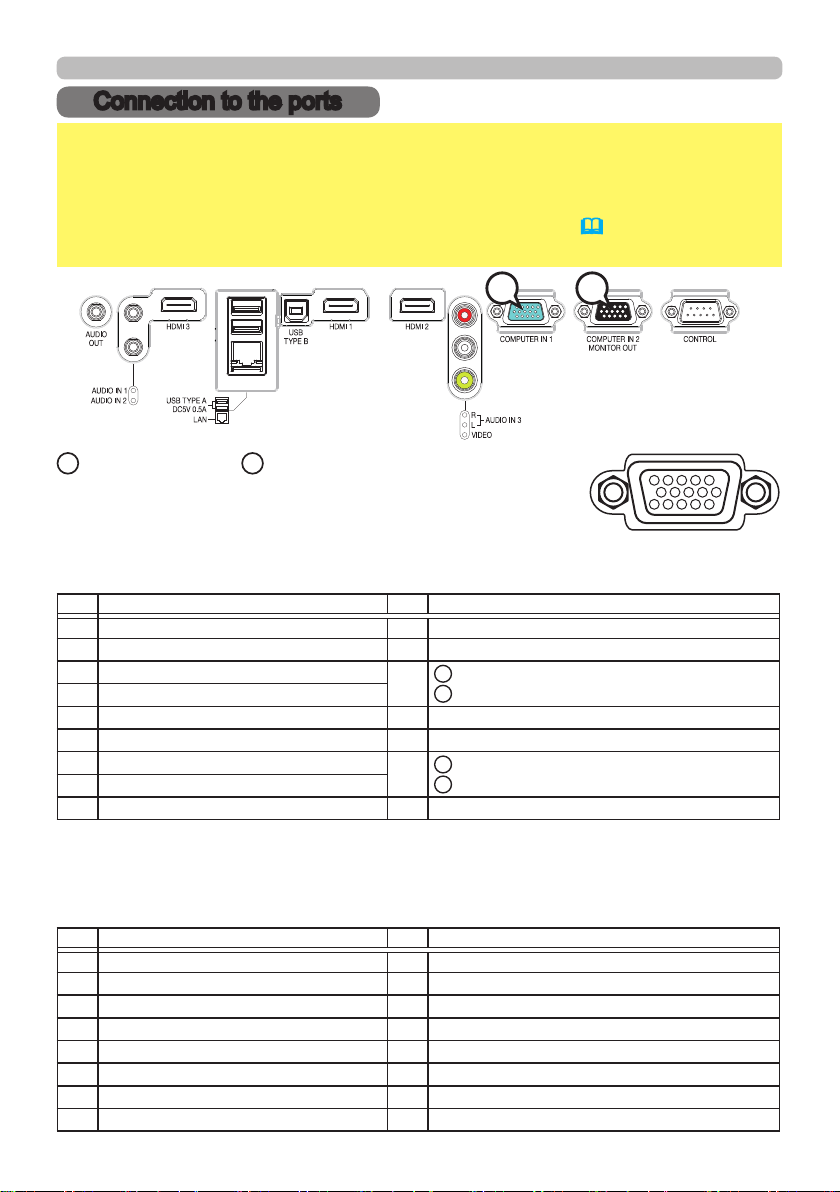

Connection to the ports
Connection to the ports
NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the
input ports of the projector are recessed.
►Only the signal that is input from the COMPUTER IN1 can be output from
the COMPUTER IN2/MONITOR OUT port. The way is available only when
the MONITOR OUT is selected for the COMPUTER IN2. (&INPUT menu -
COMPUTER IN in the Operating Guide)
ACOMPUTER IN1, BCOMPUTER IN2/MONITOR OUT
D-sub 15pin mini shrink jack
(1) for PC signal
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue 12 A
: SDA (DDC data)
B
: (No connection)
4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green 15 A
: SCL (DDC clock)
B
: (No connection)
8 Ground Blue
9 (No connection) - -
(2) for Component signal
• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator
• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator
• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator
System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60
Pin Signal Pin Signal
1Cr/Pr 9 (No connection)
2 Y 10 Ground
3 Cb/Pb 11 (No connection)
4 (No connection) 12 (No connection)
5 Ground 13 (No connection)
6 Ground Cr/Pr 14 (No connection)
7 Ground Y 15 (No connection)
8 Ground Cb/Pb - -
AB
5

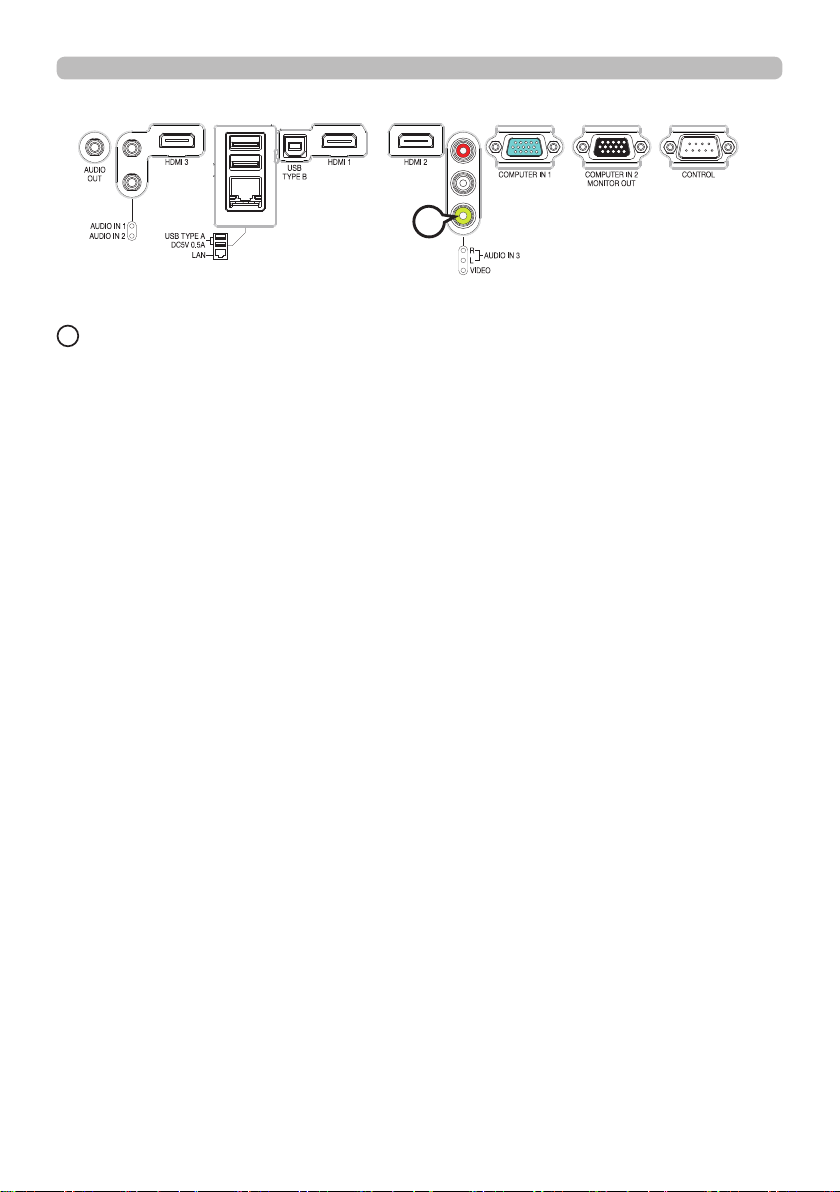

Connection to the ports (continued)
CVIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
• 1.0±0.1Vp-p, 75Ω terminator
C
6

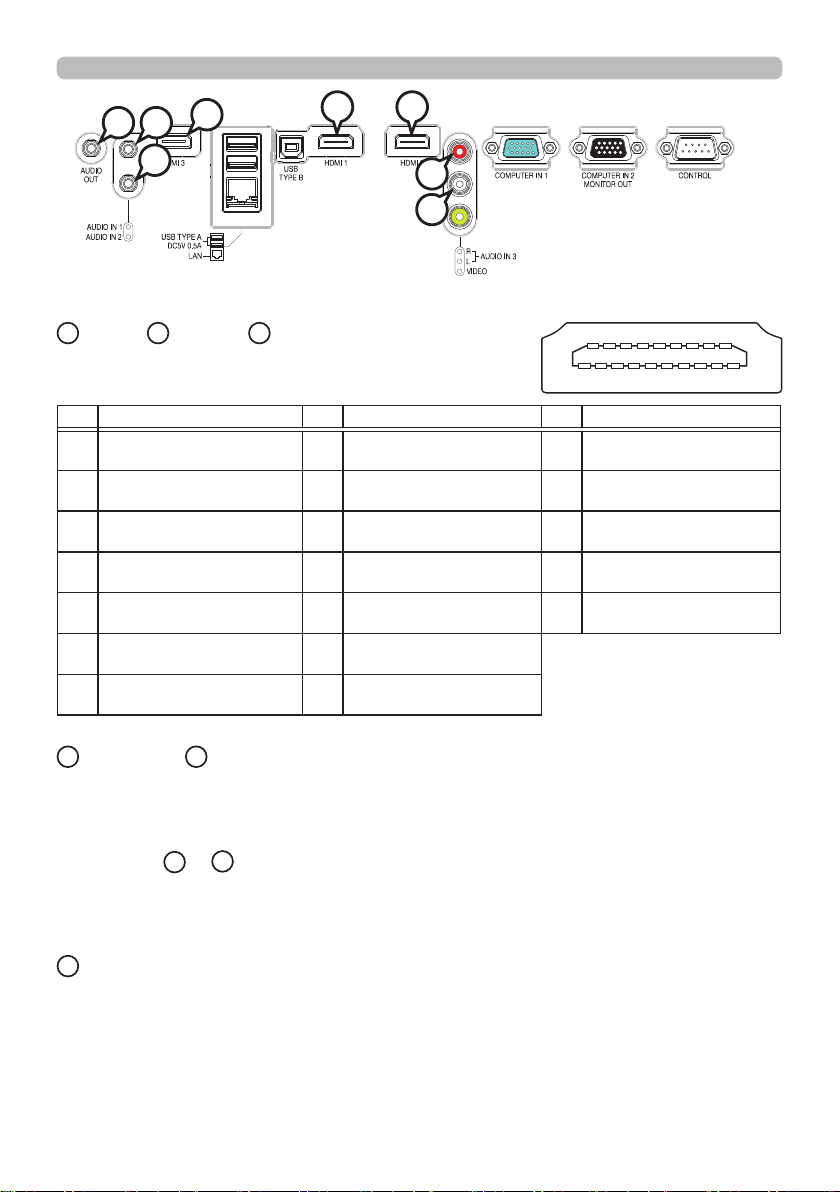

Connection to the ports (continued)
GAUDIO IN1
H
AUDIO IN2
Ø3.5 stereo mini jack
• 47kΩ terminator
AUDIO IN3
I
R,
J
L
RCA jack x2
• 47kΩ terminator
K
AUDIO OUT
Ø3.5 stereo mini jack
• 1kΩ output impedance
DHDMI1 EHDMI2 FHDMI3
• Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1T.M.D.S. Data2
+N.C. 8 T.M.D.S. Data0 Shield 15 SCL
CD_PULLUP
2T.M.D.S. Data2 Shield
CD_SENSE 9 T.M.D.S. Data0 - 16 SDA
N.C.
3T.M.D.S. Data2 -
N.C. 10 T.M.D.S. Clock +
N.C. 17 DDC/CEC Ground
VBUS_CBUS_GND
4T.M.D.S. Data1 +
N.C. 11 T.M.D.S. Clock Shield
TMDS_GND
18
+5V Power
VBUS
5T.M.D.S. Data1 Shield
TMDS_GND 12 T.M.D.S. Clock -
N.C. 19 Hot Plug Detect
CBUS
6T.M.D.S. Data1 -
N.C. 13 CEC
N.C.
7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)
N.C.
10 12 14 16 182468
911131517191357
D
I
E
G
H
J
KF
7

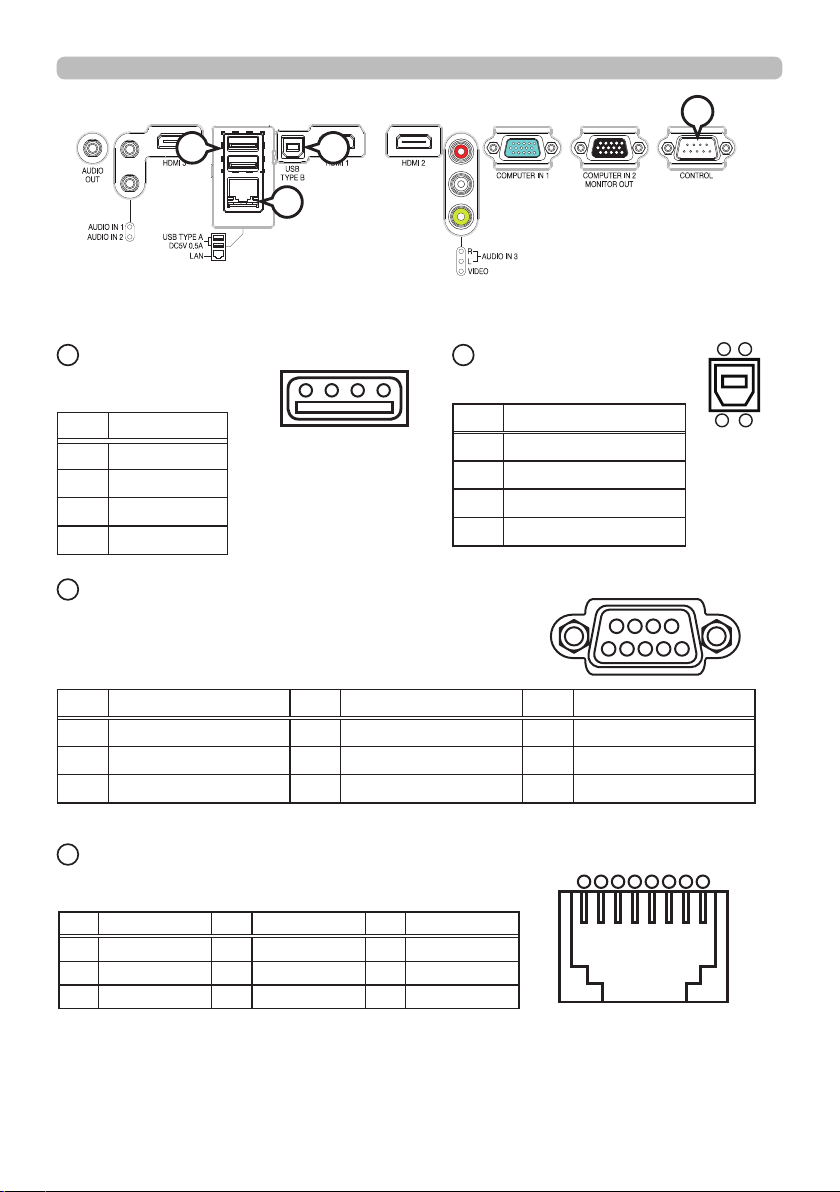

Connection to the ports (continued)
M
USB
TYPE B
USB B type jack
Pin Signal
1 +5V
2 - Data
3+ Data
4Ground
43
21
N
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication,
please refer to the section "RS-232C Communication".
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
O
LAN
RJ-45 jack 87654
3
21
Pin Signal Pin Signal Pin Signal
1 TX+ 4 - 7 -
2 TX- 5 - 8 -
3RX+ 6 RX-
LUSB TYPE A
USB A type jack 432 1
Pin Signal
1 +5V
2 - Data
3+ Data
4Ground
9
5 4 3 2 1
6
7
8
N
L M
O
8
Connection to the ports (continued)

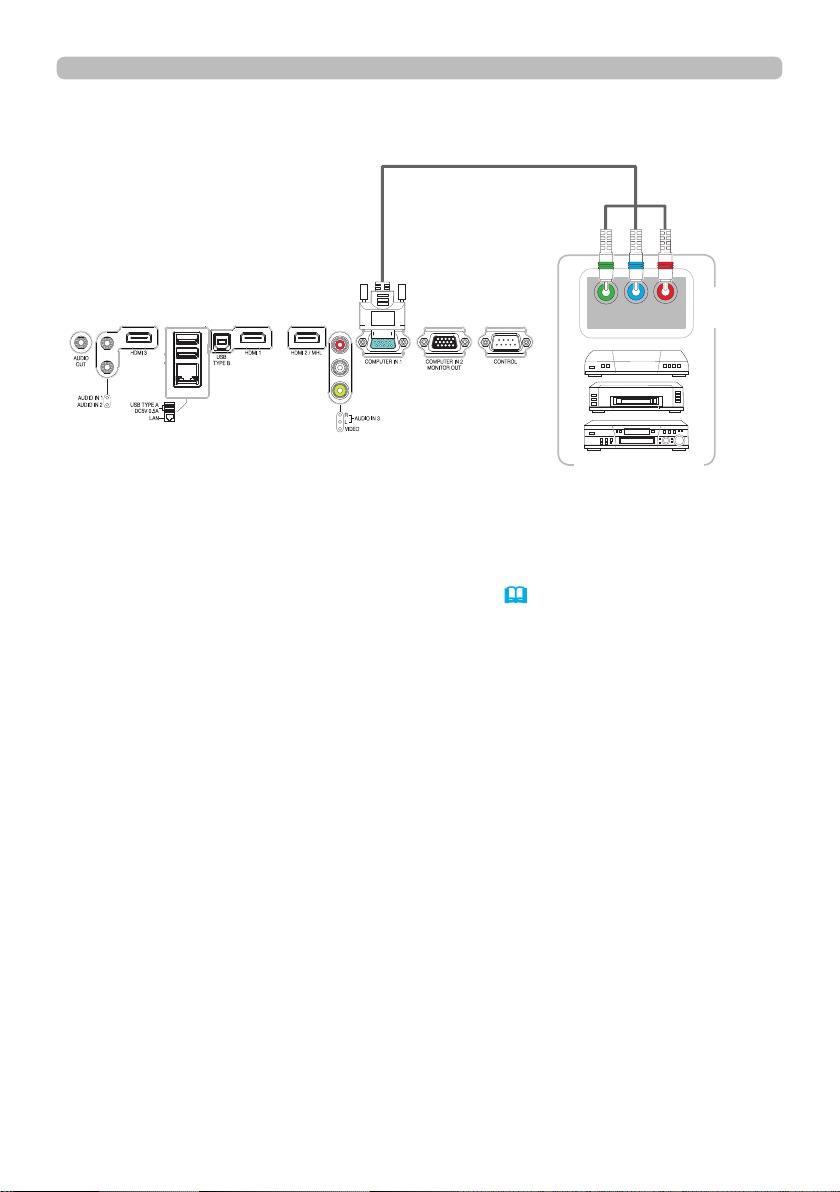

To input component video signal to COMPUTER IN ports
ex.
To input component video signal to the COMPUTER IN1 or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about COMPUTER IN1 and IN2 port (&4).
Y CB/PBCR/PR
COMPONENT VIDEO OUT
RCA plugs
D-sub plug
VCR/DVD/Blu-ray
Disc player
RCA
connectors
9

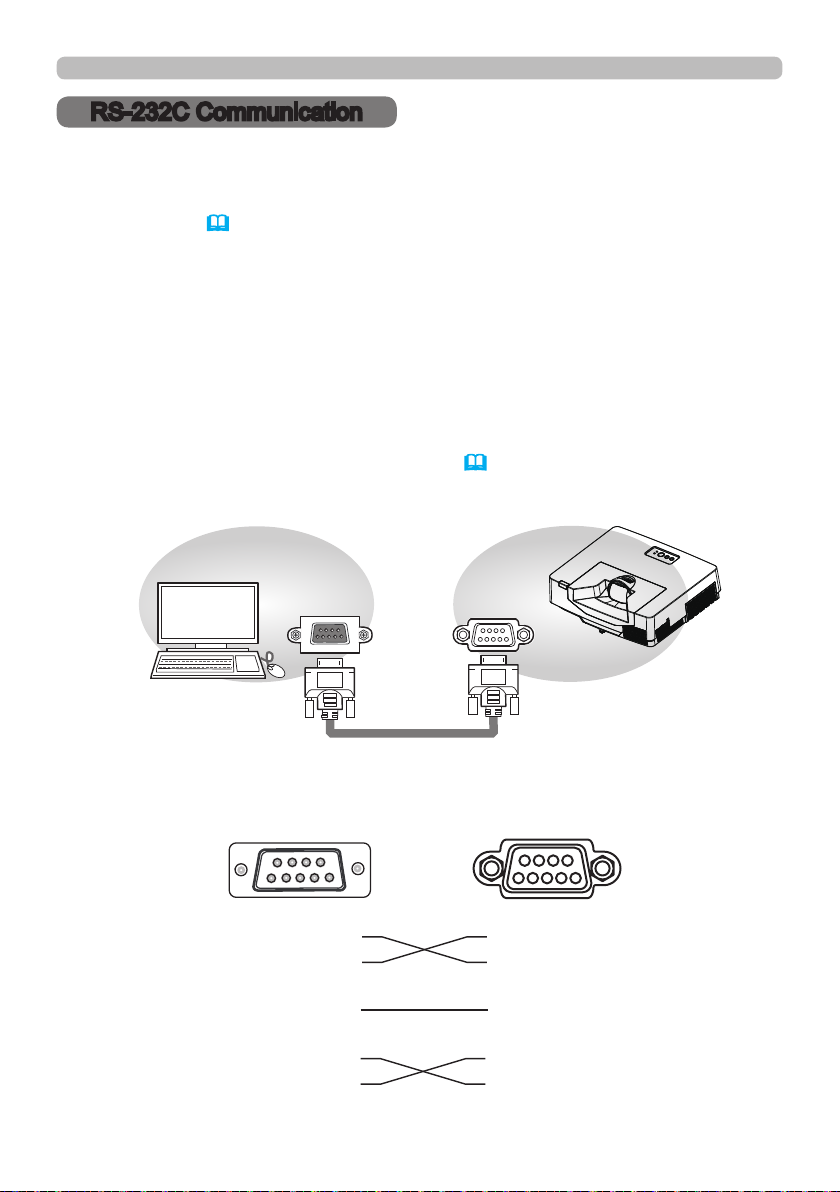

RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the
projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&18).
Connection
1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port
with a RS-232C cable (cross). Use the cable that fullls the specication
shown in gure
3. Turn the computer on, and after the computer has started up turn the projector
on.
4. Set the COMMUNICATION TYPE to OFF. (&OPTION menu - SERVICE -
COMMUNICATION in the Operating Guide)
(cross)
RS-232C Cable
RS-232C CONTROL
CD (1) (1) －
RD(2) (2) RD
TD (3) (3) TD
DTR (4) (4) －
GND (5) (5) GND
DSR (6) (6) －
RTS (7) (7) RTS
CTS (8) (8) CTS
RI (9) (9) －
CONTROL port
of the projector
RS-232C port
of the computer
9
5 4 3 2 1
6
7
8
1
2
43
8
9
5
7 6
10
RS-232C Communication (continued)
Communication settings
1. Protocol
19200bps, 8N1 (default)
(&OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)
2. Command format ("h" shows hexadecimal)
Byte Number 0 1 2 3 4 5 6 7 8 9 10 11 12
Command
Action
Header Data
Header
code
Packet
Data
size
CRC
ag Action Type Setting
code
LHLHLHLHLHLH
<SET>
Change setting to
desired value [(cL)(cH)]
by [(bL)(bH)].
BEh EFh 03h 06h 00h
(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)
<GET>
Read projector
internal setup value [(bL)
(bH)] .
(aL) (aH) 02h 00h (bL) (bH) 00h 00h
<INCREMENT>
Increment setup value
[(bL)(bH)] by 1.
(aL) (aH) 04h 00h (bL) (bH) 00h 00h
<DECREMENT>
Decrement setup value
[(bL)(bH)] by 1.
(aL) (aH) 05h 00h (bL) (bH) 00h 00h
<EXECUTE> Run a
command [(bL)(bH)].
(aL) (aH) 06h 00h (bL) (bH) 00h 00h
[Header code] [Packet] [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0
~
4.
[CRC ag]
For byte number
5, 6,
refer to
RS-232C Communication / Network command
table
(&18).
[Action]
Set functional code to byte number 7, 8.
<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]
<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]
Refer to the Communication command table (&above).
[Type] [Setting code]
For byte number
9
～
12
, refer to
RS-232C Communication / Network command
table
(&18).
