The PD8130/PD8150 is shipped with the standard (1.85:1 to 2.40:1) projection

lens pre-installed. If your installation requires the optional short-throw (1.56:1 to

1.86:1) lens, proceed as follows to remove the standard lens and replace it with

the short-throw lens.

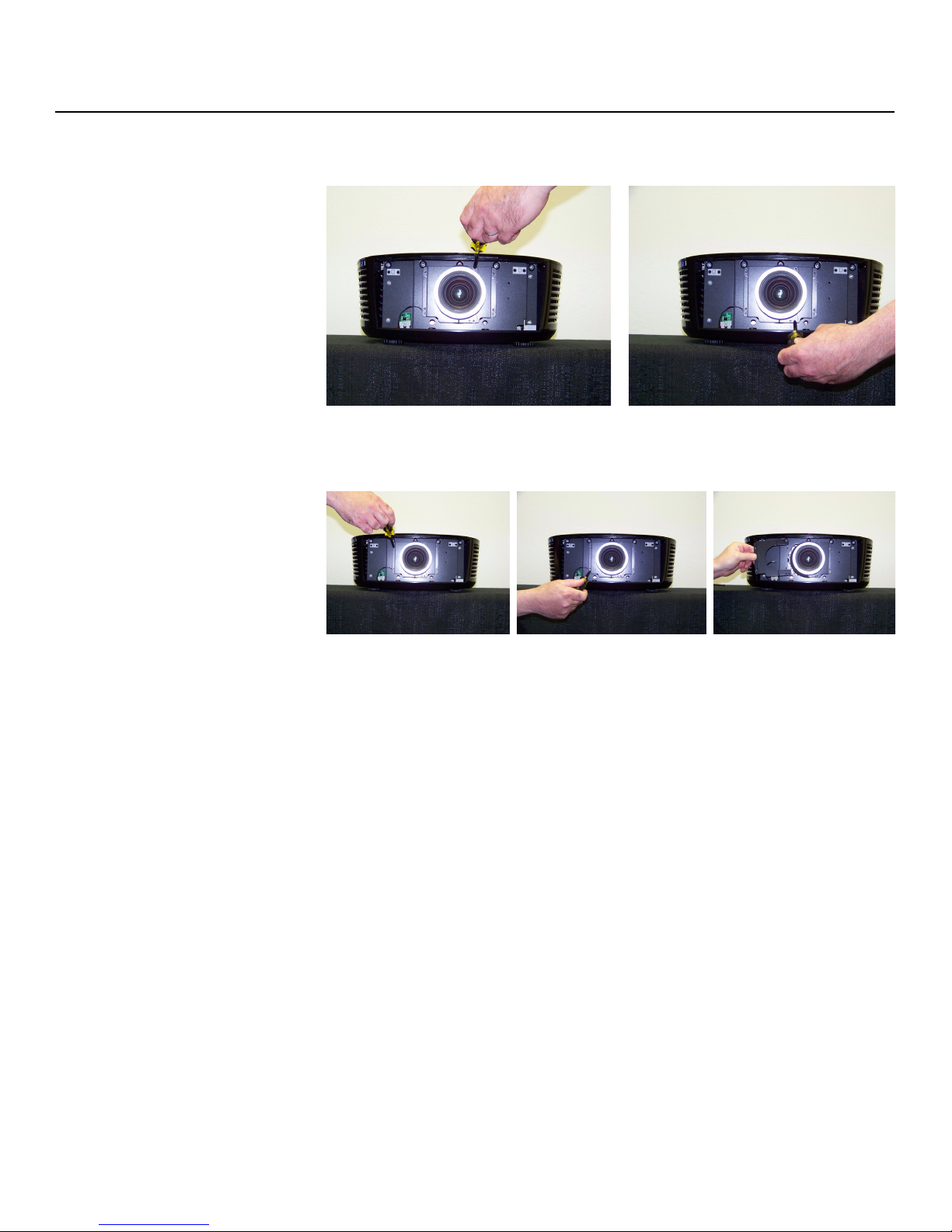

1. Using a Phillips screwdriver,

remove the two screws holding

the projector front cover in place.

2. Gently pull the cover away from

the projector at each side to

detach it.

3. Remove the cover and set it aside.

1. PD8130/PD8150 Short-Throw

Lens

Planar Systems, Inc.

1195 NW Compton Drive

Beaverton, OR 97006-1992

+1 (866) PLANAR1

www.planarhometheater.com

Part Number 997-5351-00

Installation Instructions

PD8130/PD8150 Short-Throw Lens

2 020-0960-00 Rev. B

PRELIMINARY

Removing the Stray Light

Shield

4. Remove the center top and center bottom Phillips screws securing the left

and right halves of the light shield to each other.

5. Remove the two Phillips screws holding the left half of the shield in place.

Then, lift it off and set it aside.

6. Repeat Step 5to remove the right half of the stray light shield.

➤

020-0960-00 Rev. B 3

PRELIMINARY

Removing the Standard

Lens

7. Remove the foam shield around the front of the lens and set it aside. (You

will install it on the replacement lens later.)

8. Remove the two (2), black plastic retaining clips on either side of the lens.

Each clip is held in place with two (2), captive Phillips screws. The white,

plastic standoffs serve as “handles” to make removing the clips easier.

9. Carefully remove the lens from the lens cavity by pulling it straight out, then

tilt it upward to allow the vertical lens shift adjuster to clear the opening at

the front of the projector.

PD8130/PD8150 Short-Throw Lens

4 020-0960-00 Rev. B

PRELIMINARY

Installing the Short-Throw

Lens and Re-Assembling

the Projector

10. Remove the vertical lens shift adjuster from the

top of the lens assembly that you just removed.

Install it at the same location on the

replacement lens assembly.

Note carefully the correct orientation of the lens when doing this. When

oriented correctly, the notch on the lens mounting plate faces down. The

lens aperture is crescent-shaped, with the concave edge facing down and

to the left:

11. Insert the short-throw lens into the lens

cavity. Ensure that the notch on the

vertical lens shift adjuster mates with

the retaining slot on the projector, as

shown at right. Otherwise, the adjuster

won’t work correctly.

12. Secure the lens in place using the black retaining clips that you removed in

Step 8.

13. Install the foam lens shield around the new lens (refer to Step 7).

14. Replace the stray light shield that you removed in Steps 4through 6.

(Remember to reconnect the black wire to the shield.)

15. Replace the projector front cover that you removed in Steps 1through 3.

➤

Vertical

Lens Shift

Adjuster

Aperture

Notch on Lens

Mounting Plate

faces down

Incorrect Correct
