48-Port 10/100/1000Mbps with 4 Shared SFP

Managed Security Switch

Data Sheet

High-Density / Cost-effective / Telecom class Gigabit solution for

Enterprise backbone and Data Center Networking

The PLANET WGSW-48040 is a High-Density, Rack-mountable, L2/L4 Full

Managed Gigabit Switch. Since Gigabit network interface had become the

basic equipment and requirement of Enterprise and Network Servers, with

96Gbps switching fabric, the WGSW-48040 can handle extremely large

amounts of data in a secure topology linking to a backbone or high

capacity servers. The powerful QoS and Network Security features make

WGSW-48040 to meets the needs of effective data traffic control for both

ISP and Enterprise, such VoIP, video streaming and multicast application.

High Performance

The PLANET WGSW-48040 provides 48 10/100/1000Mbps Gigabit

Ethernet ports with 4 shared Gigabit SFP slots. It boasts a high

performance switch architecture that is capable of providing non-blocking

switch fabric and wire-speed throughput as high as 96Gbps, which greatly

simplifies the tasks of upgrading the LAN for catering to increase

bandwidth demands.

Robust Layer 2 Features

The WGSW-48040 can be programmed for basic switch management

functions such as Port speed configuration, Port aggregation, VLAN,

Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping.

The WGSW-48040 provides 802.1Q Tagged VLAN. The VLAN groups

allowed on the WGSW-48040 will be maximally up to 255 .Via supporting

port Link Aggregation, the WGSW-48040 allows the operation of a

high-speed trunk combining multiple ports, up to eight groups of

maximum 8-ports for trunking, and it supports fail-over as well.

Excellent Traffic Control

PLANET WGSW-48040 is loaded with powerful traffic management and

QoS features to enhance services offered by telecoms. The functionality

includes QoS features such as wire-speed Layer 4 traffic classifiers and

bandwidth limiting that are particular useful for multi-tenant unit, multi

business unit, Telco, or Network Service Provide applications. It also

empowers the enterprises to take full advantages of the limited network

resources and guarantees the best performance at VoIP and Video

conferencing transmission.

Efficient Management

For efficient management, the WGSW-48040 Managed Ethernet Switch is

equipped with console, WEB and SNMP management interfaces. With its

built-in Web-based management, the PLANET WGSW-48040 offers an

easy-to-use, platform-independent management and configuration facility.

The PLANET WGSW-48040 supports standard Simple Network

Management Protocol (SNMP) and can be managed via any

standard-based management software. For text-based management,

WGSW-48040 can also be accessed via Telnet and the console port. For

secure remote management, the WGSW-48040 supports SSL and SSH

connection which encrypts the packet content at each session.

Powerful Security

PLANET WGSW-48040 offers comprehensive Access Control List (ACL) for

enforcing security to the edge. Its protection mechanisms comprise

port-based 802.1x user and device authentication. The port-security is

effective in limit the numbers of clients pass through, so that network

administrators can now construct highly secured corporate networks with

time and effort considerably less than before.

Flexibility and Extension Solution

The four mini-GBIC slots are compatible with 1000Base-SX/LX and WDM

SFP (Small Factor Pluggable) fiber-optic modules. The distance can be

extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120

kilometers (Single-Mode fiber or WDM fiber). They are well suited for using

within the enterprise data centers and distributions.

WGSW-48040

Data Sheet

Physical Port

• 48-Port 10/100/1000Base-T Gigabit Ethernet RJ-45

• 4 SFP slots, shared with Port-23, Port-24, Port 47 and Port-48

• Console interface for Switch basic management and setup

Layer 2 Features

•Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE

802.3z Gigabit Ethernet standard

•Supports Auto-negotiation and Half-Duplex / Full-Duplex modes for

all 10Base-T/100Base-TX and 1000Base-T ports.

•Auto-MDI / MDI-X detection for each RJ-45 port

•Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x

PAUSE frame flow control (Full-Duplex)

•High performance of Store-and-Forward architecture, broadcast

storm control and runt/CRC filtering eliminates erroneous packets to

optimize the network bandwidth

•8K MAC address table, automatic source address learning and ageing

•12Mbit embedded memory for packet buffers

•Supports IEEE 802.1Q Tagged based VLAN

•Private VLAN Edge (PVE) supported

•GVRP protocol for VLAN Management

•Supports up to 8 Trunk groups, and each trunk can be up to

maximum 8 port with 1.6Gbps bandwidth (Duplex Mode)

•IEEE 802.1d, IEEE 802.1w, classic Spanning Tree Algorithm or Rapid

Spanning Tree support

•Supports the IEEE 802.1s specification for multiple spanning trees on

a single port (spanning tree by VLAN)

•Port Mirroring to monitor the incoming or outgoing traffic on a

particular port

Quality of Service

•4 priority queues on all switch ports

•Supports for strict priority and Weighted Round Robin (WRR) CoS

policies

•Supports QoS and bandwidth control on each port

•Traffic-policing policies on the switch port

Multicast

• Supports IGMP Snooping v1 and v2

Security

• IEEE 802.1x Port-Based Authentication

• IP-Based Access Control List (ACL)

• MAC-Based Access Control List

• Port Security

Management

• WEB-based, Telnet, Console Command Line management

• SSH (Secure Shell), SSL

• Accesses through SNMPv1, v2c and v3 security Set and Gets requests

• Four groups (history, statistics, alarms, and events) of embedded remote

monitoring (RMON) agents for network monitoring and traffic analysis

• Built-in Trivial File Transfer Protocol (TFTP) client

• Virtual Cable Test (VCT) technology provides the mechanism to detect

and report potential cabling issues, such as cable opens, cable shorts,

etc. on Copper Links

Key Feature

WGSW-48040

48-Port 10/100/1000Mbps with 4 Shared SFP Managed Security Switch

Product

Specification

Model

Hardware Specification

Copper Ports

SFP / mini-GBIC Slots

Switch Architecture

Switch Fabric

Switch Throughput

Address Table

Share Data Buffer

Flow Control

Jumbo Frame

LED

Layer 2 Function

Management Interface

Port Configuration

Port Status

VLAN

Link Aggregation

QoS

IGMP Snooping

Access Control List

SNMP MIBs

Standards Conformance

Regulation Compliance

Standards Compliance

Physical Specifications

Dimensions (W x H x D)

Weight

Environment Specifications

Operating

Storage

WGSW-48040

48 10/100/1000Base-T RJ-45 Auto-MDI / MDI-X ports

4 SFP interfaces, shared with Port-23, Port-24, Port-47 and Port-48

Store-and-Forward

96Gbps / non-blocking

71.4Mpps

8K entries

12 Mbits

Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex

9K bytes

Power, Link / Act per port

Console, Telnet, SSH, Web Browser, SSL, SNMPv1, v2c and v3

Port disable / enable. Auto-negotiation 10/100/1000Mbps full and half duplex mode selection

Flow Control disable / enable. Bandwidth control on each port

Display each port's speed duplex mode, link status, and Flow control status. Auto negotiation

status, trunk status

802.1Q Tagged Based VLAN, up to 255 VLAN groups

Supports 8 groups of 8-Port trunk, IEEE 802.3ad LACP

Traffic classification based on Port Number, 802.1p priority, DSCP / TOS field in IP Packet

IGMP (v1 / v2) Snooping, up to 32 multicast Groups

IP-Based ACL / MAC-Based ACL, Up to 256 entries

RFC-1213 MIB-II

RFC-2863 Interface MIB

RFC-2665 EtherLike MIB

RFC-1493 Bridge MIB

RFC-2674 Extended Bridge MIB

RFC-2819 RMON MIB (Group 1, 2, 3 and 9)

RFC-2737 Entity MIB

RFC-2618 RADIUS Client MIB

FCC Part 15 Class A, CE

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3z Gigabit SX / LX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x Flow Control and Back pressure

IEEE 802.3ad Port trunk with LACP

IEEE 802.1d Spanning tree protocol

IEEE 802.1w Rapid spanning tree protocol

IEEE 802.1p Class of service

IEEE 802.1Q VLAN Tagging

IEEE 802.1x Port Authentication Network Control

IEEE 802.1s Multiple Spanning Tree protocol

430 x 350 x 44.5 mm, 1U height

3.5 KG

Temperature 0°C ~ 50 Degree C

Relative Humidity 20% ~ 85% (non-condensing)

Temperature -40°C ~ 70 Degree C

Relative Humidity 20% ~ 90% (non-condensing)

Data Sheet

WGSW-48040

PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or

06-07 C-WGSW48040-1

PLANET Technology Corporation

11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan R.O.C.

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: [email protected] www.planet.com.tw

VoIP Gateway: vip.planet.com.tw

Data Sheet

48-Port 10/100/1000Mbps with 4 Shared SFP Managed Security Switch

WGSW-48040

24-Port 10/100/1000Mbps with 2 Shared SFP Managed Security Switch

WGSW-24020

Applications

Relative Product

Ordering Information

SFP-Port 1000Base-T Module

SFP-Port 1000Base-SX mini-GBIC module

SFP-Port 1000Base-LX mini-GBIC module

SFP-Port 1000Base-LX mini-GBIC module-30km

SFP-Port 1000Base-LX mini-GBIC module-50km

SFP-Port 1000Base-LX mini-GBIC module-70km

SFP-Port 1000Base-LX mini-GBIC module-120km

SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10km

SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10km

SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-20km

SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-20km

SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-40km

SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-40km

MGB-GT

MGB-SX

MGB-LX

MGB-L30

MGB-L50

MGB-L70

MGB-L120

MGB-LA10

MGB-LB10

MGB-LA20

MGB-LB20

MGB-LA40

MGB-LB40

Available Modules

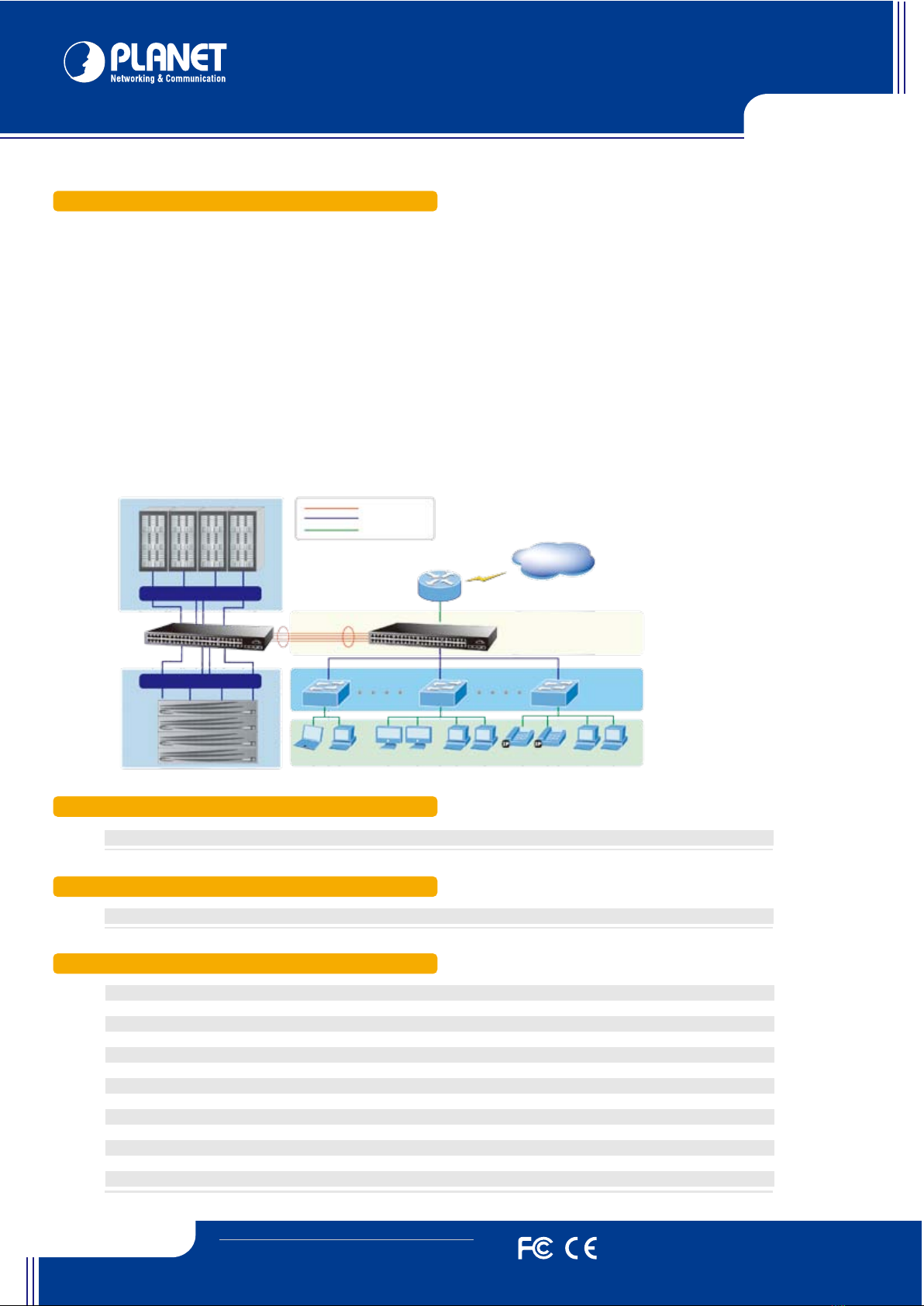

Backbone Switch

With up to 96 Gigabits per second of non-blocking switch fabric and 48-Port high density design, the WGSW-48040 can

easily provide the high bandwidth required both now and future. It can easily provide a local, high bandwidth, and Gigabit

Ethernet network for backbone of enterprises or Telecoms. With the four SFP ports, the WGSW-48040 provides the uplink

to the edge network through Gigabit Ethernet LX/SX SFP modules.

Department Security and QoS Switch

With the security and QoS features, it improves the network to be efficiency and protects the network clients. With the four

SFP ports, the WGSW-48040 provides the uplink to the backbone network through Gigabit Ethernet LX/SX SFP modules. With

the security, Multicast IGMP Snooping and QoS features, it improves the network's efficiency and protects the network clients.

Server Farm Switch

Gigabit Ethernet supported had become a basic equipment of Enterprises and Network servers. The WGSW-48040 provides

up to 48 Gigabit Ethernet ports. It is ideal to be used as a server farm switch connecting servers. With its port trunking

function, an 8GB fat pipe is provided for connecting to the backbone if required.

WGSW-48040

In t er n e t

Backbone Switch

Edge Switches

Router

1000Base-T

10/100Base-TXQoSACL Network Security

LACP 96G Fabric

Server Farm Switch

1000 T

1000 SX / LX

100 TX

Server Rack

NAS Storage
