Planet ICA-151 Manuale utente

Dual Mode CMOS Internet Camera

ICA-151

Version 1.1

Quick Installation Guide

Table of Contents

1. PACKAGE CONTENTS ................................................................................... 3

2. SYSTEM REQUIREMENTS .............................................................................. 4

3. OUTLOOK ................................................................................................ 5

3.1 Front Panel ......................................................................................... 5

3.2 Rear Panel .......................................................................................... 6

4. Physical Installation ..................................................................................... 7

5. Setup Wizard Conguration .......................................................................... 8

6. Cam Viewer Lite Installation ........................................................................15

Appendix A: Feature Listing for Cam Viewer......................................................19

Appendix B: Suggest Hardware / System Requirement ......................................20

Appendix C: Ordering Information for Cam Viewer Pro.......................................20

1. PACKAGE CONTENTS

1 x ICA-151

1 x Camera Stand

1 x Power Adapter

1 x CD-ROM

1 x Quick Installation Guide

Note

Please use the power adapter in this package. Using a power supply

with a different voltage rating will damage and void the warranty

for this product.

2. SYSTEM REQUIREMENTS

Network Interface 10/100 Base-TX Ethernet

Monitoring System Recommended for Internet Explorer 6.0 or later

System Hardware

• CPU: Pentium 4, 1.5GHz or above

• Memory Size : 512 MB or above

• VGA card resolution : 1024 x 768 or above

• Network bandwidth: In VGA resolution mode,

minimum upload bandwidth is 1Mbps.

Optional:

• Sound Card

• Microphone (for PC)

• Speaker (for PC and ICA-151)

3. OUTLOOK

3.1 Front Panel

Microphone

PWR LAN

ACT

LED Status LED Description

PWR

Off No power.

On Power on.

Blinking The Power LED will blink during start up (15 ~ 20 sec).

ACT Off Camera is not capturing video.

Blinking Camera is capturing video.

LAN Off LAN is not connected or camera is not sending/receiving data.

Blinking Data is being transmitted or received via the LAN connection.

3.2 Rear Panel

AUDIO OUT PWR LAN

PORT PORT Description

AUDIO OUT An external speaker can be plugged in.

PWR Connect the supplied power adapter.

LAN Connect your Camera to a 10/100Base-TX hub or switch.

Reset

Reset to manufacturer default valued and reboot.

When pressed and held over 10 seconds, the settings of IP

Camera will be set to the default values.

Upon completion, the PWE LED will blink three times.

Bottom Panel of ICA-151

4. Physical Installation

1. Connect an Ethernet cable

Connect one end of an Ethernet cable to the LAN port located on the IP camera’s

rear panel and connect the other end to the network device (hub or switch).

2. Attach the external power supply

Attach the provided power adapter to the IP camera’s connector labeled “PWR”

on the rear panel.

3. Check the LEDs

a. The Power LED will turn on briey, and then start blinking during startup.

After startup is completed, the Power LED will remain ON.

b. The LAN LED will be ON.

5. Setup Wizard Conguration

Initial setup should be performed by using the supplied Windows-based Setup

Wizard as follows:

1. Insert the bundled Product CD disk into CD-ROM drive to launch the autorun

program.

2. After the web page displayed, click the “Setup Wizard” hyperlink on the list to

start the conguration process.

Note

If the web page does not appear, click “Start” on the task bar and

select “Run” to type “X:\Utility\SetupWizard\SetupWizard.

exe”, assume X is your CD-Rom drive.

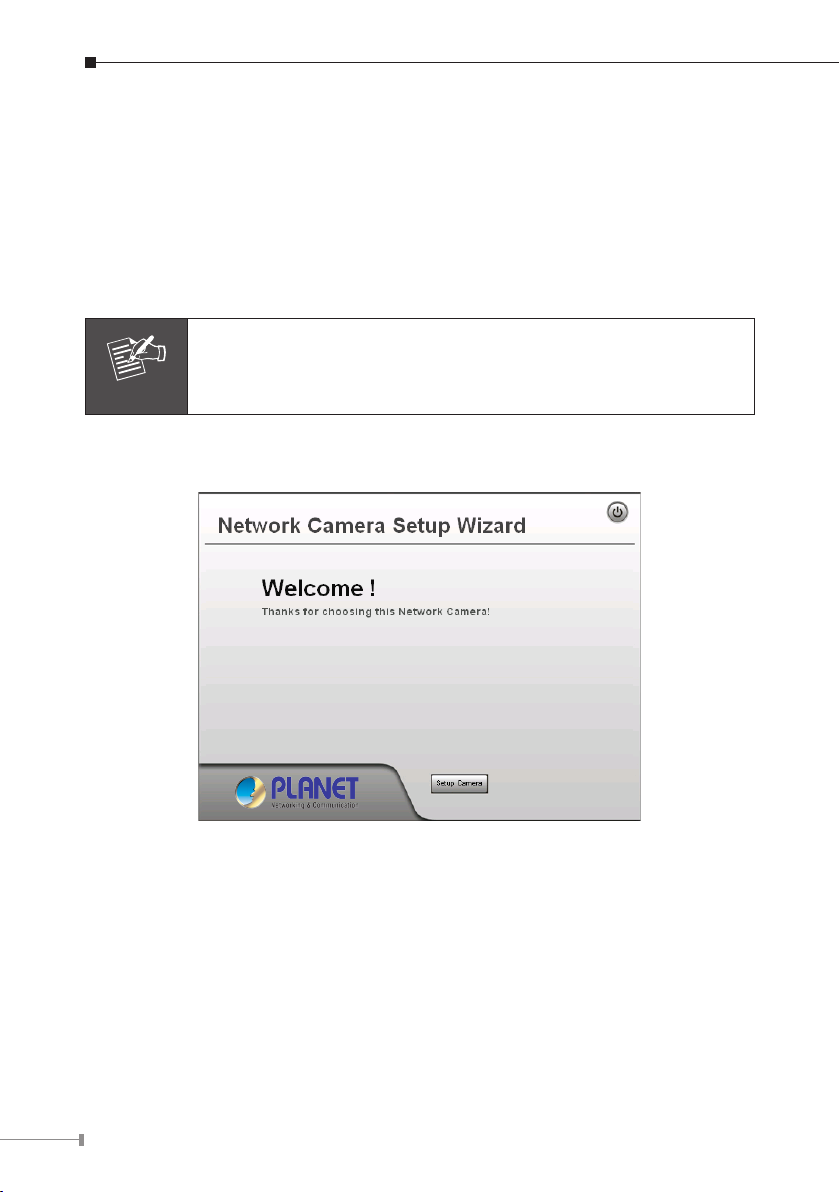

3. The welcome screen appears. Click on “Setup Camera” button to start the

wizard.

4. After clicking the setup camera button, it will auto search for the IP Cameras on

your network. Click on to continue.

5. The next screen below will list the IP Camera on your network. Select it from

the list on the left side, the current settings table will be displayed on the right

side. Click on to continue.

6. The administrator login window will pop up. If the Administrator Name and

Administrator Password have been set, you will be prompted to enter them. If

using the default values, please enter “admin” for both the name and the pass-

word. Click on “OK” to continue.

7. On the following Camera Settings screen, you can ll and congure the Device

Name, Description, Time Zone, Local Date and time here. Click on to

continue.
