20 Meter IR Vandal Proof Dome
Internet Camera
ICA-525
Quick Installation Guide
Table of Contents
Before Installation............................................................................................ 3
System Requirements ..................................................................................... 3
Package Content.............................................................................................. 4
Identication of Cables..................................................................................... 5
Inside the TEL box: ......................................................................................... 6
Hardware Installation ....................................................................................... 7
Initial Utility Installation and operation..............................................................10
Wizard function: .............................................................................................13
Username and Password: ...............................................................................14
Congure Utility Installation.............................................................................15
Appendix A: Feature Listing for Cam Viewer ....................................................19
Appendix B: Suggest Hardware / System Requirement ......................................20
Ordering Information for Cam Viewer Pro .........................................................20
Further Conguration ......................................................................................20
3
Thank you for purchasing the ICA-525. It is versatile and high image solution
of surveillance application for day and night. The ICA-525 is also a stand-alone
camera system with a built-in processor and web server that provides highest
quality video and system performance.
Before Installation
Before installation, please be sure to read this quick installation guide or user’s
manual of bundle CD carefully to complete machine installation.
System Requirements
Network
Interface 10/100M Base-TX Ethernet
Monitoring
System Recommended for Internet Explorer 6.0 or later
System
Hardware
● CPU: Pentium 4, 1.5GHz or above
● Memory Size : 512 MB (512 MB or above Recommended)
● VGA card resolution : 1024 x 768 or above
● Sound Card : Necessary
● Network bandwidth: In VGA resolution mode, mini-
mum upload bandwidth is 1Mbps
4
Package Content
ICA-525 x 1
Power Adapter x 1
Screws x 4
Telephone box x 1
L-Wrench x 1
CD Disk x 1
Quick Installation Guide x 1
Note
1. If any of the above items are missing, please contact your dealer
immediately.
2. Using a power supply with a different voltage that the one
included with the ICA-525 will cause damage and void the
warranty for ICA-525.
5

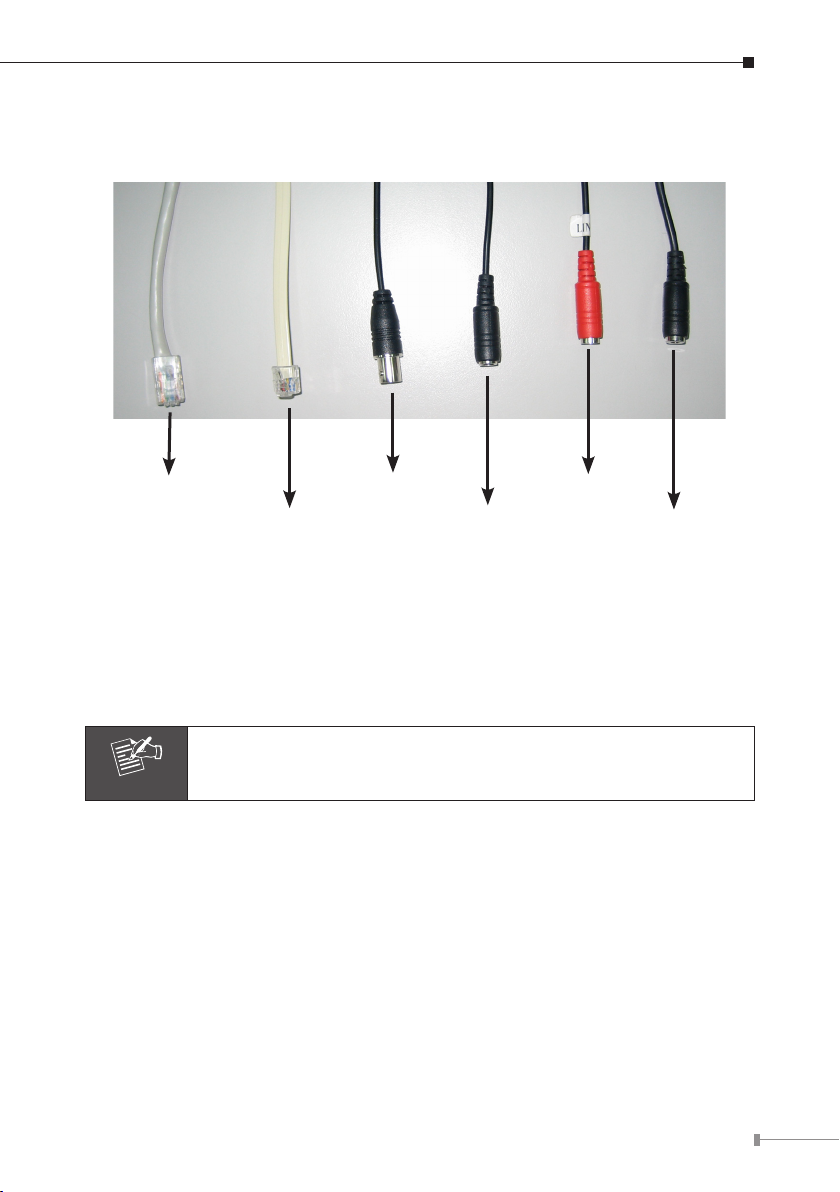

Identication of Cables
RJ-45 LAN Video out Line in
RS-485 & DI/DO 12V DC in Line out
(Connect to a bundled TEL box)
1. RJ45 LAN socket: Connect to PC or Hub/Switch. For connect to 10Base-T
Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way
protocol can detect or negotiate the transmission speed of the network auto-
matically. Please use Category 5 “straight through” cable to connect the ICA-525
to a 100Mbps Fast Ethernet network switch or hub.
Note
In case you need to connect the device to PC or notebook directly,
you should use cross over cable instead.
6
2. RS-485 & DI/DO: Connect to a local keyboard controller and connect to sensor
in and alarm out devices.
Inside the TEL box:
Name Function
12VDC DC 12V output (50mA maximum)
GND GND
D+ RS485 data +
D- RS485 data -
DI Digital signal input
DO Digital signal output
Note
The RS-485 of ICA-525 is master that can control external scanner.
3. Local Video output (BNC port): The Network Camera also provides composite
video output. User can use BNC video cable to connect the Network Camera with
a TV monitor or VCR.
4. DC-in Jack: The input power is 12VDC. Note that supply the power to the
Network Camera with standard power adapter included in package. Otherwise,
the improper power adapter may damage the unit and result in danger.
5. Line in (audio in): Connect an audio input source to the ICA-525.
6. Line out (audio out): Connect a loud speaker to the ICA-525. This function is
for voice alerting and two-way audio.
7
Hardware Installation

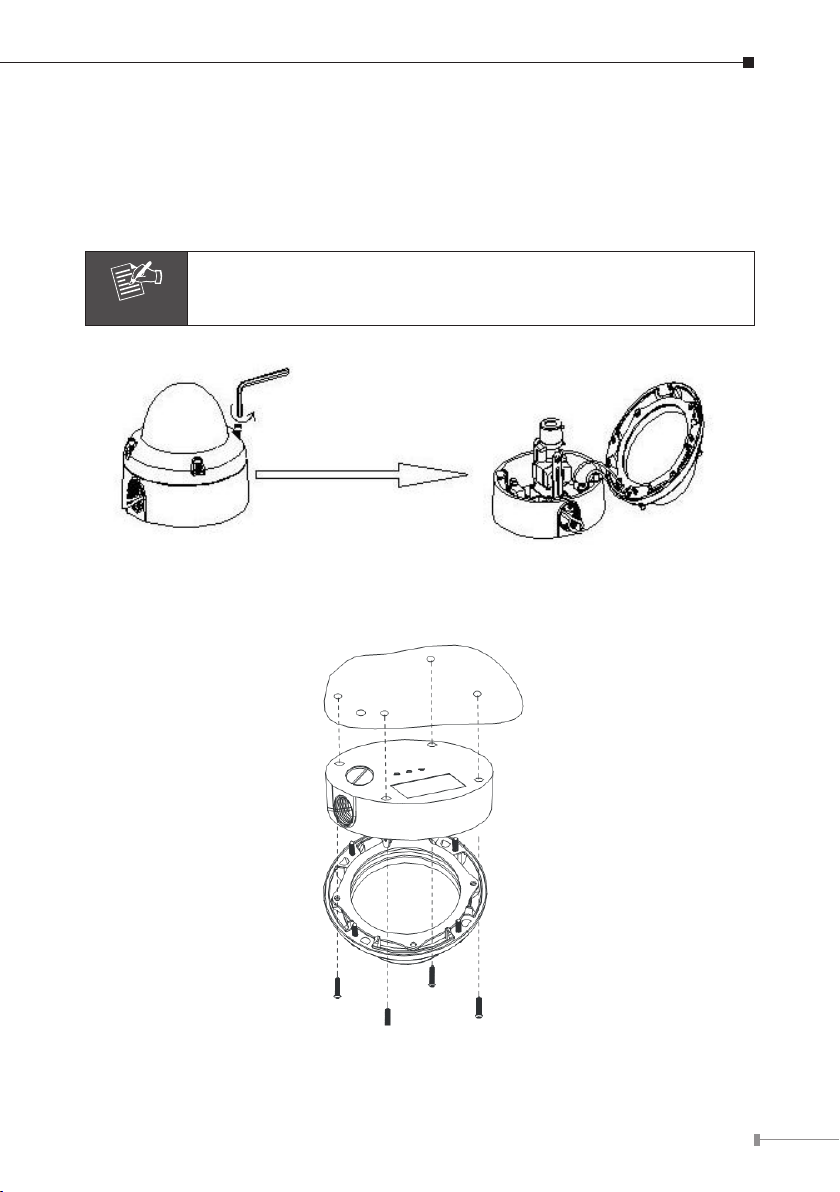

1. Use the provided L-wrench, loosen the tamper-resistant housing cover (with
screws still attached on the cover). The unit has factory installed side conduit
entry and one may adjust the cables to back conduit entry according to installa-
tion requirement.
Note
During the installation, please take care and avoid crash. That may
cause the device damage.
2. Set the mounting base onto the wall or ceiling and center it over the mounting
hole, using the supplied four retaining screws to secure the main body.
8
3. Set the proper image by moving the camera body and set the focus by turning
the lens to left or right direction.
Note
1. Vari-Focal Dome Operation Guide: Once the picture appears
on the monitor, open the cover and adjust the lens wrench to
“NEAR f g FAR”, get the view zoom that you desire, and then
adjust the focus wrench of the lens to obtain the best picture.
After adjustment, tighten both wrenches.
2. During adjust focus, please take cares that don’t touch, collision
and knock sensor.
Zoom Adjustment
Focal Adjustment
NEAR
FAR
WIDE
TELE
4. When the ICA-525 focus adjustment has been completed, use the provided L-
wrench to fasten the tamper-resistant housing to the main body.
9
5. When using the side conduit cabling, it is suggested to cover the cables using
metal covers (to prevent external damage and for waterproof prevention), and
wined the waterproof adhesive type onto the metal cover before installation.
6. Connect the LAN cable to Ethernet’s switch or hub and the DC-Jack to the power
source. The video output to monitor or other video through a 75 Ohms type
coaxial cable if you will use BNC cable.
7. Done
10
Initial Utility Installation and operation
1. Insert the bundled CD into the CD-ROM drive to launch the autorun program.
Once completed, a welcome menu screen will appear.
2. Click the “IPWizard” hyperlink, you will see the InstallShield Wizard dialog box as
below.
Note
If the welcome screen does not appear, click “Start” at the taskbar.
Then, select “Run” and type “D:\Utility\setup.exe”, assume D is
your CD-ROM drive.
3. The “Welcome to the InstallShield Wizard for IPWizard” will display on the screen
and click “Next” to continue.
