PLANET Technology GRT-101 User’s Manual

- 0 -

Networking & Communicatio

G.SHDSL Bridge/Router

GRT-101

User’s Manual

PLANET Technology GRT-101 User’s Manual

- 1 -

The products and programs described in this User’s Manual are licensed products of PLANET

Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s

Manual and all accompanying hardware, software, and documentation are copyrighted.

No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any

electronic medium or machine-readable form by any means by electronic or mechanical. Including

photocopying, recording, or information storage and retrieval systems, for any purpose other than the

purchaser's personal use, and without the prior express written permission of PLANET Technology.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and

applications, and makes no warranty and representation, either implied or expressed, with respect to the

quality, performance, merchantability, or fitness for a particular purpose.

PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability

for any inaccuracies or omissions that may have occurred.

Information in this User’s Manual is subject to change without notice and does not represent a

commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be

contained in this User’s Manual. PLANET makes no commitment to update or keep current the

information in this User’s Manual, and reserves the right to make improvements to this User’s Manual

and/or to the products described in this User’s Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate

your comments and suggestions.

CE mark Warning

The is a class B device, In a domestic environment, this product may cause radio interference, in which

case the user may be required to take adequate measures.

Trademarks

The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous

hardware and software products by their trade names. In most, if not all cases, these designations are

claimed as trademarks or registered trademarks by their respective companies.

Revision

User’s Manual for PLANET G.SHDSL Bridge/Router:

Model: GRT-101

Rev: 1.0 (Jul. 2002)

Part No. EM-GRTV1

PLANET Technology GRT-101 User’s Manual

- 2 -

Table of Contents

TABLE OF CONTENTS...................................................................................2

CHAPTER 1 OVERVIEW ................................................................................4

CHAPTER 2 INSTALLATION..........................................................................7

2.1 FRONT PANEL LEDS.................................................................................7

2.2 REAR PANEL PORTS..................................................................................7

2.3 REAR PANEL CONNECTIONS ......................................................................8

2.4 SETTING UP THE HARDWARE ENVIRONMENT ................................................9

CHAPTER 3 CONFIGURATION....................................................................10

3.1 PURPOSE...............................................................................................10

3.2 LOGON PROCEDURE ...............................................................................10

3.2.1 Serial console................................................................................10

3.2.2 Telnet.............................................................................................11

3.2.3 Web browser..................................................................................11

3.3 QUICK INSTALLATION...............................................................................12

3.3.1 Bridge Mode ..................................................................................12

3.3.2 Routing Mode for PPPoA and PPPoE with IP Sharing ..................14

3.3.3 Routing Mode for IPoA or EoA........................................................16

3.3.4 LAN-to-LAN Connection with Bridge Mode .....................................18

3.4 OPERATION INTERFACE ...........................................................................20

3.4.1 Multi-level password protection......................................................21

3.5 CONNECTION MODE................................................................................22

3.6 BRIDGING MODE.....................................................................................22

3.6.1 Bridge management ......................................................................22

3.6.2 Static bridge table..........................................................................23

3.7 ROUTING MODE......................................................................................24

3.7.1 LAN setting....................................................................................24

3.7.2 Static routing table.........................................................................25

3.7.3 NAT/PAT ........................................................................................26

3.7.4 DHCP server..................................................................................29

3.7.5 DNS proxy .....................................................................................29

3.8 WAN AND ATM VIRTUAL CONNECTION ....................................................30

3.8.1 SHDSL operation...........................................................................30

3.8.2 ATM virtual connection...................................................................31

3.8.3 ATM traffic shaping........................................................................33

PLANET Technology GRT-101 User’s Manual

- 3 -

3.8.4 WAN IP address ............................................................................34

3.8.5 ISP profile for PPP.........................................................................34

3.9 SYSTEM STATUS AND PERFORMANCE.......................................................35

3.10 USER PROFILE .....................................................................................37

3.11 MANAGEMENT SECURITY.......................................................................38

3.11.1 Telnet port number.......................................................................38

3.11.2 Legal client IP ..............................................................................39

3.12 SNMP SUPPORT..................................................................................40

3.12.1 SNMP community........................................................................40

3.12.2 SNMP trap...................................................................................40

3.13 BACKUP AND RESTORE CONFIGURATION.................................................41

3.13.1 Backup configuration ...................................................................41

3.13.2 Restore configuration...................................................................42

3.14 SOFTWARE UPGRADE ...........................................................................43

PLANET Technology GRT-101 User’s Manual

- 4 -

Chapter 1 Overview

Based on digital subscriber line (DSL) technology, PLANET new DSL product,

GRT-101 provides an affordable, flexible, efficient Internet access solution for

SOHO customers while reducing deployment and operational costs from

service providers. Via sending and receiving user’s datagram (often Internet

service) over existing telephone lines, GRT-101 concentrates all traffic onto a

single high-speed trunk for Internet activities or sharing a corporate intranet.

Through the simple-yet-powerful management UI of GRT-101, networks

administrators can complete a managed network deployment just in seconds.

SOFTWARE FEATURES

 Easy configuration and management with password control for various

application environments

 Efficient IP routing and transparent learning bridge to support

broadband Internet services

 Fully ATM protocol stack implementation over SHDSL

 ATM traffic shaping delivers quality-of-service (QoS) guarantees for

multimedia applications

 PPP supports user authentication with PAP/CHAP/MS-CHAP

 SNMP management with MIB II

 Getting enhancements and new features via Internet software upgrade

SOFTWARE SPECIFICATIONS

ATM Protocol

ATM adaptation layer type 5 (AAL5)

VC multiplexing and LLC encapsulation

Multi-protocol over AAL5 (RFC 1483/2684 bridged and routed PDU)

Classical IP over ATM (RFC 1577 with MTU = 1500)

Up to 8 PVCs

Traffic shaping CBR/UBR

UNI 3.1/4.0 PVC

I.610 OAM F5 loopback

PPP Support

PPP (RFC 1661)

PPP over AAL5 (RFC 2364)

PPP over Ethernet (RFC 2516)

PLANET Technology GRT-101 User’s Manual

- 5 -

User authentication with PAP/CHAP/MS-CHAP

Routing Capability

IP routing with static routing and RIPv1/RIPv2

NAT/PAT with virtual server mapping

DHCP server

DNS proxy

Bridging

IEEE 802.1D transparent learning bridge

Up to 128 MAC learning addresses

Configuration

Local console (RS232)

Telnet access

Web-based GUI (HTTP)

Multi-level password protection

Network Management

SNMPv1/SNMPv2 agent

MIB II

Software Upgrading

TFTP download

Hardware Specification

WAN/LAN Ports RJ-11 SHDSL WAN port x1

10Mbps LAN port x1

Connector RJ-11 connector for WAN, RJ-45 connector for LAN

Cabling

Requirement G.SHDSL : AWG26 or higher

10 Base T : UTP/STP Category 3 or 5

LEDs SHDSL , Power Status, WAN Link and Action Status,

LAN Link/Active (and 100M Status)

Speed SHDSL : 192Kbps to 2.304Mbps (64Kbps per

channel)

LAN Switch : 10 Mbps at half duplex

Power External power adapter 9V DC, 1000mA

PLANET Technology GRT-101 User’s Manual

- 6 -

Environmental Operating temperature: 0° to 45°C

Storage temperature: -10° to 70°C

Housing Plastic Case

Dimension 145 mm x 187 mm x 33 mm (L x W x H)

PLANET Technology GRT-101 User’s Manual

- 7 -

Chapter 2 Installation

2.1 Front Panel LEDs

The LEDs on the front panel indicate the operational status of GRT-101.

Figure 2-1 Front Panel

The following table describes the LEDs’ functions:

Table 2-1 LED Functions

LEDs Color Active Description

PWR Green ON

The power adaptor is connected to the

Modem

LNK Green ON SHDSL connection is established

WAN ACT Green ON

Transmit data or receive data over SHDSL

link

LNK/ACT Green ON Transmit data or receive data over Ethernet

link

LAN 100M Green ON

LED is on 100Mbps mode (reserved for

future use)

2.2 Rear Panel Ports

The connectors on the rear panel provide Power, LAN, CONSOLE and LINE

interfaces.

Figure 2-2 Rear Panel

PLANET Technology GRT-101 User’s Manual

- 8 -

The following table describes the connectors’ functions:

Table 2-2 Connector Functions

Connectors Description

DC-IN Power adaptor inlet: Input voltage 9VDC

LAN Ethernet 10BaseT for LAN port (RJ-45)

CONSOLE RS- 232C (DB9) for system configuration and maintained

LINE SHDSL interface for WAN port (RJ-11)

2.3 Rear Panel Connections

The figure shows the rear panel connections of GRT-101.

The STU-R is a standalone and can able to place in desktop. All the external

wiring shall be located at the rear panel. The LAN port is a 10 Base-T

auto-sensing and half/full duplex configurable Ethernet interface and complied

with IEEE 802.3u respectively. The console (RS-232C) interface for

configuration are menu-driven operation and can also be configured through

Ethernet interface by Telnet or Web-based operation. The power switch

operated for power on and power off

Figure 2-3 Direct Connection with PC or NB

PC NB

Wall Jack

Power

Adapter

Cross

Over

Ethernet

DB-9

Cable

PLANET Technology GRT-101 User’s Manual

- 9 -

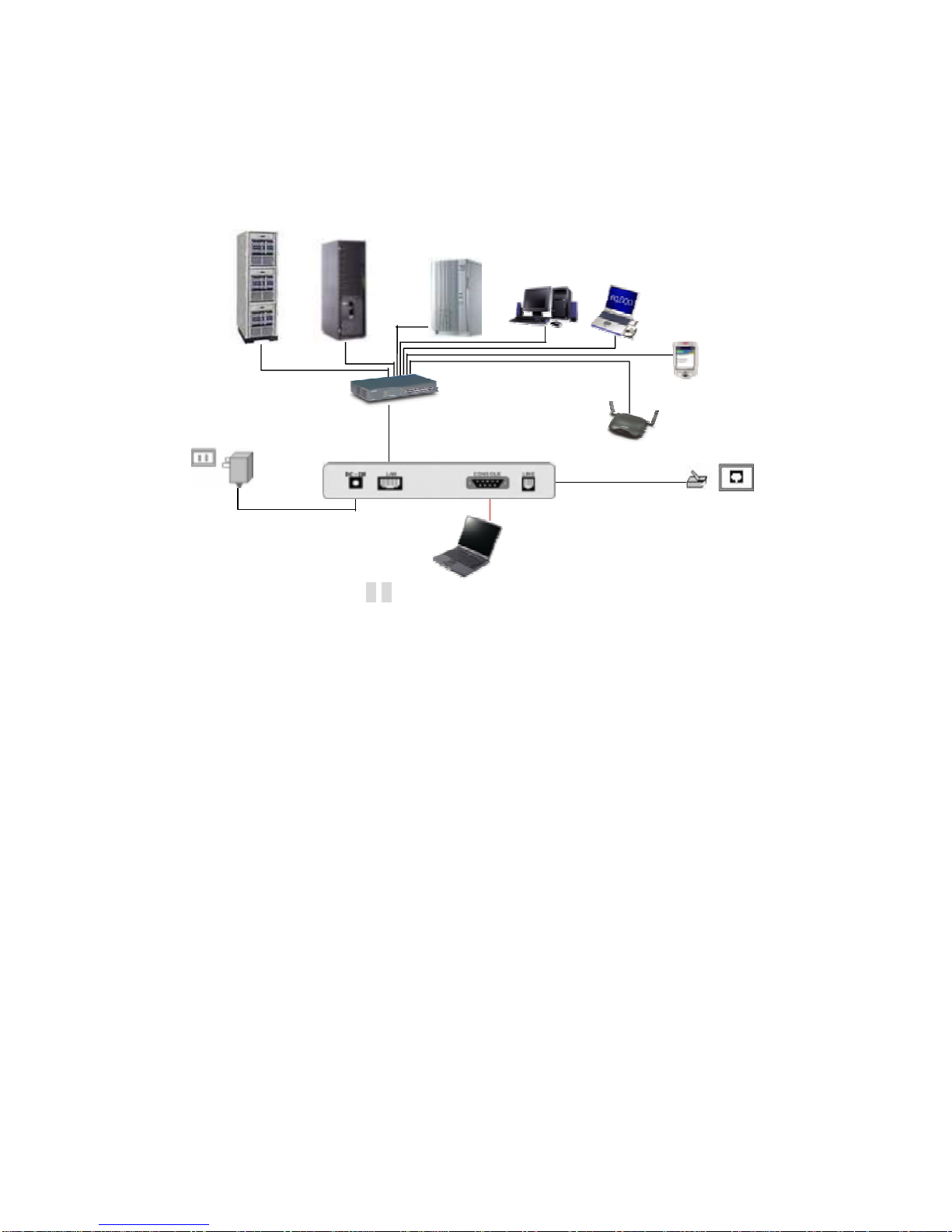

Figure 2-4 Connection with Switch or HUB

2.4 Setting up the hardware environment

Step 1: Connect the power adapter to the port labeled DC-IN on the rear

panel of the product.

Step 2: Connect the Ethernet cable.

If GRT is directly connected to PC, the Ethernet cable has to be used

cross over one (refer to figure 2-3). If the product is connected to hub

or switch, be sure that the hub or switch supporting auto-sensing or

not. If yes, both cross over and none cross over Ethernet cable are

suitable. If not, only none cross over Ethernet cable could be used

(refer to figure 2-4).

Step 3: Connect the phone cable to the product. Connect the other side of

phone cable to wall jack.

Step 4: Connect male end of RS-232 cable to the product and female end to

any free COM port in PC.

Step 5: Connect the power adapter by plugging power supply.

Wall Jack

Non-cross

Over

Ethernet

Server File Server

Power

DB-9

HUB/Switch

Workstation

Mobile

Device

Wireless LAN

Altri manuali per GRT-101

Indice

Altri manuali Planet Hardware di rete

Planet

Planet NAS-7450 Manuale utente

Planet

Planet GRT-501 Manuale utente

Planet

Planet MGB-Series Manuale utente

Planet

Planet NVR-420 Manuale utente

Planet

Planet FSD-624SF Manuale utente

Planet

Planet NVR-810 Manuale utente

Planet

Planet GRT-101 Manuale utente

Planet

Planet GRT-101 Manuale utente

Planet

Planet HPOE-2400G Manuale utente

Planet

Planet PL-501 Manuale utente

Planet

Planet NVR-820 Manuale utente

Planet

Planet NVR-400 Manuale utente

Planet

Planet NVR-420 Manuale utente

Planet

Planet NVR-401 Manuale utente

Planet

Planet IPOE-171-60W Manuale utente

Planet

Planet NVR-3210 Manuale utente

Planet

Planet EPL-2000 Manuale utente

Planet

Planet NVR-E6480 Manuale utente

Planet

Planet NVR-1600 Manuale utente

Planet

Planet ICA-HM230 Manuale utente

Planet

Planet NVR-820 Manuale utente

Planet

Planet POE-151S Manuale utente

Planet

Planet ADE-3000 Manuale utente

Planet

Planet IKVM-8000 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
