Planet IPOE-171-60W Manuale utente
Industrial Single-Port 10/100/1000Mbps
802.3bt PoE Injector
IPOE-171 Series
User’s Manual
Copyright
Copyright © 2018 by PLANET Technology Corp. All rights reserved. No
part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specically disclaims
any warranties, merchantability or tness for any particular purpose.
Any software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase, the
buyer (and not PLANET, its distributor, or its dealer) assumes the
entire cost of all necessary servicing, repair, and any incidental or
consequential damages resulting from any defect in the software.
Further, PLANET reserves the right to revise this publication and
to make changes from time to time in the contents hereof without
obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks
and/or registered trademarks of their respective holders.
Trademarks
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no warranty
and representation, either implied or expressed, with respect to
the quality, performance, merchantability, or tness for a particular
purpose.
PLANET has made every effort to ensure that this User’s Manual is
accurate; PLANET disclaims liability for any inaccuracies or omissions
that may have occurred. Information in this User’s Manual is subject
to change without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. PLANET makes no
commitment to update or keep current the information in this User’s
Manual, and reserves the right to make improvements to this User’s
Manual and/or to the products described in this User’s Manual, at
any time without notice. If you nd information in this manual that
is incorrect, misleading, or incomplete, we would appreciate your
comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to
take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human
health as a result of the presence of hazardous substances in
electrical and electronic equipment, end users of electrical
and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as
unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET IPOE-171 Series User’s Manual
MODEL: IPOE-171-60W, IPOE-171-95W
REVISION: 1.0 (April, 2018)
Part No.: 2350-AF0510-000
Table of Contents
1. Introduction ............................................................................... 5
2. Product Features ........................................................................ 6
3. Product Specications ................................................................. 8
4. Product Outlook ........................................................................10
4.1 Physical Dimensions (example on IPOE-171A-95W) ...............10
4.2 Product Outlook..................................................................11
4.3 Industrial PoE+ Injector Upper Panel ....................................14
4.4 Wiring the Power Inputs ......................................................15
4.5 Wiring the Fault Alarm Contact ............................................16
5. Mounting Installation .................................................................17
5.1 DIN-rail Mounting ...............................................................17
5.2 Removing Device from DIN Rail ...........................................18
5.3 Wall-mount Plate Mounting ..................................................19
6. Hardware Installation.................................................................20
6.1 Before Installation...............................................................20
6.2 IPOE-171-60W Installation...................................................20
6.3 IPOE-171-60W and IPOE-171S Installation............................22
6.4 IPOE-171-60W and IPOE-E172 Installation............................23
7. Customer Support .....................................................................25
5
1. Introduction
Thank you for purchasing PLANET IPOE-171 Single-port 10/100/1000Mbps
series injector.
Model LAN Port Speed PoE Standard PoE Budget
IPOE-171-60W 10/100/1000Mbps IEEE 802.3af/at/bt 60 watts
IPOE-171-95W 10/100/1000Mbps IEEE 802.3af/at/bt 95 watts
Please unpack the box of the device carefully, and the box should
contain the following items:
802.3bt PoE injector x 1 User’s manual x 1
Dust cap x 2 Wall-mount Kit x 1
If any item is found missing or damaged, please contact your local
reseller for replacement.
6
2. Product Features
Interface
2 RJ45 interfaces
¾1-port Data + Power output
¾1-port Data input
1 terminal block for master and slave power input
¾IPOE-171-60W Power Range: 48 ~ 56V DC redundant power
¾IPOE-171-95W Power Range: 24 ~ 48V DC redundant power
Power over Ethernet
Complies with IEEE 802.3af/at/bt PoE end-span/mid-span PSE
Supports PoE power up to 60/95 watts for PoE port
Auto-detection of PoE IEEE 802.3af/at/bt equipment and devices
from being damaged by incorrect installation
Monitor the status of the total PoE usage in real time
Remote power feeding up to 100m
IPOE-171-60W with power on voltage indication
Hardware
IP30 slim type metal case
LED indicators for Power LED, PoE-in-Use LED and PoE Usage LED
Industrial Case and Installation
Solid wall mount or DIN-rail mount installation
Supports 6KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Standard Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
7
IEEE 802.3ab 1000BASE-T
IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE
Note
PSE (Power Sourcing Equipment) is a device (switch,
or hub for instance) that provides power in a PoE setup.
Maximum allowed continuous output power per such
device in IEEE 802.3af is 15.4W, in IEEE 802.3at is 30W,
and in IEEE 802.3bt is 60~95W.
PD (Powered Device) is a PoE-enabled terminal, such
as PoE IP phone, PoE IP camera, PoE wireless access
point or other, that consumes power from PSE.
8
3.ProductSpecications
Product IPOE-171-60W IPOE-171-95W
Hardware Specications
Interface
Input Port 1 x RJ45 STP
Data In
Output Port 1 x RJ45 STP
PoE (Data + Power) Out
Input Power
Terminal Block 1
Network Cable*
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
LED Indicator
System: Power 1 (Green), Power 2 (Green),
Fault (Red)
PoE Port: PoE-in-Use x 1 (Orange)
PoE Usage: PoE Usage x 3 (Orange)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 430g 470g
Power Requirements DC 48~56V, 2A max. DC 24~48V, 5A max.
Unit Output Voltage DC 45~53V DC 54V
Power Consumption 75 watts max. 120 watts max.
No. of devices that can
be powered 1
Installation DIN-rail kit or wall-mount ear
Alarm
Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC
24V
Enclosure IP30 slim type metal case
Power over Ethernet
PoE Standard IEEE 802.3af/at/bt Ultra PoE PSE
9
PoE Power Output
Budget
DC 50~54V /
60-watt PoE via
4-pair
DC 48~49V /
30-watt PoE via
2-pair
DC 54V / 95-watt
PoE via 4-pair
DC 54V / 30-watt
PoE via 2-pair
PoE Power Output Max. 60W@1 m
cable
Max. 89.5W@1 m
cable
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
PoE mode
Standard: To provide power to the PD
devices that follow the IEEE 802.3af/at/bt
standard.
Legacy: To provide power to the PD
devices that do not fully follow the IEEE
802.3af/at/bt standard.
Standards Conformance
Standards Compliance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Operating Humidity 5 ~ 90%, relative humidity, non-condensing
Storage Humidity 5 ~ 90%, relative humidity, non-condensing
Caution
1. As IEEE 802.3bt device provides high power, please
use high-quality network cable and RJ45 connector.
2. The max. PoE output power depends on the cable
length, the quality of cable, and DC input voltage.
10
4. Product Outlook

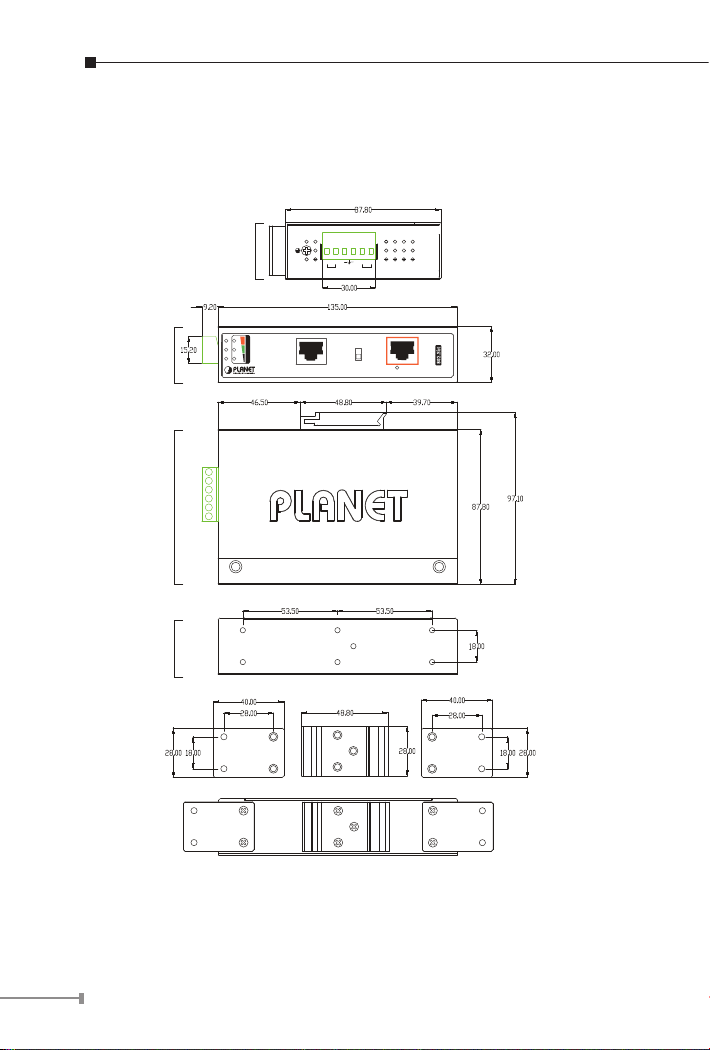

4.1 Physical Dimensions (example on IPOE-171A-95W)
Top View
Front View
Side View
Mounting Kit Mounting Kit
DIN-Rail Kit
Dimensions ( unit = mm )
Rear View
30W 60W 90W+
PoE Power Usage
PoE
in-Use
Standard Legacy
10/100/1000T
Ethernet
10/100/1000T
Ethernet+DC
P1 P2 Fault
IPOE-171-95W
802.3bt
Input
DC 24~48V
V1+ V1-
PWR1
V2+ V2-
PWR2
Fault
Figure 1: IPOE-171-95W dimensions
Altri manuali per IPOE-171-60W
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Planet Hardware di rete
Planet
Planet GRT-501 Manuale utente
Planet
Planet NVR-401 Manuale utente
Planet
Planet ICA-HM230 Manuale utente
Planet
Planet GRT-101 Manuale utente
Planet
Planet NVR-400 Manuale utente
Planet
Planet NVR-E6480 Manuale utente
Planet
Planet BM-2010A Manuale utente
Planet
Planet NVR-401 Manuale utente
Planet
Planet EPL-2000 Manuale utente
Planet
Planet WBS-512AC Manuale utente
Planet
Planet GRT-101 Manuale utente
Planet
Planet GRT-101 Manuale utente
Planet
Planet NVR-810 Manuale utente
Planet
Planet MGB-Series Manuale utente
Planet
Planet NVR-810 Manuale utente
Planet
Planet IEEE 802.3at Manuale utente
Planet
Planet GRT-101 Manuale utente
Planet
Planet NVR-820 Manuale utente
Planet
Planet PL-103E Manuale utente
Planet
Planet ADE-3000 Manuale utente
Manuali Hardware di rete popolari di altre marche
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manuale utente
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manuale utente
Yudor
Yudor YDS-16 Manuale utente
D-Link
D-Link ShareCenter DNS-320L Manuale utente
Samsung
Samsung ES1642dc Istruzioni per l’uso
Honeywell Home
Honeywell Home LTEM-PV Istruzioni per il montaggio
