Planet ADE-3100 Manuale utente

ADSLModem Router

ADE-3100 / ADE-4100

User s Manual

The products and programs described in this User sManual are licensed products of

PLANETTechnology,This User sManual contains proprietaryinformation protected by

documentation are copyrighted.

No part ofthis User sManual maybe copied, photocopied, reproduced, translated, or

reduced to any electronic medium or machine-readable form by any means by electronic or

mechanical. Including photocopying, recording, or information storage and retrieval

systems, for anypurpose other than the purchaser's personal use, and without the prior

express written permission of PLANETTechnology.

Disclaimer

PLANETTechnologydoes not warrant that the hardware will work properlyin all

environmentsand applications, and makesno warrantyand representation, either implied

or expressed, with respect to the quality,performance, merchantability,or fitness for a

particular purpose.

PLANEThas made everyeffort to ensure that this User sManual is accurate; PLANET

disclaims liabilityfor anyinaccuracies or omissions that mayhave occurred.

Information in this User sManual is subject to change without notice and doesnot

represent acommitment on the part ofPLANET.PLANETassumes no responsibilityfor

anyinaccuracies that maybe contained in this User sManual.PLANETmakes no

commitment to update or keep current the information in this User sManual, and reserves

the right to makeimprovements to this User sManual and/or to the products described in

this User s Manual, at anytime without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would

appreciate your commentsand suggestions.

FCC Compliance Statement

Thisequipment generates and uses radio frequencyenergyand ifnot installed and used

properly,that is, in strictaccordance with the instructions provided with the equipment, may

cause interference to radio and TV communication. The equipment has been tested and

found to complywith the limits for aClass Acomputing device in accordance with the

specifications in Subpart BofPart 15 of FCC rules, which are designed to provide

reasonable protection against such interference in a residential installation. However, there

is no guarantee that interferencewill not occur in aparticular installation. Ifyou suspect this

equipment iscausing interference, turn your Ethernet Switch on and offwhile your radio or

TVis showing interference, ifthe interference disappears when you turn your Ethernet

Switch offand reappears when you turn it back on, there is interference being caused by

the Ethernet Switch.

You can tryto correct the interference byone or more ofthe following measures:

w Reorient the receiving radio or TV antenna where this maybe done safely.

w To the extent possible, relocate the radio, TV or other receiver awayfrom the Switch.

w Plug the Ethernet Switch into a different power outlet so that the Switch and the receiver

are on different branch circuits.

If necessary, you should consult the place ofpurchase or an experienced radio/television

technician for additional suggestions.

CE mark Warning

The is a class B device, In a domestic environment, this product maycause radio

interference, in which case the user maybe required to take adequate measures.

Trademarks

The PLANETlogo isa trademark of PLANETTechnology.This documentation mayreferto

numerous hardware and software products bytheir trade names. In most, ifnot all cases,

these designations are claimed as trademarks or registered trademarks bytheir respective

companies.

Revision

User s Manual for PLANETADSLModem Router:

Model: ADE-3100A/B,ADE-4100A/B

Rev: 4.0 (Feb 2005)

Part No.: EM-ADE4100_3100v4

TABLE OF CONTENTS

1. INTRODUCTION.............................................................................................................1

1.1 FEATURES ...................................................................................................................1

1.2 SYSTEM REQUIREMENTS ..............................................................................................1

2. KNOWING YOUR ROUTER...........................................................................................2

2.1 FRONT PANEL ..............................................................................................................2

2.2 REAR PANEL................................................................................................................3

3. LOGIN.............................................................................................................................4

4. STATUS PAGES.............................................................................................................5

4.1 HOME PAGE.................................................................................................................5

4.2 PPPPAGE...................................................................................................................6

4.3 ADSLPAGE.................................................................................................................7

5. CONFIGURATION PAGES.............................................................................................9

5.1 MODES........................................................................................................................9

5.2 WAN CONFIGURATION ...............................................................................................10

5.2.1 ATM...................................................................................................................11

5.2.2 DHCPClient......................................................................................................12

5.2.3 MAC Spoofing...................................................................................................12

5.2.4 Static IPSettings...............................................................................................12

5.3 LAN CONFIGURATION.................................................................................................13

5.3.1 DHCPServer.....................................................................................................13

5.3.2 Ethernet Mode Setting.......................................................................................14

5.4 PPPCONFIGURATION.................................................................................................15

5.4.1 PPPAccount Configuration...............................................................................15

5.4.2 PPPSession Configuration...............................................................................16

5.4.3 PPPDisconnect Timer Configuration................................................................17

5.4.4 PPPMiscellaneous Configuration.....................................................................19

5.5 NATCONFIGURATION PAGES......................................................................................20

5.6 VIRTUAL SERVER CONFIGURATION...............................................................................21

5.7 BRIDGE FILTERING......................................................................................................22

5.8 DNS CONFIGURATION ................................................................................................23

5.9 DYNAMIC DNS...........................................................................................................25

5.10 USER PASSWORD CONFIGURATION............................................................................25

5.11 SAVE SETTINGS / REBOOT ........................................................................................26

6. ADMIN PRIVILEGE.......................................................................................................27

6.1 WAN STATUS ............................................................................................................27

6.2 ATM STATUS .............................................................................................................27

6.3 ADSLCONFIGURATION...............................................................................................28

6.4 ROUTE TABLE ............................................................................................................29

6.4.1 SystemDefault GatewayConfiguration.............................................................30

6.4.2 Route Configuration..........................................................................................30

6.5 LEARNED MAC TABLE ................................................................................................30

6.6 RIPCONFIGURATION..................................................................................................31

6.6.1 RIPPer Interface Configuration.........................................................................32

6.7 MISCELLANEOUS CONFIGURATION ...............................................................................33

6.8 TCPSTATUS .............................................................................................................35

6.9 ADMIN PASSWORD CONFIGURATION.............................................................................35

6.10 RESET TO FACTORY DEFAULT ....................................................................................36

6.11 DIAGNOSTIC TEST ....................................................................................................36

6.12 SYSTEM LOG ...........................................................................................................37

6.13 LOCAL CODE IMAGE UPDATE.....................................................................................37

APPENDIX A. COMPLIANCE STATEMENT....................................................................39

APPENDIX B. ENCAPSULATION MODE........................................................................40

APPENDIX C. TROUBLESHOOTING..............................................................................41

OVERVIEW.......................................................................................................................41

GENERAL PROBLEMS........................................................................................................41

CONFIGURATION AND INTERNET ACCESS ............................................................................41

APPENDIX D. SPECIFICATIONS.....................................................................................43

1. Introduction

This Router is a highlyintegrated,cost-effective solution. All setup and provisioning is accomplished viaa

simple intuitive Web interface which further enhances the user experience.

1.1 Features

l ADSLCompliance

n Compliant withADSLstandards

u Full-rateANSI T1.413 Issue2 and ITU G.dmt (G.992.1) standards

u Splitterless ITU G.lite (G.992.2) specification

u ADSLover POTS (AnnexA) andADSLover ISDN (Annex B)

n DMT modulation and demodulation

n Full-rate adaptive modem

u Maximumdownstreamrate of8 Mbps

u Maximumupstreamrate of1 Mbps

l ATM Protocols

n WANmode support: PPPover ATM (RFC 2364) and PPPover Ethernet (RFC 2516)

n LAN mode support: bridged/routedEthernet over ATM (RFC 1483) and Classical IPover ATM

(RFC 1577)

n ATM ForumUNI 3.1/4.0PVC

n Up to 8 VCs (Virtual Circuits)

l Bridge Mode

n Ethernet toADSLself-learning Transparent Bridging (IEEE 802.1D)

n Supports up to 128 MAClearning addresses

l Router Mode

n IProuting–RIPv2

n Static routing

n DHCP(Dynamic Host Configuration Protocol) Server and Client

n NAPT (NetworkAddress and Port Translation)

n NAT (NetworkAddress Translation)

n ICMP(InternetControl Message Protocol)

l Security

n User authentication for PPP

n PAP(Password Authentication Protocol)

n CHAP(ChallengeAuthentication Protocol)

n Password protected systemmanagement

1.2 System Requirements

l PentiumIII 266 MHz processor minimum

l 128 MB RAM minimum

l 20 MB offree diskspace minimum

l Ethernet NetworkInterface Controller (NIC) RJ45 Port

l Internet Browser

l Ethernet (CAT5) Cable

2. Knowing Your Router

When selecting the locationfor the Router,allowroomto access the connections on the rear panel. You will

want to place the Router sothat youwill beable to seethe LED indicators on the front panel. It maybe

convenient for youlocate the Router near the PC youintend to use for initial configuration ofthe Router.

2.1 Front Panel

PlacetheRouter in a location that permits an easyviewofthe LED indicators shown in the front panel

diagrambelow.

Front panel ofADE-3100

LED Indicators of ADE-3100:

LEDs Color Active

Description

PWRGreen

ON The power adaptor is connected to the Modem.

READYGreen

BlinkThe systemis readyto use.

ADSL Green

ON ADSLconnection is established.

ACTGreen

BlinkTransmitting data or receiving data over Ethernetlink.

LAN

LNK Green

ON The Ethernet connection is established.

TX Green

BlinkTransmitting data viaADSLlink.

WAN

RX Green

BlinkReceiving datavia ADSLlink.

Front panel ofADE-4100

LED Indicators of ADE-4100:

LEDs Color

Active

Description

PWRGreen

ON The power adaptor is connected to the Modem.

READYGreen

BlinkThe systemis readyto use.

ADSL Green

ON ADSLconnection is established.

WAN

ACTGreen

ON Ifdata is being transferred via ADSLlink.

LAN

Green

ON The Ethernet connection is established. Blin

kifdatais being

transmitted or received over Ethernet link.

2.2 RearPanel

The rear panel ofthe Router provides access to the power adapter cordconnection as well as theport

connections.

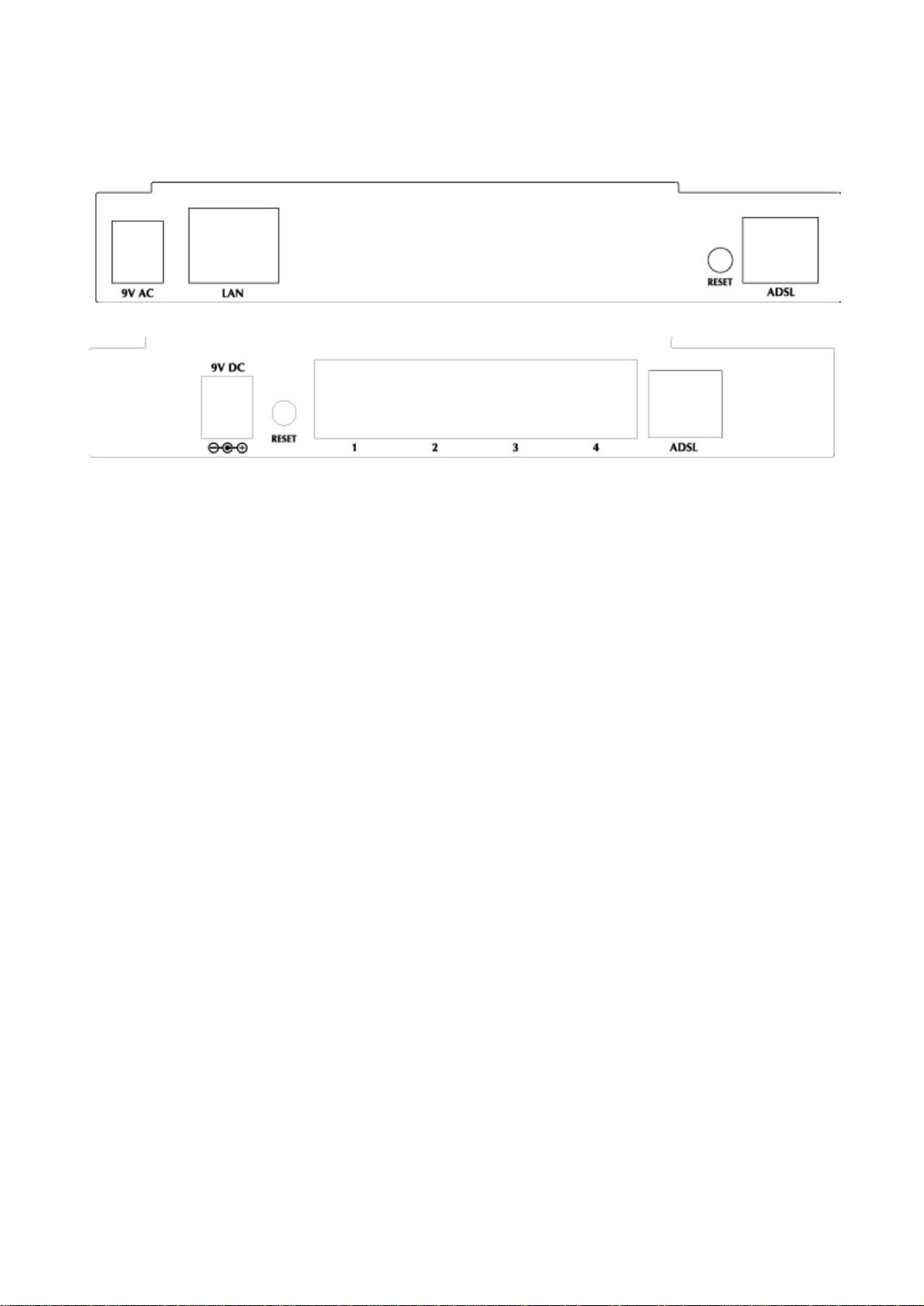

Rear panel ofADE-3100

Rear panel ofADE-4100

RESET button: The Router comes witharesetbuttonbuilt into the rear panel. Use this buttonto restore the

factorydefaultsettings. If you need to reset theRouter, press the reset buttonfor 2-3 seconds and then

release it. The ADSLLED will stopblinking temporarilyand then blinkagain in about 15 seconds. It means

the Router finish rebooting.

3. Login

There are twolevels ofaccess rights/privileges for the Router:

l Administrator: User name admin, the administrator account has completeread/write access on all

pages (Status, Configuration andAdmin Privilege).Admin account alsohas FTPserver access.

l User: User name user, theUser account has read/write access to pages under the Status and

Configuration sections.

The following stepswill enable you tolog into the Router:

1. LaunchtheWeb browser (InternetExplorer,Netscape,etc.).

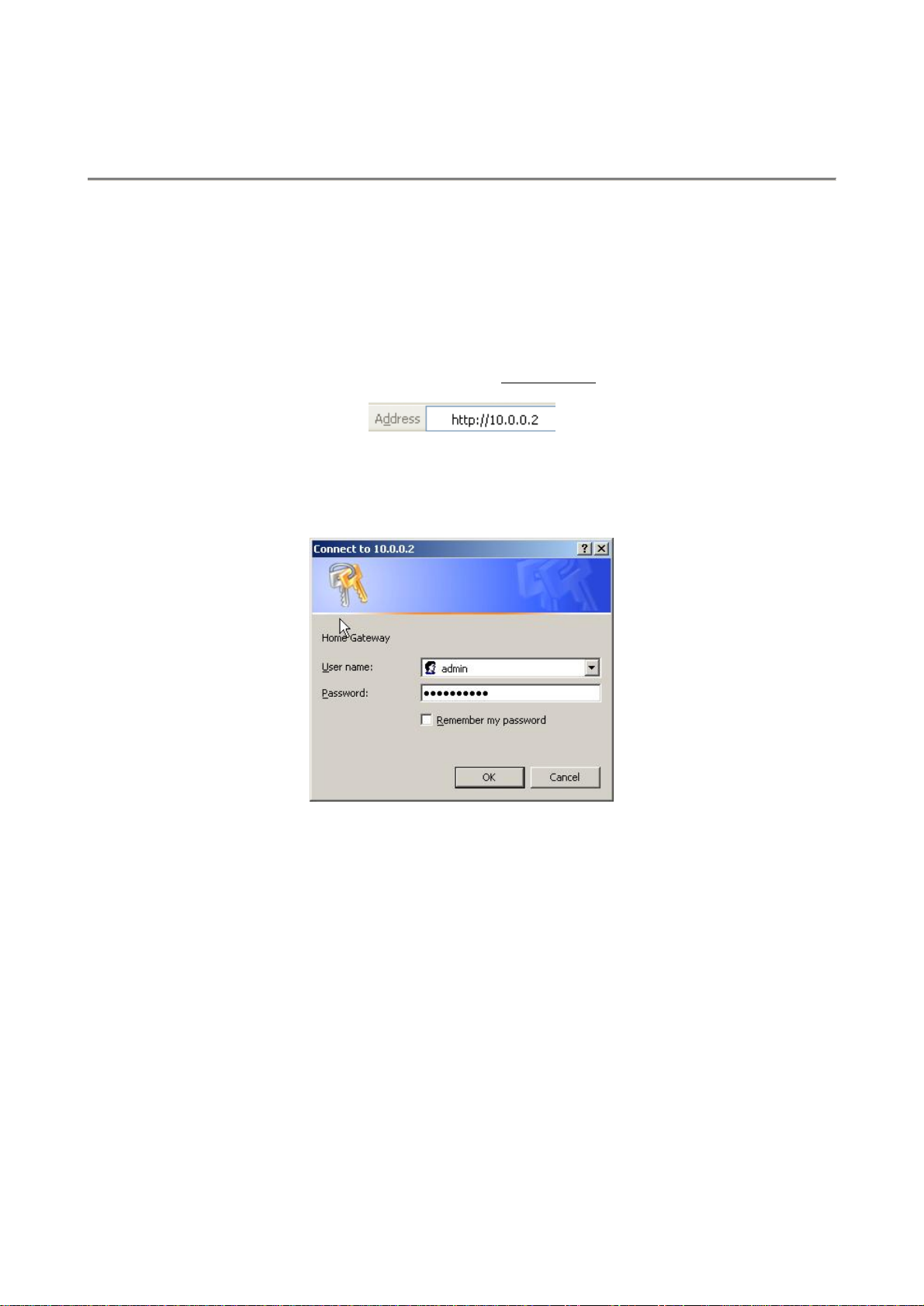

2. Enter the LANport default IPaddress (default gateway) http://10.0.0.2 in the address bar.

3. Entryofthe username and password will be prompted. Enter the default login User Name and Password:

The default login User Nameofthe administrator is admin,and thedefault login Password is epicrouter.The

default loginUser Name for the non-administrator is user, and the default login Password is password.

4. Remembermy password checkbox: Bydefault,this box is not checked. Users can checkthis box so

that Internet Explorer will remember the User name and Password for future logins. It is recommended

to leave this box unchecked for securitypurposes.

Admin andUser passwordscan bechanged after login. Refer to Section 5.10 for User Password

configuration andSection 6.9 for Admin Password configuration for further instruction.

4. Status Pages

The links under the Status column are associatedwiththe pages thatrepresent the status ofsystem

(computer and Router) and interfaces (connections). This includes LAN, WAN, DHCP, PPP, andADSL status.

These pages canbe viewed and modified byboth user and admin accounts.

4.1 Home Page

The Home page shows thefirmware versions; LAN,WAN, and DHCPinterface status; and Ethernet

connection status.

Firmware Version: It is thedefaultversion number,which is not changeable.

Customer Software Version: It is theversion ofthe firmware that is controllable bytheADSL

Modem/Router manufacturer.

WAN and LAN: It displays the IPaddress, Subnet Mask and MAC address for the WAN (ADSL) and LAN

interface.

Total Number ofLANInterfaces: Itdisplaysthe total number ofavailable interfaces for the LAN interface.

The total number ofavailable interfaces is the amount ofcomputers that areable to hookup to the DHCP

Server.

Number of Ethernet Devices Connected to the DHCPServer: It displaysthe DHCPclient table with the

assigned IPaddresses andMACaddresses.

?Note

Ifthere are no devices connected to the DHCPserver,then a table will not appear, otherwise

a table listing all devices connected to DHCPserver will appear on the bottomofthe page.

Ethernet Link Status: It displaysthe linkup or down for the Ethernet connection(up ifconnected, down if

not connected).

USB LinkStatus (reserved function): It displays the linkup or down for the USB connection (up if

connected, downifnot connected).

Altri manuali per ADE-3100

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Planet Router di rete

Planet

Planet VDR-300NU Manuale utente

Planet

Planet ISW-802M Manuale utente

Planet

Planet ADE-3410 Manuale utente

Planet

Planet XRT-101A Manuale utente

Planet

Planet FGSW-2620 Manuale utente

Planet

Planet GSD-805 Manuale utente

Planet

Planet ADE-3400 Manuale utente

Planet

Planet WGR-500-4P Manuale utente

Planet

Planet IGS-5225-20T4C2X Manuale utente

Planet

Planet 802.11g Wireless Access Point / Bridge... Manuale utente

Planet

Planet IGS-6325 DIN rail Series Manuale utente

Planet

Planet VR-300 Series Manuale utente

Planet

Planet GSW-2400HPS Manuale utente

Planet

Planet ADSL VPN/Firewall Router ADW-4200 Manuale utente

Planet

Planet G.SHDSL.bis Bridge Router GRT-504 Manuale utente

Planet

Planet GS-4210 SERIES Manuale utente

Planet

Planet WGR-500 Manuale dell'operatore

Planet

Planet SG-4800 Manuale utente

Planet

Planet IGS-801M Manuale utente

Planet

Planet FNSW-1600S Manuale utente

Planet

Planet IGS-604HPT-M12 Manuale utente

Planet

Planet FNSW-4800 Manuale utente

Planet

Planet FGSW-1822VHP Manuale utente

Planet

Planet WGSW-24010 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
