Planet ISW-500 Manuale utente

ISW-500/

ISW-800

Industrial Ethernet Switch

Key Feature

Data Sheet

The PLANET entry level Industrial Ethernet Switch is industrially hardened

Ethernet switch specifically designed to operate reliably in electrically harsh

and climatically demanding environments.

The switch provides a high level of immunity to electromagnetic

interference and heavy electrical surges typical of environments found on

plant floors or in curb side traffic control cabinets. The feature of operating

temperature range of 0 to 60 Degree C coupled with hazardous location

certification (Class 1 Division 2) allows the switch to be placed in almost

any location.

The switch is packaged in a compact, IP-30 standard aluminum that allows

either DIN or panel mounting for efficient use of cabinet space. The switch

provides an integrated power supply with a wide range of voltages (12 to

48V DC) for worldwide operability or dual-redundant, reversible polarity,

24V DC and 48V DC power supply inputs for high availability applications

requiring dual or backup power inputs.

Hardware Feature

• Complies with IEEE 802.3, IEEE 802.3u

• CSMA/CD Protocol

• RJ-45 Port support auto MDI/MDI-X function

• Wide-range redundant power design

• Store and forward switch architecture

• DIN rail and 3-way wall mount design

Industrial Conformance

• 12 to 48V DC, redundant power with polarity reverse protect

function and connective removable terminal block for master

and slave power

• 0 to 60 Degree C operation temperature

• IP-30 Aluminum case

• EMI complies with FCC Class A, CE EN6100-4-2, CE EN6100-4-

3, CE EN6100-4-4, CE EN6100-4-5 and CE EN6100-4-6

• Stability testing with IEC60068-2-32(Free fall), IEC60068-2-

27(Shock) and IEC60068-2-6(Vibration)

PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or

02-06 C-ISW500800-1

PLANET Technology Corporation

11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Tawian R.O.C.

Tel: 886-2-2219-9518  Fax: 886-2-2219-9528

Email: [email protected] www.planet.com.tw

VoIP Gateway: vip.planet.com.tw

5-Port Industrial Ethernet Switch

8-Port Industrial Ethernet Switch

ISW-500

ISW-800

IEEE 802.3, IEEE802.3u 10/100Base-TX

Product

Specification

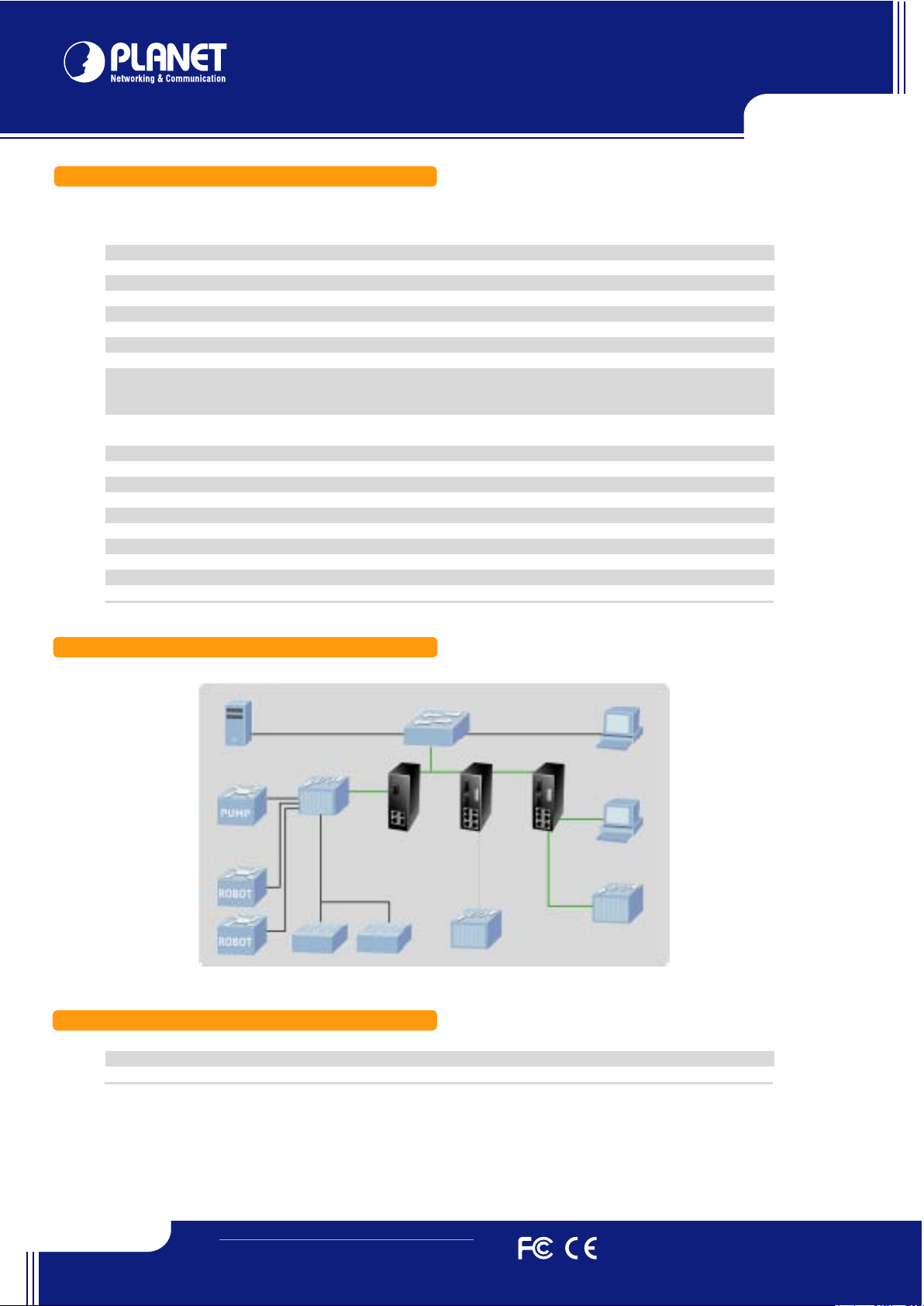

Applications

Ordering Information

Data Sheet

ISW-500/

ISW-800

Model

Hardware

10/100Mbps TP

Protocol

Switching Architecture

Transfer Rate

MAC address

Memory Buffer

Network Cable

LED

Back-plane

Packet throughput ability

Power Supply

Power Consumption

Installation

Operating environment

Storage environment

Dimension (W x D x H)

Emission

Stability testing

ISW-500     ISW-800

5     8

CSMA/CD

Store and forward

144,880 pps for Ethernet port and 1448,800 pps for Fast Ethernet port

1k     2k

512Kbits     1Mbit

10Base-T : 2-pair UTP/STP Cat 3, 4, 5 cable

100Base-TX: 2-pair UTP/STP Cat. 5 cable

10Base-T: EIA/TIA-568 100-ohm (100m)

Per port : Link/Activity (Green), Full duplex/Collision (Green)

Per unit: Power 2 (Green), Power 1 (Green), Power (Green)

1.0G     1.6Gbps

0.74Mbps@64bytes (5TX)   1.19Mpps@64bytes (8TX)

12~48 VDC, Redundant power with polarity reverse protection function

5-Port TX: 2.8 Watts    8-Port TX: 4.6 Watts

Provide DIN rail kit and wall mount plate for 3-way installation

0~60 Degree C, 5%~90%RH (Non-condensing)

-40~85 Degree C, 5%~90%RH (Non-condensing)

54 x 105 x 155 mm

FCC Class A, CE mark

IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration)

Data Collec

Server

Switch

Industrial Switch

Industrial

Motors/Devies

PLC

Distribute I/O

Control System

I/O Devices
