Planet WNRT-630 Manuale utente
802.11n Wireless Gigabit Broadband Router
WNRT-630
Quick Installation Guide
Table of Contents
Introduction ................................................................................. 3
Package Content............................................................................. 4
Hardware Installation ...................................................................... 5
Web Conguration .......................................................................... 7
Further Conguration .....................................................................11
3
Introduction
Thank you for purchasing PLANET 801.11n Wireless Gigabit Broadband
Router, WNRT-630. In this Quick Installation Guide, it illustrates the
hardware installation and the basic conguration.
4
Package Content
1 x WNRT-630
1 x Ethernet Cable
1 x Power Adapter
1 x CD ROM
1 x Quick Installation Guide
Note
If any of the above items are missing or damaged,
contact your local dealer for support.
l
l
l
l
l
5
Hardware Installation
1. Locate an optimum location for the WNRT-630. The best place
for your WNRT-630 is usually at the center of your wireless network,
with line of sight to all of your mobile stations.
2. Adjust the antennas of WNRT-630. Try to adjust them to a posi-
tion that can best cover your wireless network. The antenna’s posi-
tion will enhance the receiving sensitivity.
3. Connect RJ-45 cable to WNRT-630 LAN port. Connect one of the
LAN ports on WNRT-630 to your LAN switch/hub or a computer with
a RJ-45 cable.
4. Connect RJ-45 cable to WNRT-630 WAN port. Connect the
supplied Ethernet cable to xDSL/Cable Modem and the WAN port on
WNRT-630.
5. Plug in power adapter and connect to power source. After
power on, WNRT-630 will start to operate.
Note
ONLY use the 12V 1A power adapter supplied with the
WNRT-630. Otherwise, the product may be damaged.
If you want to reset WNRT-630 to default settings, press
and hold the RESET button over 20 seconds and release.
And then wait for WNRT-630 restart.
6
RST / WPS
Button
This button has two functions:
To Clear All Data and restore the factory default
values:
Press the RST (reset) button for longer than 20
seconds until the LED of power ash, and then the
router will reset itself to the factory default settings.
(Warning: your original congurations will be replaced
with the factory default settings)
To make Wi-Fi Protected Setup (WPS) simple and
easier:
Press the WPS button (for less than 3 seconds);
machine will start WPS function to build connection
between wireless network clients and this wireless
router.
7
Web Conguration
WNRT-630 provides a user friendly interface for users to congure it
via web browser. Please follow the steps below to congure WNRT-630
basic settings.
1. Open your web browser and type WNRT-630 default IP address
(192.168.1.1) into the “Address Field” of you web browser. Before
conguration, please make sure your PC’s IP address is under the
same IP range with WNRT-630.
2. After enter the IP address and press Enter key, you can see the
dialog box appear as below, please enter the User name and Pass-
word with “admin”. Then press “OK”.
8
3. Please click “Quick Setup” on the left panel to setup your WNRT-630.
4. Select a Time Zone that corresponds to your country. Time Zone
setting will affect functions such as Log entries and Firewall. You may
keep the default Time Server address or set a new Time Server’s IP
address for WNRT-630 to adjust it’s time on the Internet. Please click
“Next” to continue.
9
5. The WNRT-630 supports six Internet connection types. This informa-
tion must be provided by your local ISP.
6. The IP Address Info page appears after you choose suitable Broad-
band Type. Different Broadband Type will have different IP settings.
You must obtain all necessary information from your local ISP and
enter the correct parameters in this page.
7. Click “Apply” to save the settings.
10

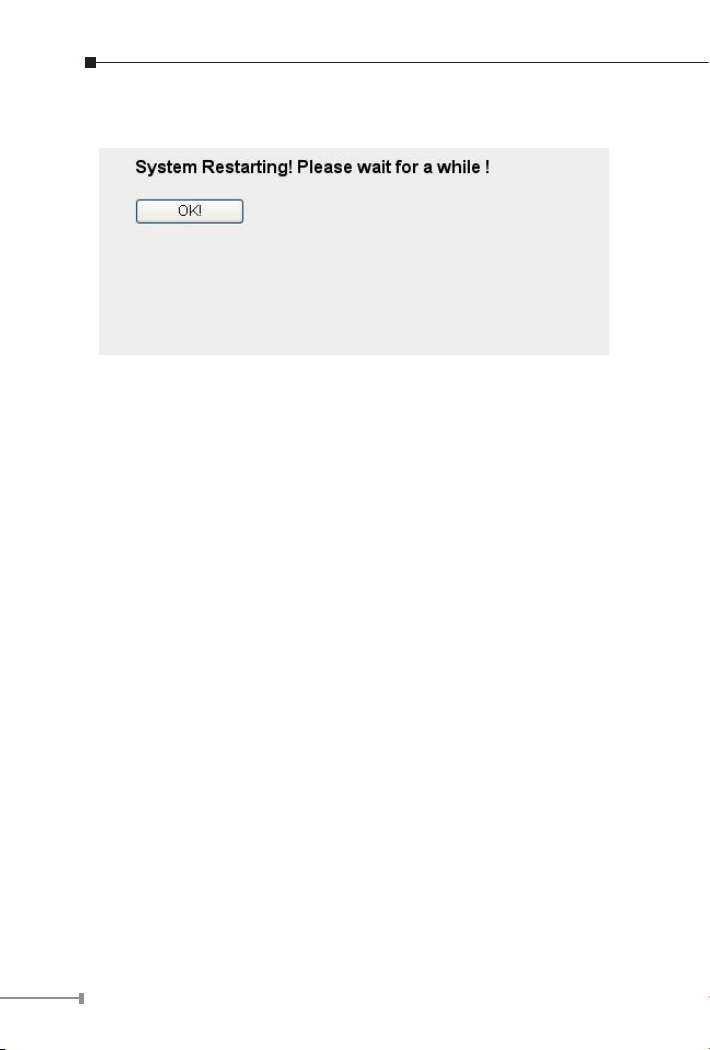

8. Please wait for 30 seconds for WNRT-630 restart. Then click “OK”.
