USER GUIDE

CS50-R

......................................................................................

WIRELESS OFFICE HEADSET SYSTEM

TABLE OF CONTENTS

Package Contents

Features

Setup

Positioning

Adjusting Fit

Charging

Making/Answering/Ending Calls 8

Headset Controls

Volume

Mute

Troubleshooting

Base Indicator Lights

Battery Replacement

System Reset

Subscription

Maintenance

Technical Assistance

Regulatory Notices

Visit www.plantronics.com/productregistration to register your CS50-R product online so

we can provide you with the best possible service and technical support.

PACKAGE CONTENTS

Headset

Earloops

Headband

CS50

CS55

Base

AC Charger

Headset and Wearing Options

Base

You can wear your new headset either over your head or over the ear. You may change

your wearing style as often as you like.

FEATURES

Charge Indicator Light (red)

Subscription

Button Access

Hole (paperclip

required)

Charge Contacts

Status Indicator Light (green)

Headset Docking Cradle

AC Charger Port

Back and Side

Front

FEATURES

Front:

Rear:

Listening

Volume/Mute

Talk Indicator Light

Speaker

Battery Cover

Call Control Button

Microphone

Headset

Telephone Cord Jack

Telephone Handset Jack

Speaking Volume

Major Adjust

AC Charging Jack

Handset Lifter Jack

RingerSwitchOn/Off

Stand Pegs

3.5mm

Connector

Base

Headset

SETUP

Plug the cord that is connected to the CS50-R base into the 3.5mm jack on the CS50-R

compatible phone.

CAUTION: Your phone may have two similar jacks. Put the cord only in the jack that fits,

it's the one furthest toward the back of the phone.

Plug the AC charger into an outlet and into the base’s AC charging jack.

Before starting the setup of the CS50-R headset system, install your CS50-R compatible

phone and be sure it is working properly. For installation details regarding your phone,

refer to the user guide that came with it.

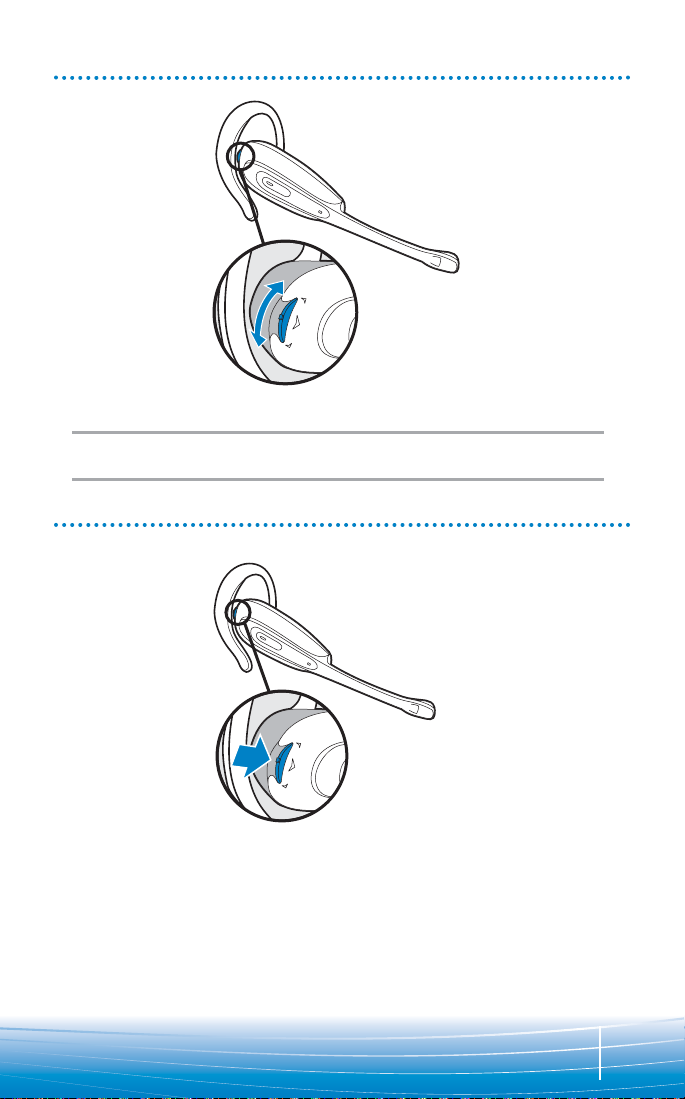

HEADSET MUTE

To mute headset, press the listening volume/mute button straight in. Press again

to unmute.

You will hear 3 rapid beeps every 30 seconds to indicate mute is on.

LISTENING VOLUME

Rock the headset volume control back and forth to adjust listening volume.

NOTE: Be sure to set your telephone’s volume at the mid range before adjusting the

CS50-R volume.

HEADSET CONTROLS

Making/answering/

ending calls

Ascending/descending

tones, 3 tones at limit

2 tones every 15 seconds

Short key press

straight in

Rock back

and forth

Mid tone

Low battery

warning (5 minutes of

talk time remaining)

Return headset

to charging cradle 1 tone every 10 seconds

Out of range

warning - when on

an active call

Move closer

to base 2 tones just before range

limit. 3 tones beyond

range limit and active

call will be suspended.

1 tone will sound when

returning within range;

call will be re-established

if within 15 minutes

Incoming call

notification*

Press call control

button to answer call 3 repetitive tones

Mute

Listening volume

Key Feature Action Tone
