Plantronics Marque 2 Manuale utente

Marque 2

M165

User Guide

Contents

What's in the Box 3

Headset Overview 4

Pairing 5

Pair First Time 5

Pair Another Phone 5

Charge 6

Fit 7

Adjust the Fit 7

The Basics 8

Make/Take/End Calls 8

Mute 8

Adjust the Volume 8

Stream Audio 8

More Features 9

Save Power 9

Decipher the Lights 9

Hear it Whisper 9

Disable Voice Commands 9

Technical Specifications 10

Headset AC charger

Earloop Eartips

What's in the Box

Power button

Call button

Charge port

Headset LED (indicator light)

/Volume/Mute button

Headset Overview

The ﬁrst time you power on your headset, it begins the pairing process.

1Put the headset on and turn it on.

•iPhone and Android™Smartphones Follow the voice-guided pairing instructions.

•Other phones Use your phone's menu to:

2While the headset LEDs are flashing red and white, activate Bluetooth®on your phone and set it

to search for new devices.

3Select “PLT_M165.”

4If your phone asks, enter four zeros (0000) for the passcode or accept the connection. The

indicator light stops ﬂashing red and white once successfully paired.

Multipoint technology lets you pair a second phone and answer calls from either phone.

1Power on your headset.

2Press and hold the Call button until the indicator light ﬂashes red and white or you hear

“pairing.”

3While the indicator light ﬂashes red and white, activate Bluetooth on your phone and set it

to search for new devices.

4Select “PLT_M165.”

5If your phone asks, enter four zeros (0000) for the passcode or accept the connection. The

indicator light stops ﬂashing red and white once successfully paired.

Pairing

Pair First Time

Pair Another Phone

Your new headset has enough power to pair and make a few calls. It takes two hours to fully

charge the headset; the indicator light turns off once charging is complete.

Charge

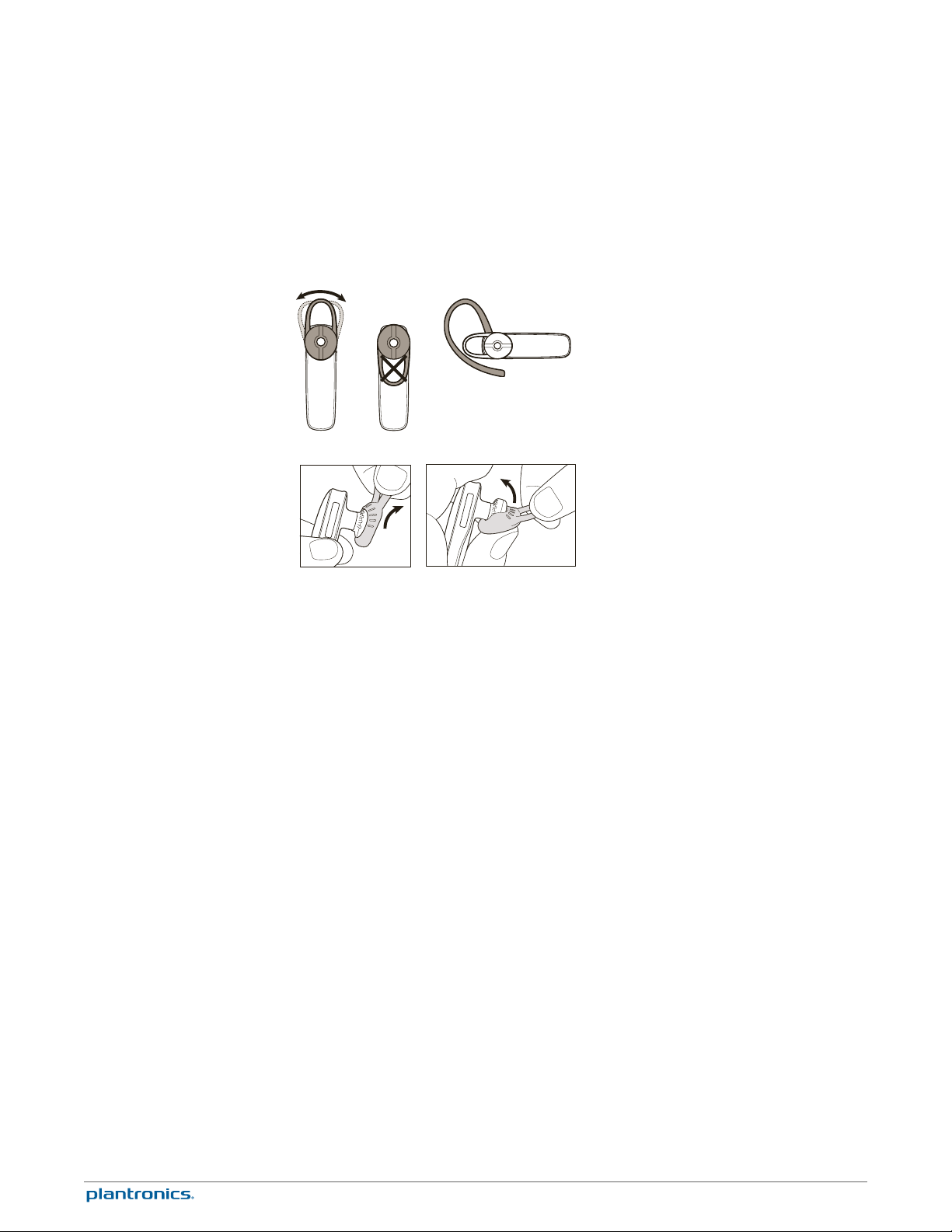

The universal-ﬁt eartip has a thin loop that bends to gently tuck into the contours of either ear.

1Rotate the eartip on the headset or add the optional clip-on earloop to adjust the fit.

2Replace the gel eartip with one of the two alternate sizes, if it feels loose or tight in your ear.

Fit

Adjust the Fit

Answer a call

Choose:

•Tap the Call button

Answer a second call

First, tap the Call button to end current call, then tap the Call button again to answer new

call.

End a call

Tap the Call button to end current call.

Reject a call

Choose:

• Say “ignore” after call is announced, or

•Press Call button for 2 seconds

Call back last call

To dial your last number you dialed, double-tap the Call button .

Voice dial (phone feature)

Press the Call button for 2 seconds, wait for phone prompt and then tell the phone to dial the

name of a stored contact.

You can mute the microphone during a conversation.

During a call, tap the Volume/Mute / until you hear “mute on” or “mute off.” While the

microphone is muted, an alert repeats every 15 minutes.

Tap the Volume/Mute / button to cycle through preset levels.

Streaming audio is controlled using your phone, but when a call rings, the audio automatically

pauses to allow you to answer or ignore the call. Once the call is ignored or ends, the

streaming audio is resumed.

The Basics

Make/Take/End Calls

Mute

Adjust the Volume

Stream Audio

If you leave your headset powered on but out of range of your paired phone for more than 90

minutes, your headset will conserve its battery power by entering into a DeepSleep™mode.

Once back in range with your phone, tap the Call button to exit DeepSleep mode. If your

phone is also ringing, tap the Call button again to answer your call.

Your headset has an indicator light that ﬂashes in response to a change in status or after a

button press.

Some examples of what you will see are:

• Solid red until charging complete and then off

• Flashing red and white during pairing

• Triple red ﬂash when less than 10 minutes of talk time

• Triple white ﬂash at incoming call

Your headset tells you about status changes in English. For example:

“Power on”

“Pairing successful”

“Talk time (x) hours”

“Mute on”

“Lost connection”

“Recharge headset”

This headset only speaks and understands English. If you prefer to use the Call button to answer

or reject calls, you can disable the voice commands “answer” or “ignore.”

With the headset powered on, simultaneously press the Call and Volume buttons until you

see the indicator light ﬂash white two times. Repeat these steps to reactivate the commands.

More Features

Save Power

Decipher the Lights

Hear it Whisper

Disable Voice Commands

Talk time Up to 7 hours*

Standby time Up to 11 days*

Headset weight 7 grams

DeepSleep technology • Activates when paired headset is out of range for over

90 minutes

• Provides up to 180 days* of battery readiness

Multipoint technology Use one headset to answer calls from either of two

paired Bluetooth phones

Charge connector Micro USB charging

Battery type Rechargeable, non-replaceable lithium-ion polymer

Charge time (maximum) 90 minutes for full charge

Headset battery meter On-screen for iPhone, enabled by Find MyHeadset™

Bluetooth version v3.0

Bluetooth profiles Advanced Audio Distribution Profile (A2DP), Wideband

Hands Free (HFP) Profile 1.6 and Headset (HSP) Profile

1.2

Operating and storage temperature 32°F – 104°F (0 – 40°C)

NOTE * Performance is dependent upon battery and may vary by device.

Technical Specifications
