Plantronics MCD 100M Manuale utente

MCD100-MTM USB Speakerphone

User Guide

Plantronics MCD100-M USB Speakerphone

Welcome

Congratulations on purchasing your new Plantronics product. This guide contains instructions for setting up and using your Plantronics

MCD100-M USB Speakerphone.

The MCD100-M is a high quality USB speakerphone that is optimized for use with Microsoft®Ofﬁce Communicator 2007. By default, the

MCD100-M utilizes its internal microphone and loudspeaker providing high quality communication for all your VoIP applications.

Please refer to the safety instructions in the Quick Start Guide for important product safety information prior to installation or use of the

product.

Contents

Plantronics MCD100-M USB Speakerphone

1 Package Contents and Features.................................4

1.1 MCD100-M USB Speakerphone ............................. 4

1.2 MCD100-M USB Speakerphone Features .............. 4

2 Set Up .........................................................................5

2.1 Connecting USB Speakerphone to PC ................... 5

2.2 External Speakers/Headphones Connection .......... 5

2.3 Conﬁrming MCD100-M is Conﬁgured as Microsoft

Ofﬁce Communicator 2007 Speakerphone ................... 5

3 Using Your MCD100-M USB Speakerphone ............8

Volume up, Volume down, Mute .................................... 8

Plantronics MCD100-M USB Speakerphone 4

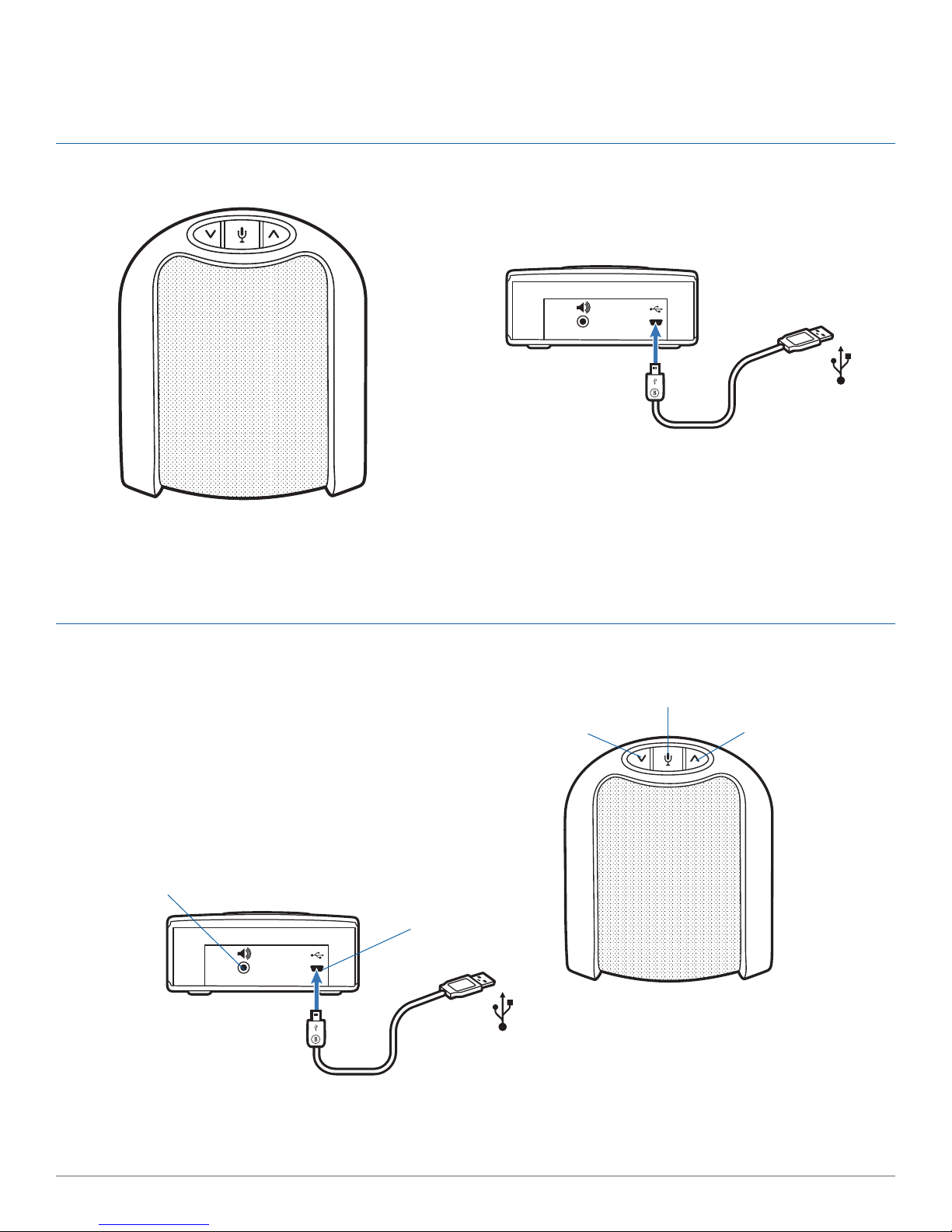

1.2 MCD100-M USB Features

1.1 MCD100-M USB Speakerphone

Speakerphone

USB Cable

(mini B to A)

1Package Contents and Features

Volume Down

Mute Key

Volume Up

USB Port

3.5 mm Stereo Jack

(for external speakers or

headphones)

Plantronics MCD100-M USB Speakerphone 5

2Set Up

2.1 Connecting USB Speakerphone to PC

1Connect the USB cable to the USB port on the back of

the speakerphone.

2Connect the other end of the USB cable to the USB port

on your computer. A blue light will illuminate through the

buttons on the top of the unit indicating the speakerphone is

powered on and operating.

2.2 External Speakers/Headphone

Connection

The MCD100-M is equipped with 3.5mm stereo Headphones

/ External Speaker connector. Connecting your computer’s

loudspeakers (or headphones) to the MCD100-M will disable the

MCD100-M’s internal speaker. Your computer’s audio (music,

VoIP communication, or any other) will be passed through to

the external speakers, maintaining the same sound quality your

computer can deliver. While the internal speaker is disabled when

using this connection, the MCD100-M’s internal microphone is

still functional.

2.3 Conﬁrming MCD100-M is Conﬁgured as

Microsoft Ofﬁce Communicator 2007

Speakerphone

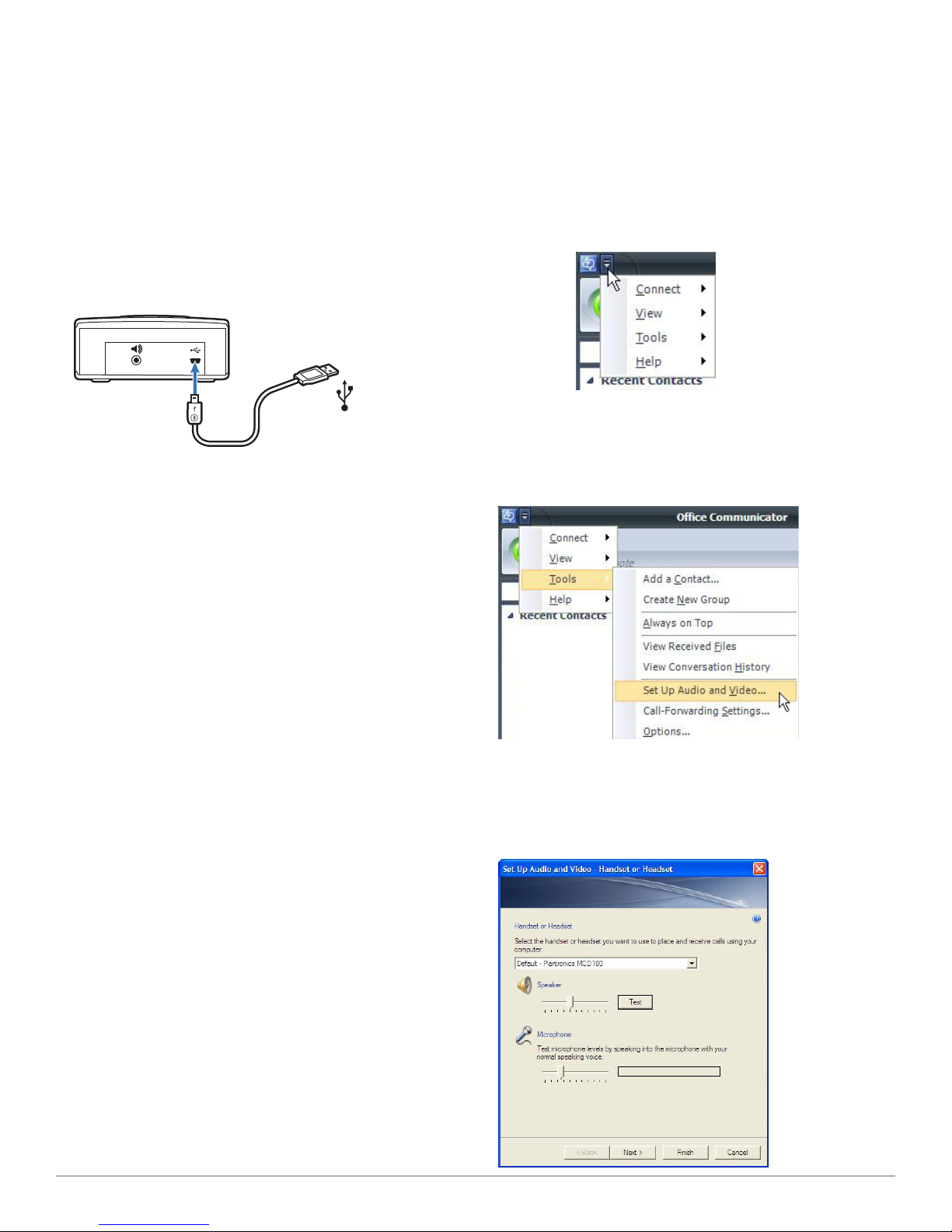

MCD100-M works plug-and-play with Microsoft Ofﬁce

Communicator 2007 and requires no drivers or additional

software. For most computers, MCD100-M should become the

default speakerphone device when connected to your computer.

To assure MCD100-M is conﬁgured properly as the Microsoft

Ofﬁce Communicator 2007 speakerphone, follow these steps:

1Click the drop down arrow on the upper left corner.

2Select the “Tools” option

3Select “Set Up Audio and Video…”

The Microsoft Ofﬁce Communicator 2007 Audio and Video wizard

will now guide you through 3 setup steps:

A) In step A you will set the Handset or Headset you want to use.

If MCD100-M is the only Microsoft Ofﬁce Communicator 2007

device connected to your PC, make sure MCD100-M is selected

in the drop down menu, or, make sure the headset or handset

you wish to use is selected. Click Next.

Plantronics MCD100-M USB Speakerphone 6

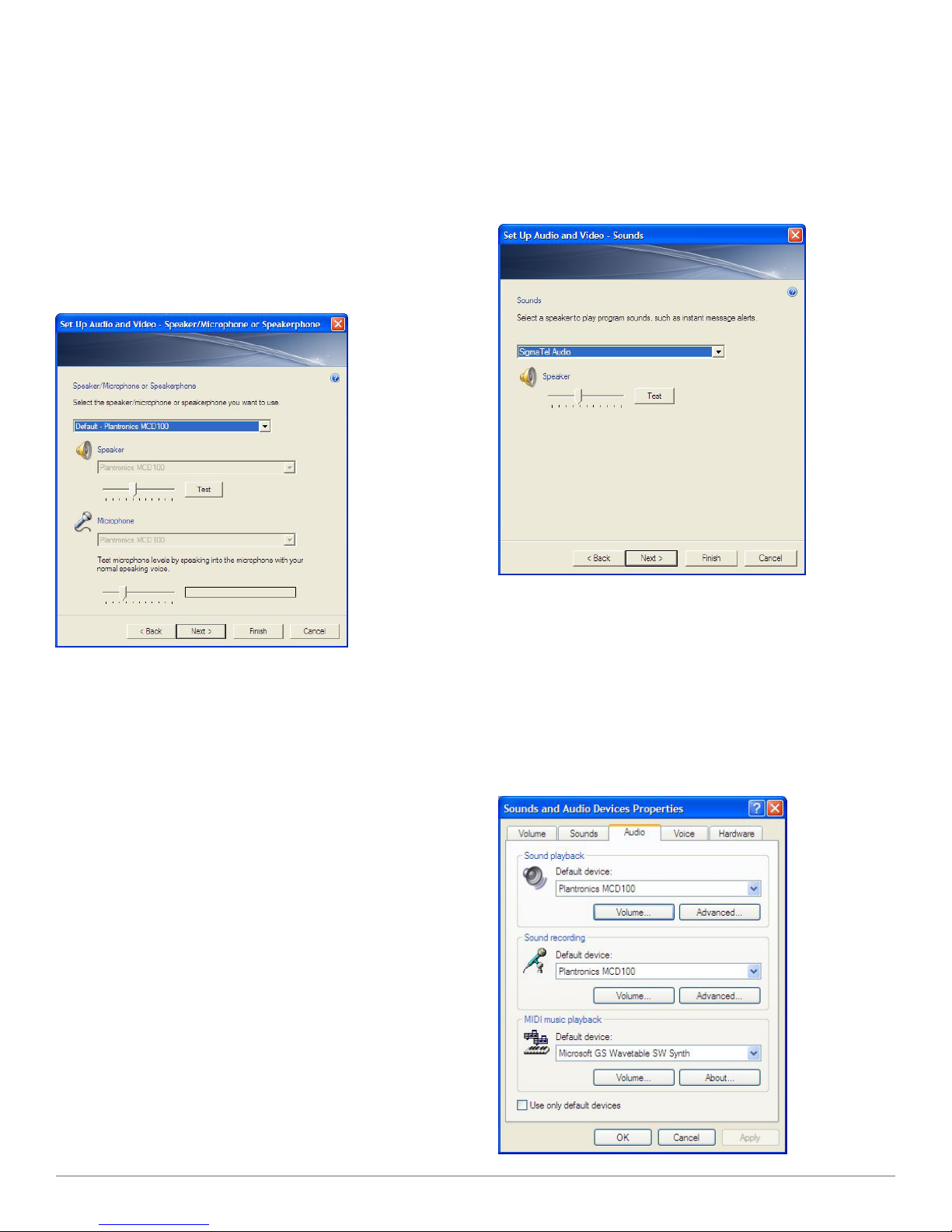

B) In step B, you will set the Speakerphone you want to use.

Make sure the Speakerphone is set for MCD100-M by default.

If it is not, select then select MCD100-M in the drop down lists

under Speaker and Microphone. Click Next.

At this point you may click Test to play a tone through the

MCD100-M speaker and adjust the speaker volume. For

Windows XP the speaker slider will not adjust the volume

on MCD100-M (because of how MCD100-M is required to

enumerate to meet Microsoft Ofﬁce Communicator 2007

Certiﬁcation requirements) so the volume must be adjusted using

the MCD100-M controls on the unit. The microphone can also

be adjusted at this point using the slider. Both sliders operate

correctly with Windows Vista.

C) In step C, you will set the audio output location for your

Microsoft Ofﬁce Communicator 2007 program sounds. It is

recommended that you use your PC speakers for this setting if

you have a sound card and speakers available because system

sounds can be distracting when played through MCD100-M

during a call.

NOTE This step only controls Microsoft Ofﬁce Communicator

2007 system sounds. Windows system sounds must be

managed through “Sounds and Audio Devices” in Control Panel.

To make any further adjustments to Windows audio, do the

following:

For Windows XP, click on the following: “Start”, “Settings”,

“Control Panel”, and select “Sound and Audio Devices”. From

there select the audio tab and make any further adjustments to

MCD100-M settings for Sound Playback (speaker) or Sound

Recording (Microphone).

Plantronics MCD100-M USB Speakerphone 7

For Windows Vista, click on the following: “Start”, “Control

Panel”, “Hardware and Sound”, “Sound – Manage Audio

Devices”. From there select the Playback tab and make any

further adjustments to MCD100-M (speaker) settings. Then select

the Recording tab and make any further adjustments to the

MCD100-M (microphone) settings.

Plantronics MCD100-M USB Speakerphone 8

3Using Your MCD100-M USB Speakerphone

Volume Up, Volume Down, and Mute

1Press the down arrow (left button) to decrease the

speaker volume.

2 Press the up arrow (right button) to increase the speaker

volume.

NOTE A prolonged press of the Volume buttons will increase or

decrease the volume several levels until you stop pressing the

button. The MCD100-M will beep when a volume up button or

volume down button is pressed and a series of beeps when a

prolonged press is performed. Each beep signals one level of

volume increase or decrease.

3 Press the microphone icon (middle button) to mute

the microphone. A blue light will ﬂash indicating that the

microphone is muted.

4 Press this button again to unmute. The blue light will

become solid indicating the microphone is unmuted.

Plantronics, Inc.

345 Encinal Street

Santa Cruz, CA 95060

United States

www.plantronics.com

For product support contact us at www.plantronics.com/support.

trademarks or registered trademarks of Plantronics, Inc. Microsoft, Windows and Vista are trademarks or registered

trademarks of Microsoft Corporation.

81584-01 (01.09)
