Installation Manual
Bookletmaker SR 85 and Trimmer TR 85
January 2002
x17030
Installation manual SR85
Introduction
This install manual covers the installation of the Booklet maker SR 85 and the Trimmer TR 85.
If you have any comments or remarks, please contact us on
one of the following numbers:
Email: [email protected]
Phone: +46 8 602 50 41
1 800 648 57 73
Fax: +46 8 722 9970
Installation manual SR85
2-10
Table of contents
1. Minimum space requirements
1.1 Space requirements
2. Installing the Bookletmaker
2.1 Unpacking
2.2 Remove the Panels and Shelf
2.3 Power requirements
2.4 Preparing the printer
2.5 Interface
2.6 Wiring communication cable
2.7 Connectors communication cable
2.8 Adjustments
3. Installing the Trimmer
3.1 Unpacking
3.2 Power requirements
3.3 Attaching the Trimmer to the Bookletmaker
Page
1-1
2-1
2-2
2-3
2-4
2-7
2-8
2-9
3-1
3-2
3-3
Installation manual SR85
1. Minimum space requirements
1.1 Space requirements

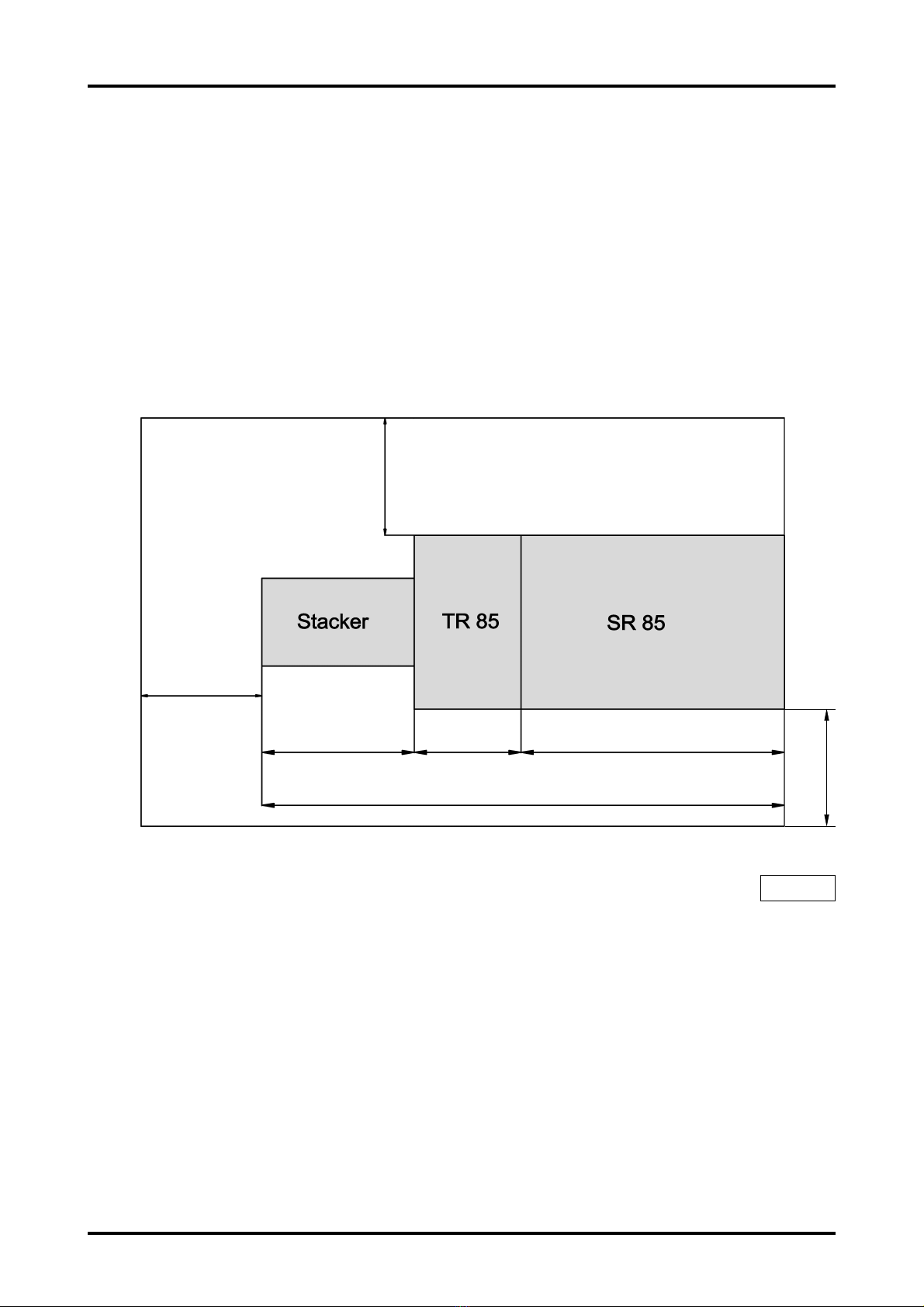

1. Ensure that the minimum required floor space is available for an installation of the
Bookletmaker SR 85 including the Trimmer TR 85 as shown in figure 1.
Figure 1
1-1
505 mm 354 mm 873 mm
1 732 mm
400 mm
200 mm
555 mm
Installation manual SR85
2. Installing the Bookletmaker
2.1 Unpacking
1. Remove all parts from the pallets. Remove the two cardboard handles underneath
the Bookletmaker, by pulling them straight out. Slide the SR85 of the pallet.

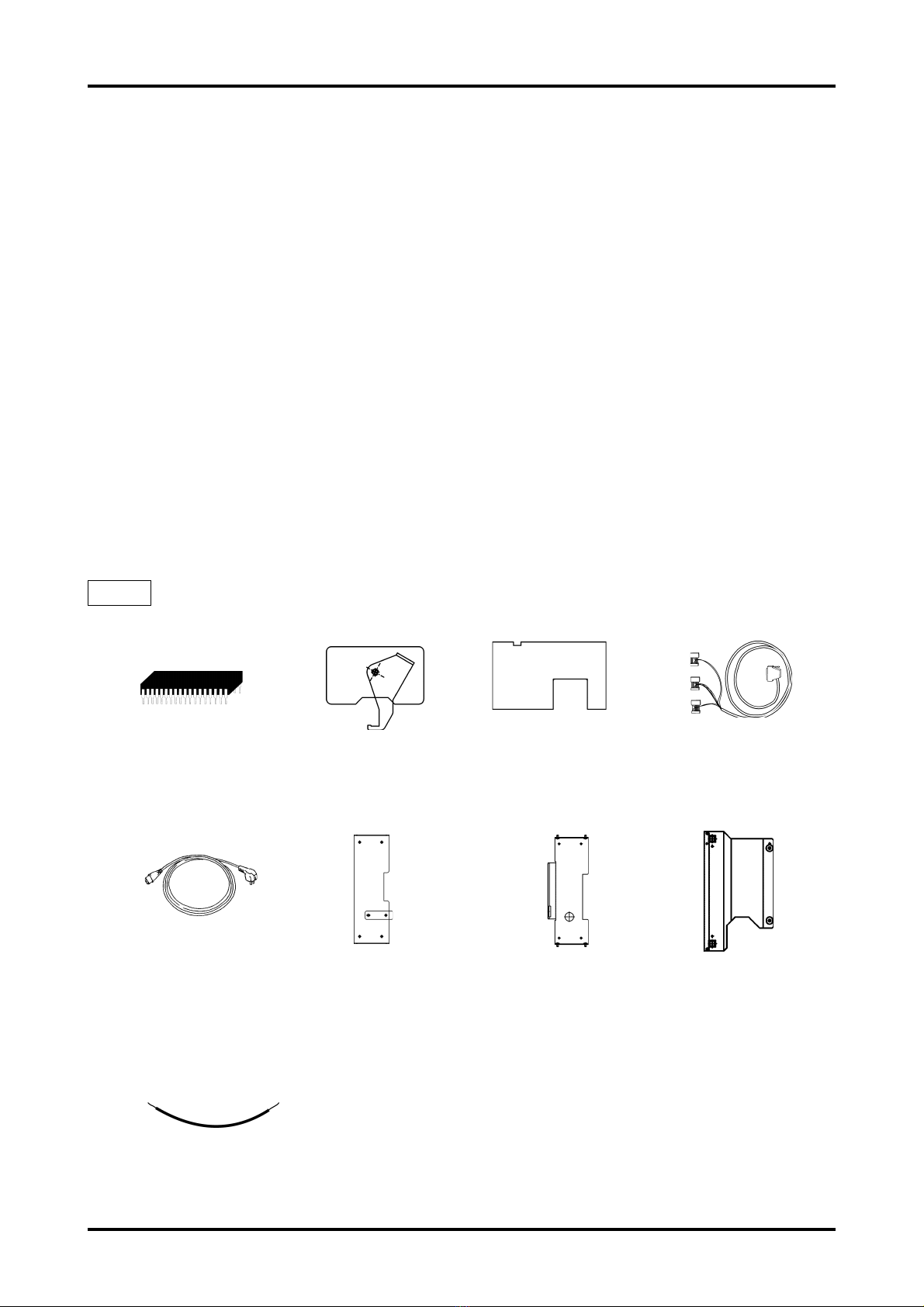

2. Unpack installation kit.
Box containing: 1. EPROM
2. Exit arm catcher
3. Template
4. Communication cable
5. Powercord
6. Shift tray plate with four 6 x 5.5 mm counter screws.
7. Exit tray plate with four 6 x 5.5 mm screws.
8. Docking assembly for the printer with two screws.
9. Tapping cable
Box
1. EPROM 2. Exit arm Catcher 3. Template 4. Communication Cable
2-1
6. Shift tray plate5. Powercord 8. Docking assembly
for the printer
9. Tapping cable
7. Exit tray plate
Installation manual SR85
1. Remove the Panels and shelf by loosen the four 7 mm screws (1). Figure 3
2. Slide the top of the panels (2) away from the screws. Remove the shelf (3), remove
the two panels.
2.2 Remove the Panels and Shelf
4. Open the Top cover on the Booklet maker and remove the Belt stacker wheel.
Install the Belt stacker wheel (1) on the Belt stacker with one 7 mm allen screw.
Figure 2.
Figure 2
1
2-2
Figure 3
2
3
1
Installation manual SR85 2-3
1. Remove the Infeed cover (1) by loosen two 8 mm screws, figure 4.
3. Check the transformer (2) tapping for the correct configuration, figure 5.
(Machines are tapped for 230V or 115V depending on configuration)
4. Reinstall the Infeed cover. Do not install the Panels and shelf at this time.
1
Two 8 mm screws
2
Figure 4
Figure 5
2. Check wall outlet voltage.
2.3 Power Requirements
Bookletmaker With Trimmer
Configuration Nom. Voltage (V) Max. Current (A) Max. Current (A)
Europe 220/230/240 0.5 A 2.0 A
N&S America 105/115/125 1.0 A 4.0 A
Installation manual SR85
2.4 Preparing the printer
1. Take the mounting template (1) and hold it to the output on the printer finisher (2).
Take the exit arm catcher (3), remove the adesive from the back of the catcher.
Install the catcher on the printer. Lift up the exit paper arm and set onto the catcher
(4). Figure 6
12
Figure 6
34
2-4
Installation manual SR85
2. Remove the rear cover on the printer finisher (1).
3. Open the printer finisher door and pull out the stapling tray.
4. Remove the two black plastic covers (2) at the bottom of the printer finisher
by removing two 5.5 mm screws, figure 7.
5. Take the docking assembly (3) and install it with two positioning screws in the
holes who were under the black plastic covers (2). Secure the docking
assembly with the two nuts (4). Make sure you turn the nuts correct, one
diameter for the small hole and one diameter for the big hole.
There shall be no play in the Docking assembly if mounted correctly.
Figure 7
1
2
3
Small hole
Big hole
2-5
4
Finisher seen from above
Finisher seen from front side
Installation manual SR85
6. Remove the printer exit tray (1) from the printer by removing four 5.5 mm
screws, figure 8.
Figure 8
1
2
Figure 9
Four 5.5 mm screws
7. Take the printer exit tray (1). Take the exit tray plate (2) and install it
with four 5.5 x 6 mm screws (from the installation kit) at the bottom of the exit
tray, figure 9.
2-6
1
