Pogo RipFlash DX 256MB Manuale utente
Table of contents
-
-Preparations
Preparations –
–
Warning
Components
Using buttons and controls
Inserting the batteries
Adding MMC / SD card
-
-Basic operation
Basic operation-
-
Playing songs on “DMR-300”
Selecting the track and volume control
Remote control
Hold function/ Local repeat
-
-Additional operation
Additional operation -
-
Using mode options and settings
Setting up EQ
Repeating tracks
Memory information
Record bit rate / Record Memory
CD-Ripping
Delete
Encoding function
Recording the voice
-
-Connection to computer
Connection to computer -
-
Installing Manager software
Deleting Manager software
Connecting to computer
Downloading files to DMR-300
Uploading files
Deleting files
Formatting the memory
-
-Moodlogic
Moodlogic Installation
Installation -
-
-
-Appendix
Appendix -
-
System requirements
Trouble shooting
Specification
WARNING
DANGEROUS VOLTAGE
Uninsulated Dangerous Voltage, that may be of
sufficient magnitude to constitute a risk of electric
shock to person is present within this product’s
enclosure.
!
ATTENTION
The owner’s manual contains important operating and maintenance
instructions. For your safety, it is necessary to refer to the manual.
To reduce the risk of fire or electric shock, do not expose this appliance
to rain or moisture.
To avoid electrical shock; do not open the case. Refer servicing to
qualified personnel.
CAUTION : Use of the controls or adjustments of procedure other than
those specific herein may result in hazardous radiation.
Do not operate the unit during the driving, bicycling or operating other
machine.
Do not insert metal with the batteries. (risk of fire)
It is recommended that you follow the listed guide line to prevent damage of
hearing.
Establish a safe sound level.
►Slowly increase the level of volume until you can hear comfortably.
►Once you have established a comfortable listening level, DO NOT
INCREASE THE SOUND LEVEL FURTHER.
(Over 80dB noise can be harmful under constant exposure. 80dB: average
city traffic, alarm clock buzzer at two feet)
Do not drop or give mechanical shock to the unit.
Do not place the unit in locations described below :
►Places exposed to direct sunlight, extreme heat or magnetized places
►Humid or moist places
►No ventilation or dust places
Do not clean it with thinner, alcohol or benzene.
WARNING

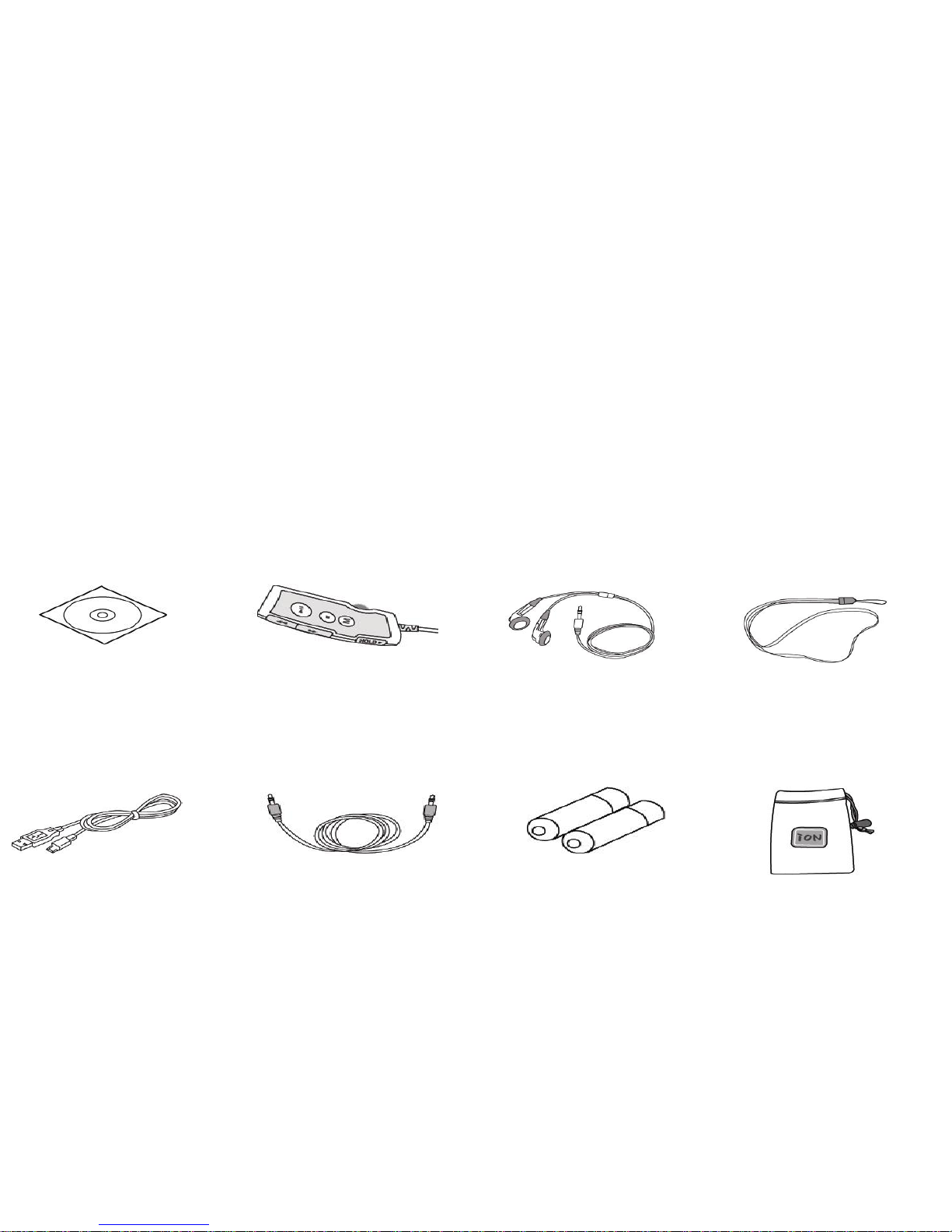

Components
Software
installation CD Stereo Ear
phone
Remote
control
USB cable 2 AAA Size
batteries
Line in cable Carrying
bag
Necklace
Using buttons and controls
LCD
Neck strap holder
MIC
< Front >
MENU
Record
Local Repeat
HOLD Switch
VOLUME Line-IN
Earphone jack
FORWARD
REVERSE POWER ON/OFF
PLAY/PAUSE/STOP
Record (Voice/Music)Mode MENU
Local repeatHold switch
Play the previous track
/ Rewind the current track
Volume
Play the next track
/ Fast forward in the current track
Power On / Play / Pause / Stop /
Power Off
Hold icon
Play icon
Pause icon
Music recording icon
Voice recording icon
Local repeat icon
Play mode icon
MMC / SD card icon
This icon will blink while the song in
MMC or SD card is played.
Volume level
Remaining battery capacity
MMC & SD card slot
/ USB jack
< Rear >
Inserting Battery
①Slide open the cover as shown
in the figure.
②Insert 2 AAA alkaline batteries
(supplied). Slide the cover back to
close.
③Use the alkaline batteries.
Note
If you do not use the batteries
correctly, it may become damaged.
Be sure to check the polarity of the
batteries (+,-), while inserting the
batteries.
13 hours2 alkaline batteries
MP3Battery lifetime
The bars inside a battery icon displays
the remaining battery capacity.
The icon will blink when the batteries
have almost run out. This unit will be
automatically powered off in 30
minutes from this time.

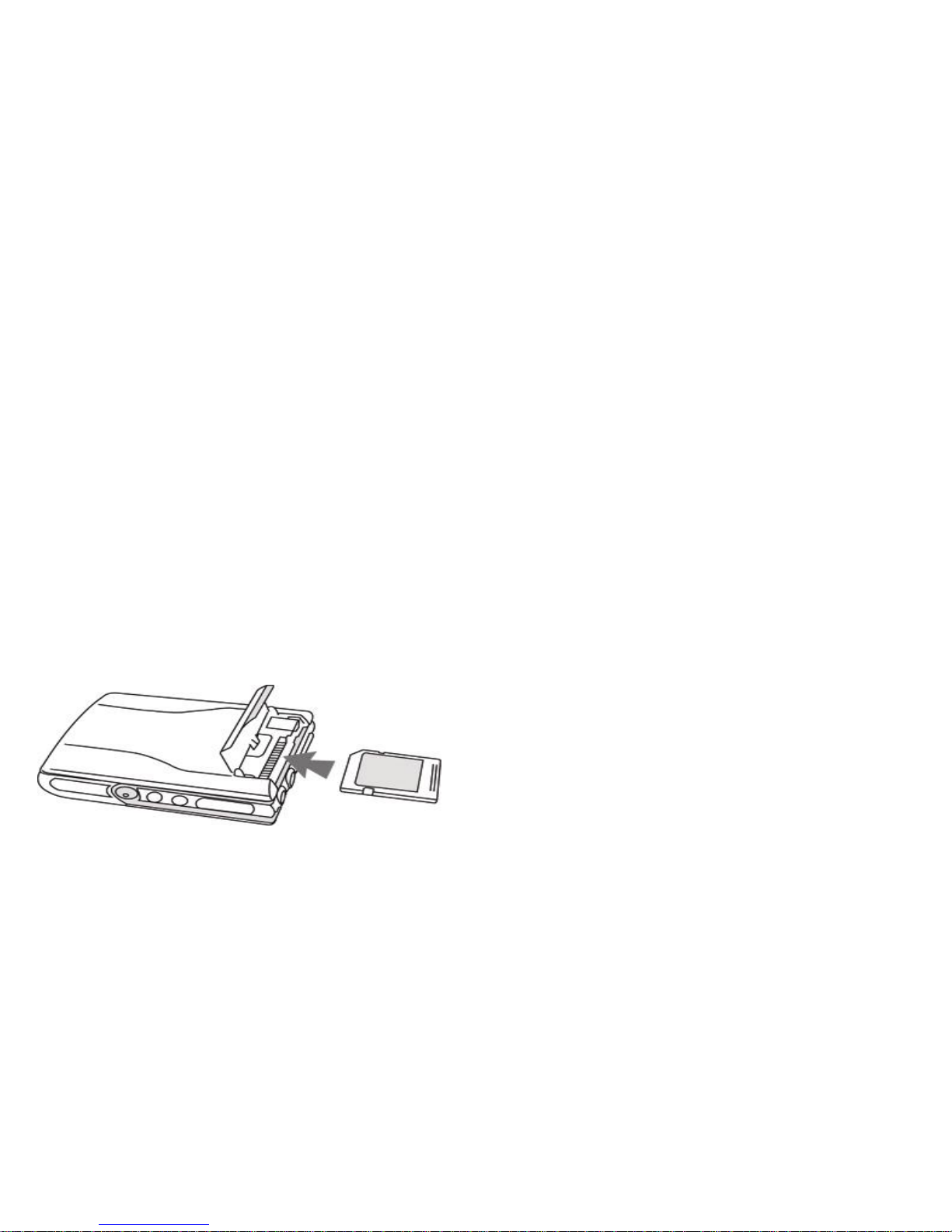

Adding MMC / SD card
If you need additional memory, you can purchase the MMC (the Multi Media
Card) or SD card(Secure Digital memory card) as shown in the figure.
②Turn on the unit to display the
memory capacity of the MMC or SD
card on the LCD.
Eject MMC / SD card,
①Press the MMC / SD card in the
direction of the arrow.
②MMC / SD card will pop up.
③Pull out the MMC / SD card.
Note
- Be sure to turn off this unit when you
insert or eject the MMC / SD card.
- Format the memory data to down load
the MP3 file.(32page)
- Downloading to the MMC or SD card is
the same as downloading to internal
memory.(28page)
①Align the MMC or SD card with the
slot as shown in the figure and insert it
to the end.
