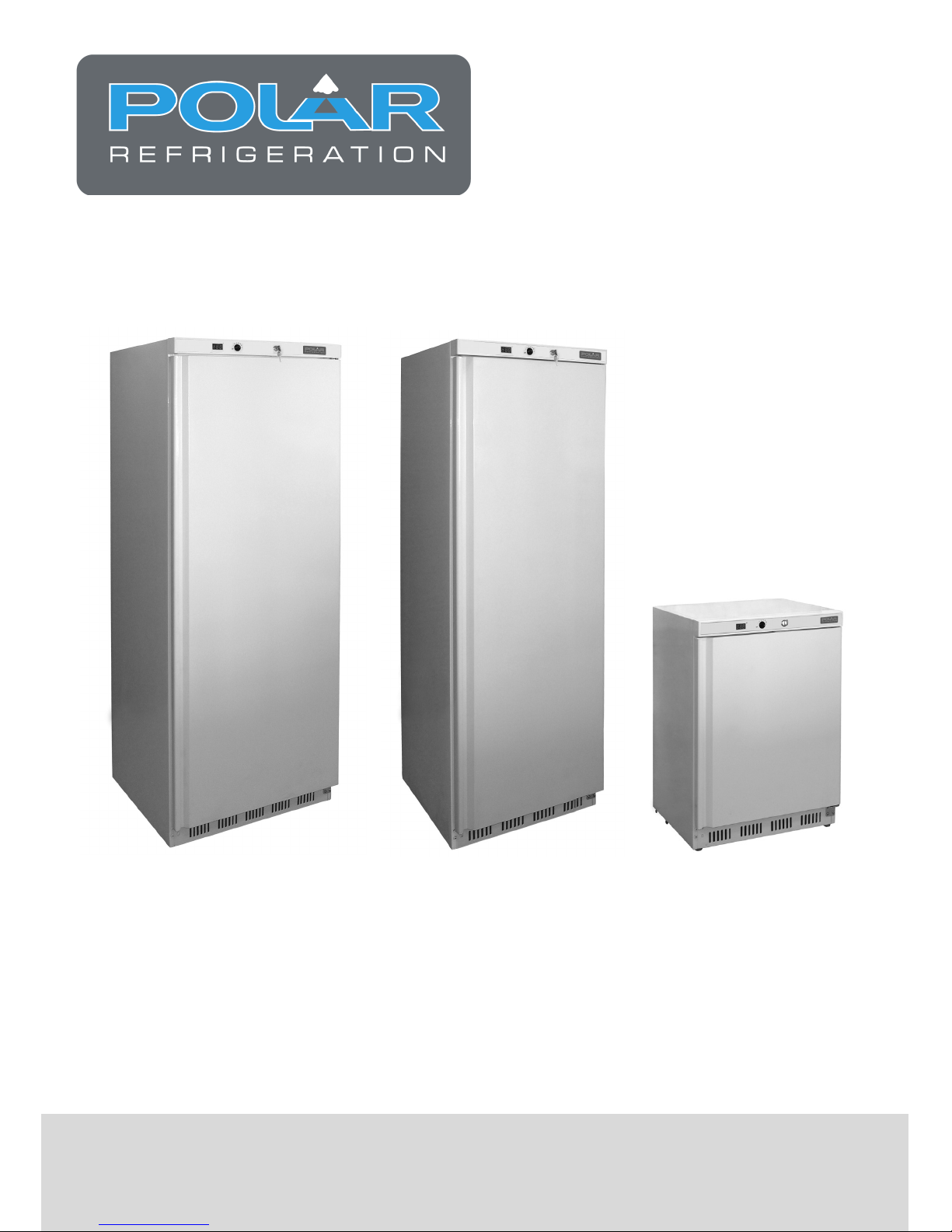

Polar Refrigeration CD080-A Manuale utente

600 / 400 / 150 litre series

Refrigerators/Freezers

Instruction manual

Models:

CD080-A/CD081-A/CD082-A/CD083-A/CD084-A/CD085-A/CD610-A/CD611-A/

CD612-A/CD613-A/CD614-A/CD615-A/CD086-A/CD087-A/CD088-A

Safety Tips

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out installation and any repairs if required. Do not

remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice

• Fire Precautions

• IEE Wiring Regulations

• Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.

• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice-cream makers etc.).

• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean

immediately if contact occurs.

• DO NOT store products on top of the appliance.

• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the

refrigerator.

• Always carry, store and handle the appliance in a vertical position and move by holding the base of the

appliance.

• Always switch off and disconnect the power supply to the unit before cleaning.

• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of

local authorities.

• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified

technician in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilites, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety

• Children should be supervised to ensure that they do not play wth the appliance

Product Description

• CD080-A - 150 litre Refrigerator

• CD081-A - 140 litre Freezer

• CD082-A - 400 litre Refrigerator

• CD083-A - 365 litre Freezer

• CD084-A - 600 litre Refrigerator

• CD085-A - 600 litre Freezer

• CD086-A - 150 litre Glass-Door Refrigerator

• CD087-A - 400 litre Glass-Door Refrigerator

• CD088-A - 600 litre Glass-Door Refrigerator

• CD613-A - 365 litre Freezer

• CD614-A - 600 litre Refrigerator

• CD615-A - 600 litre Freezer

• CD610-A - 150 litre Refrigerator

• CD611-A - 140 litre Freezer

• CD612-A - 400 litre Refrigerator

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of

this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied

fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are

thoroughly removed from all surfaces.

2. Maintain a distance of 2cm (0.7 inches) between the unit and walls or other objects for ventilation.

Increase this distance if the obstacle is a heat source.

Operation

Control Panel

The control panel is located on the front of the appliance.

Tu r n O n

1. Close the door of the appliance.

2. Connect the appliance to a mains power supply.

3. Set the temperature to the desired setting: 0 (Off), 1 (Cool) to 7 (Cold)

Storing Food

To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.

• Do not place uncovered hot food or liquid inside the appliance.

Note: If the unit has not been moved or stored in an upright position, let it stand upright

for approximately 12 hours before operation. If in doubt allow the appliance to stand.

Note: Before using the appliance for the first time, clean the shelves and interior with

soapy water.

• POLAR Refrigerator / Freezer

• Shelves - Refrigerator only

CD610-A/ CD080-A x 3/ CD086 x 3

CD612-A/ CD082-A x 4 / CD087 x 4

CD614-A x 4 / CD084-A / CD088 x 4

•Keysx2

•Spacersx2

• Instruction manual

• Wrap or cover food where possible.

• Do not obstruct the fans inside the appliance.

• Avoid opening the doors for prolonged periods of time.

Lock/Unlock the Doors

A lock is fitted to the doors to ensure foodstuffs are kept secure within your POLAR appliance.

Use the keys provided to lock/unlock the door.

Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.

• Do not use abrasive cleaning agents. These can leave harmful residues.

• Clean the door seal with water only.

• Always wipe dry after cleaning.

• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.

• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.

POLAR recommend that a POLAR agent or qualified technician clean the condenser.

Replacing the Lamp (CD086-A,CD087-A,CD088-A)

1.) Switch Off and disconnect the appliance from the power supply

2.) Remove the plastic cover

3.) Twist the lamp in its socket and release

4.) Remove the lamp and replace the new one of the same power rating

5.) Replace the plastic cover

Tro u b l e s h o o ti n g

If your POLAR appliance develops a fault, please check the following table before making a call to the

Helpline.

Fault Probable Cause Action

The appliance is not

working

The unit is not switched

Check the unit is plugged in correctly and switched on

Plug and lead are

damaged

Call POLAR agent or qualified Technician

Fuse in the plug has

blown

Replace the fuse

Power supply Check power supply

Internal wiring fault Call POLAR agent or qualified Technician

The appliance turns

on, but the

temperature is too

high/low

Too much ice on the

evaporator

Defrost the appliance

Condenser blocked with

dust

Call POLAR agent or qualified Technician

Doors are not shut

properly

Check doors are shut and seals are not damaged

Appliance is located near

a heat source or air flow

to the condenser is being

interrupted

Move the refrigerator to a more suitable location

Ambient temperature is

too high

Increase ventilation or move appliance to a cooler position

Unsuitable foodstuffs are

being stored in the

appliance

Remove any excessive hot foodstuffs or blockages to the fan

Appliance is overloaded Reduce the amount of food stored in the appliance

The appliance is

leaking water

The appliance is not

properly levelled

Adjust the screw feet to level the appliance (if applicable)

The discharge outlet is

blocked

Clear the discharge outlet

Movement of water to the

drain is obstructed

Clear the floor of the appliance (if applicable)

The water container is

damaged

Call POLAR agent or qualified Technician

The appliance is

unusually loud

Loose nut/screw Check and tighten all nuts and screws

The appliance has not

been installed in a level or

stable position

Check installation position and change if necessary

Technical Specifications

Electrical Wiring

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any

emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be

disposed of as household waste. To help prevent possible harm to human health and/or the

environment, the product must be disposed of in an approved and environmentally safe

recycling process. For further information on how to dispose of this product correctly,

contact the product supplier, or the local authority responsible for waste disposal in your

area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and

specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

Model Voltage Power Current Temperature

Range

Capacity

(litres) Refrigerant Dimensions

H x W x D (mm)

Weight

(Kg)

CD080-A 220-240V 50Hz 150 1.0A -2°C to 8°C 150 R134a (75g) 850x600x600 44

CD081-A 220-240V 50Hz 150 1.0A -10°C to -25°C 140 R134a (75g) 850x600x600 44.5

CD082-A 220-240V 50Hz 185 1.5A -2°C to 8°C 400 R134a (170g) 1850x600x600 69

CD083-A 220-240V 50Hz 210 2A -10°C to -25°C 365 R134a (185g) 1850x600x600 71

CD084-A 220-240V 50Hz 185 1.5 -2°C to 8°C 600 R134a (210g) 1890x777x695 90

CD085-A 220-240V 50Hz 350 3.5 -10°C to -25°C 600 R134a (290g) 1890x777x695 94

CD610-A 220-240V 50Hz 150 1.0A -2°C to 8°C 150 R134a (75g) 850x600x600 44

CD611-A 220-240V 50Hz 150 1.0A -10°C to -25°C 140 R134a (75g) 850x600x600 44.5

CD612-A 220-240V 50Hz 185 1.5A -2°C to 8°C 400 R134a (170g) 1850x600x600 69

CD613-A 220-240V 50Hz 210 2A -10°C to -25°C 365 R134a (185g) 1850x600x600 71

CD614-A 220-240V 50Hz 185 1.5 -2°C to 8°C 600 R134a (210g) 1890x777x695 90

CD615-A 220-240V 50Hz 350 3.5 -10°C to -25°C 600 R134a (290g) 1890x777x695 94

CD086-A 220-240V 50Hz 150 1.0A -2°C to 8°C 150 R134a (75g) 850x600x600 47

CD087-A 220-240V 50Hz 185 1.5A -2°C to 8°C 400 R134a (170g) 1850x600x600 72

CD088-A 220-240V 50Hz 185 1.5A -2°C to 8°C 600 R134a (290g) 1890x777x695 93

electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right

to change specifications without notice.

DECLARATION OF CONFORMITY

I, the undersigned, hereby declare that the equipment specified above

conforms to the above Legislation and Standard(s).

Equipment Type Glass Door Refrigerator

Model CD086-A, CD087-A, CD088-A, CD080-A,

CD081-A, CD610-A, CD611-A, CD612-A,

CD613-A, CD614-A, CD615-A

Legislation C-Tick

AS/NZ 3820 Essential Safety Requirements for

Low Voltage Electrical Equipment

Standards AS/NZS CISPR 14.1:2010

AS/NZS 60335.2.89:2010

Producer Name POLAR

Producer Address 15 Badgally Road

Campbelltown,

NSW 2560

Date 13/11/12

Signature

Full Name Richard Cromwell

Position Marketing Director

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Polar Refrigeration Frigorifero

Polar Refrigeration

Polar Refrigeration G590 Manuale utente

Polar Refrigeration

Polar Refrigeration CE320 Manuale utente

Polar Refrigeration

Polar Refrigeration DA546 Manuale utente

Polar Refrigeration

Polar Refrigeration DA462 Manuale utente

Polar Refrigeration

Polar Refrigeration G596-A Manuale utente

Polar Refrigeration

Polar Refrigeration u631 Manuale utente

Polar Refrigeration

Polar Refrigeration G377 Manuale utente

Polar Refrigeration

Polar Refrigeration CE322 Manuale utente

Polar Refrigeration

Polar Refrigeration GD882-A Manuale utente

Polar Refrigeration

Polar Refrigeration CD239 Manuale utente

Polar Refrigeration

Polar Refrigeration G377 Manuale utente

Polar Refrigeration

Polar Refrigeration G596 Manuale utente

Polar Refrigeration

Polar Refrigeration G591-A Manuale utente

Polar Refrigeration

Polar Refrigeration CD610 Manuale utente

Polar Refrigeration

Polar Refrigeration CF750 Manuale utente

Polar Refrigeration

Polar Refrigeration GL001 Manuale utente

Polar Refrigeration

Polar Refrigeration DL893-A Manuale utente

Polar Refrigeration

Polar Refrigeration CD239 Manuale utente

Polar Refrigeration

Polar Refrigeration CD610 Manuale utente

Polar Refrigeration

Polar Refrigeration G604 Manuale utente

Polar Refrigeration

Polar Refrigeration CK640 Manuale utente

Polar Refrigeration

Polar Refrigeration CE322-A Manuale utente

Polar Refrigeration

Polar Refrigeration G592 Manuale utente

Polar Refrigeration

Polar Refrigeration GD882 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
