Polaroid 3300BF Manuale utente

User Guide

3300

Contents

Attaching the Wrist Strap and Inserting the Batteries.................. 1

Loading the Film........................................................................ 1

Setting the Date and Time Imprint.............................................. 2

Holding the Camera................................................................... 3

Using the Camera.......................................................................3

Indoor and Outdoor Pictures........................................................4

Backlighting................................................................................4

Rewinding and Removing the Film..............................................5

Care and Storage........................................................................5

Attaching the Wrist Strap and

Inserting the Batteries

Page 1

To attach the wrist strap, Insert the wrist strap

through the ring on the side of the camera (1).

Push the opposite end of the strap through the

loop and pull (2).

To insert the batteries, open the battery compartment

on the bottom of the camera. Insert two AA-batteries

(alkaline only) into the compartment as shown. Make

sure the ends of the batteries are positioned accord-

ing to the markings (+) and (-) inside the compart-

ment cover.

Loading the Film

1. To open the film compartment, push the latch in

the direction of the arrow (1) and lift open the

door (2).

2. Insert a film cartridge into the chamber. Place the

flat end of the cartridge over the white post in the

chamber.

3. Pull the film leader until it reaches the film tip

indicator (▲FILM TIP). The best method is to hold the

cartridge down with the right hand while pulling the film

with the left.

Close the film compartment door until it clicks.

4. Press the shutter button three (3x) or four (4x)

times until the number 1 appears in the status

window.

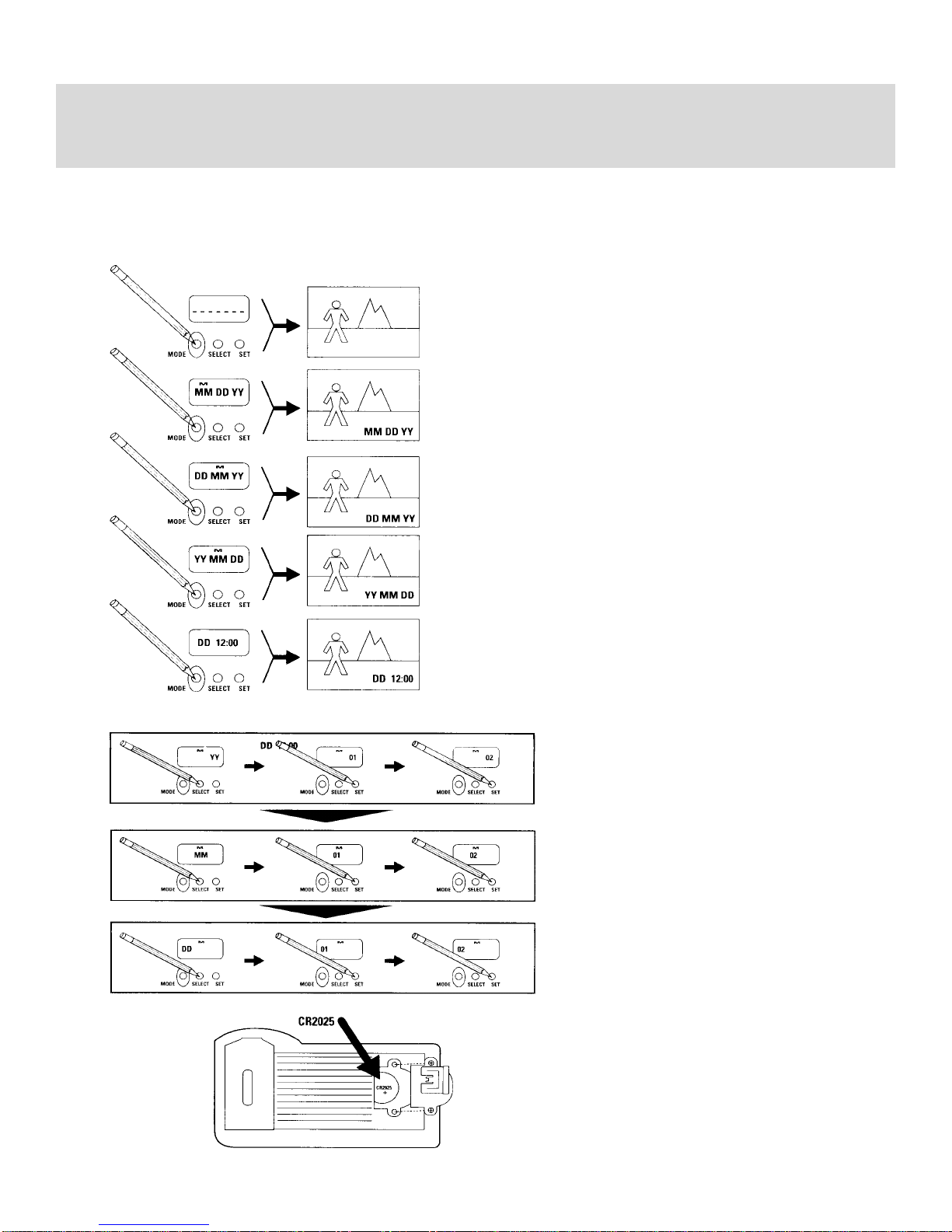

Setting the Date and Time Imprint

Page 2

This feature allows you to include an imprint of the date and time in the picture. Do this by using the MODE,

SELECT and SET buttons located on the film compartment cover.

Use the tip of a ballpoint pen to depress the

buttons.

Choosing the mode

Choose the MODE by repeatedly pressing

the MODE button until you reach the

desired format. Each time this button is

pressed, the format sequence will change

as shown at left.

No Imprint in Picture

Month,Dayand Year

Day, Monthand Year

Year, MonthandDay

Day and Time

Example: Setting the Year, Month and Day

To set the Year:

1.Press theSELECT button until the Year(YY) blinks.

2.Press SET repeatedlyuntil you reachthedesired Year.

To set the Month:

1.Press theSELECT buttonuntil theMonth (MM) blinks.

2.Press SET repeatedlyuntil you reachthe desired Month.

To set the Day:

1.Press theSELECT buttonuntil theDay (DD)blinks.

2.Press SET repeatedlyuntil you reachthe desired Day.

Note: One 3 V lithium battery (CR2025) powers the

display. If the display becomes too dim to read, the

battery should be replaced.

Holding the Camera

Page 3

For horizontal pictures, grip the

camera as shown. When positioning the camera for

vertical pictures, make sure the

flash is above the camera lens.

If your fingers block the flash, lens

or sensing device, the pictures will

be improperly exposed.

Using the Camera

1. Slide the lens cover switch down. This will

move the cover away from the lens and turn the

camera ON.

2. The green “flash-ready” light will come on. If

the camera is inactive for period (about one

minute), the green light will go out. To reactivate

it, gently touch the shutter button (1/2). When

the green light glows, push the shutter button all

the way (1) to take the picture.

3. To close the lens cover and shut the camera

OFF, slide the lens cover switch to the UP

position.

Indoor and Outdoor Pictures

Page 4

Backlighting

If bright sun is behind the subject

(facing the camera lens) the exposure

sensing device will be fooled and the

picture will come out too dark.

To compensate for this, press the “force

flash” button (1), and while holding the

“force flash” button (1) in, press the

shutter button (2).

The flash will fire, providing sufficient

illumination for proper exposure.

Outdoors, the camera will

take sharp pictures from 4

feet (1.3m) to infinity.

The indoor flash range will vary

depending on the film type.

Rewinding and Removing the Film

Page 5

1.Toactivatethemotorizedrewind,

slide the rewind switch (located at

the bottom of the camera) in the

direction shown.

2. Open the film compartment

door and remove the film. 3. Close the film compartment door.

Care and Storage

Avoid wet, damp conditions and extreme heat

such as the trunk of the car. Do not touch the camera’s viewfinder or flash.

Do not touch the lens. This will cause smudges

that may affect picture quality. Use a clean, lint-free, non abrasive cloth to clean

the lens. Never use soap or solvents.

For additional information on Polaroid Cameras & Film,

call us toll-free at 1-800-343-5000.

Or, visit our website - www.polaroid.com
