Polaroid IS426 Manuale utente

iS426

USER MANUAL

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

1

Thank you for purchasing this digital camera. Everything you need to take quality digital photos

and videos is included with your digital camera.

Polaroid makes capturing those special moments as easy as possible.

Please read this manual carefully first in order to get the most out of your digital camera.

Note:

Your camera needs an SD Memory card (up to 32GB) for normal use.

SD Memory cards are not included and need to be purchased separately.

This camera is a Plug and Play device. You can download the pictures and videos captured

by your camera without the software by directly accessing the camera’s memory card from

your computer. It is recommended however that you install the Polaroid Instant Memories

Software to enjoy the full Polaroid experience.

1) Digital Camera

2) USB Cable

3) Polaroid Instant Memories

Software Installation CD

4) AC Charger

5) Wrist Strap

6) Lithium Battery

Note: SD Memory Card not included.

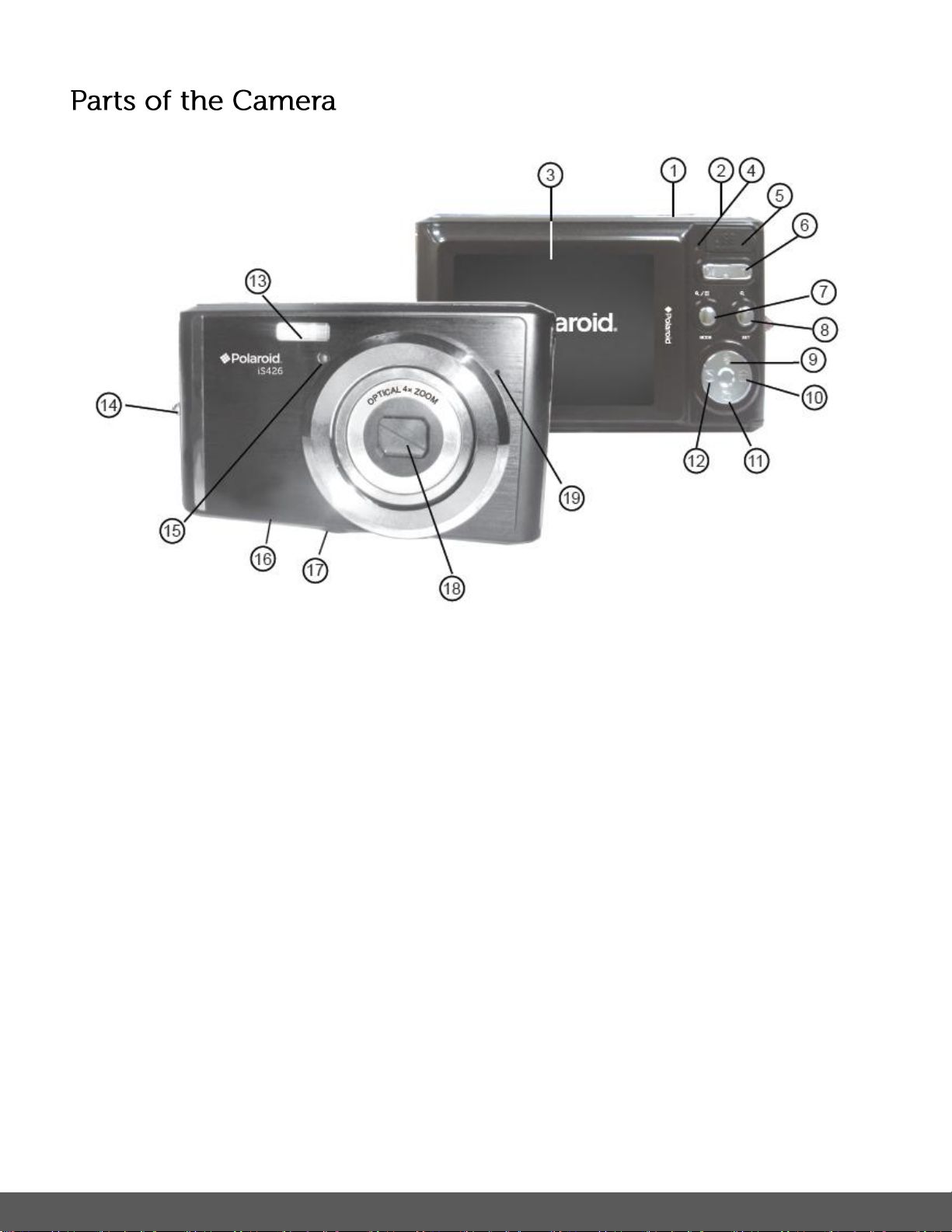

1. Power Button

11. INSTA Share / Down Button

2. Shutter Button

12. Scene / Left Button

3. LCD Screen

13. Flash Light

4. Busy/Charging LED Light Indicator

14. Wrist Strap Connector

5. USB Slot

15. Self-Timer LED Light Indicator

6. W/T Zoom Button

16. Battery Compartment / SD Card Slot

7. MODE Button

17. Tripod Mount

8. SET Button

18. Optical Lens

9. Flash / Up / Slide Show button

19. Microphone

10. Delete / Right Button

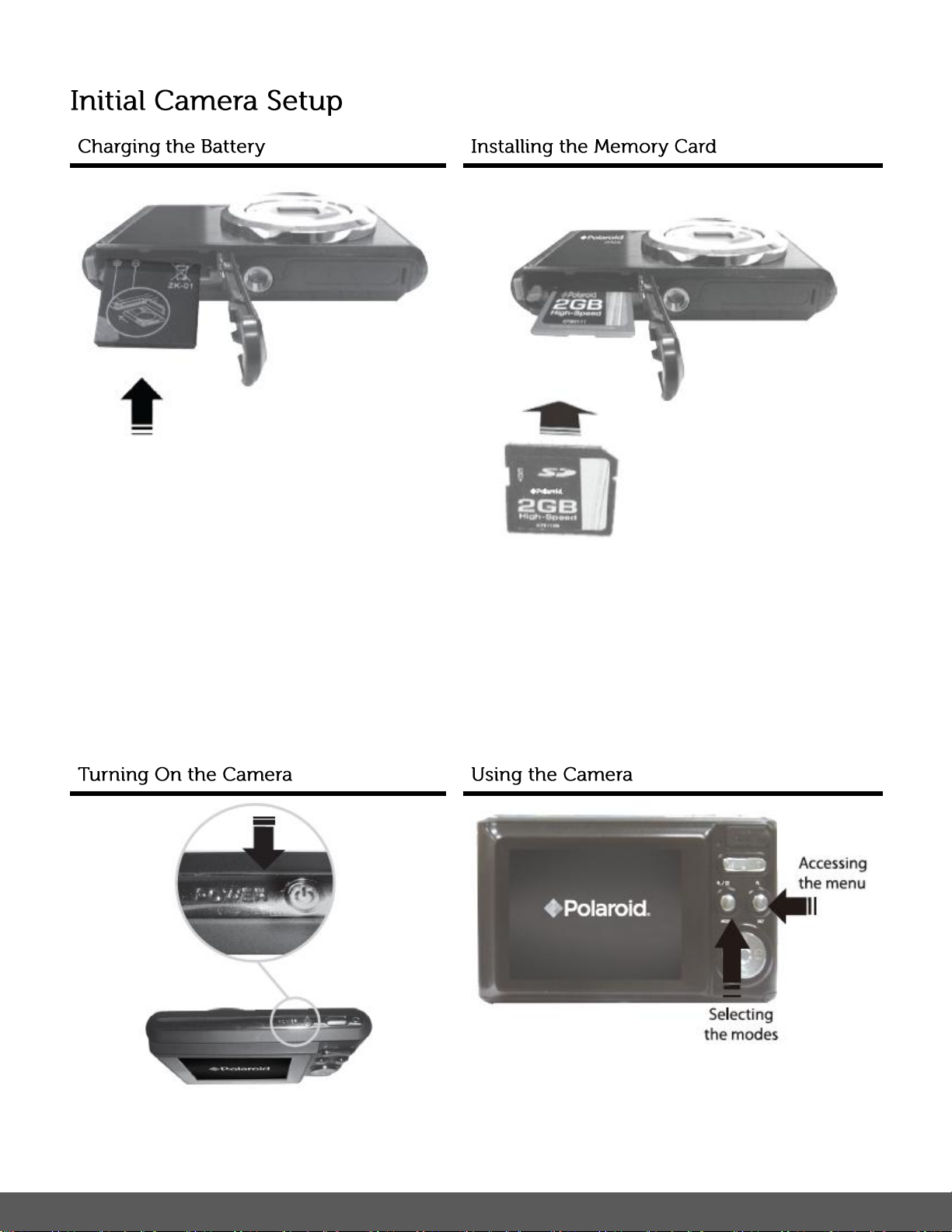

To Charge the Battery:

1. Insert the battery as shown above.

2. Power off the camera.

3. Connect the camera using the supplied

USB cable to the computer’s USB port or

to the AC Adapter (which is then

connected to a standard wall socket).

4. Allow the battery to charge for at least 3

hours before using the first time.

5. The charge light will turn off when the

battery is fully charged.

SD Memory card (up to 32GB)

needed for normal use.

When powering the camera ON for the first time the camera will take you through the initial

camera setup.

1) Charging the Battery

To charge your battery, first connect the USB Cable to your camera.

Then follow one of the steps below:

A) Charge the battery using the USB connection cable (included) and your computer:

- Connect one end of the USB cable into the USB port on your camera.

- Connect the other end of the USB cable to the USB port on your computer.

B) Charge the battery using the USB connection cable (included) and the AC Adapter

(included).

- Connect one end of the USB cable into the USB port on your camera.

- Connect the other end to the AC Adapter and then plug the AC Adapter into a power

socket.

Note: While charging the battery, the LED light turns on. The battery is fully charged when

the LED light turns off.

Battery Power:

Some features, will not work if the battery power level is low.

When the battery power is low the battery icon turns red and the camera will

automatically turn off a few seconds later.

The energy status of the power is displayed on LCD as shown below:

Full battery power Medium battery power Low battery power

2) SD Card

Make sure an SD card has been properly inserted into your camera. (SD card not included.)

To properly insert the SD Card:

Push the SD card into the slot in the direction shown on the camera (see SD icon by the

SD card slot).

Push the SD card until you hear a slight clicking sound. This indicates the SD card has

been inserted correctly.

Note:

After the camera is powered on, an SD icon will appear on the LCD display. If you do not

see the SD icon on the display, please check if the card was inserted properly.

Make sure the SD card is not locked (check the lock switch on the side of the SD card).

If the SD card is locked this will prevent the camera from saving captured photos to the

SD card.

3) Power On

Press the POWER button to turn on the camera.

After powering on your camera for the first time, you will be prompted to select a language for the

camera. The Language selection menu appears. Select the language of your choice by pressing

the UP and DOWN direction control buttons. Then press the SET button to confirm the selection.

Once a language has been selected, you will be asked if you would like to continue with the initial

camera setup. A message will appear: “Continue with Camera Setup?”

Select “Yes” to continue or “No” to exit the setup.

Note: If you select “No” and decide to leave the camera setup, the camera will be set to its default

settings. These settings can be adjusted at any time manually through the menus in the camera.

The next step in the initial camera setup is to set the date and time on the camera.

Set the Date and Time as desired by pressing the RIGHT and LEFT direction control buttons to

choose the specific setting and the UP and DOWN buttons to change each setting.

Once you have completed setting the time and date, press the SET button to confirm the

selection and finish the camera setup.

Next you will be asked to set the default INSTA Share destination for photos and videos taken

with your camera.

The INSTA Share technology allows you to quickly and easily upload your camera’s photos and

videos to social networks with the accompanying software application.

1) First you will be asked to choose the default INSTAShare social network for Photos.

Highlight the desired default social network and press the SET button to confirm the

selection.

2) Next you will be asked to choose the default INSTA Share social network for Videos.

Highlight the desired default social network and press the SET button to confirm the

selection.

Congratulations! Your camera is now ready to use.

Your camera has different modes for the various camera functions.

You can switch modes by pressing the MODE button on your camera after the camera has been

powered ON.

Use this mode to capture pictures with your camera.

This is the default mode when the camera is powered ON.

To take a picture, aim your camera as desired and press the Shutter button.

The picture is automatically saved to your camera’s memory card.

To access the various menus for the Photo Capture mode, press the SET button while in

the Photo Capture mode.

Use this mode to capture videos with your digital camera.

After turning on your camera, press the MODE button once to open the Video Capture

mode. To take a video, aim your camera as desired and press the Shutter button to start

the record. Ared record indicator will appear on the LCD screen while record is in progress.

To stop the record, press the Shutter button again. The video is automatically saved to your

camera’s memory card.

To access the various menus for the Video Capture mode, press the SET button while in the

Video Capture mode.

Use this mode to view and manage the photos and videos on your camera.

After turning on your camera, press the MODE button twice to open the Playback mode for

photos and videos. You can scroll through the photos and videos that you’ve previously

taken to view, edit or delete them as desired.

To access the various menus for the Playback mode for photos and videos, press the SET

button while in the Playback mode.

Image Sensor

CMOS Sensor

Image Resolution

4608x3456 (16M), 4416x3312 (14M), 4000x3000 (12M),

3648x2736 (10M), 3264x2448 (8M), 3648x2048 (7MHD),

2592x1944 (5M), 2048x1536 (3M), 1920x1080 (2MHD),

640x480 (VGA)

Video Resolution

1280x720 (720P), 640x480 (VGA), 320x240 (QVGA)

File Format

JPEG (Photo) /AVI (Video)

Internal Memory

1 Test Photo only

External Memory

SD MMC SDHC (up to 32G)–SD Card not included

LCD Display

2.4 Inch TFT LCD

Lens

f=6.0~12.8 , F3.0~4.5

Zoom

4X Optical Zoom ; 4X Digital Zoom

Exposure

-3.0EV ~ +3.0EV

White Balance

Auto, Daylight, Cloudy, Fluorescent, Incandescent

ISO

Auto, 100, 200, 400

Scene

Auto, Scenery, Portrait, Night Scenery, Night Portrait, High

Sensitivity, Beach

Flash

Auto, Forced On, Red Eye, Off

Self-Timer

2, 5 or 10 second delay

Anti-Shake

Yes

Face Detect

Yes

Print Photos

Yes

Macro

Yes

Auto Power Off

1, 3 or 5 minutes

Language

English, French, Spanish, Portuguese, German, Italian, Russian

Polish, Greek

Microphone

Yes

Interface

USB 2.0 (HS)

System Requirements

MICROSOFT Windows XP (SP 3), Vista (SP1) and Windows 7 or

higher; Mac OSX v10.5.x and above

Battery

Built-in Lithium Battery

Working Temperature

0~40C
