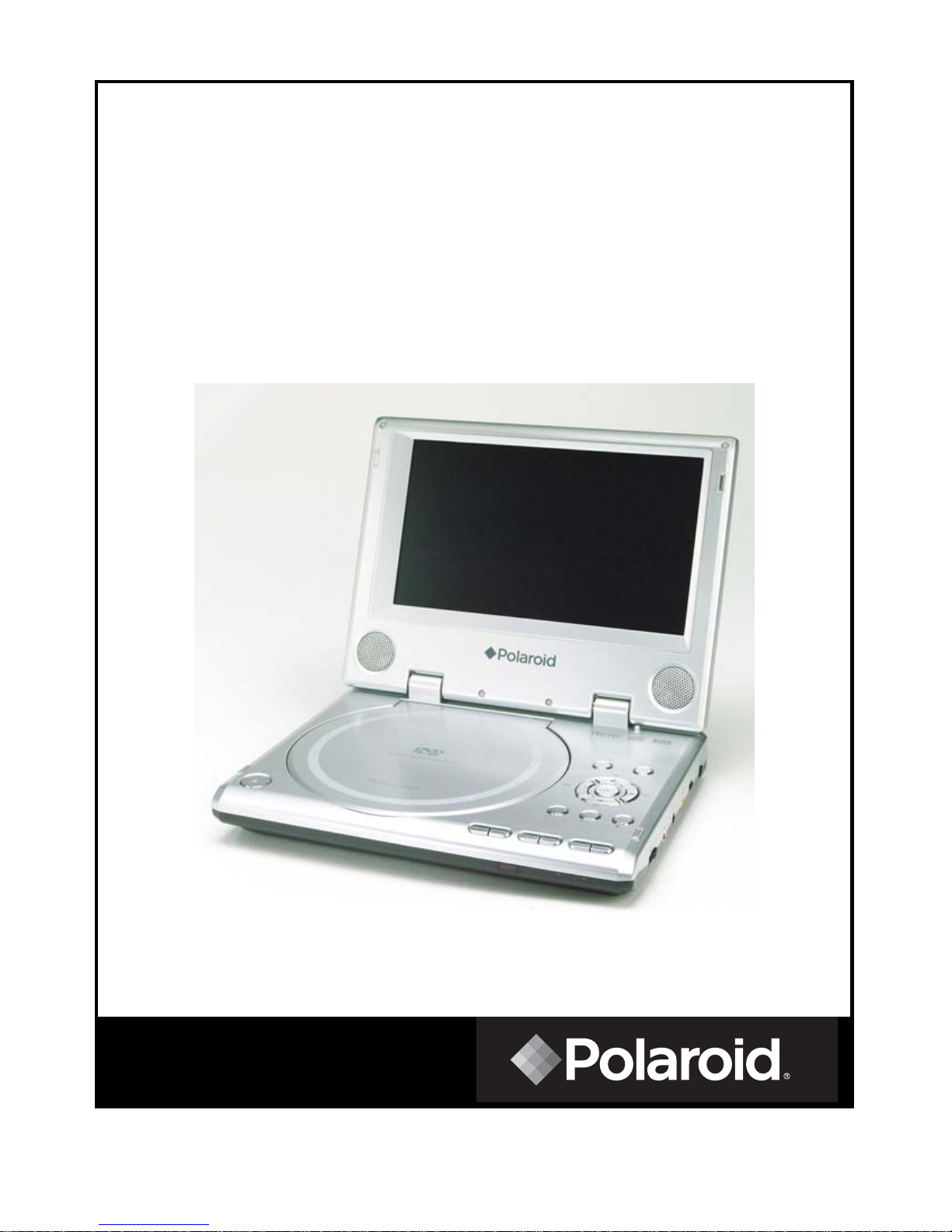

Polaroid PDM-0711 Manuale utente

7” Portable DVD Player

PDM-0711

Operation Manual

20050114

Warning: This indicates that "There is a risk of injury or death".

Caution: This indicates that "There is a risk of injury or physical damage".

Before operation

Warning

Read and keep the operation manual. Before using the

the product, please carefully read this manual and follow

all safety and operation instructions Keep this manual

for future reference.

Power supply: The power supply must correspond to

the standard indicated on the product. If you are not

sure of the power supply, please refer to the supplier or the

local power company.

Ventilation: Do not place this unit on a bed, sofa, cloth or

similar. Make sure there is adequate ventilation around

the unit before operation.

Prevent objects and liquid from contacting the player

In order to avoid the risk of electric shock and fire caused

by short circuits, do not insert objects into the player and do not

spill liquids on the player. Do not place objects such as vases

filled with liquids on the apparatus.

Do not use the product where it will get wet.

This could cause the product to ignite, or cause electrical shock or other

malfunction.

Do not disassemble, repair or modify the product.

Do not cut the power cord to connect it to the power supply

for another device. This could cause fire, electrical shock or

other malfunction.

Always use only the accessories provided with the product.

Only use attachment/accessories specified by the manufacturer. Use only with the

cart, stand, tripod, bracket, or table specified by the manufacture, or sold with the

apparatus.

Safety Instructions

Do not install the product in a position where it will interfere with the operation

of an automotive air bag.

The air bag may fail to operate properly or the product could become dislodged by

airbag operation, causing an accident and/or injury.

Do not expose the product to excessive heat.

This could cause the product to start smoking or ignite, or cause electrical shock or

other malfunction.

Unplug all the equipment before connecting.

Always ensure that the DVD player and any other electrical equipment connected to

the DVD player is switched off and unplugged from the power supply before the

player is connected.

Do not, under any circumstances, install the product in a place in a vehicle

where the driver's ability to drive the car or the driver's field of vision will be

impaired.

Install the product in a place where it doesn’t interfere with the driver's field of vision

either in front or behind or in a place where it interferes with the driver's ability to drive

the car. This may lead to traffic accidents and/or injury.

Follow the instructions to connect the product to other electrical equipments.

To prevent damage to the unit, be sure to follow the connection diagram. Do not

connect power to the unit until all other connections are completed.

Danger of explosion if battery is incorrectly replaced.

Replace the rechargeable lithium battery only with the same or equivalent type.

Caution

Install the product securely so that it will not shift out of place or fall. Loose

screws or insecure installation may cause the product to shift out of position or fall

while a vehicle is moving, resulting in an accident and/or injury.

Region code information: DVD players and discs are coded by region. If the region

number described on the DVD disc does not correspond to the region number of this

product, this product cannot play the disc. The region code of this unit is 1.

Safet

Instructions

This product has been listed as class 1 laser product. The mark is on the rear

panel.

The apparatus shall be connected to an AC power outlet with a protective grounded

connection. Visible laser radiation when open and interlock failed or defeated. Avoid

direct exposure to beam. Do not open the top cover while the unit is operating. There

are no user serviceable parts inside the unit. Leave all servicing to qualified service

personnel.

Beware of unit falling or tipping over when moving.

When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

Before operation

Warning

Unplug the apparatus during lightning storms.

Never operate the product during lightning storms as this could cause the product to

malfunction.

Do not operate the product if there is visible damage to the product.

If damage occurs, immediately stop using the product and contact the store from

which you purchased your product. Continuing to use the product in this condition

could cause accidents, fire or electrical shock.

The driver of a vehicle must not operate this product or watch the monitor.

It may distract the driver and cause an accident.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as:

damage to the power supply cord or plug, liquid spilled on the player, objects have

fallen into the player, exposure to rain or moisture, the unit does not operate normally

or has been dropped.

Safety Instructions

Caution

Notes on discs: Do not play discs that are damaged

or warped, including discs with cracks, scratches

or parts missing; discs with burrs; poor quality discs.

Route all cords so that they do not interfere with driving or with entering or

exiting the car. Run the cords so that they do not wrap around the steering wheel,

brake pedal, etc. or around your feet. Secure all the cords together.

Use the product at the proper volume setting.

Driving while you are unable to hear sounds around you or from outside the car can

cause accidents.

Do not touch the color TFT LCD screen.

Do not place any heavy objects on the product.

Never put any heavy objects on the product. Doing so may cause damage to product.

Do not damage the cords.

Broken wires and short circuits can cause electrical shock or fire. Run the cords so

that they do not get tangled in moving parts. Do not damage, tighten up, twist, or work

on the cords. Do not place the cords near heat sources or put heavy objects on the

cords.

Do not play discs in the wrong format.

For instance, if you add the ".cda" extension to a file that is not formatted as a CD file,

a loud noise may be heard through the speakers, possibly damaging them and

hurting your eardrums.

Do not swing from the product or pull it.

This may cause an accident, injury and/or malfunction. Be particularly careful that

children follow this rule.

Safet

Instructions

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. DANGER: Visible laser radiation when open and interlock failed or

defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user service-able

parts inside the unit. Leave all servicing to qualified service personnel.

This unit complies with FDA regulation for radiation control of laser products.

Preservation and Cleaning

Warning

Do not use any volatile agents such as gasoline or

paint thinners to clean the product. Never use any

volatile materials to clean the product, because they may

damage the surface of the player. Use a soft, dry cloth for

cleaning.

Store in a proper place

Store the product in clean, dry place, avoid direct sunlight and moisture.

Caution

Unplug the product when not used for a long period of time.

This product incorporates copyright protection technology that is protected by U.S.

patents and other intellectual property rights. Use of this copyright protection technology

must be authorized by Macrovision, and is intended for home and other limited viewing

uses only unless otherwise authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Safety Instructions

High-quality audio and video

Advanced Playing Functions

Other Special Functions

Excellent sound: Dolby Digital delivers

great sound.

AV In: External Audio, Video input can be

connected to most external AV sources.

AV Out: Analog Audio output and video

out

ut.

High Resolution: MPEG-2 decoding

format achieves more than 500 lines of

horizontal resolution.

Power Adapter Switch: Automatically

adapts to voltage requirements in U.S and

other countries.

On-screen Display: You can choose

from English, Spanish or French for the

On-screen Display language.

Compatibility: Compatible with DVD,

CD and Picture CD disks.

Particular Performance: Multi-speed,

fast forward, fast backward and slow

forward, slow backward.

Search by Time: Search for a certain

track of a disk by selected time.

Last Memory Playback: Memorizes the

stopped playback track and continues playing

the disk from this spot when power is restored

if the disc tray cover is not opened.

Special Functions: Supports screen aspect

ratio changing, zooming in or out,

multi-language caption, multi-angle viewing.

Features

Docking Jack: this unit designed with a docking jack on the bottom for connecting with

an optional docking station. The docking station is integrated with connectors for

peripheral devices to eliminate complicated connections and save valuable space

around the player

Accessories List

ITEM NAME QTY

Operation Manual 1

Power Supply Cord with AC Adapter 1

Audio/Video Cable 1

Rechargeable Battery Pack 1

DC Adapter (Car Adapter) 1

NOTE

Accessories and their parts numbers are subject to change without prior notice.

Accessories

DVD Playback

CDPlayback

PictureCDPlayback

Contents

Safety Instructions

Features

Troubleshooting

Specifications

Definitions

System Setup

View of Side Panels

View of Unit Bottom

Power Supply Preparation

Rechargeable Battery

Notes on Discs

Playback Operation

System Connections

Accessories

View of Unit

…………………………………………..2

…………………………………………...7

…………………………………………...8

…………………………………………..10

………………………………….……….12

…………………………………………..13

…………………………………………..14

…………………………………………..16

…………………………………………..17

…………………………………………..20

…………………………………………..21

…………………………………………..22

…………………………………………..24

.…………………………………….25

…………………………………………..27

…………………………………………..33

…………………………………………..34

…………………………………………..36

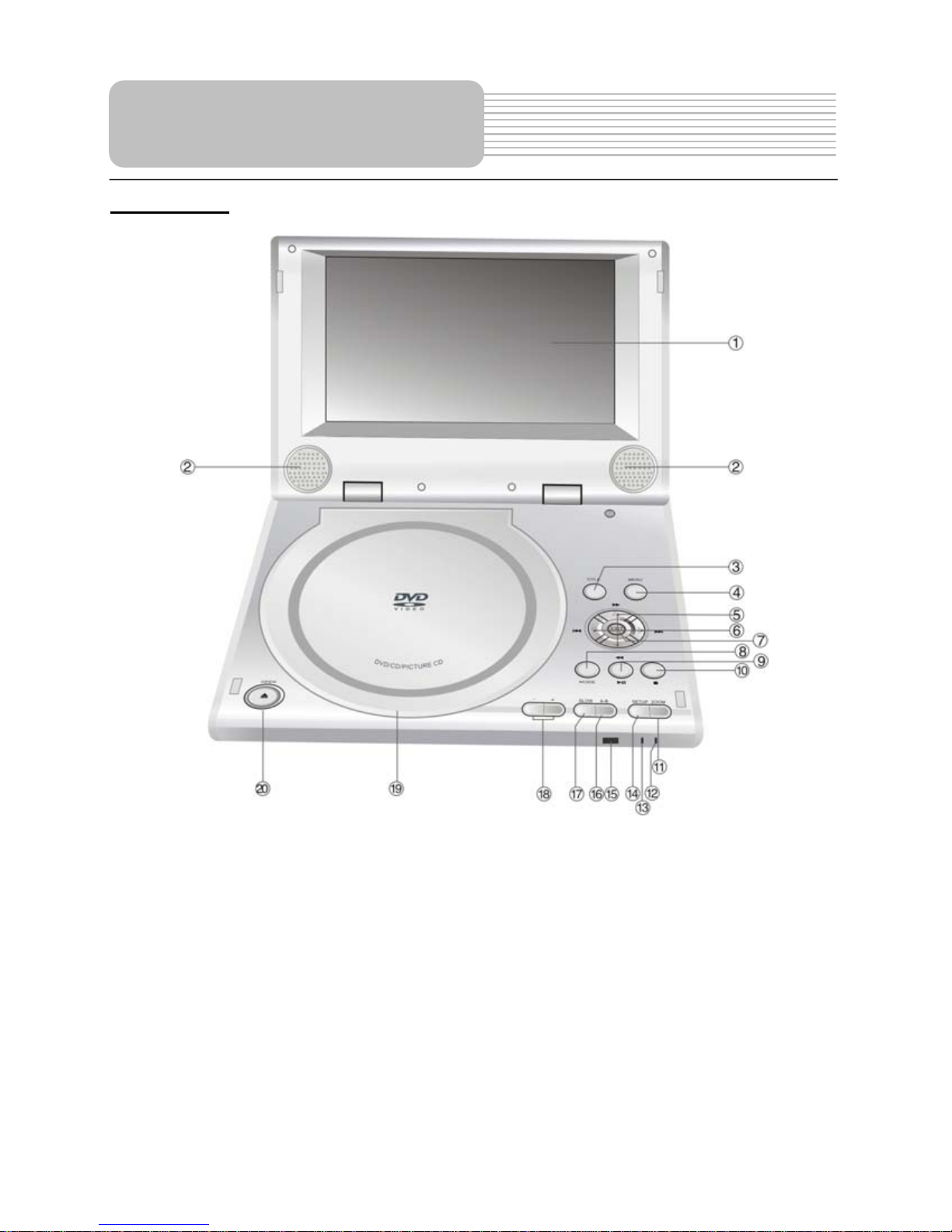

Front View

1. TFT LCD

7” color TFT screen presents a high resolution picture.

2. Speakers

Two speakers output high quality stereo sound.

3. TITLE button

Press to display the disc title menu if the titles are coded in the disc.

4. MENU button

Press to enter to the disc menu.

5. /,/buttons

/: Press the direction buttons to select items.

/: Press to fast search backward and forward during disc playback.

View of Unit

Indice

Altri manuali Polaroid Lettore DVD portatile

Polaroid

Polaroid PDV-0713B Manuale utente

Polaroid

Polaroid PDV-0823A Manuale utente

Polaroid

Polaroid PDU-0832 Manuale utente

Polaroid

Polaroid PDM-2737 Manuale utente

Polaroid

Polaroid PDM-0084 Manuale utente

Polaroid

Polaroid PDV-0701A Manuale utente

Polaroid

Polaroid PL-POD1017 Manuale utente

Polaroid

Polaroid PDV-0750 Manuale utente

Polaroid

Polaroid PDM-1035 Manuale utente

Polaroid

Polaroid 20080421 Manuale utente

Polaroid

Polaroid PDM-0723 Manuale utente

Polaroid

Polaroid PDV-0744M Manuale utente

Polaroid

Polaroid PDM-1058 Manuale utente

Polaroid

Polaroid PDM-0722 Manuale utente

Polaroid

Polaroid PDM-0817 Manuale utente

Polaroid

Polaroid PDV-0700 - 7" Portable DVD Player Manuale utente

Polaroid

Polaroid PDV-1042M Manuale utente

Polaroid

Polaroid PDV-1002A - DVD Player - 10 Manuale utente

Polaroid

Polaroid PDV-0820T - Portable DVD Player Manuale utente

Polaroid

Polaroid DPA-07043B Manuale utente

Polaroid

Polaroid DPA-00710S Manuale utente

Polaroid

Polaroid PDM-0085 Manuale utente

Polaroid

Polaroid PDM-0743LA Manuale utente

Polaroid

Polaroid PDV-0700 - 7" Portable DVD Player Manuale utente

Manuali Lettore DVD portatile popolari di altre marche

Philips

Philips PET718/77 Manuale utente

Impecca

Impecca DVP775 Manuale utente

NextBase

NextBase MULTI-VISION SET PRO Manuale utente

Impecca

Impecca DVP-1017 Manuale utente

Akura

Akura APDVD6008 Manuale utente

TV Star

TV Star TD3 LCD COMBO Manuale utente

LENCO

LENCO MES-202 Manuale utente

Philips

Philips PET940/98 Manuale utente

Philips

Philips PET702P Manuale utente

Philips

Philips PD7016 Manuale utente

Logik

Logik L7SPDVD11 Manuale utente

LG DP650 Manuale utente

Mustek

Mustek MVP850B Manuale utente

Insignia

Insignia NS-MDDVD10 Manuale utente

Philips

Philips PD9000/12 Manuale utente

LENCO

LENCO DVP-1027 Manuale utente

Philips

Philips PD7010/05 Manuale utente

Technika

Technika PDVDTWINSS10 Guida utente
