Polaroid PoGo CZA-1001B Manuale utente

Quick-Start Guide

Visit TheNewInstant.com

for additional information, including

high-res images.

Introduction ........................................................................ 6

Polaroid PoGo™Speciﬁcations ........................................... 8

ZINK Photo Paper™Speciﬁcations .................................... 10

Polaroid PoGo™Product Diagram ..................................... 12

Installing and Charging the Battery ................................. 14

Loading ZINK Photo Paper™............................................. 16

Printing from a Cell Phone ............................................... 18

Printing from a Digital Camera ........................................ 20

Troubleshooting ................................................................ 22

About Polaroid .................................................................. 24

About ZINK™..................................................................... 25

Safety Information ............................................................ 26

Media Contacts ................................................................ 30

Table of Contents

Polaroid PoGo™

Instant Mobile Printer

WHAT IT IS: Polaroid PoGo™– short for Polaroid-

on-the-go – is a pocket-sized, inkless digital printer

that produces full-color photos wirelessly from cell

phones and via PictBridge from digital cameras.

Weighing only eight ounces, Polaroid PoGo™

provides consumers with a convenient solution to

sharing digital images trapped on cell phones and

digital cameras.

WHAT YOU GET:

2” x 3” borderless,



sticky-back prints

Bluetooth, PictBridge



compatibility

Smudge-proof, water-



resistant, virtually

tear-proof photos

Fade-resistant,



long-lasting images

No waste – no ink



cartridges

60-second print time



Rechargeable lithium-ion



battery

HOW IT WORKS: The full-color

digital photos are created without

ink cartridges or ribbons using ZINK

Photo Paper™, keeping the printer size

to about the size of a deck of cards.

The paper is a durable material that

contains colorless cyan, yellow and

magenta dye crystals. Heat activation

brings photos to life, colorizing ZINK™

dye crystals, so digital photos can be

shared instantly.

ZINK Photo Paper™

Polaroid PoGo™Specs

SIZE 4.72" H x2.83" W x0.93" D

WEIGHT 8 oz. (without paper), includes battery

BATTERY 7.2V rechargeable lithium-ion

15 Prints per charge at 25 C. Battery is replaceable

USER INTERFACE 2 Tri-Color LED indicators

AC ADAPTER 9V output Universal Input 100V to 240 VAC

Printer will print when plugged into the AC adapter

CONNECTIVITY Bluetooth (Class 2) OPP USB 2.0 USB A connector

PRINT SPEED 60 seconds per print, from send to share

ZINK Photo Paper™Specs

SIZE 2" x 3"

DYE CRYSTALS 100 billion dye crystals activate with 200 million heat pulses in 30 seconds

HUES Each piece of white ZINK Photo Paper™is embedded with cyan, yellow and

magenta dye

FEATURES Full-bleed, borderless image



ZINK™Zero Ink™Printing Technology embeds color into the paper



Prints dry-to-touch, waterproof, tear-proof, smudge-proof



Peel-off, sticky-backed



Automatic image quality optimization

Power button USB connector Battery coverPower/Battery

LED indicator

Status LED

indicator


exit slot

Paper tray door

Paper

door latch

AC adapter input

LED CommunicationColor Action

Power onSolid

Green

Orange

Red

Solid

Pulse (1X speed)

Pulse (3X speed)

Solid

Low battery

Out of battery

Charging from AC adapter

Fully charged from AC adapter

Ready to print

Printing

Paper jam

Out of paper, non feed

Receiving information

Orange

Green

Red

Power button USB connector Battery coverPower/Battery

LED indicator

Status LED

indicator


exit slot

Paper tray door

Paper

door latch

AC adapter input

LED CommunicationColor Action

Power onSolid

Green

Orange

Red

Solid

Pulse (1X speed)

Pulse (3X speed)

Solid

Low battery

Out of battery

Charging from AC adapter

Fully charged from AC adapter

Ready to print

Printing

Paper jam

Out of paper, non feed

Receiving information

Orange

Green

Red

Installing and Charging the Battery

Remove battery door cover. Install battery. Replace battery door cover. Connect the AC adapter to

printer and power source.

Note: You can print photos while plugged into the power source. For the best battery life, fully charge

battery before use (approximately 2.5 hours).

1. 2. 3. 4.

Loading ZINK Photo Paper™

Press and release latch

on the paper tray door.

Unwrap the 10-pack

of ZINK Photo Paper™.

Slide the 10-pack of ZINK Photo

Paper™ into the printer with the

ZINK Smart Sheet™ facedown.

Close the printer tray door.

The ZINK Smart Sheet™ will

automatically eject.

1. 2. 3. 4.

Note: Do not bend paper or touch the printing surface.

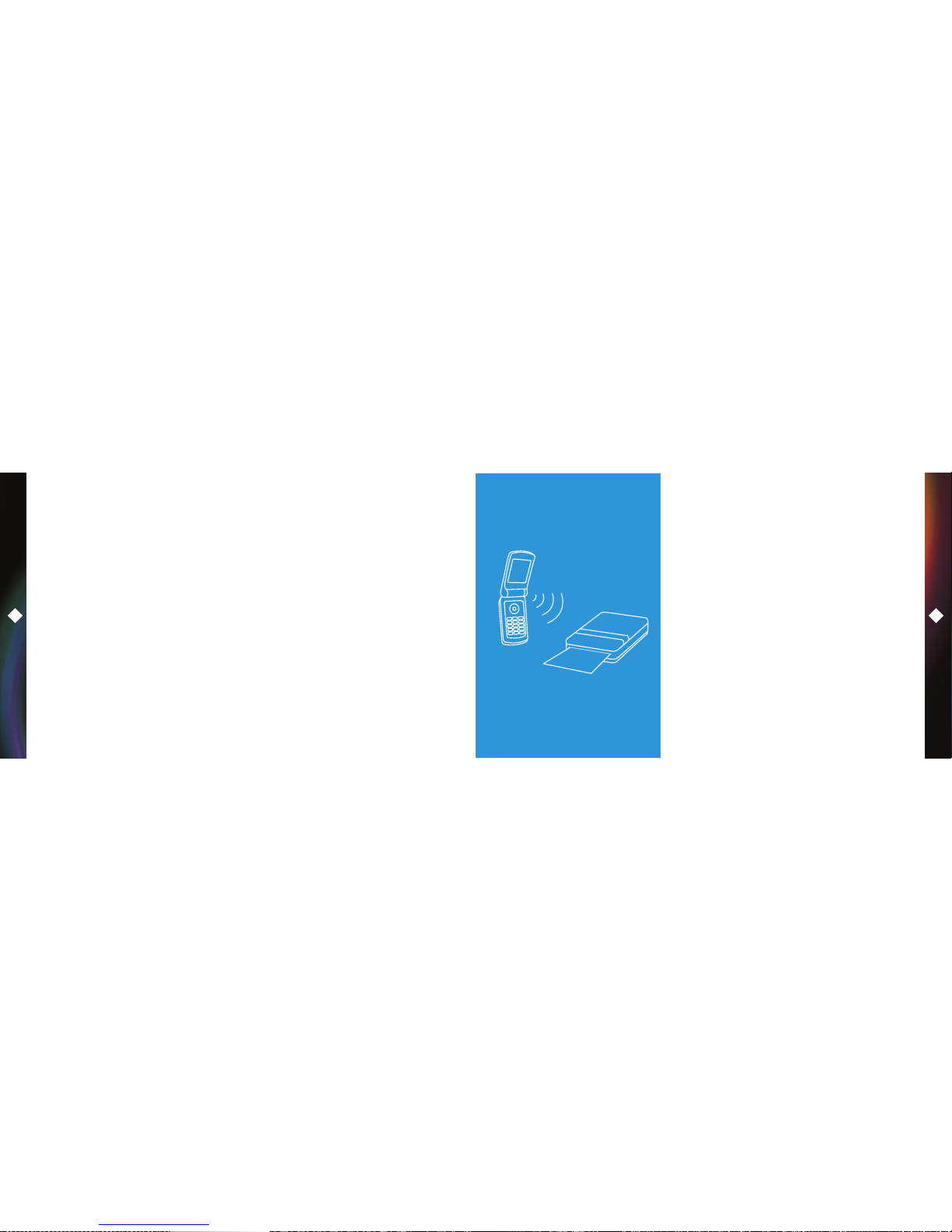

Print Instantly: From a Cell Phone

Passcode: 6-0-0-0

The Polaroid PoGo™Instant Mobile Printer is the easiest way to print photos

from a cell phone. Wirelessly transfer images from a Bluetooth-enabled cell

phone to the mobile printer and print instantly. Using the built-in OBEX (object

exchange proﬁle) Bluetooth in the phone and printer, connecting and printing

becomes instant.

The following is an example for connecting to the printer and printing your

images. The terminology used in your cell phone may be different—for speciﬁc

directions for your phone, visit http://polaroid.com/pogo/comptool/index.html.

1. Select the image you would like to print from the

stored images on your cell phone. In the “options”

menu, select “send via Bluetooth.” Search for

devices, select the Polaroid printer and print.

2. If you are unable to print from “send via Bluetooth,”

select “connectivity” or “Bluetooth” under the

“settings” or “tools” menu. Search for devices and

select the Polaroid printer. Once paired, go back

to stored images and select the image you want to

print. In the “options” menu, select “beam” or “send

via Bluetooth.” Select the Polaroid printer and print.

3. If your cell phone does not include “send via

Bluetooth” under the “options” menu, select the

image you want to print. Go to the “options” menu

and select “print via Bluetooth.” Search for devices,

select the Polaroid printer and print.
