User’s Guide for the Polycom

PowerCam Presenter

November 2006 Edition

3725-24004-001/A

Trademark Information

Polycom® and the Polycom logo design are registered trademarks of Polycom, Inc. Polycom PowerCam Presenter™

and VSX™ are trademarks of Polycom, Inc. in the United States and various other countries.

All other brand and product names are trademarks or registered trademarks of their respective companies.

Patent Information

The accompanying product is protected by one or more U.S. and foreign patents and/or pending patent applications

held by Polycom, Inc.

Disclaimer

This software is provided 'as is' with no explicit or implied warranties in respect of its properties, including, but not limited

to, correctness and fitness for purpose.

Polycom Inc.

4750 Willow Road

Pleasanton, CA 94588-2708

USA

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for

any purpose, without the express written permission of Polycom, Inc. Under the law, reproducing includes translating

into another language or format.

As between the parties, Polycom, Inc. retains title to, and ownership of, all proprietary rights with respect to the software

contained within its products. The software is protected by United States copyright laws and international treaty

provision. Therefore, you must treat the software like any other copyrighted material (e.g. a book or sound recording).

Every effort has been made to ensure that the information in this manual is accurate. Polycom, Inc. is not responsible

for printing or clerical errors. Information in this document is subject to change without notice.

disclaimer apply only to Dr. Gladman's AES encryption implementation:

License Terms

The free distribution and use of this software in both source and binary form is allowed (with or without

changes) provided that:

1. distributions of this source code include the above copyright notice, this list of conditions and the

following disclaimer;

2. distributions in binary form include the above copyright notice, this list of conditions and the following

disclaimer in the documentation and/or other associated materials;

3. the copyright holder's name is not used to endorse products built using this software without specific

written permission.

iii

About this Guide

This guide introduces you to the Polycom® PowerCam Presenter™, explains

how to configure the system, describes how to use automatic camera tracking

and other functions, and provides maintenance and troubleshooting

information. This guide is intended for all users of the Polycom PowerCam

Presenter.

For additional information about the Polycom PowerCam Presenter, refer to

these other documents:

•Setting up the Polycom PowerCam Presenter, which illustrates how to set up

the controller with and without a Polycom VSX™video conferencing

system, how to set up the locator pack assembly, and how to set up the

camera. This document is shipped in hardcopy format with the

PowerCam Presenter.

•Polycom PowerCam Presenter Release Notes, which describes PowerCam

Presenter features and lists feature limitations and usage notes. This

document is available through the documentation CD that is shipped with

the PowerCam Presenter.

You can also find these documents, as well as additional Polycom

documentation, at the Polycom web site, www.polycom.com/

videodocumentation.

For support or service, please contact your Polycom distributor or go to

Polycom Support at www.polycom.com/support.

User’s Guide for the Polycom PowerCam Presenter

Contents

1Introducing the Polycom PowerCam Presenter . . . . . . . . . . . . . . 1-1

System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Ease of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

State-of-the-Art Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2Using the Polycom PowerCam Presenter . . . . . . . . . . . . . . . . . . 2-1

Setting up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Configuring User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Configuring Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Configuring Input Signal, Camera Direction, and Backlight

Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Configuring the Camera Tracking Area . . . . . . . . . . . . . . . . . . . . 2-4

Calibrating the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Calibrating for Pointing Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Calibrating for Background Noise . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Configuring LAN Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Configuring Video Output Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Using Automatic Camera Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Enabling and Disabling Automatic Camera Tracking . . . . . . . . . . . 2-11

Setting and Using Presenter Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Enabling and Disabling Automatic Zooming . . . . . . . . . . . . . . . . . . 2-14

Controlling the Camera Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Setting and Using Camera Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Obtaining System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Tips on Using the Polycom PowerCam Presenter . . . . . . . . . . . . . . . . . . 2-16

User’s Guide for the Polycom PowerCam Presenter

3Maintenance and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 3-1

Maintaining the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Charging the Locator Pack Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Upgrading the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Automatic Camera Tracking Specifications . . . . . . . . . . . . . . . . . . . . . 3-2

Troubleshooting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Power and Hardware Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Camera Movement Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Contacting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Safety and Regulatory Notices . . . .Safety and Regulatory Notices-1

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index-1

1 - 1

Introducing the Polycom PowerCam

Presenter

The Polycom PowerCam Presenter is an automatic camera tracking device. Its

primary components include a camera, a locator pack assembly, a controller,

and a remote control.

When you have set up the PowerCam Presenter and are ready to use the

automatic camera tracking functionality, simply attach the locator pack

assembly to yourself using the provided belt clip or lanyard. You can then

freely move about the room, and the camera will automatically point at you.

Because you no longer need to confine yourself to a single spot in the room or

worry about adjusting the camera manually, you’ll be free to focus on the more

important tasks at hand — whether that’s teaching a class, making a

presentation, or delivering a speech.

The PowerCam Presenter also enables you to manually adjust the camera. You

can pan, tilt, and zoom the camera as well as set up one or two camera preset

positions.

User’s Guide for the Polycom PowerCam Presenter

1 - 2

System Components

These standard components come with the Polycom PowerCam Presenter:

Name Component Description

Controller The controller receives ultrasound signals from the

camera. The software in the controller processes

these signals to locate the person wearing the

locator pack assembly, and it then commands the

camera to follow that person.

Locator pack

assembly (includes

locator pack and

locator)

The locator pack assembly generates ultrasound

signals. The camera receives these signals, which

enables it to track you as you move. You clip the

locator and locator pack to the front of your

clothing, or you can wear the locator pack around

your neck using the provided lanyard.

Locator pack AC

power charger and

cord

The locator pack AC power charger and cord

enable you to charge the battery pack inside the

locator pack.

Connect the power charger and cord to each other

before connecting them to the locator pack or to the

wall.

NOTE: For important information about charging

the locator batteries, refer to Charging the Locator

Pack Batteries on page 3-1.

Battery pack The battery pack provides power to the locator

pack.

NOTE: For important information about charging

the locator batteries, refer to Charging the Locator

Pack Batteries on page 3-1.

Lanyard The lanyard, like the belt clip, enables you to keep

the locator pack assembly with you at all times

without having to carry it in your hands. The

lanyard goes around your neck.

Belt clip The belt clip, like the lanyard, enables you to keep

the locator pack assembly with you at all times

without having to carry it in your hands. The belt

clip clips to your belt or to the waistband of your

clothing.

Introducing the Polycom PowerCam Presenter

1 - 3

Camera

(NTSC or PAL

version)

The camera has several main functions:

•Provides an S-video (PAL or NTSC) or composite

video signal.

•Points the camera head in response to

commands from the controller to change the pan,

tilt, or zoom.

•Provides a microphone array, which sends the

ultrasound signals received from the locator pack

assembly to the controller box.

•Provides an IR receiver, which sends the IR

signals received from the remote control to the

controller.

Camera cables In a configuration where you are not using a VSX

video conferencing system, the camera cable

connects to the camera. In a configuration where

you are using a VSX video conferencing system,

one camera cable connects to the camera and the

other connects to the VSX system. In either

configuration, you can use the 10-foot or 100-foot

cable interchangeably.

Camera adapter

cable

In a configuration where you are using a VSX video

conferencing system, the camera adapter cable

enables you to connect both the camera and the

VSX system to the controller.

Camera power

supply and power

cable

The camera power supply and power cable

connect power to the camera.

Controller power

cable

The controller power cable connects power to the

controller. Your PowerCam Presenter shipping

boxes contain power cables for various countries;

use the cable that’s appropriate for your country.

LAN cable The LAN cable enables you to connect your

PowerCam Presenter to an IP network. The LAN

connection is not for making video calls.

Name Component Description

User’s Guide for the Polycom PowerCam Presenter

1 - 4

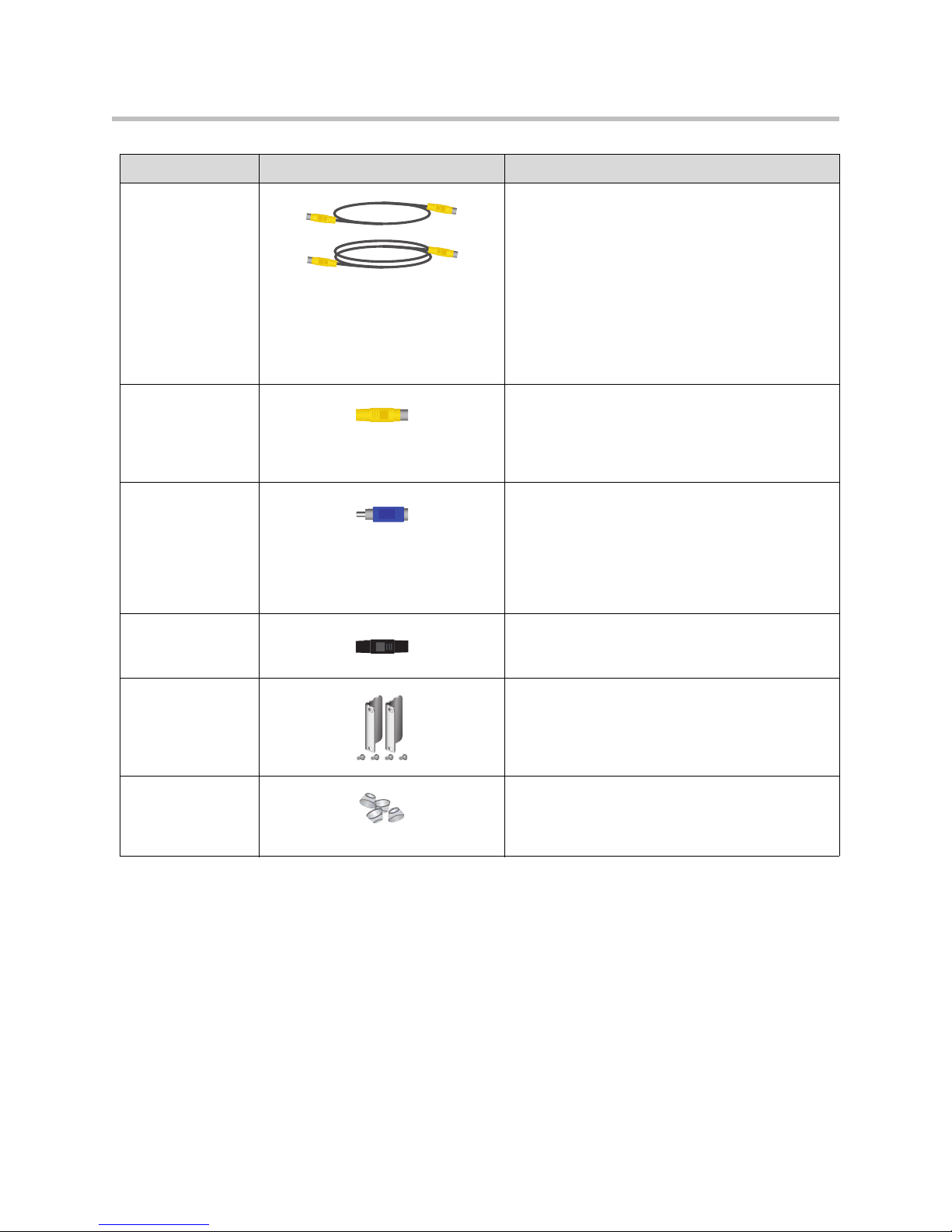

S-video cables In a configuration where you are not using a VSX

video conferencing system, the 25-foot S-video

cable enables you to connect optional S-video

devices, such as a VCR, DVD recorder, or a video

conferencing system other than a Polycom VSX

system. In a configuration where you are using a

VSX video conferencing system, the 25-foot

S-video cable enables you to connect the camera

to the controller. In either configuration, the 8-foot

S-video cable enables you to connect a display so

you can see Presenter icons and messages.

S-video to RCA

adapter

If you are using your own RCA cable to connect to

a display, the S-video to RCA adapter connects

your RCA cable to the controller so you can see

PowerCam Presenter icons and messages on the

screen.

Male RCA to

female S-video

adapter

In a configuration where you are not using a VSX

video conferencing system, the male RCA to

female S-video adapter connects the camera cable

to the camera. In a configuration where you are

using a VSX video conferencing system, the male

RCA to female S-video adapter connects the

S-video cable to the camera.

S-video gender

changer adapter

In a configuration where you are using a VSX video

conferencing system, the S-video gender changer

adapter connects the two camera cables.

Rack mount ears

and screws

The rack mount ears and screws enable you to

mount the controller in a rack. For information on

how to do this, refer to the Administrator’s Guide for

the VSX Series, available at

www.polycom.com/videodocumentation.

Rubber feet The rubber feet insert into the holes in the bottom

of the controller. Use the rubber feet only if you

choose to place the controller on a desk or table

rather than to rack mount it.

Name Component Description

Altri manuali per PowerCam Presenter

Indice

Altri manuali Polycom Sistema di conferenza

Polycom

Polycom HDX Room Systems Manuale utente

Polycom

Polycom QSX 3725-22370-001/B Manuale di servizio

Polycom

Polycom RealPresence Experience Manuale utente

Polycom

Polycom SoundStructure C16 Guida

Polycom

Polycom MSR Series Manuale utente

Polycom

Polycom VSX 8800 Manuale di installazione e funzionamento

Polycom

Polycom HDX Desktop Systems Manuale utente

Polycom

Polycom HDX Desktop Systems Guida di riferimento rapido

Polycom

Polycom Salmon Arm S203 Manuale utente

Polycom

Polycom HDX Series Manuale utente

Polycom

Polycom ViewStation H.323 Manuale utente

Polycom

Polycom RealPresence Group Series Manuale utente

Polycom

Polycom IPOWER 9000 Scheda informativa del prodotto

Polycom

Polycom VoiceStation 500 Manuale utente

Polycom

Polycom V500 Manuale di servizio

Polycom

Polycom 7000E Manuale utente

Polycom

Polycom RealPresence Group 500 systems Manuale utente

Polycom

Polycom realpresence trio 8800 Scheda tecnica

Polycom

Polycom VSX 7000e Series Manuale utente

Polycom

Polycom HDX 9000 Series Manuale utente

Polycom

Polycom EagleEye Director Istruzioni utente

Polycom

Polycom ViewStation FX Manuale utente

Polycom

Polycom SIP 3.0.2 Manuale di servizio

Polycom

Polycom SoundStation 7000 Guida rapida alla configurazione

Manuali Sistema di conferenza popolari di altre marche

Kramer

Kramer VIA GO Manuale utente

AVT

AVT MAGIC AC1 Go Manuale utente

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuale utente

Sony

Sony PCS-I150 Manuale utente

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuale utente

Prentke Romich Company

Prentke Romich Company Vanguard Plus Guida

Speakerbus

Speakerbus iD 712 Manuale utente

Trelleborg

Trelleborg SafePilot CAT PRO Manuale utente

Sennheiser

Sennheiser ADN Manuale utente

ADTRAN

ADTRAN NetVanta 7100 Manuale utente

AINA

AINA PTT Voice Responder Manuale utente

Yamaha

Yamaha ProjectPhone PJP-100H Manuale utente

vissonic

vissonic VLI Series Manuale utente

Panasonic

Panasonic KX-VC500 Manuale utente

Poly

Poly Trio 8300 Manuale utente

Crestron

Crestron Mercury CCS-UCA-SMK Disegno dimensionale

Inmarsat

Inmarsat mini M Manuale utente

Tenveo

Tenveo ALL-IN-ONE Manuale utente
