PolyScience LX Immersion Circulator Manuale utente
110-874 PSC/EN 25 February 2014
LX Immersion Circulator
Operator’s Manual
110-874 1
Table of Contents
Introduction ........................................................................ 2
General Information............................................................ 3
General Safety Information................................................ 3
Safety Recommendations.................................................. 4
Regulatory Compliance and Testing .................................. 5
Unpacking Your Immersion Circulator................................ 6
Package Contents ............................................................. 6
Controls and Components ................................................. 7
Installation and Startup...................................................... 9
Normal Operation ............................................................. 10
Buttons and Controls....................................................... 10
Turning Your Circulator ON.............................................. 10
Main Operational Displays................................................11
Set-Up Sub-Menus.......................................................... 12
Adjusting the Temperature Set Point................................ 13
Selecting the Temperature Unit ....................................... 13
Setting and Using the Timer ............................................ 14
Loss of Power Restart ..................................................... 14
Alarm Messages ............................................................. 15
Routine Maintenance and Troubleshooting..................... 15
Maintaining Clear Bath Water.......................................... 15
Cleaning Your Immersion Circulator ................................ 16
Resetting the Over-Temperature Safety........................... 17
Troubleshooting Chart ..................................................... 17
Technical Information....................................................... 19
Performance Specifications............................................. 19
Reservoir Fluids .............................................................. 19
Equipment Disposal (WEEE Directive) ............................ 20
Service and Technical Support ........................................ 21
Warranty............................................................................ 21
2110-874
WARNING: Circulating Baths are not intended
for directly controlling the temperature of foods,
pharmaceuticals, medicines or other objects which
may be ingested by or injected in humans or animals.
Any such objects must be isolated from contact with
the bath fluids and bath surfaces.
!
Introduction
Thank you for choosing the LX Immersion Circulator. It is
intended for the precise temperature control of suitable liquids in
a reservoir.
Here are some of the features of the LX Immersion Circulator:
• Simple, intuitive operation
• Displays actual and set point temperature simultaneously
• Powerful pump
• Attaches securely to both flat and rounded tank walls
• Converts any tank or vessel up to 20 liters into a reliable
circulating bath
• Fully enclosed housing prevents direct contact with pump and
heater
• Suitable for use with Class I non-flammable fluids per DIN
12876-1
We recommend that you read the Operator’s Manual thoroughly
before you begin.
110-874 3
This symbol alerts you to a wide range of potential
dangers.
!
General Information
When installed, operated and maintained according to the
directions in this manual and common safety procedures,
your LX Immersion Circulator should provide safe and reliable
liquid heating. Please ensure that all individuals involved in
the installation, operation or maintenance of this unit read this
manual thoroughly prior to working with the unit.
General Safety Information
Read all instructions pertaining to safety, set-up and
operation. Proper operation and maintenance is the
user’s responsibility.
This symbol advises of danger from electricity or
electric shock.
This symbol indicates a protective conductor
terminal.
This symbol marks information that is particularly
important.
!
This symbol indicates that a hot surface may be
present.
This symbol indicates alternating current.
These symbols on the Power Switch indicate that
they place the main power supply ON/OFF.
4110-874
Safety Recommendations
To prevent injury to personnel and/or damage to property,
follow your workplace’s safety procedures when operating
this equipment. You should comply with the following safety
recommendations:
WARNING:
• This Immersion Circulator is suitable only for use
with Class I non-flammable fluids
(per DIN 12876-1).
• Be aware of the chemical hazards that may be
associated with the bath fluid used. Observe all
safety warnings for the fluids used as well as those
contained in the material safety data sheet.
• Use only recommended bath fluids.
• Use only non-acid bath fluids.
• Use fluids that satisfy safety, health and equipment
compatibility requirements.
!
WARNING:
• Connect the power cord on this unit to a properly
grounded power outlet. Make certain that the outlet
is the same voltage and frequency as your unit.
• Never operate the unit with a damaged power cord.
• The use of an extension cord is not recommended.
• Turn the unit OFF and disconnect mains power
before performing any maintenance or service.
WARNING:
• Never operate the Circulator without bath fluid in
the reservoir. Periodically check the reservoir to
ensure that the liquid depth is within acceptable
levels. Refill the reservoir using the same bath
fluid that is already in the reservoir. Bath oil must
not contain any water contaminants and should be
preheated to the actual bath temperature before
adding as there is an explosion hazard at high
temperatures.
• Drain all fluid from the reservoir before moving
or lifting. Be sure to follow your organization’s
procedures and practices regarding the safe lifting
and relocation of heavy objects.
• Turn electrical power to the unit OFF and remove
the Immersion Circulator from reservoir before
draining.
!
110-874 5
WARNING: It is the user’s responsibility to properly
decontaminate the unit in the event hazardous
materials are spilled on exterior or interior surfaces.
Consult manufacturer if there is any doubt regarding
the compatibility of decontamination or cleaning
agents.
!
WARNING:
• Allow the bath fluid to return to ambient
temperature before draining.
• Keep within the 85°C maximum operating
temperature limit if using a polycarbonate bath.
Regulatory Compliance and Testing
The following are the compliance certifications for the equipment.
120V Units - ETL Certification
UL 61010-1 / CSA C22.2 No. 61010-1, 2nd Edition
07/12/04 (R 10/28/2008)
IEC 61010-2-010: 2003, CSA C22.2 No. 61010-2-
010:2004/07/01 Ed:2 (R2009)
IEC 61010-2-051: 2003, CSA C22.2 No. 61010-2-051:04
Ed:2 (R2009)
240V Units - CE Compliance
Low Voltage Directive 2006/95/EC
EN 61010-1, 2nd Edition Issued March, 2001
EN 61010-2-010 2nd Edition Issued October, 2003
EN 61010-2-051 2nd Edition Issued October, 2003
EMC Directive 2004/108/EC
EN 61326-1: 2006
Machinery Directive 2006/42/EC Annex I
All Units - RoHS2 2011/65/EU
6110-874
Unpacking Your Immersion Circulator
Your Immersion Circulator is packed in a special carton. You
should keep this carton, along with all packing materials, until the
unit has been installed and you are certain it is working properly.
CAUTION: Remove any loose packing material that
may have fallen into the heater/pump housing during
shipping. Before powering up, check that nothing
remains around the heater or circulator pump.
!
We recommend that you begin using your Immersion Circulator
immediately to confirm proper operation.
In the unlikely event that the unit was damaged or does not
operate properly, immediately contact the company where your
Immersion Circulator was purchased.
• LX Immersion Circulator
• Quick-Start Guide
• Operator’s Manual
• Selection Guide
Package Contents
This product has been tested to the requirements of CAN/
CSA-C22.2 No. 61010-1, second edition, including Amendment
1, or a later version of the same standard incorporating the same
level of testing requirements.
The user shall be made aware that the protection provided by
the equipment may be impaired if the equipment is used with
accessories not provided or recommended by the manufacturer,
or used in a manner not specified by the manufacturer.
110-874 7

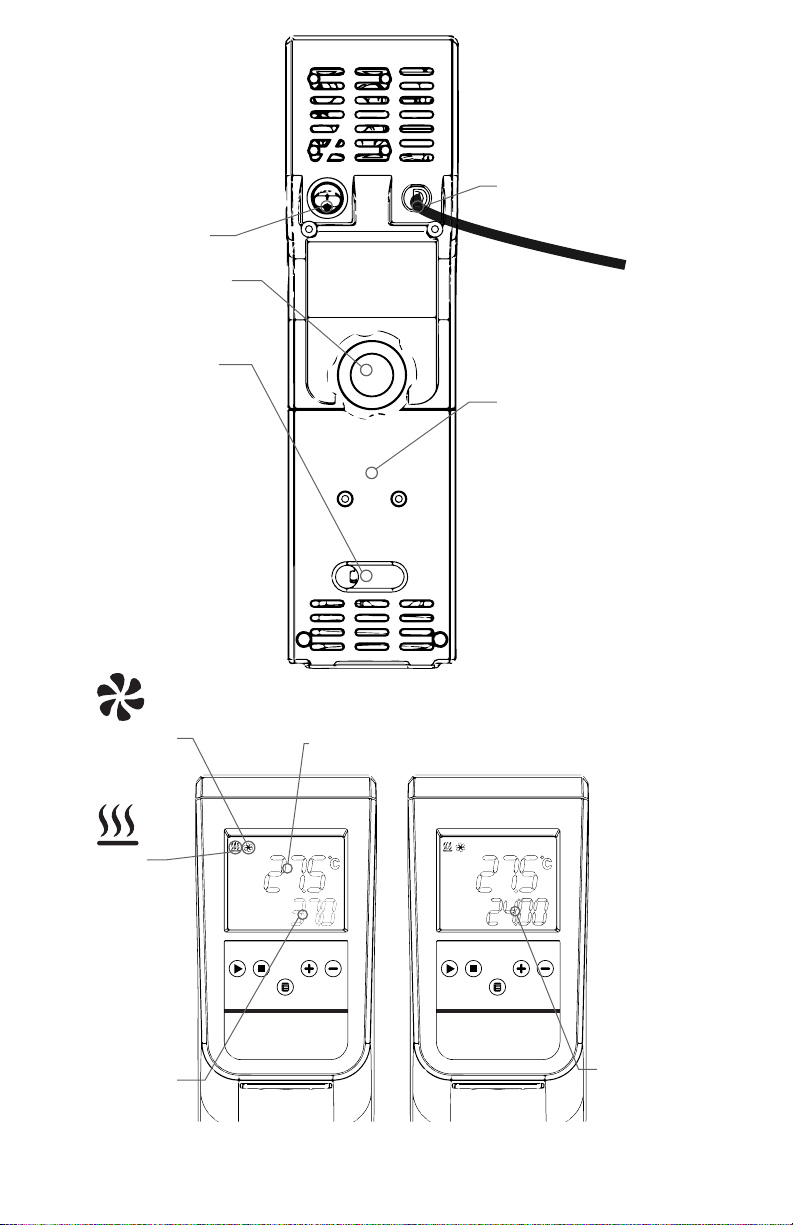

Controls and Components
Backlit Display
Run Button
Stop Button
Increase Value Button
Decrease Value Button
Menu Button
Cover Plate for
Over-
Temperature
Protection Reset
Button
Minimum Liquid
Level Line
Front Flow
Port
Maximum Liquid
Level Line
8110-874
Mounting Clamp
Rear Flow Port
Power Switch
Electrical Power
Cord
Removable
Heater/Pump
Access Cover
Circulating
Heating
Actual Fluid
Temperature
Set Point
Temperature
Countdown
Timer
