Remove box and pallet Position cooler on level surface Plug into appropriate outlet
Fill tank or attach water hose*
Fill the tank, then turn on the pump switch and the fan
For setup, Kuul®evaporative media should appear
wet before starting the fan. Check the water gauge to
monitor water level in tank. The water adjustment valve
on each portable evaporative cooler is set at max ow.
However, ensure the knob is turned completely to the
right before use. Turn to the left to increase water ow.
If entrainment occurs - water is spitting from the front
of the product - use the valve to decrease the water ow
until entrainment ceases.
24
5
1 3

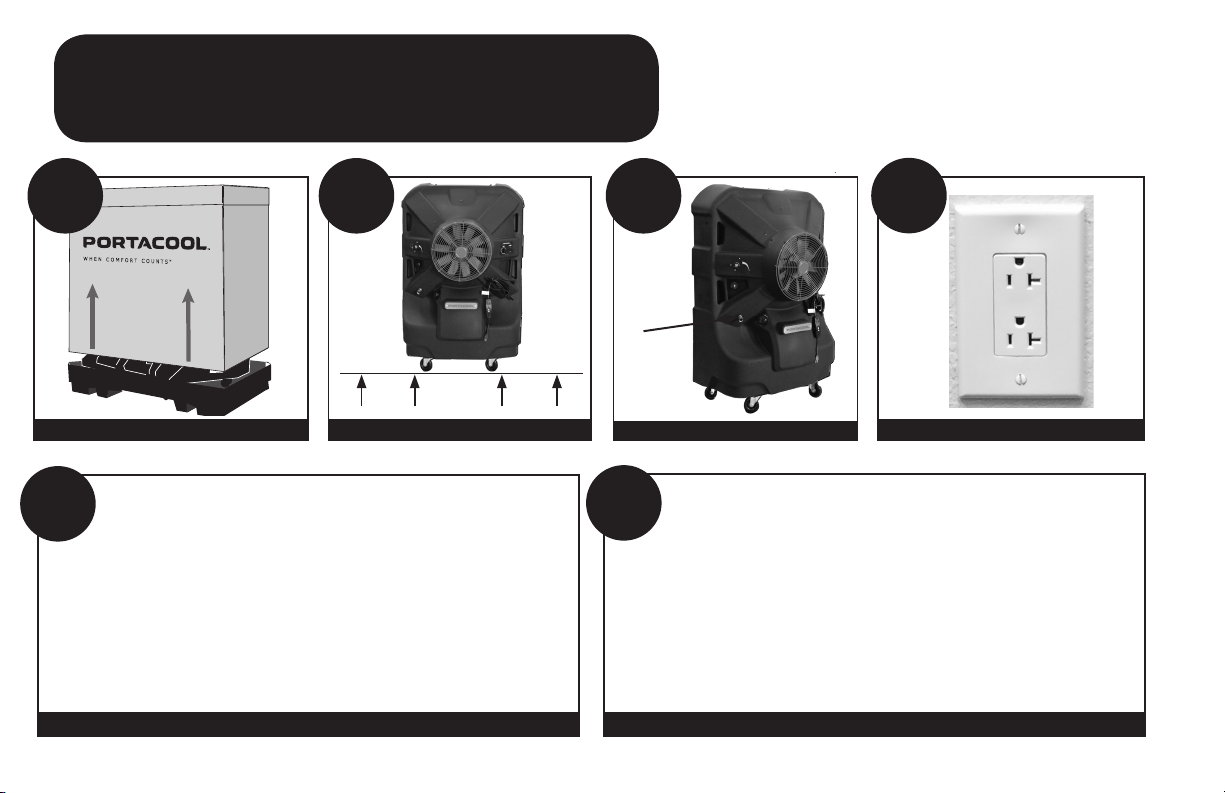

QUICK SETUP
Ensure proper airflow is available
Your Portacool portable evaporative cooler is meant to
be used in an open-air environment, such as a patio.
If you plan to use your evaporative cooler in a more
closed environment – such as a garage, sunroom or
barn – you must provide adequate ambient airow to
ensure your evaporative cooler works at its highest
efciency. When using in a semi-closed environment,
be sure to leave a door or window open to allow for the
proper amount of airow.
6
*Maximum water pressure 50 psi/345 kPa
SAFETY
OPERATION WARNINGS
SAFE OPERATION
1) Not for use by children
2) Not for use by persons with reduced physical, sensory or mental capabilities
3) Not for use by persons who have not reviewed the owner’s manual and familiarized themselves with the operation of the product.
To reduce the risk of electric shock, re or injury:
• Do not operate any evaporative cooler with a damaged cord
or plug.
• Do not run power cord under carpeting or cover with
throwrugs, runners or similar coverings. Arrange power cord
away from trafc areas to avoid tripping hazards.
• Read the evaporative cooler’s instructions, owner’s manual
and labels throughly before use.
• Always unplug the power cord to the evaporative cooler
before performing inspections or repairs.
•Always unplug the evaporative cooler during lling and
cleaning.
• Do not step on or roll over power cord with heavy or sharp
objects.
• Do not operate evaporative cooler unless all Kuul®
evaporative media is securely in place.
• Test the GFCI receptacle or breaker monthly to ensure it is
functioning properly if applicable.
• Remove the plug from the electrical receptacle by pulling on
the plug, not the power cord.
• Operation near open flames or sparks is not recommended.
• If operating near open flame or sparks, ensure the pump
is continuously running in order to saturate and wet Kuul
evaporative media.
•When cleaning your evaporative cooler, ensure water does
not get into the motor or electrical system to prevent
damage.
• The use of extension cords with your evaporative cooler is
not recommended. However, if the owner determines that
his or her circumstance or intended use requires the use of
an extension cord, the following requirements must be met:
- Use properly grounded 14 AWG or greater for
PACJS220-260
- Use properly grounded 12 AWG or greater for PACJS270
- Extension cord must not exceed 50 feet (15.24 meters) in
length; and
- Extension cord must be properly grounded
• Evaporative coolers should not be modified in any way
(other than repairs made by qualified individuals with
Portacool replacement parts).
Control panel
Water
adjustment valve
Liquid Level Indicator
Power cord
with GFCI*
Cord wrap
Heavy duty
casters
PACJS220
Hose connection
Manual water fill
OVERVIEW
Two inch drain
on bottom
Serial plate
Oscillating louvers
Kuul® Comfort
MicroTech
evaporative media
*Products not sold in North America or
products with 220/50 volt requirements will
not have a GFCI/ELCI.
Control panel
Water
adjustment valve
Liquid Level Indicator
Manual water fill
Power cord
with GFCI*
Cord wrap
Heavy duty casters
PACJS230
Hose connection
Kuul® Comfort MicroTech
evaporative media
OVERVIEW
Two inch drain
on bottom
Serial plate
Oscillating louvers
*Products not sold in North America or
products with 220/50 volt requirements will
not have a GFCI/ELCI.
Control panel
Water
adjustment valve
Liquid Level Indicator
Power cord
with GFCI*
Cord wrap
Heavy duty
casters
PACJS240
Hose connection
Manual water fill
Kuul® Comfort
evaporative media
OVERVIEW
Two inch drain
on bottom
Serial plate
*Products not sold in North America or
products with 220/50 volt requirements will
not have a GFCI/ELCI.
Control panel
Water
adjustment valve
Liquid Level Indicator
Manual water fill
Power cord
with GFCI*
Cord wrap
Heavy duty casters
PACJS250
Hose connection
Kuul® Comfort
evaporative media
OVERVIEW
Two inch drain
on bottom
Serial plate
*Products not sold in North America or
products with 220/50 volt requirements will
not have a GFCI/ELCI.
Control panel
Water
adjustment valve
Liquid Level Indicator
Manual water fill
Hose connection
Cord wrap
Heavy duty casters
PACJS260
Power cord
with GFCI*
Kuul® Comfort
evaporative media
OVERVIEW
Two inch drain
on bottom
Serial plate
*Products not sold in North America or
products with 220/50 volt requirements will
not have a GFCI/ELCI.
Control panel
Water
adjustment valve
Liquid Level Indicator
Manual water fill Power cord
with ELCI*
Cord wrap
Heavy duty casters
Hose connection
PACJS270**
Two inch drain
on bottom
Kuul® Comfort
evaporative media
OVERVIEW
*Products not sold in North America or
products with 220/50 volt requirements will
not have a GFCI/ELCI.
**requires a 5-20R power outlet
Serial plate
GFCI/ELCI*
The Portacool Jetstream™ series utilizes a GFCI (Grounded Fault Circuit Interrupter) or ELCI (Equipment Leakage Circuit
Interrupter) to help protect users against ground electrical faults, which prevent some fire and electrical shock hazards. These
devices are intended to trip at very low leakage currents.
•Portacool Jetstream models PACJS220, PACJS230, PACJS240, PACJS250 and PACJS260 use a GFCI, which is built into the
power cord
•Portacool Jetstream model PACJS270 uses an ELCI, which is built into the power cord and requires a 5-20R (120V) electrical
outlet
The GFCI on models PACJS220, PACJS230, PACJS240, PACJS250 and PACJS260 will automatically reset when the evaporative
cooler is plugged into an electrical outlet. The ELCI on model PACJS270 will not automatically reset when the evaporative cooler is
plugged into an electrical outlet; the “reset” button located on the ELCI device must be pressed each time the evaporative cooler is
plugged in.
*Products not sold in North America or products with 220/50 volt requirements will not have a GFCI/ELCI.
