Porter-Cable CF6131 Manuale utente

Française : Page 20

Español: Página 40

Air Compressor

Compresor de aire

Compresseur d’air

Instruction manual

Manuel d'instructions

Manual de'instrucciones

www.deltaportercable.com

INSTRUCTIVO DE OPERACIÓN, CENTROS

DE SERVICIO Y PÓLIZA DE GARANTÍA.

LÉASE ESTE INSTRUCTIVO

ANTES DE USAR EL PRODUCTO.

CF6131

Maintenance-free pump

La pompe sans entretien

La bomba sin mantenimiento

2 - ENG

SAFETY GUIDELINES - DEFINITIONS

This manual contains information that is important for you to know and under-

stand. This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

Indicates an

imminently hazardous situation which,

if not avoided, will result in death or

serious injury.

Indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Indicates a potentially

hazardous situation which, if not

avoided, could result in death or

serious injury.

Indicates a practice

not related to personal injury which,

if not avoided, may result in property

damage.

IMPORTANT SAFETY INSTRUCTIONS

This product contains chemicals known to the State of California

to cause cancer, and birth defects or other reproductive harm. Wash hands after

handling.

Some dust contains chemicals known to the State of California

to cause cancer, birth defects or other reproductive harm such as asbestos and

lead in lead based paint.

To reduce the risk of injury, read the instruction manual.

SAVE THESE INSTRUCTIONS

HAZARD

RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

• Itisnormalforelectricalcon-

tacts within the motor and

pressure switch to spark.

• Alwaysoperatethecompressorina

well ventilated area free of combustible

materials, gasoline, or solvent vapors.

• Ifelectricalsparksfromcom-

pressor come into contact with

flammable vapors, they may

ignite, causing fire or explosion.

• Ifsprayingflammablematerials,

locate compressor at least 20' (6.1 m)

away from spray area. An additional

length of air hose may be required.

• Storeflammablematerialsinasecure

location away from compressor.

3 - ENG

• Restrictinganyofthecom-

pressor ventilation openings

will cause serious overheat-

ing and could cause fire.

• Neverplaceobjectsagainst

or on top of compressor.

• Operatecompressorinanopen

area at least 12" (30.5 cm) away

from any wall or obstruction that

would restrict the flow of fresh air

to the ventilation openings.

• Operatecompressorinaclean,dry

well ventilated area. Do not operate unit

in any confined area. Store indoors.

• Unattendedoperationofthis

product could result in per-

sonal injury or property dam-

age. To reduce the risk of fire,

do not allow the compressor

to operate unattended.

• Alwaysremaininattendancewith

the product when it is operating.

• Alwaysturnoffandunplug

unit when not in use.

HAZARD

RISK TO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairdirectly

from your compressor is not

safe for breathing. The air

stream may contain carbon

monoxide, toxic vapors,

or solid particles from the

air tank. Breathing these

contaminants can cause

serious injury or death.

• Neveruseairobtaineddirectly

from the compressor to supply

air for human consumption. The

compressor is not equipped with

suitable filters and in-line safety

equipment for human consumption.

• Exposuretochemicalsindust

created by power sanding,

sawing, grinding, drilling,

and other construction

activities may be harmful.

• Sprayedmaterialssuchas

paint, paint solvents, paint

remover, insecticides, weed

killers, may contain harmful

vapors and poisons.

• Workinanareawithgoodcross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Always use certified

safety equipment: NIOSH/OSHA

respiratory protection or properly fit-

ting face mask designed for use

with your specific application.

4 - ENG

HAZARD

RISK OF BURSTING

Air Tank: On February 26, 2002, the U.S. Consumer Product Safety Commission

published Release # 02-108 concerning air compressor tank safety:

Air compressor receiver tanks do not have an infinite life. Tank life is dependent

upon several factors, some of which include operating conditions, ambient condi-

tions, proper installations, field modifications, and the level of maintenance. The

exact effect of these factors on air receiver life is difficult to predict.

If proper maintenance procedures are not followed, internal corrosion to the

inner wall of the air receiver tank can cause the air tank to unexpectedly rupture

allowing pressurized air to suddenly and forcefully escape, posing risk of injury

to consumers.

Your compressor air tank must be removed from service by the end of the year

shown on your tank warning label.

The following conditions could lead to a weakening of the air tank, and result in

a violent air tank explosion:

WHAT CAN HAPPEN HOW TO PREVENT IT

• Failuretoproperlydrain

condensed water from

air tank, causing rust and

thinning of the steel air tank.

• Drainairtankdailyoraftereachuse.

If air tank develops a leak, replace

it immediately with a new air tank

or replace the entire compressor.

• Modificationsorattempted

repairs to the air tank. • Neverdrillinto,weld,ormakeany

modifications to the air tank or its

attachments. Never attempt to

repair a damaged or leaking air

tank. Replace with a new air tank.

• Unauthorizedmodifications

to the safety valve or any

other components which

control air tank pressure.

• Theairtankisdesignedtowithstand

specific operating pressures.

Never make adjustments or parts

substitutions to alter the factory

set operating pressures.

Attachments & accessories:

• Exceedingthepressure

rating of air tools, spray guns,

air operated accessories,

tires, and other inflatables

can cause them to explode

or fly apart, and could

result in serious injury.

• Followtheequipmentmanufacturers

recommendation and never exceed

the maximum allowable pressure

rating of attachments. Never use

compressor to inflate small low

pressure objects such as children’s

toys, footballs, basketballs, etc.

5 - ENG

Tires:

 

result in serious injury

and property damage.

• Useatirepressuregaugetocheck

the tires pressure before each use

and while inflating tires; see the tire

sidewall for the correct tire pressure.

NOTE: Air tanks, compressors and similar

equipment used to inflate tires can fill

small tires very rapidly. Adjust pressure

regulator on air supply to no more than

the rating of the tire pressure. Add air

in small increments and frequently use

the tire gauge to prevent over inflation.

HAZARD

RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

• Yourcompressorispowered

by electricity. Like any other

electrically powered device,

if it is not used properly it

may cause electric shock.

• Neveroperatethecompressoroutdoors

when it is raining or in wet conditions.

• Neveroperatecompressorwith

protective covers removed or damaged.

• Repairsattemptedby

unqualified personnel can

result in serious injury or

death by electrocution.

• Anyelectricalwiringorrepairs

required on this product should be

performed by authorized service

center personnel in accordance with

national and local electrical codes.

• Electrical Grounding:

Failure to provide adequate

grounding to this product

could result in serious injury

or death from electrocution.

Refer to Grounding

Instructions paragraph in

the Installation section.

• Makecertainthattheelectrical

circuit to which the compressor

is connected provides proper

electrical grounding, correct voltage

and adequate fuse protection.

HAZARD

RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairstreamcan

cause soft tissue damage to

exposed skin and can propel

dirt, chips, loose particles,

and small objects at high

speed, resulting in property

damage or personal injury.

• Alwayswearcertifiedsafetyequipment:

ANSI Z87.1 eye protection (CAN/

CSA Z94.3) with side shields

when using the compressor.

• Neverpointanynozzleorsprayer

toward any part of the body or

at other people or animals.

• Alwaysturnthecompressoroffand

bleed pressure from the air hose and

air tank before attempting maintenance,

attaching tools or accessories.

6 - ENG

HAZARD

RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

• Touchingexposedmetal

such as the compressor

head, engine head, engine

exhaust or outlet tubes, can

result in serious burns.

• Nevertouchanyexposedmetalparts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

• Donotreacharoundprotective

shrouds or attempt maintenance

until unit has been allowed to cool.

HAZARD

RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Movingpartssuchasthe

pulley, flywheel, and belt

can cause serious injury

if they come into contact

with you or your clothing.

• Neveroperatethecompres-

sor with guards or covers which

are damaged or removed.

• Keepyourhair,clothing,andgloves

away from moving parts. Loose

clothes, jewelry, or long hair can

be caught in moving parts.

• Airventsmaycovermovingparts

and should be avoided as well.

• Attemptingtooperate

compressor with damaged or

missing parts or attempting

to repair compressor with

protective shrouds removed

can expose you to moving parts

and can result in serious injury.

• Anyrepairsrequiredonthisproduct

should be performed by authorized

service center personnel.

HAZARD

RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

• Unsafeoperationofyour

compressor could lead

to serious injury or death

to you or others.

• Reviewandunderstandallinstruc-

tions and warnings in this manual.

• Becomefamiliarwiththeoperation

and controls of the air compressor.

• Keepoperatingareaclearofall

persons, pets, and obstacles.

• Keepchildrenawayfromthe

air compressor at all times.

7 - ENG

• Donotoperatetheproductwhen

fatigued or under the influence of alco-

hol or drugs. Stay alert at all times.

• Neverdefeatthesafetyfea

tures of this product.

• Equipareaofoperationwith

a fire extinguisher.

• Donotoperatemachinewithmiss-

ing, broken, or unauthorized parts.

• Neverstandonthecompressor.

HAZARD

RISK OF FALLING

WHAT CAN HAPPEN HOW TO PREVENT IT

• Aportablecompressorcan

fall from a table, workbench,

or roof causing damage to

the compressor and could

result in serious injury or

death to the operator.

• Alwaysoperatecompressorinastable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high

locations.

HAZARD

RISK FROM NOISE

WHAT CAN HAPPEN HOW TO PREVENT IT

• Undersomeconditions

and duration of use, noise

from this product may con-

tribute to hearing loss.

• Alwayswearcertifiedsafetyequipment:

ANSI S12.6 (S3.19) hearing protection.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

SPECIFICATIONS

Model No. CF6131

Bore 1.875" (47.6 mm)

Stroke 1.250" (31.8 mm)

Voltage/Hz-Single Phase 120/60

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity 6 Gallon (22.7 liters)

Approximate Cut-in Pressure 120 psig

Approximate Cut-out Pressure 150 psig

SCFM @ 40 psig 3.7 *

SCFM @ 90 psig 2.6 *

*Tested per ISO 1217

Refer to Glossary for abbreviations.

8 - ENG

GLOSSARY

Become familiar with these terms before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per minute; a unit of measure of air delivery.

PSIG: Pounds per square inch gauge; a unit of measure of pressure.

Products that bear one or more of the following marks: UL®,

CUL, ETL®, CETL, have been evaluated by OSHA certified independent safety

laboratories and meet the applicable Standards for Safety.

Cut-In Pressure: Whilethemotorisoff,airtankpressuredropsasyoucontinue

touseyouraccessory.Whenthetankpressuredropstoacertainlowerlevelthe

motor will restart automatically. The low pressure at which the motor automatically

restarts is called "cut-in" pressure.

Cut-Out Pressure: Whenanaircompressoristurnedonandbegins torun, air

pressure in the air tank begins to build. It builds to a certain high pressure before

the motor automatically shuts off, protecting your air tank from pressure higher

than its capacity. The high pressure at which the motor shuts off is called "cut-out"

pressure.

Branch Circuit: Circuit carrying electricity from electrical panel to outlet.

DUTY CYCLE

This air compressor pump is capable of running continuously. However, to

prolong the life of your air compressor, it is recommended that a 50%-75%

average duty cycle be maintained; that is, the air compressor pump should not

run more than 30-45 minutes in any given hour.

ACCESSORIES

Accessories for this unit are available at the store the unit was purchased.



this tool could be hazardous. Use only accessories rated equal to or higher

.

ASSEMBLY

UNPACKING

Remove unit from carton and discard all packaging.

INSTALLATION

HOW TO SET UP YOUR UNIT



• Locatetheaircompressorinaclean,dryandwellventilatedarea.

• Theaircompressorshouldbelocatedatleast12"(30.5cm)awayfromthe

wall or other obstructions that will interfere with the flow of air.

• Theaircompressorpumpandshroudaredesignedtoallowforpropercool-

ing. The ventilation openings on the compressor are necessary to maintain

proper operating temperature. Do not place rags or other containers on or

near these openings.

GROUNDING INSTRUCTIONS

RISK OF ELECTRICAL SHOCK. 

            

electric current. This air compressor must be properly grounded.

9 - ENG

The portable air compressor is equipped with a cord having a grounding wire with

an appropriate grounding plug (see following illustrations).

1. The cord set and plug with this unit contains a grounding pin. This plug

MUST be used with a grounded outlet.

IMPORTANT: The outlet being used must

Grounded

Outlets

Plug

Grounding Pin

be installed and grounded in accordance

with all local codes and ordinances.

2. Make sure the outlet being used has

the same configuration as the ground-

ed plug. DO NOT USE AN ADAPTER.

See illustration.

3. Inspect the plug and cord before each

use. Do not use if there are signs of damage.

4. If these grounding instructions are not completely understood, or if in doubt as

to whether the compressor is properly grounded, have the installation checked

by a qualified electrician.

RISK OF ELECTRICAL SHOCK. IMPROPER GROUNDING CAN

RESULT IN ELECTRICAL SHOCK.







EXTENSION CORDS

If an extension cord must be used, be sure it is:

• a3wireextensioncordthathasa3bladegroundingplug,anda3slotrecep-

tacle that will accept the plug on the product

• ingoodcondition

• nolongerthan50'(15.2m)

• 14gauge(AWG)orlarger.(Wiresizeincreasesasgaugenumberdecreases.

12AWGand10AWGmayalsobeused.DONOTUSE16OR18AWG.)

Risk of Property Damage. The use of an undersized extension cord

will cause voltage to drop resulting in power loss to the motor and overheating.

Instead of using an extension cord, increase the working reach of the air hose by

attaching another length of hose to its end. Attach additional lengths of hose as

needed.

VOLTAGE AND CIRCUIT PROTECTION

Refer to the Specification Chart for the voltage and minimum branch circuit

requirements.

Risk of unsafe operation. Certain air compressors can be operated

on a 15 amp circuit if the following conditions are met.

1. Voltage supply to circuit must comply with the National Electrical Code.

2. Circuit is not used to supply any other electrical needs.

3. Extension cords comply with specifications.

4. Circuit is equipped with a 15 amp circuit breaker or 15 amp time delay fuse.

NOTE: If compressor is connected to a circuit protected by fuses, use only

time delay fuses. Time delay fuses should be marked "D" in Canada and "T"

in the US.

If any of the above conditions cannot be met, or if operation of the compressor

repeatedly causes interruption of the power, it may be necessary to operate it from

a 20 amp circuit. It is not necessary to change the cord set.

10 - ENG

OPERATION

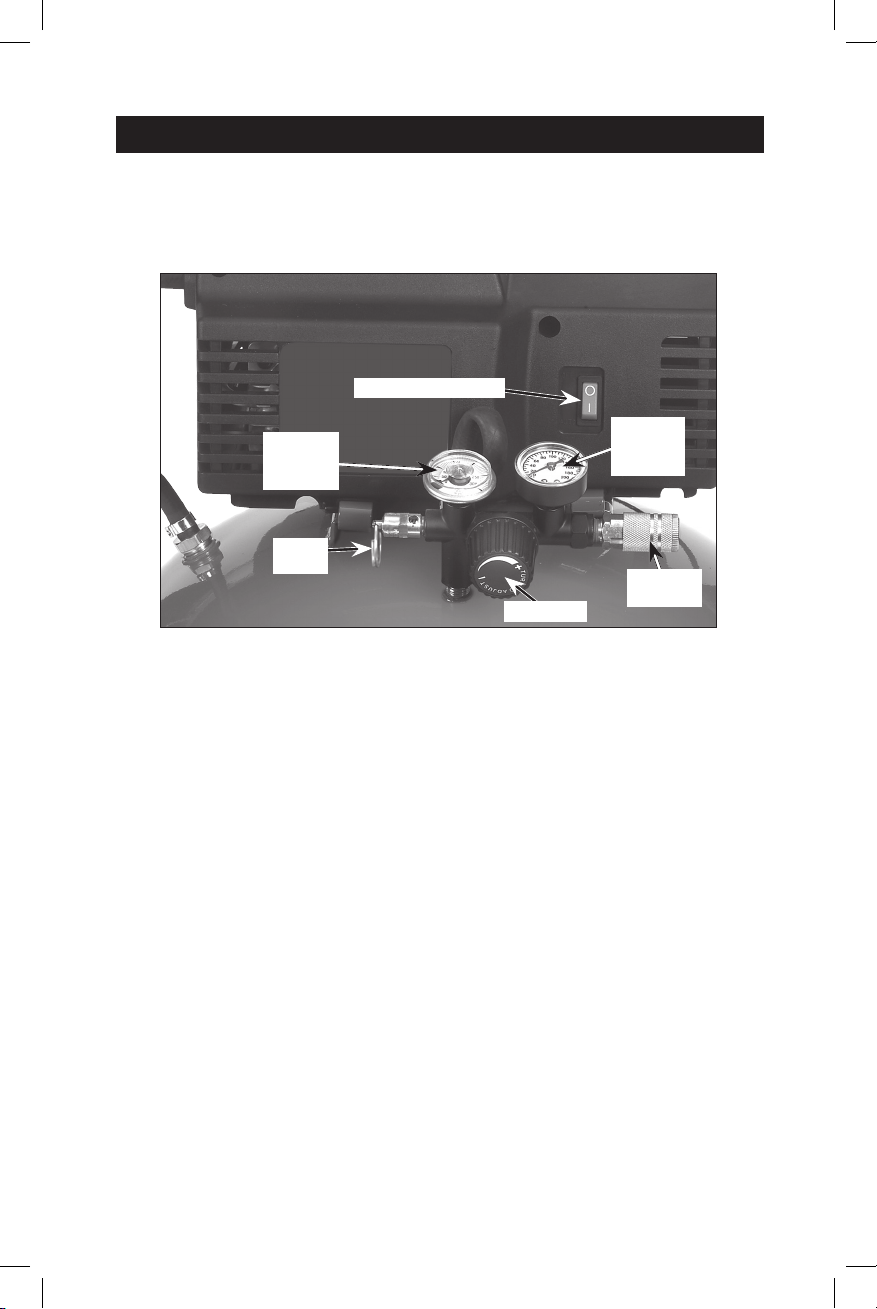

KNOW YOUR AIR COMPRESSOR

READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with

the location of various controls and adjustments. Save this manual for future

reference.







Tank

Pressure

Gauge

Outlet

Pressure

Gauge

Regulator

Quick

Connect

DESCRIPTION OF OPERATION

Become familiar with these controls before operating the unit.

 Place this switch in the On (I) position to provide automatic

power to the pressure switch and Off (O) to remove power at the end of each

use.

Pressure Switch (not shown): The pressure switch automatically starts the

motor when the air tank pressure drops below the factory set "cut-in" pressure.

It stops the motor when the air tank pressure reaches the factory set "cut-out"

pressure.

 If the pressure switch does not shut off the air compressor at its

"cut-out" pressure setting, the safety valve will protect against high pressure by

"popping out" at its factory set pressure (slightly higher than the pressure switch

"cut-out" setting).

Tank Pressure Gauge: The tank pressure gauge indicates the reserve air pres-

sure in the tank.

Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure

available at the outlet side of the regulator. This pressure is controlled by the

regulator and is always less than or equal to the tank pressure.

Regulator: Controls the air pressure shown on the outlet pressure gauge. Turn

regulator knob clockwise to increase pressure and counterclockwise to decrease

pressure.

Cooling System (not shown): This compressor contains an advanced design

cooling system. At the heart of this cooling system is an engineered fan. It is

perfectly normal for this fan to blow air through the vent holes in large amounts.

You know that the cooling system is working when air is being expelled.

Indice

Lingue:

Altri manuali Porter-Cable compressore d'aria

Porter-Cable

Porter-Cable A18760-1006-1 Manuale utente

Porter-Cable

Porter-Cable 1000002853 Manuale utente

Porter-Cable

Porter-Cable JOB BOSS C3555 Manuale utente

Porter-Cable

Porter-Cable C6110 Manuale utente

Porter-Cable

Porter-Cable CPLDC2541S Manuale utente

Porter-Cable

Porter-Cable CFFN250T Manuale utente

Porter-Cable

Porter-Cable 1000003754 Manuale utente

Porter-Cable

Porter-Cable C5512 Manuale utente

Porter-Cable

Porter-Cable PXCM201 Manuale utente

Porter-Cable

Porter-Cable PXCMV5248069 Manuale utente

Porter-Cable

Porter-Cable CPLMC7580V2C Manuale utente

Porter-Cable

Porter-Cable CFFN250N Manuale utente

Porter-Cable

Porter-Cable C2002 Manuale utente

Porter-Cable

Porter-Cable CF1540 Manuale utente

Porter-Cable

Porter-Cable PXCMSAC420VW Manuale utente

Porter-Cable

Porter-Cable CPF6025VP Manuale utente

Porter-Cable

Porter-Cable CPL6025 Manuale utente

Porter-Cable

Porter-Cable CPFAC2040P Manuale utente

Porter-Cable

Porter-Cable JOB BOSS C3550 Manuale utente

Porter-Cable

Porter-Cable PXCML224VW Manuale utente

Porter-Cable

Porter-Cable CPLC7060V Manuale utente

Porter-Cable

Porter-Cable CPFC2TV3525VP Manuale utente

Porter-Cable

Porter-Cable PXCMLC1683066 Manuale utente

Porter-Cable

Porter-Cable CPF23400S Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
