Porter-Cable PXCMF226VW Manuale utente

PXCMF226VW

www.portercable.com

OPERATING INSTRUCTIONS, SERVICE

CENTERS AND WARRANTY POLICY.

READ THESE INSTRUCTIONS

BEFORE USING THE PRODUCT.

INSTRUCTIONS DE FONCTIONNEMENT,

CENTRES DE SERVICES ET POLITIQUE DE

GARANTIE.

LIRE LES

INSTRUCTIONS AVANT D'UTILISER LE

PRODUIT.

INSTRUCTIVO DE OPERACIÓN, CENTROS

DE SERVICIO Y PÓLIZA DE GARANTÍA.

LÉASE ESTE INSTRUCTIVO

ANTES DE USAR EL PRODUCTO.

Français : Page 23

Español: Página 46

Air Compressor

Compresor de aire

Compresseur d’air

Instruction manual

Manuel d'instructions

Manual de instrucciones

2- ENG

GENERAL SAFETY RULES

This manual contains information that is important for you to know and understand.

This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

Indicates an imminently

hazardous situation which, if not

avoided, will result in death or serious

injury.

Indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Indicates a potentially

hazardous situation which, if not

avoided, could result in death or

serious injury.

Indicates a practice

not related to personal injury which,

if not avoided, may result in property

damage.

IMPORTANT SAFETY INSTRUCTIONS

This product contains chemicals known to the State of California

to cause cancer, and birth defects or other reproductive harm. Wash hands after

handling.

Some dust contains chemicals known to the State of California

to cause cancer, birth defects or other reproductive harm such as asbestos and

lead in lead based paint.

To reduce the risk of injury, read the instruction manual.

SAVE THESE INSTRUCTIONS

HAZARD

RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

• Itisnormalforelectrical

contacts within the motor and

pressure switch to spark.

• Alwaysoperatethecompressor

in a well ventilated area free

of combustible materials,

gasoline, or solvent vapors.

• Ifelectricalsparksfrom

compressor come into contact

with flammable vapors, they may

ignite, causing fire or explosion.

• Ifsprayingflammablematerials,

locate compressor at least

20' (6.1 m) away from spray

area. An additional length of

air hose may be required.

• Storeflammablematerials

in a secure location away

from compressor.

3- ENG

• Restrictinganyofthecom-

pressor ventilation openings

will cause serious overheat-

ing and could cause fire.

• Neverplaceobjectsagainst

or on top of compressor.

• Operatecompressorinanopen

area at least 12" (30.5 cm) away

from any wall or obstruction that

would restrict the flow of fresh

air to the ventilation openings.

• Operatecompressorina

clean, dry well ventilated area.

Do not operate unit in any

confined area. Store indoors.

• Unattendedoperationofthisprod-

uct could result in personal injury

or property damage. To reduce the

risk of fire, do not allow the com-

pressor to operate unattended.

• Alwaysremaininattendancewith

the product when it is operating.

• Alwaysturnoffandunplug

unit when not in use.

HAZARD

RISK TO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairdirectlyfrom

your compressor is not safe for

breathing. The air stream may

contain carbon monoxide, toxic

vapors, or solid particles from the air

tank. Breathing these contaminants

can cause serious injury or death.

• Neveruseairobtaineddirectly

from the compressor to supply

air for human consumption. The

compressor is not equipped with

suitable filters and in-line safety

equipment for human consumption.

• Exposuretochemicalsindust

created by power sanding,

sawing, grinding, drilling,

and other construction

activities may be harmful.

• Sprayedmaterialssuchaspaint,

paint solvents, paint remover,

insecticides, weed killers, may

contain harmful vapors and poisons.

• Workinanareawithgoodcross

ventilation. Read and follow

the safety instructions provided

on the label or safety data

sheets for the materials you are

spraying. Always use certified

safety equipment: NIOSH/OSHA

respiratory protection or properly

fitting face mask designed for use

with your specific application.

4- ENG

HAZARD

RISK OF BURSTING

Air Tank: On February 26, 2002, the U.S. Consumer Product Safety Commission

published Release # 02-108 concerning air compressor tank safety:

Air compressor receiver tanks do not have an infinite life. Tank life is dependent

upon several factors, some of which include operating conditions, ambient condi-

tions, proper installations, field modifications, and the level of maintenance. The

exact effect of these factors on air receiver life is difficult to predict.

If proper maintenance procedures are not followed, internal corrosion to the

inner wall of the air receiver tank can cause the air tank to unexpectedly rupture

allowing pressurized air to suddenly and forcefully escape, posing risk of injury to

consumers.

Your compressor air tank must be removed from service by the end of the year

shown on your tank warning label.

The following conditions could lead to a weakening of the air tank, and result in a

violent air tank explosion:

WHAT CAN HAPPEN HOW TO PREVENT IT

• Failuretoproperlydraincondensed

water from air tank, causing rust

and thinning of the steel air tank.

• Drainairtankdailyoraftereachuse.

If air tank develops a leak, replace

it immediately with a new air tank

or replace the entire compressor.

• Modificationsorattempted

repairs to the air tank. • Neverdrillinto,weld,ormakeany

modifications to the air tank or its

attachments. Never attempt to

repair a damaged or leaking air

tank. Replace with a new air tank.

• Unauthorizedmodifications

to the safety valve or any

other components which

control air tank pressure.

• Theairtankisdesignedtowithstand

specific operating pressures.

Never make adjustments or

parts substitutions to alter the

factory set operating pressures.

Attachments & accessories:

• Exceedingthepressurerat-

ing of air tools, spray guns, air

operated accessories, tires,

and other inflatables can cause

them to explode or fly apart, and

could result in serious injury.

• Followtheequipmentmanufacturers

recommendation and never exceed

the maximum allowable pressure

rating of attachments. Never use

compressor to inflate small low

pressure objects such as children’s

toys, footballs, basketballs, etc.

5- ENG

Tires:

• Over inflation of tires could result in

serious injury and property damage. • Useatirepressuregaugetocheck

the tires pressure before each use

and while inflating tires; see the tire

sidewall for the correct tire pressure.

NOTE: Air tanks, compressors and

similar equipment used to inflate

tires can fill small tires very rapidly.

Adjust pressure regulator on air

supply to no more than the rating

of the tire pressure. Add air in small

increments and frequently use the

tire gauge to prevent over inflation.

HAZARD

RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

• Yourcompressorispoweredby

electricity. Like any other electrically

powered device, if it is not used

properly it may cause electric shock.

• Neveroperatethecompressor

outdoors when it is raining

or in wet conditions.

• Neveroperatecompressor

with protective covers

removed or damaged.

• Repairsattemptedbyunqualified

personnel can result in serious

injury or death by electrocution.

• Anyelectricalwiringorrepairs

required on this product should be

performed by authorized service

center personnel in accordance with

national and local electrical codes.

• Electrical Grounding: Failure to

provide adequate grounding to this

product could result in serious injury

or death from electrocution. Refer to

Grounding Instructions paragraph

in the Installation section.

• Makecertainthattheelectrical

circuit to which the compressor

is connected provides proper

electrical grounding, correct voltage

and adequate fuse protection.

6- ENG

HAZARD

RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Thecompressedairstreamcan

cause soft tissue damage to

exposed skin and can propel dirt,

chips, loose particles, and small

objects at high speed, resulting in

property damage or personal injury.

• Alwayswearcertifiedsafety

equipment: ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when

using the compressor.

• Neverpointanynozzleorsprayer

toward any part of the body or

at other people or animals.

• Alwaysturnthecompressor

off and bleed pressure from

the air hose and air tank before

attempting maintenance,

attaching tools or accessories.

HAZARD

RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

• Touchingexposedmetalsuch

as the compressor head, engine

head, engine exhaust or outlet

tubes, can result in serious burns.

• Nevertouchanyexposedmetal

parts on compressor during or

immediately after operation.

Compressor will remain hot for

several minutes after operation.

• Donotreacharoundprotective

shrouds or attempt maintenance

until unit has been allowed to cool.

HAZARD

RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Movingpartssuchasthepulley,

flywheel, and belt can cause

serious injury if they come into

contact with you or your clothing.

• Neveroperatethecompressor

with guards or covers which

are damaged or removed.

• Keepyourhair,clothing,and

gloves away from moving parts.

Loose clothes, jewelry, or long hair

can be caught in moving parts.

• Airventsmaycovermovingparts

and should be avoided as well.

• Attemptingtooperatecompressor

with damaged or missing parts or

attempting to repair compressor

with protective shrouds removed

can expose you to moving parts

and can result in serious injury.

• Anyrepairsrequiredonthisproduct

should be performed by authorized

service center personnel.

7- ENG

HAZARD

RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

• Unsafeoperationofyour

compressor could lead to serious

injury or death to you or others.

• Reviewandunderstandall

instructions and warnings

in this manual.

• Becomefamiliarwiththeoperation

and controls of the air compressor.

• Keepoperatingareaclearofall

persons, pets, and obstacles.

• Keepchildrenawayfromthe

air compressor at all times.

• Donotoperatetheproduct

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

• Neverdefeatthesafetyfea

tures of this product.

• Equipareaofoperation

with a fire extinguisher.

• Donotoperatemachine

with missing, broken, or

unauthorized parts.

HAZARD

RISK OF FALLING

WHAT CAN HAPPEN HOW TO PREVENT IT

• Aportablecompressorcanfall

from a table, workbench, or roof

causing damage to the compressor

and could result in serious injury

or death to the operator.

• Alwaysoperatecompressorina

stable secure position to prevent

accidental movement of the unit.

Never operate compressor on a

roof or other elevated position. Use

additional air hose to reach high

locations.

HAZARD

RISK OF SERIOUS INJURY OR PROPERTY DAMAGE

WHEN TRANSPORTING COMPRESSOR

WHAT CAN HAPPEN HOW TO PREVENT IT

• Oilcanleakorspillandcouldresult

in fire or a breathing hazard. Spilled

oil may cause a slip and fall. Oil

leaks will damage carpet, paint or

other surfaces in vehicles or trailers.

• Alwaysplacecompressorona

protective mat when transporting to

protect against damage to vehicle

from leaks. Remove compressor

from vehicle immediately upon

arrival at your destination.

8- ENG

HAZARD

RISK OF INJURY FROM LIFTING

WHAT CAN HAPPEN HOW TO PREVENT IT

• Seriousinjurycanresult

from attempting to lift

too heavy an object.

• Thecompressoristooheavytobe

lifted by one person. Obtain assis-

tance from others before lifting.

RISK FROM NOISE

WHAT CAN HAPPEN HOW TO PREVENT IT

• Undersomeconditionsandduration

of use, noise from this product

may contribute to hearing loss.

• Alwayswearcertifiedsafety

equipment: ANSI S12.6

(S3.19) hearing protection.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

SPECIFICATION CHART

Model No. PXCMF226VW

Running Horsepower 1.5 *

Bore 2.48" (63.0 mm)

Stroke 0.87" (22.0 mm)

Voltage 120

Hz-Single Phase 60

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity (Gallon) 26 (98.4 liters)

Maximum Air Pressure 150 PSI

Approximate Cut-in Pressure 120 PSIG

Approximate Cut-out Pressure 150 PSIG

SCFM @ 40 PSIG 5.0 *

SCFM @ 90 PSIG 4.0 *

* Tested per ISO 1217

Refer to Glossary for abbreviations.

GLOSSARY

Air Filter

Porous element contained within a

metal or plastic housing attached to

the compressor cylinder head which

removes impurities from the intake air of

the compressor.

Air Tank

Cylindrical component which contains

the compressed air.

Check Valve

Device that prevents compressed air

from flowing back from the air tank to

the compressor pump.

Cut-In Pressure

The low pressure at which the motor will

automatically restart.

Cut-Off Pressure

The high pressure at which the motor

will automatically shut off.

Electric Motor

Device which provides the rotational

force necessary to operate the

9- ENG

DUTY CYCLE

This air compressor pump is capable of running continuously. However, to prolong

the life of your air compressor, it is recommended that a 50%-75% average duty

cycle be maintained; that is, the air compressor pump should not run more than 30-

45 minutes in any given hour.

ACCESSORIES

Accessories for this unit are available at the store the unit was purchased.

The use of any other accessory not recommended for use with this tool could

be hazardous. Use only accessories rated equal to or higher than the rating of

the air compressor.

compressor pump.

NPT (National Pipe Thread)

A seal thread tape must be used to

provide a leak-free seal on pipe threaded

connections.

Pressure Regulator Knob

Regulates the outgoing pressure from

the air outlet to the tool. It is possible to

increase or decrease the pressure at the

outlet by adjusting this control knob.

Pressure Switch

Automatically controls the on/off

cycling of the compressor. It stops the

compressor when the cut-off pressure

in the tank is reached and starts the

compressor when the air pressure drops

below the cut-in pressure.The pressure

switch will not automatically start and

control the compressor unless the

manual AUTO/Off Switch is in the

AUTO position.

PSI (Pounds Per Square Inch)

Measurement of the pressure exerted

by the force of the air. The actual PSI is

measured by a pressure gauge on the

compressor.

Pump

Produces the compressed air with a

reciprocating piston contained within the

cylinder.

Regulator Pressure Gauge

Displays the current line pressure. Line

pressure is adjusted by rotating the

pressure regulator knob.

Pressure Relief Valve

Prevents air pressure in the air tank from

rising over a predetermined limit.

SCFM (Standard Cubic Feet Per Minute)

A unit of measure of air delivery.

Tank Pressure Gauge

Indicates the pressure in the air tank.

Thermal Overload Switch

Automatically shuts off the compressor

if the temperature of the electric motor

exceeds a predetermined limit.

10- ENG

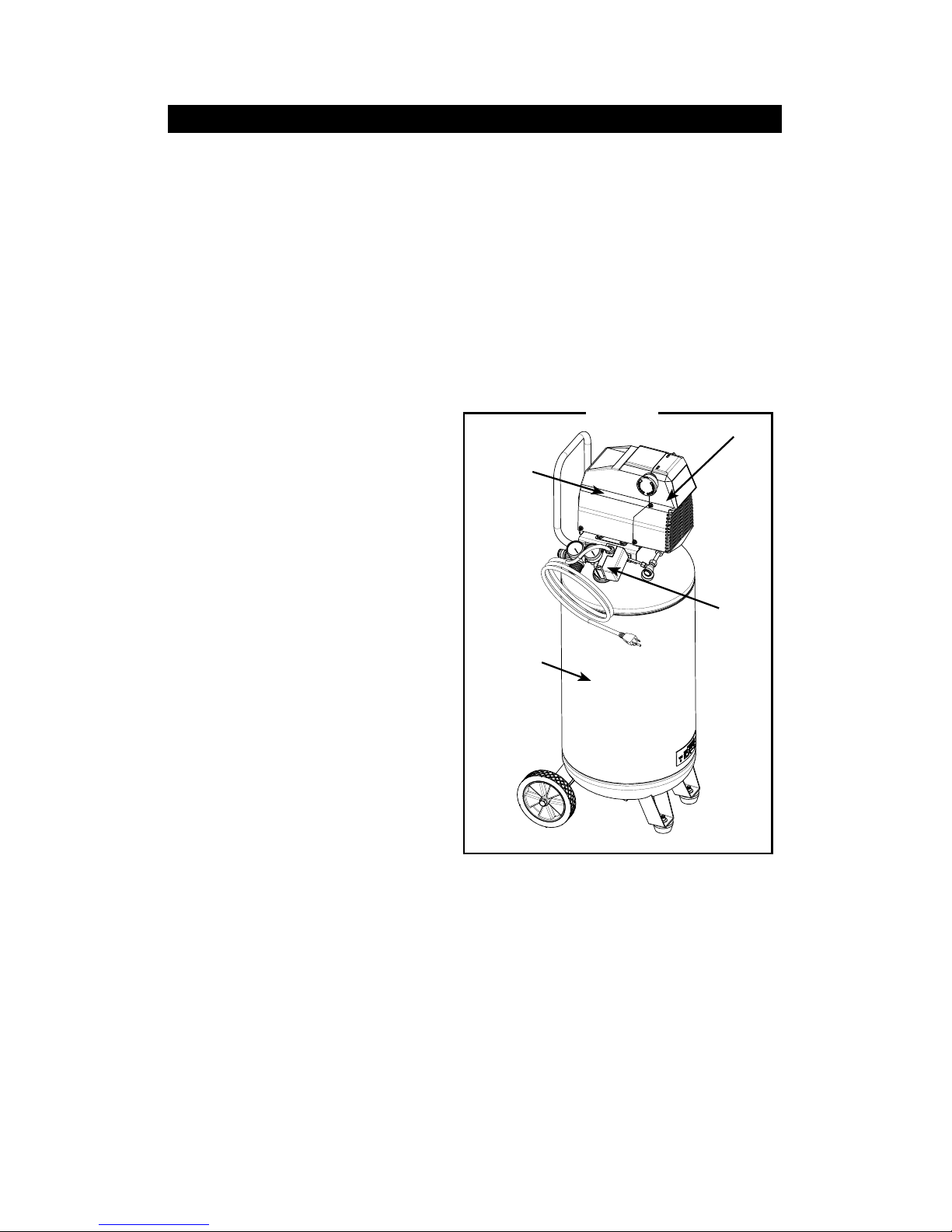

OVERVIEW

Oilless air compressors are factory lubricated for life and do not require any oil.

The basic components of the air compressor are the electric motor, pump,

pressure switch, and tank. (Figure 1)

The electric motor (A) powers the pump. The electric motor is equipped with an

overload protector and an automatic reset. If the motor becomes overheated,

the overload protector will shut it down to prevent damage to the motor.

The motor must be allowed to cool down before restarting. To reset the motor

overload toggle turn the pressure switch AUTO/OFF lever to the OFF position

and unplug the unit from the power outlet. Allow 10 minutes (minimum) for motor

overload cut-out to cool and reset. Unit can then be plugged in and re-started.

The pump (B) compresses the air and discharges it into the tank.

The tank (C) stores the compressed air.

The pressure switch (D) shuts down

the motor when the air pressure in the

tank reaches the cut–out pressure.

As compressed air is used and the

pressure level in the tank drops to the

cut–in pressure, the pressure switch

restarts the motor automatically,

without warning, and the pump

resumes compressing air.

Figure 1

Altri manuali per PXCMF226VW

Indice

Lingue:

Altri manuali Porter-Cable compressore d'aria

Porter-Cable

Porter-Cable 892551-992 Manuale utente

Porter-Cable

Porter-Cable CPLDC2541S Manuale utente

Porter-Cable

Porter-Cable 1000003145 Manuale utente

Porter-Cable

Porter-Cable CPFC2TV3525VP Manuale utente

Porter-Cable

Porter-Cable CPLDC2541S Manuale utente

Porter-Cable

Porter-Cable C6001 Manuale utente

Porter-Cable

Porter-Cable C5101 Manuale utente

Porter-Cable

Porter-Cable CPLKC7080V2-1 Manuale utente

Porter-Cable

Porter-Cable CPFAC2040P Manuale utente

Porter-Cable

Porter-Cable CPFC2TV3520W Manuale utente

Porter-Cable

Porter-Cable CPL55GH8W Manuale utente

Porter-Cable

Porter-Cable C7501M Manuale utente

Porter-Cable

Porter-Cable CPLC7060V Manuale utente

Porter-Cable

Porter-Cable PXCMLC3706056 Manuale utente

Porter-Cable

Porter-Cable CPF6020 Manuale utente

Porter-Cable

Porter-Cable CPFAC2040P Manuale utente

Porter-Cable

Porter-Cable C3101 Manuale utente

Porter-Cable

Porter-Cable PXCML224VW Manuale utente

Porter-Cable

Porter-Cable C2002 Manuale utente

Porter-Cable

Porter-Cable CLFCP350 Manuale utente

Porter-Cable

Porter-Cable C7501 Manuale utente

Porter-Cable

Porter-Cable PXCM201 Manuale utente

Porter-Cable

Porter-Cable CPLC7060V Manuale utente

Porter-Cable

Porter-Cable JOB BOSS C3150 Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
