Porter-Cable FRP350 Manuale utente

Instruction

manual

The Model and Serial No. plate is located on the main

housing of the tool. Record these numbers in the

spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. _______________________________________

IMPORTANT

Please make certain that the person who is

to use this equipment carefully reads and

understands these instructions before

starting operations.

Part No. A07371 - 08-27-04

ESPAÑOL: PÁGINA 15

FRANÇAISE : PAGE 27

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

HP FRAMER

HHIIGGHHPPRREESSSSUURREE

ROUND HEAD

FRAMING NAILER

MODEL FRP350

Date of Manufacture:___________________________

Fecha de fabricación:, Date de fabrication:

Serial No:______________________________________

Número de serie:, Nombre d'ordre

GB ENGLISH

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this

product is in conformity with the regulations EN292-

2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

E ESPANOL

DECLARACION DE CONFORMIDAD ”CE”

Declaramos bajo nuestra sola responsabilidad que est e

producto está en conformidad con las regulaciones

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

F FRANÇAISE

DÉCLARATION DE CONFORMITÉ CE

Nous declarons sous notre propre responsabilite que ce

produit est conforme aux reglementations

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

TABLE OF CONTENTS

SAFETY GUIDELINES AND INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . .3

GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

EMPLOYER RESPONSIBILITIES & FUNCTIONAL DESCRIPTION . . . . . .7

CARTON CONTENTS & PREPARING THE TOOL . . . . . . . . . . . . . . . . . . . .7

OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SERVICE & TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

ACCESSORIES & WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

FRANÇAISE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

SERVICE CENTER LISTING . . . . . . . . . . . . . . . . . . . . . . . . . .BACK COVER

4825 Highway 45 North • Jackson, TN 38305

Telephone: 1-800-487-8665

indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury.

used without the safety alert symbol indicates potentially

hazardous situation which, if not avoided, may result in property

damage.

It is important for you to read and understand this manual. The information it

contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS.

The symbols below are used to help you recognize this information.

SAFETY GUIDELINES / DEFINITIONS

SAVE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all warnings and operating instructions

before using any tool or equipment. When using tools or equipment, basic

safety precautions should always be followed to reduce the risk of personal

injury. Improper operation, maintenance or modification of tools or equipment

could result in serious injury and property damage. There are certain

applications for which tools and equipment are designed. Porter-Cable

Corporation strongly recommends that this product NOT be modified and/or

used for any application other than for which it was designed.

If you have any questions relative to its application DO NOT use the product

until you have written Porter-Cable Corporation and we have advised you.

Online contact form at

www.

Porter-Cable

.com

Postal Mail: Technical Service Manager

Porter-Cable Corporation

4825 Highway 45 North

Jackson, TN 38305

Information regarding the safe and proper operation of this tool is available from

the following sources:

International Staple, Nail and Tool Association (ISANTA)

512 W. Burlington Ave., Suite 203, La Grange, IL 60525-2245

www.isanta.org

American National Standards Institute, 25 West 43rd Street, 4 floor, New York,

NY 10036 www.ansi.org

ANSI SNT-101-2002 Safety Requirements for Portable, Compressed-Air-

Actuated Fastener Driving Power Tools

Fig. 6

Fig. 5

Fig. 2

Fig. 3

Fig. 4

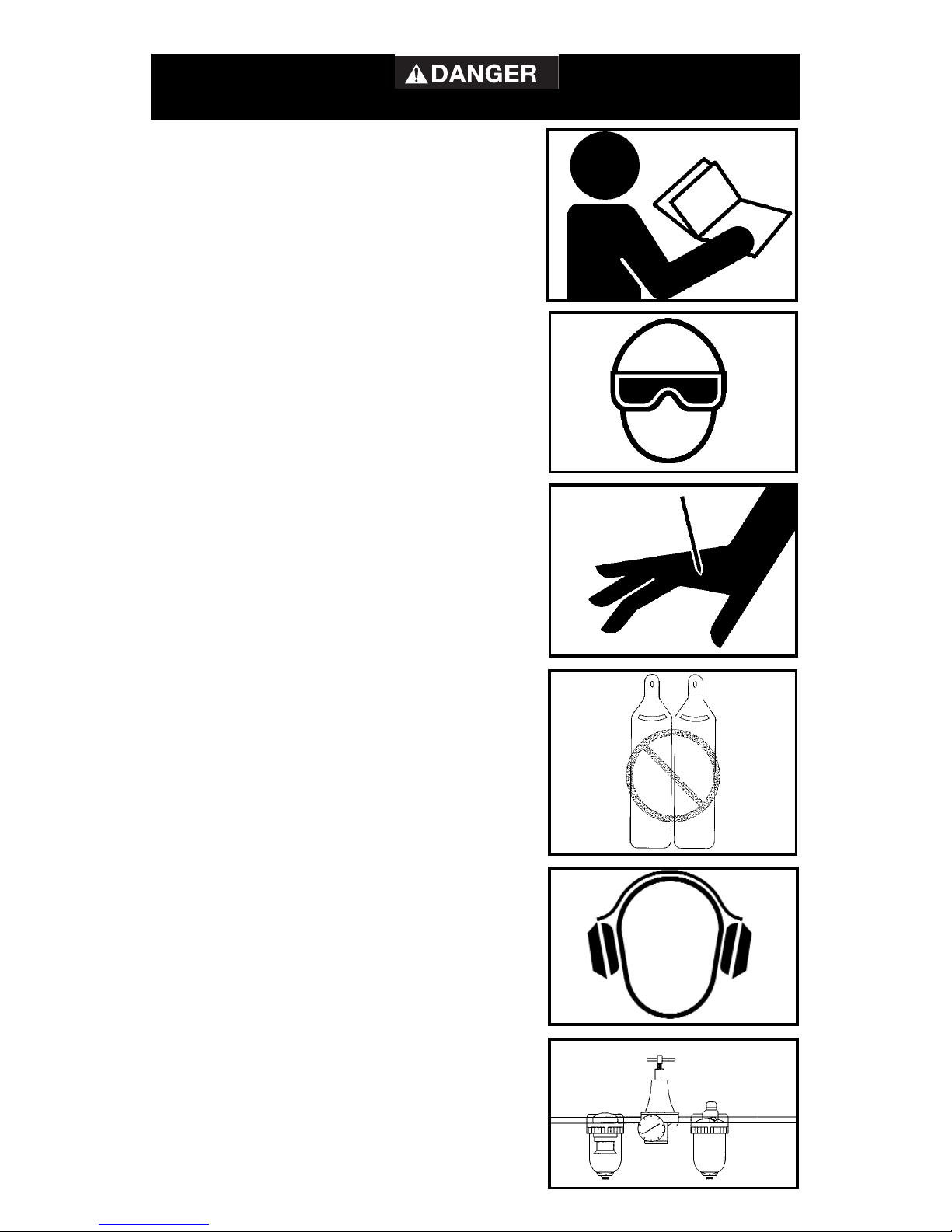

1. Read and understand tool labels and

manual. Failure to follow warnings could

result in DEATH or SERIOUS INJURY. Fig. 1.

2.Operator and others in work area MUST

wear safety glasses with side shields.

These safety glasses must conform to ANSI

Z87.1 requirements (approved glasses have

“Z87” printed or stamped on them). Fig. 2.

3. Keep fingers AWAY from trigger when

not driving fasteners to avoid accidental

firing. Never carry tool with finger on

trigger. Contact actuation tools will fire a

fastener if the safety mechanism is bumped

while the trigger is depressed.

4. Choice of triggering method is

important. Check manual for triggering

options. See “Using the Tool“ section of

this manual.

5. Never point tool at yourself or others

in work area. Serious injury or death may

occur if the tool is activated. Fig. 3

6. Never use oxygen or other bottled

gasses. Explosion will occur. Never use

combustible gases or any other reactive

gas as a power source for this tool:

explosion and serious personal injury will

result. Fig. 4.

7. Wear ear protection to safe-guard

against possible hearing loss. Ear

protection equipment must conform to ANSI

S3.19 requirements. Fig. 5.

8. Use clean, dry, regulated, com-

pressed air at 80 to 150 PSI, (5.5 to 10.3

BAR). Fig. 6.

Fig. 1

GENERAL SAFETY RULES

9. Do not connect tool to pressure which

potentially exceeds 200 PSI (13.7 BAR).

10. All air line components (hoses,

connectors, filters, regulators, etc.) must

be rated for a maximum working pressure

of at least 300 PSI (20.7 BAR) or 150% of

the maximum system pressure, which ever

is greater.

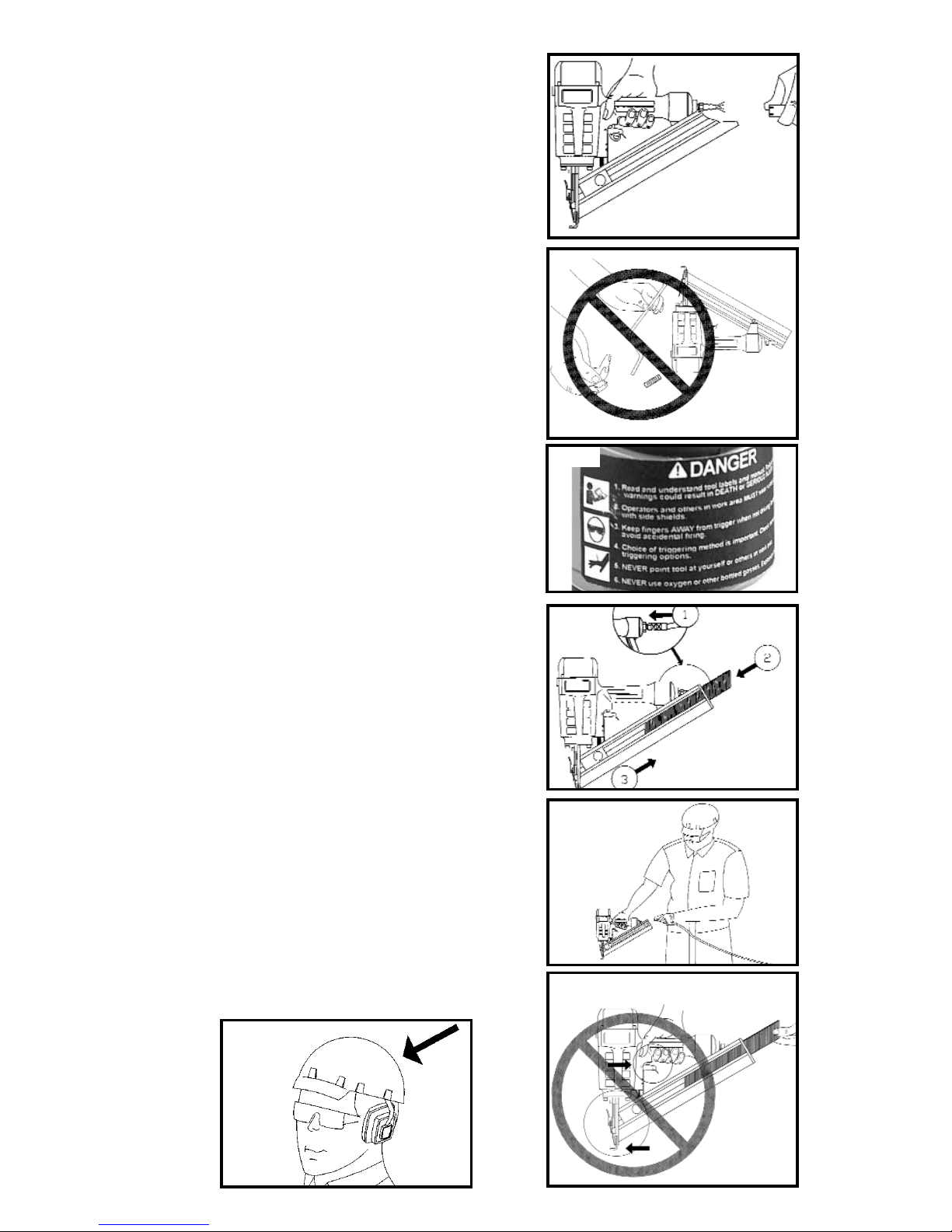

11. Connect tool to air supply hose with a

coupling that automatically removes all

pressure from the tool when the coupling is

disconnected. Fig. 7.

12. Disconnect tool from air supply hose

before doing tool maintenance, clearing a

jammed fastener, leaving work area, moving

tool to another location, or handing the tool

to another person. Fig. 7.

13. Never use a tool that is leaking air, has

missing or damaged parts, or requires

repair. Make sure all screws and caps are

securely tightened. Fig. 8.

14. Never use tool if safety, trigger or

springs are inoperable, missing or

damaged. Do not alter or remove safety,

trigger, or springs. Make daily inspections

for free movement of trigger and safety

mechanism. Fig. 8.

15. Do not use tool without safety

warning label. If label is missing, damaged

or unreadable, contact the Customer Care

Department at 1-800-487-8665 for a

replacement. Fig. 9.

16. Only use parts and accessories

approved by Porter-Cable.

17. Connect tool to air supply before

loading fasteners, to prevent a fastener

from being fired during connection. The tool

driving mechanism may cycle when tool is

connected to the air supply. Fig. 10.

18. Always assume the tool contains

fasteners. No horseplay. Respect the tool

as a working implement. Fig. 11.

19. Operator and bystanders should wear

hard hats to safeguard against possible

injuries. Fig. 12.

20. Keep bystanders and children away

from work area when operating this power

tool.

Fig. 12

Fig. 9

Fig. 8

Fig. 7

Fig. 10

Fig. 11

Fig. 13

21. Do not load fasteners with trigger or

safety depressed, to prevent unintentional

firing of a fastener. Fig. 13

22. Remove finger from trigger when not

driving fasteners. Never carry tool with finger

on trigger. Contact Actuation tools will fire a

fastener if the safety mechanism is bumped

while trigger is depressed. Fig. 14.

23. Do not overreach. Keep proper footing

and balance at all times when using or

handling the tool.

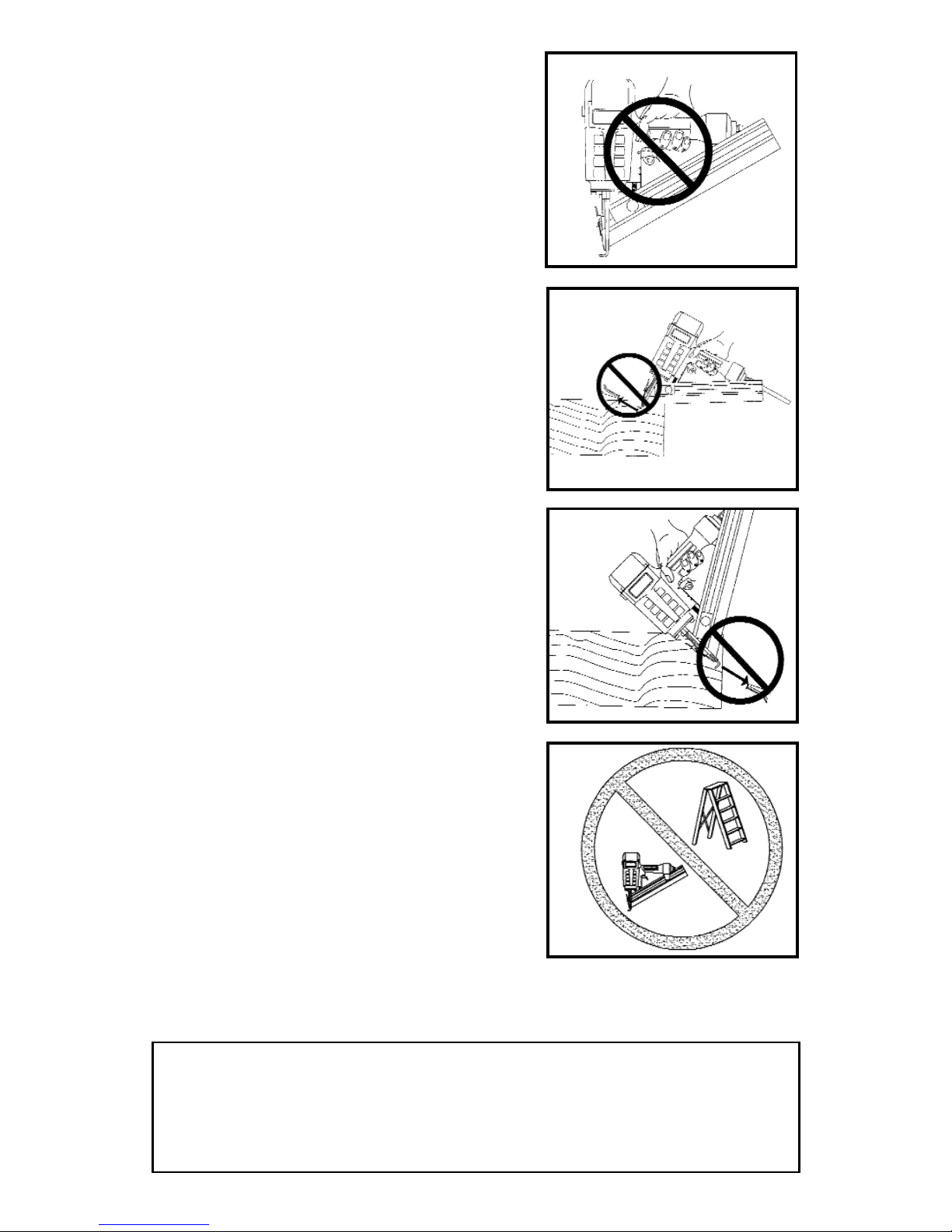

24. Fire fasteners into work surface only:

never into materials too hard to penetrate.

Fig. 15.

25. Grip tool firmly to maintain control

while allowing tool to recoil away from

work surface as fastener is driven. With

Contact Actuation tools an unwanted

fastener will be fired if the safety

mechanism is allowed to recontact work

surface before trigger is released.

26. Do not drive fasteners on top of other

fasteners, or with the tool at too steep an

angle: the fasteners can ricochet causing

personal injury. Fig. 15.

27. Do not drive fasteners close to the

edge of the workpiece. The workpiece is

likely to split allowing the fastener to fly free

or ricochet causing personal injury. Fig. 16.

28. FOR TOOLS USED IN CONTACT

ACTUATION MODE, Do not use on

scaffoldings or ladders or for tasks in

which changing location involves the use of

scaffoldings, stairs, ladders, and the like. Do

not use for specific tasks such as closing

boxes or crates or fitting transportation

safety systems on vehicles and wagons.

Fig. 17.

TECHNICAL SPECIFICATIONS

Noise level . . . . . . . . . . . . . . . . . . Typical Mean

A - Weighted sound impulse . . . effective Acceleration . . . . 4.9 m/s2

power level . . . . . . 105 dBA

P - Emission sound pressure

pressure level . . . . . . 98 dBA

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Employer must enforce compliance with the safety warnings and all other

instructions contained in this manual.

Keep this manual available for use by all people assigned to use this tool.

For personal safety and proper operation of this tool, read and understand

tool labels and manual. Failure to follow warnings could result in DEATH or

SERIOUS INJURY. Read and follow all of these instructions carefully.

Porter-Cable HP FRAMER HHIIGGHHPPRREESSSSUURREE

Model FRP350 is a high

pressure heavy duty pneumatic framing nailer. It is designed to install 22

degree round head, plastic collated framing nails .113" - .148" dia. of various

lengths from 2" to 31/2".

Use approved Porter-Cable fasteners only.

1) HP FRAMER HHIIGGHHPPRREESSSSUURREE

3) Air Tool Oil Bottle

2) 3/8" NPT plug with cap 4) Instruction Manual

POWER SOURCE

This tool is designed to operate on clean, dry, compressed air at regulated

pressures between 80 and 150 PSI (Pounds per Square Inch)

(5.5 to 10.3

BAR)

. The preferred system would include a filter, a pressure regulator, and an

automatic oiler located as close to the tool as possible, within 15 ft/4.6 m is

ideal.

The tool is equipped with a 3

8" male quick connector.

All compressed air contains moisture and other contaminates that are

detrimental to internal components of the tool. An air line filter will remove

most of these contaminates and significantly prolong the life of the tool. If an

in-line oiler is not available: place five or six drops of Air Tool Oil into the

tool’s air inlet at the beginning of each workday.

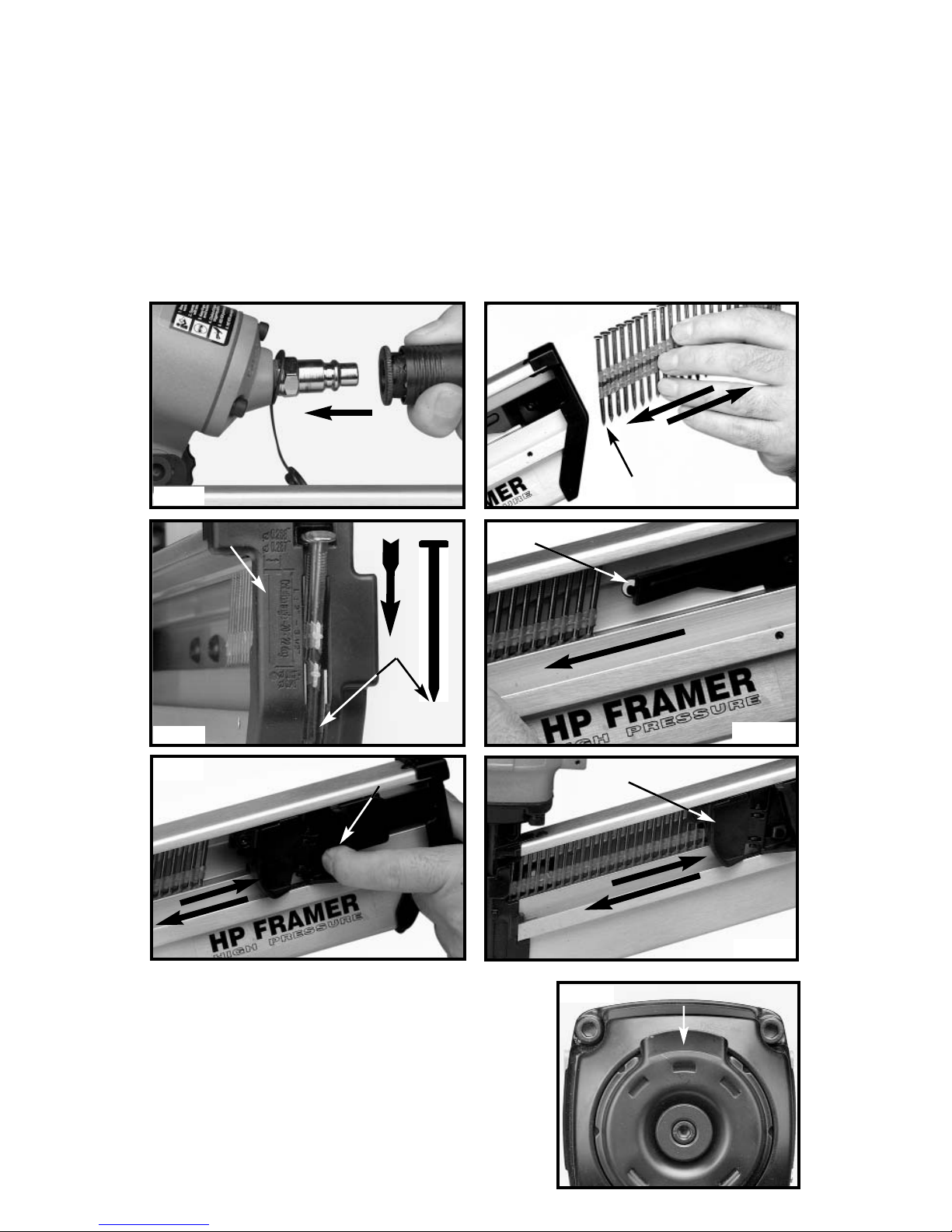

1. After reading and understanding this entire manual, connect tool to

air supply (Fig. 18).

2. Orient a strip of approved fasteners with points down (A) Fig. 19, align,

and insert into the magazine “T” slot. Points first.

Do not load fastener strip into magazine backwards.

3. Observe fastener icon (A) Fig. 20. Insert fasteners (B) Fig. 20 with points

down (C) Fig. 20. Slide fasteners forward to the front of the magazine. The

magazine will hold two full strips of fasteners.

IMPORTANT: Fasteners must point in the same direction as they will be

driven.

NOTE: This tool has a mechanical lock out device which restricts the

tool from firing when the quantity of nails in the magazine is reduced to

four. When attempting to unload the magazine be certain to remove all

four nails from the magazine, otherwise one loose nail could jam in the

magazine when the tool is reloaded and fired.

EMPLOYER’S RESPONSIBILITIES

FUNCTIONAL DESCRIPTION

CARTON CONTENTS

PREPARING THE TOOL

NOTE: This tool is shipped completely assembled. No assembly time or

tools are required.

4. Feed the strip of fasteners into the magazine (“T” slot), until they are past

the spring (A) Fig. 21.

5. Pull the follower (B) Fig. 22 all the way to the rear of the magazine and

release. The follower will apply pressure to the strip of nails to feed it into

the driving mechanism as shown in (B) Fig. 22A .

6. Adjust directional exhaust deflector (A) Fig. 23 so that the exhaust air blast

or debris will be directed away from the operator. The exhaust deflector

provides seven detented positions for directing the exhaust blast away

from the operator. Grasp the deflector and rotate it to the desired

position for the current application.

Fig. 19

Fig. 22 B

Fig. 20

Fig. 18

Fig. 21

Fig. 23 A

Fig. 22A

OPERATING INSTRUCTIONS

USING THE TOOL WITH SELECTABLE TRIGGERING

OPTIONS

Complete all steps of PREPARING THE TOOL before using the tool.

This tool is shipped from the factory with a selectable trigger set in the

“SINGLE SEQUENTIAL ACTUATION” firing mode as described in number

1 below. This actuation design requires the release of both the trigger and

safety mechanism after each fastener is driven. The selectable trigger can

be set for the “CONTACT ACTUATION” firing mode as described in

number 2 below. This actuation design requires the release of the safety

mechanism ONLY after each fastener is driven.

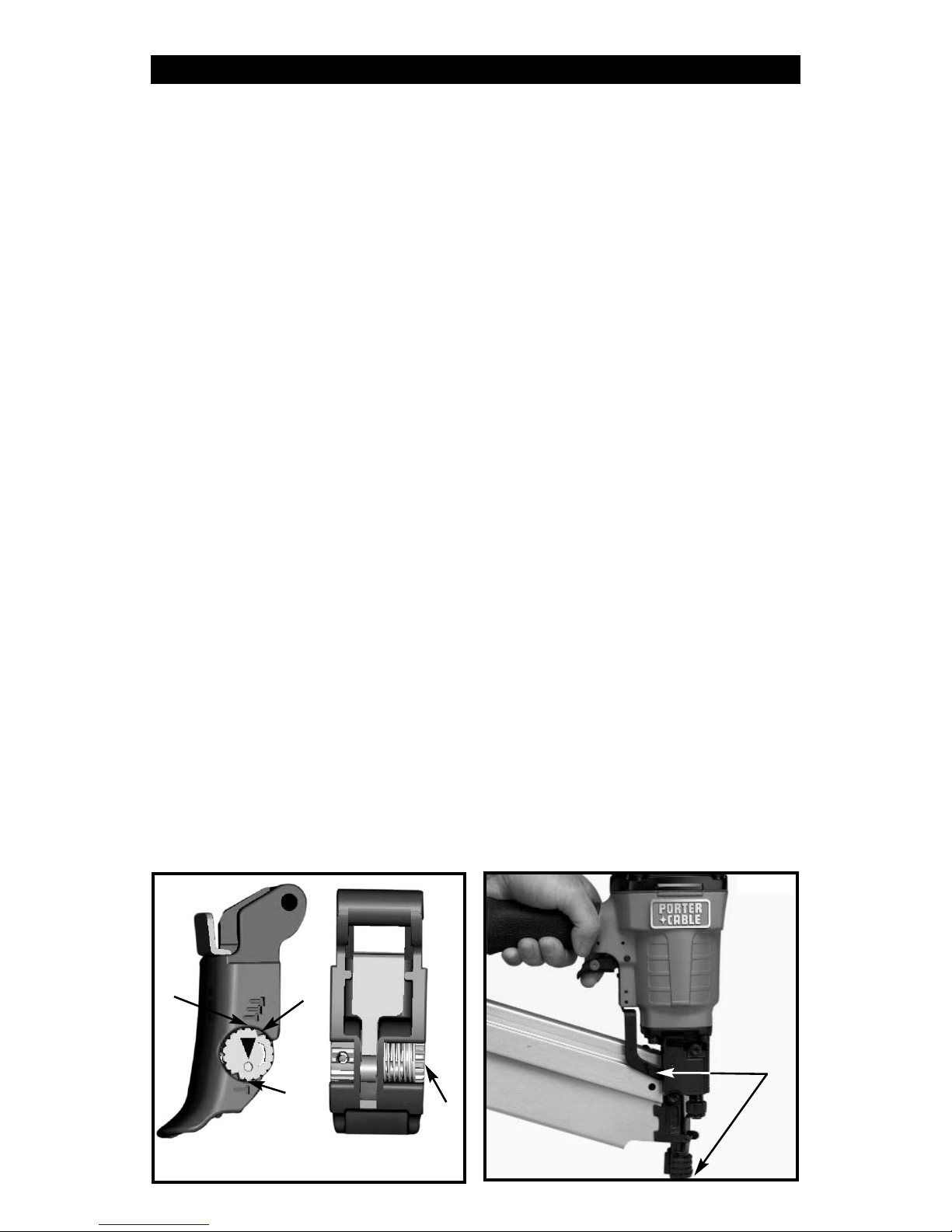

1. To use the tool in the SINGLE SEQUENTIAL ACTUATION MODE

depress trigger lever pivot pin (A) Fig. 24 and rotate it to position (B) and

release. Note: Trigger lever pivot pin is spring loaded and held in position by

locking tab (D) Fig. 24 to prevent movement during operation. To fire, grip

tool firmly to maintain control, position nose of tool onto work surface,

push the tool firmly against work surface to depress safety mechanism,

as shown at (S) Fig. 24A, and then squeeze trigger to fire a fastener.

Allow tool to recoil away from work surface as fastener is driven. This

“single sequential actuation” method provides the most accurate fastener

placement.

-OR-

2. To use the tool in the CONTACT ACTUATION MODE depress trigger

lever pivot pin (A) Fig. 24 and rotate it to position (C) and release. Note:

Trigger lever pivot pin is spring loaded and held in position by locking tab (D)

Fig.24 to prevent movement during operation. To fire, grip tool firmly to

maintain control, squeeze and hold trigger, push the tool firmly against

work surface to depress safety mechanism, as shown at (S) Fig. 24A,

and fire a fastener.Allow tool to recoil away from work surface as

fastener is driven. If safety mechanism is allowed to recontact work surface

before trigger is released an unwanted fastener will be fired. The tool will fire

a fastener each time the safety mechanism is depressed. This method is

known as “contact actuation” and allows very fast repetitive fastener

placement.

Fig. 24A

Fig. 24

IMPORTANT: A trigger, which will limit the tool to “single sequential

actuation” only, is available free-of-charge by calling 1-800-321-9443 in the

United States and Canada or 001-731-660-9374 outside the United States

and Canada, and providing tool model number, type, serial number, etc. For

identification purposes: the single sequential actuation trigger is red.

Disconnect tool from air supply before performing

maintenance, clearing a jammed fastener, leaving work

area, moving tool to another location, or handing the tool

to another person.

Clean and inspect tool daily. Carefully check for proper

operation of trigger and safety mechanism. Do Not use the tool unless

both the trigger and the safety mechanism are functional, or if the tool is

leaking air or needs any other repair.

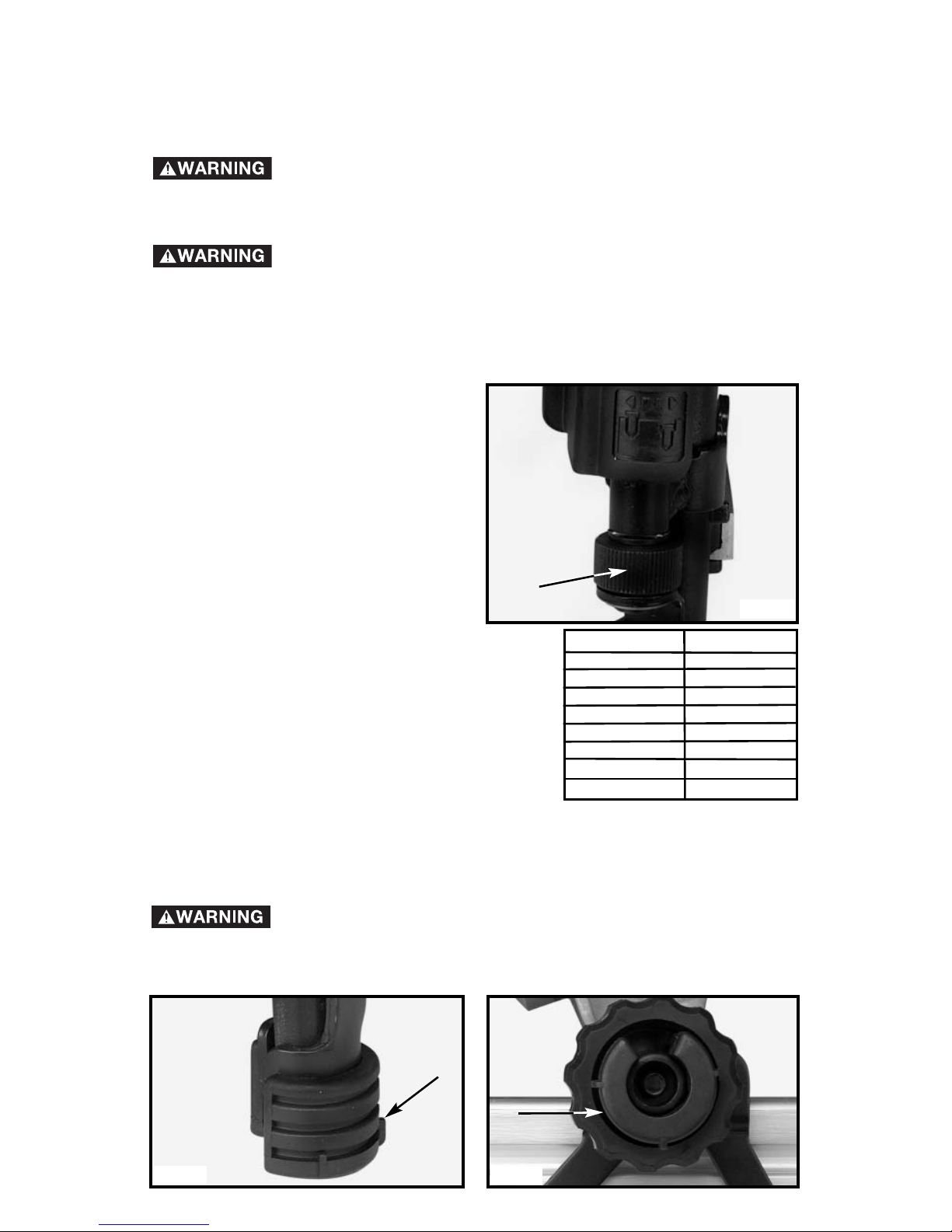

The depth to which a fastener is driven is controlled by the depth adjustment

knob (A) Fig. 25. The depth of drive is factory adjusted to a nominal setting.

Test fire a fastener and check

depth. If a change is desired, rotate

the adjustment knob (A) Fig. 25. The

adjustment knob has detents every

1/4turn. Rotate the knob (A) Fig. 25

counterclockwise to increase the

depth of drive, rotate the knob

clockwise to decrease the depth of

drive. Test fire another fastener and

check depth. Repeat as necessary

to achieve desired results. The

amount of air pressure required will

vary depending on the size of the fastener and

the material being fastened. Experiment with

the air pressure setting to determine the lowest

setting that will consistently perform the job at

hand (Fig. 25B). Air pressure in excess of that

required can cause premature wear and/or

damage to the tool.

A rubber nose cushion (A) Fig. 26 is provided to reduce marring of the work

surface. The rubber cushion can be removed, and stored inside knob (B) Fig.

27, to provide increased depth-of-drive for toe-nailing applications.

Disconnect tool from air supply before removing or

reinstalling rubber cushion.

Fig. 27

Fig. 25

Fig. 26

Fig. 25B

Nail Size Pressure

.113 x 2" 80

.113 x 2-

3/8

" 90

.120 x 3" 110

.131 x 3" 110

.148 x 3" 130

.120 x 3-1/4" 130

.131 x 3-1/4" 130

.131 x 3-1/2" 150

Indice

Altri manuali Porter-Cable Pistola sparachiodi

Porter-Cable

Porter-Cable PIN138-CA Manuale utente

Porter-Cable

Porter-Cable FC350A Manuale utente

Porter-Cable

Porter-Cable PCC790B Manuale utente

Porter-Cable

Porter-Cable 8604 Manuale utente

Porter-Cable

Porter-Cable PIN138 Manuale utente

Porter-Cable

Porter-Cable FN250 Manuale utente

Porter-Cable

Porter-Cable 883794-699 Manuale utente

Porter-Cable

Porter-Cable RN175B Manuale utente

Porter-Cable

Porter-Cable FN250B Manuale utente

Porter-Cable

Porter-Cable PCC792 Manuale utente

Porter-Cable

Porter-Cable FCN200 Manuale utente

Porter-Cable

Porter-Cable BN200B Manuale utente

Porter-Cable

Porter-Cable PCC790LA Manuale utente

Porter-Cable

Porter-Cable DA250 Manuale utente

Porter-Cable

Porter-Cable 894884-003 Manuale utente

Porter-Cable

Porter-Cable DA250A Manuale utente

Porter-Cable

Porter-Cable FR350A Manuale utente

Porter-Cable

Porter-Cable COIL350 Manuale utente

Porter-Cable

Porter-Cable FCP350 Manuale utente

Porter-Cable

Porter-Cable BN200C Manuale utente

Porter-Cable

Porter-Cable FR350B Manuale utente

Porter-Cable

Porter-Cable DA250C Manuale utente

Porter-Cable

Porter-Cable PN650 Manuale utente

Porter-Cable

Porter-Cable PCC790 Manuale utente

Manuali Pistola sparachiodi popolari di altre marche

Performance Tool

Performance Tool M643 Manuale utente

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco Fusion Technology F-35XP Manuale utente

Grizzly

Grizzly G1847 Manuale utente

Ryobi

Ryobi R18N18G Manuale utente

Black & Decker

Black & Decker 492848-00 Manuale utente

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuale utente

Metabo HPT

Metabo HPT NR 3690DC Manuale di istruzioni

Surtek

Surtek CN650 Dimensioni e guida di installazione

Makita

Makita GF600 Manuale utente

Parkside

Parkside PET 25 B1 Manuale utente

Senco

Senco AirFree 25 Manuale utente

Freeman

Freeman P50LSLW Manuale utente

Aicon PRO

Aicon PRO DAC4507 Manuale utente

DAJ

DAJ XR150A Manuale utente

Makita

Makita AN923 Manuale utente

Grizzly

Grizzly T20644 Manuale utente
