POS-Mate PM-BCPRO-B Manuale utente
PRO Barcode Scanner
PM-BCPRO-B / PM-BCPRO-W
Instruction Manual
PM-BCBT2D-W Instruction Manual v.1.1
3
Contents
Warranty 4
Get To Know Your PRO Barcode Scanner 5
LED Indicators 6
Beep Indicators 6
Setting Up Your PRO Barcode Scanner 7
Connecting to Square App for iOS/iPadOS 7
Automatic Pairing 8
iOS / iPadOS Virtual Keyboard Control 9
Vibration Settings 9
Volume Settings 10
Manual Pairing 10
Sleep Settings 11
Automatic Scanning Mode 13
Barcode Type Settings 13
Data Transfer Settings 14
Suffix Settings 16
Letter Conversion Settings 17
Hide Character Settings 17
Keyboard Language Settings 19
Restore Factory Settings 20
System Information 20
SPP and BLE Pairing 20
Technical Information 22
Troubleshooting 23
PM-BCBT2D-W Instruction Manual v.1.1
4
Warranty
POS-mate reserves the right to make changes to any product to improve
reliability, function, or design. POS-mate does not assume any product
liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein. No license is granted,
either expressly or by implication, estoppel, or otherwise under any
patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which POS-mate
products might be used. An implied license exists only for equipment,
circuits, and subsystems contained in POS-mate products.
For the complete hardware product warranty statement, go to:
http://www.pos-mate.com/warranty
For Australia Only
This warranty is given by PICA Australia Pty. Ltd (ABN 70 113 812 721) of 8
Translink Drive, Keilor Park, Vic. 3042 Australia, as the owner of the brand
referred to as POS-mate. POS-mate products are subject to rigorous
testing and assessment as to their quality and suitability for purpose. Our
goods come with guarantees that cannot be excluded under Australian
Consumer Law. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount
to a major failure. POS-mate’s Australian limited warranty above is in
addition to any rights and remedies you may have under Australian
Consumer Law. If you have any queries, please call POS-mate on
+61393367336.
PM-BCBT2D-W Instruction Manual v.1.1
5

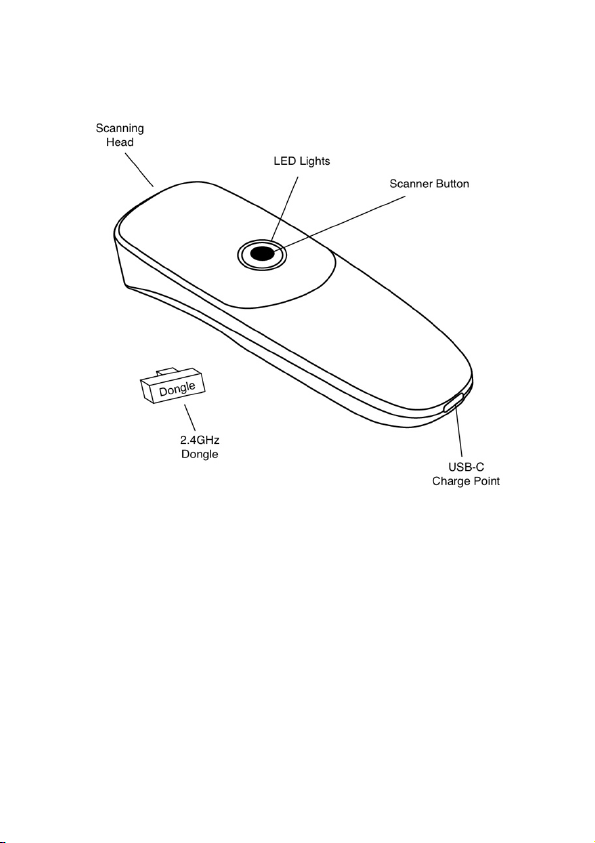

Get To Know Your PRO Barcode Scanner
PM-BCBT2D-W Instruction Manual v.1.1
6
LED Indicators
LED Sequence
Description
Blue - on
Connected
Blue - flash
Scan success
Red - on
Charging
Red and Blue - on
Connected and charging
Blue – alternatively flashing
HID pairing mode
Blue – simultaneously
flashing
BLE pairing mode
Blue only - flashing
2.4G pairing mode
Blue only - flashing
SPP pairing mode
No LED
Not connected, not charging
Beep Indicators
Beep Sequence
Description
1 long beep
Power ON/OFF
1 short beep
Scan or pairing success
2 short beeps
Wireless disconnection (out
of range)
3 short beeps
Scanner memory full
5 short beeps
Recharge scanner
PM-BCBT2D-W Instruction Manual v.1.1
7
Setting Up Your PRO Barcode Scanner
• Remove your POS-mate PRO Barcode Scanner from its
packaging and place it on your countertop.
• Insert one end of the cable supplied into the Charging
Dock’s USB Power Inlet, the other end into a USB power
supply, i.e. PC or wall socket.
o Insert a USB cable into the Dock’s USB Power Outlet to
charge your smartphone or tablet.
• Place your POS-mate PRO Barcode Scanner into the
Charging Dock. It will fully charge within 3 hours.
• Pair to your device.
Connecting to Square App for iOS/iPadOS
To connect your POS-mate PRO Barcode Scanner to Square App
for iOS, iPadOS or Square Stand, follow the setup instructions at
http://square.com/help/article/5143
or use your scanner to scan the
QR code into your browser
POS-mate PRO Barcode Scanner is not compatible with Square App for
Android or Square Terminal.
PM-BCBT2D-W Instruction Manual v.1.1
8
Automatic Pairing
Automatic Bluetooth Pairing
Press and hold your POS-mate PRO Barcode Scanner button for 8
seconds. The blue LED lights on the scanner will start alternatively
flashing. Turn on Bluetooth on your smartphone, tablet, Mac or
PC, search for “P-mPRO-” and pair. Your POS-mate PRO Barcode
Scanner will give a short beep, the blue LED will remain solid and
is connected.
Disabling Automatic Pairing
Automatic Pairing is a default feature of your POS-mate PRO
Barcode Scanner. After pairing with your device, you may choose
to disable this feature. To disable automatic paring, scan the
Disable Auto Paring barcode. You can re-enable Automatic
Pairing at any time by scanning the Enable Automatic Pairing
barcode.
Disable Auto Pairing
Enable Automatic Pairing (default)
PM-BCBT2D-W Instruction Manual v.1.1
9
iOS / iPadOS Virtual Keyboard Control
To show or hide your keyboard from your POS-mate PRO Barcode
Scanner, simply double click the scanner button to show the
keyboard, and double click the scanner button to hide. You may
choose to disable this feature by scanning the Disable Show/Hide
Keyboard barcode. You can re-enable iOS / iPadOS Virtual
Keyboard at any time by scanning the Enable Show/Hide
Keyboard barcode.
Disable Show/Hide Keyboard
Enable Show/Hide Keyboard (default)
Vibration Settings
Your POS-mate PRO Barcode Scanner will vibrate each time the
scanner button is pressed. You can turn off or on the vibration
setting by scanning the desired barcode below.
Vibration Off
Vibration On (default)
PM-BCBT2D-W Instruction Manual v.1.1
10
Volume Settings
Your POS-mate PRO Barcode Scanner will beep each time the
scanner button is pressed. Adjust the volume of the scanning
beep on your POS-mate PRO Barcode Scanner to mute, low
volume or high volume by scanning the desired barcode below.
Mute
Low Volume
High Volume (default)
Manual Pairing
Manual Bluetooth HID Mode Pairing
Manually pair your POS-mate PRO Barcode Scanner by scanning
the Bluetooth HID Mode and Pair barcodes. The blue LED lights
on the scanner will start alternatively flashing. Turn on Bluetooth
on your smartphone, tablet, Mac or PC, search for “POS-mate
Scanner” and pair. Your POS-mate PRO Barcode Scanner will give
a short beep, the blue LED will remain solid and is connected.
Bluetooth HID Mode
