POSIFLEX LM-31 E Series Manuale utente
1
Package Contents
9.7” LM/TM-3X10E or 14” LM/TM-
3X14E or 15” LM/TM-3X15E
Standalone POS Monitor………….(x 1)
VGA Cable………………………..(x 1)
USB type A to B cable...……….....(x 1)
(For TM series monitors Only)
Power Adapter…………………….(x 1)
User Manual………………………(x 1)
Information CD
(for TM series monitors Only).…...(x 1)
Product Features
For LM-31XXE/33XXE models
LM-31XXE with slim bezel-free design; LM-33XXE with slim bezel-
type design
9.7” or 15” TFT LCD panel or 14” wide screen TFT LCD panel
VESA mounting support
For TM-31XXE/33XXE models
TM-31XXE with slim bezel-free design; TM-33XXE with slim design
9.7” or 15” TFT LCD panel or 14” wide screen TFT LCD panel
P-CAP touch panel for TM-31XXE; 5-wire resistive touch panel for
TM-3315E
VESA mounting support
Optional side attachment support for LM/TM-3X15E (SL-105)
Optional side attachment support for LM/TM-3114E (SL-104)
19600991020 Ver. B0
http://www.posiflex.com
LM/TM-31XXE/33XXE
Standalone POS Monitor
User Manual
2
Views of LM/TM-3X10E
Front View
Rear View
OSD Control Button
Neck Cover
Cable Exit
OSD button
EXT button
＋button
－button/ Power button
9.7” LM-3310E LCD Panel
9.7” LM-3110E LCD Panel
9.7” TM-3110E P-Cap Touch Panel
3
Bottom View
I/O Ports of LM-3X10E
I/O Ports of TM-3X10E
Rubber Pad
Rubber Pad
VGA Port
DC-IN Power Jack
Power LED Indicator
VGA Port
USB (Type B) Port
DC-IN Power Jack
Power LED Indicator
4

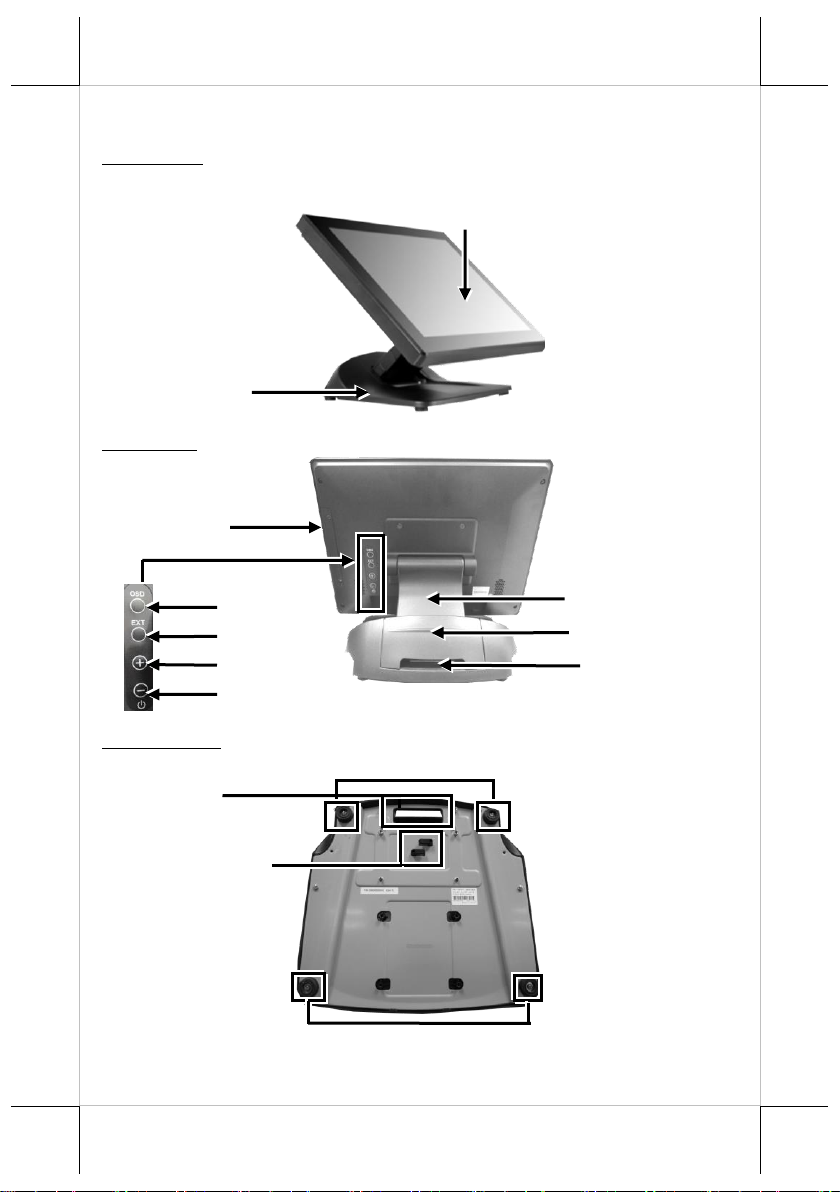

Views of the LM/TM-3114E
Front View
Rear View
Bottom View
Rubber Feet with Fixing Screw
Rubber Feet with Fixing Screw
Cable Holder
OSD Control Button
Side Mount Cover
Neck Cover
Cable Cover
Cable Exit
Gen 7L Base
14” LM-3114E LCD Panel
14” TM-3114E P-Cap Touch Panel
Cable Exit
OSD button
EXT button
＋button
－button/ Power button
5

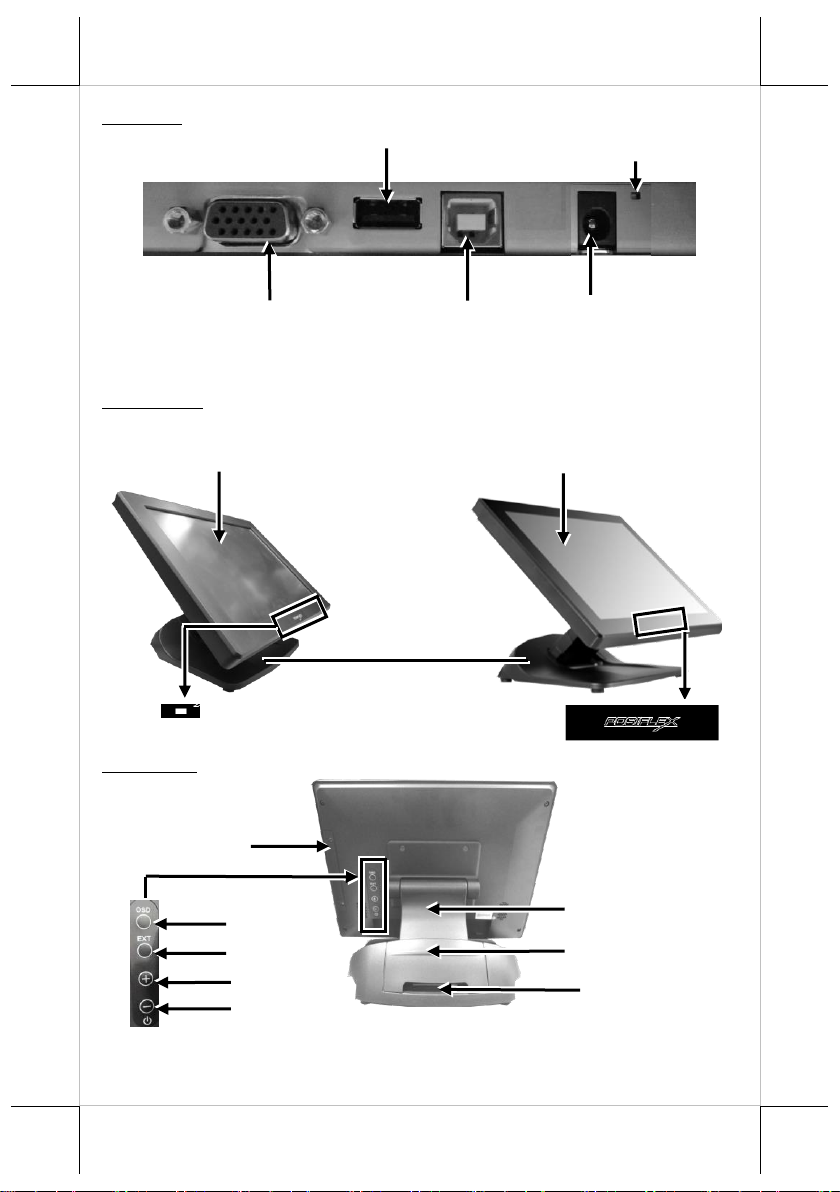

I/O Ports
Views of the LM/TM-3115E/3315E
Front View
Rear View
OSD Control Button
Side Mount Cover
Neck Cover
Cable Cover
Cable Exit
15”LM-3315E LCD Panel
15”TM-3315E Resistive Touch Panel
Gen 7L Base
15” LM-3115E LCD Panel
15”TM-3115E P-Cap Touch Panel
LED indicator
LED indicator
OSD button
EXT button
＋button
－button/ Power button
VGA Port
USB (Type B) Port
DC-IN Power Jack
USB Port
Power LED Indicator
6
Bottom View
I/O Ports
Positioning your monitor for a Perfect Viewing Angle
9.7”LM/TM-3110E/ 3310E
With simpler and lighter design, the miniature standalone base for 9.7”LM-
3110E/TM-3310E makes it easy for you to set up the tilt angle. Please refer to
below suggestion to tilt your monitors:
To find the ideal viewing angle for 9.7”
LM/TM series monitors, please adjust the
monitor up or down in the direction indicated
by the arrow. Be careful NOT to touch the
panel while tilting the screen.
Rubber Feet with Fixing Screw
Rubber Feet with Fixing Screw
Cable Holder
VGA Port
USB (Type B) Port
DC-IN Power Jack
Cable Exit
USB Port
7
14” or 15” LM/TM-31XXE/33XXE
Different from the miniature base used by 10” LM/TM series monitors, the
adjustable Gen 7L base featuring its unique tilt adjustment mechanism allows
you to determine an ideal position for 14” and 15” LM/TM-31XXE/33XXE
series monitors. In general, it provides three standard positioning solution as
the below figures suggested: flat folded mode, low profile mode, and full
extended mode.

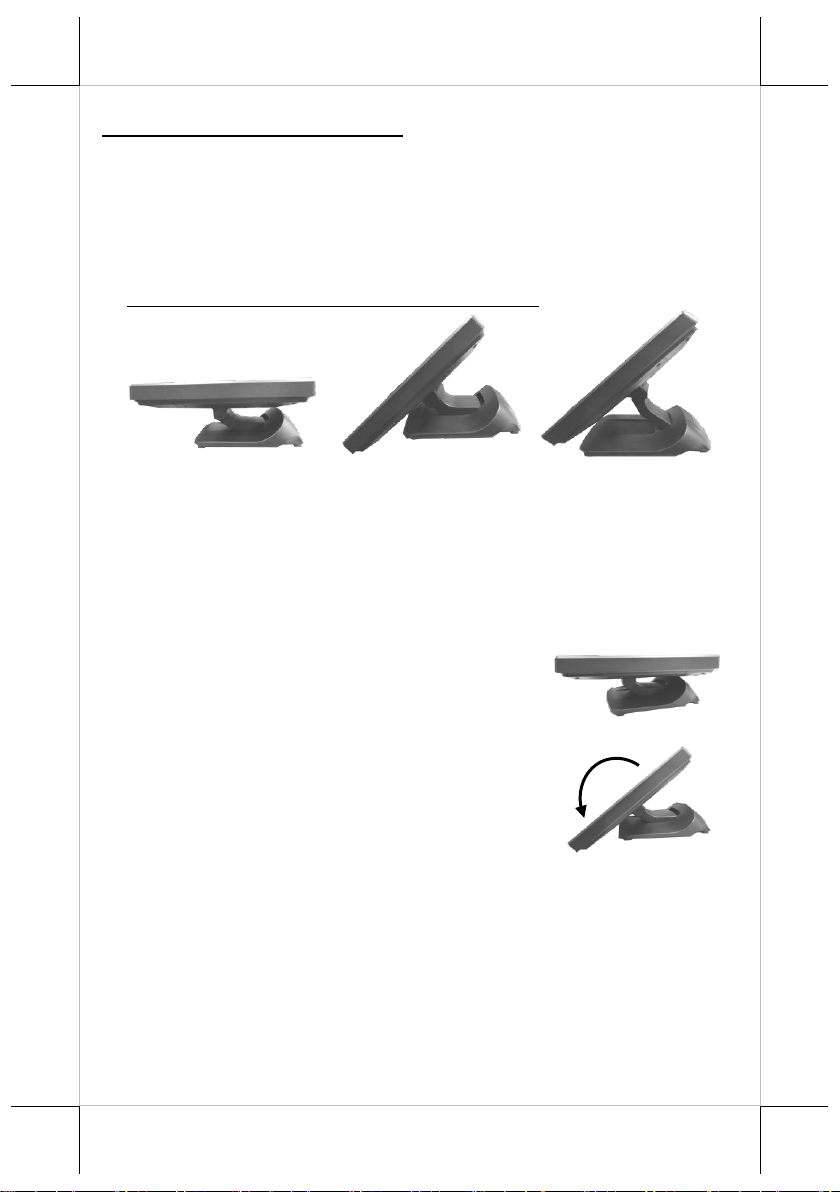

14” or 15”LM/TM-31XXE/33XXE with Gen 7L Base
Flat folded mode
Low profile mode
Full extended mode
LM/TM-31XXE/33XXE will be set up beforehand in flat folded mode before
being packaged into the box for shipping. After it is unpacked, you may re-
adjust the monitor in either low profile mode or full extended mode
according to your situation. The following describes the steps of adjusting Gen
7L base connected to the monitor among different positioning modes.
1. Unpack LM/TM-31XXE/33XXE, which is
supposed to be set in flat folded mode, out of
the package box and then lay your POS system
on a flat surface.
2. Steady the base stand with one hand, and then
tilt the screen downwards.
8
3. Position your monitor in Full Extended mode.
3.1 After grabbing the bottom edge of the screen with your hand,
gently move the screen upward until the screen is locked into place
with a click sound.
3.2 With the screen facing toward you, tilt the
screen up or down to your desired angle.
Please do not press on the LCD panel while
setting up the tilt angle.

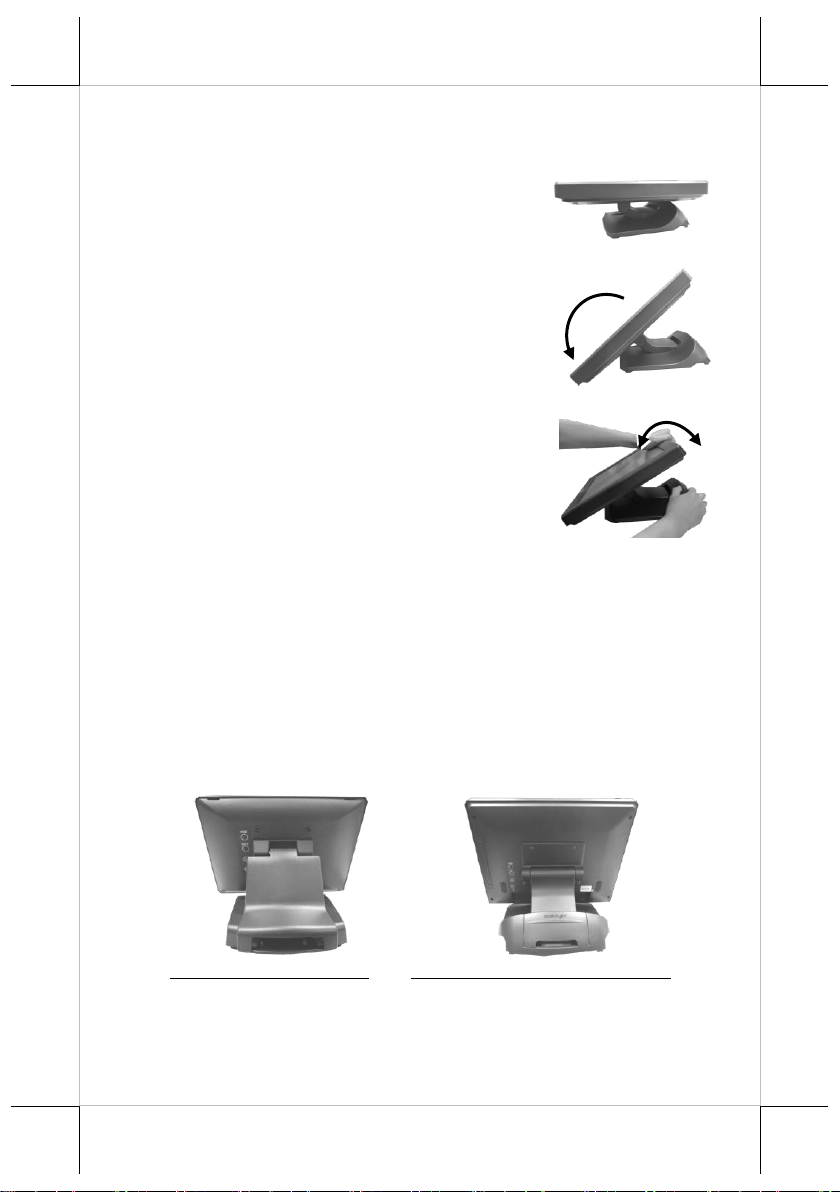

4. Restore your monitor to Flat Folded mode from Full Extended
mode.
4.1 Tilt your screen in a horizontal position.
Then, remove the cable cover from the base
stand.
4.2 Support the screen with one hand holding onto its bottom edge.
While pulling the lever backwards, move the screen downwards
until the lever is lifted off the hook as shown in the figure
4.3 Push the cable cover back.
4.4 Tilt the screen again to the horizontal
position.
Hook
Lever
9
5. Position the monitor in Low Profile mode.
5.1 Follow Step 4 to set up the monitor in Flat
Folded mode.
5.2 Tilt the screen all the way down
5.3 To tilt screen up or down to your desired
angle, please be advised to keep the base
stand steady with one hand to do so. Do
NOT press on the LCD panel while setting
up the tilt angle.
Connecting VGA and USB Cables
The following section will provide the instructions on how to connect power
adapter, VGA and USB type A to B cables, and introduce helpful cable-
routing tips you may need to use while organizing cables.
For TM-31XXE/33XXE users, please note that USB type A to B cable needs
to be well attached to both of your monitor and terminal to allow touch screen
function to work normally.
1. Lay the monitor with its rear facing toward you and tilt the screen all
the way down.
9.7” LM/TM-3110E/3310E
14” or 15”LM/TM-31XXE/33XXE
10
2. Adjust the screen downwards, and release the cable cover from the
base.
For 9.7”LM/TM-3110E/3310E monitors,
please directly remove the neck cover from
the base.
If you are using 14” or 15”LM/TM-series monitors, refer to the
below figures to first remove cable cover and then neck cover in the
direction shown by the arrow.
3. After adjusting the screen to the horizontal position, take one end of
the VGA cable and have it passed through the cable exit.
9.7”LM/TM-3110E/3310E
14” or 15”LM/TM-31XXE/33XXE
4. Secure the VGA cable to the VGA port at the
bottom I/O plate of your monitor.
5. Grab Type-B connector of USB cable to
route it through the cable, and then insert it
into Type-B USB port of your monitor.
Cable Exit
Cable Exit
