POSIFLEX LM-4015 Manuale utente

Package Contents

LM-4015 or TM-4015 POS Monitor…(x 1)

Mounting Kits ………………....……...(x 1)

User Manual…………………………..(x 1)

Views of TM/LM-4015

Front View of TM/LM-4015

Rear View

TM/LM-4015

POS Monitor User Manual

Mounting Bracket

Camera (Optional)

15” LM-4015 LCD Panel

15” TM-4015 P-CAP Touch Panel

19640903010 Ver. A0

http://www.posiflex.com

LED indicator

Mounting your Monitor to RT-series POS Terminals

The following instructions are provided to help you mount your TM/LM-4015

to Posiflex RT-series POS terminals. During installation, please ensure the

terminal is properly turned off and disconnected from the power sources to

avoid potential hazards.

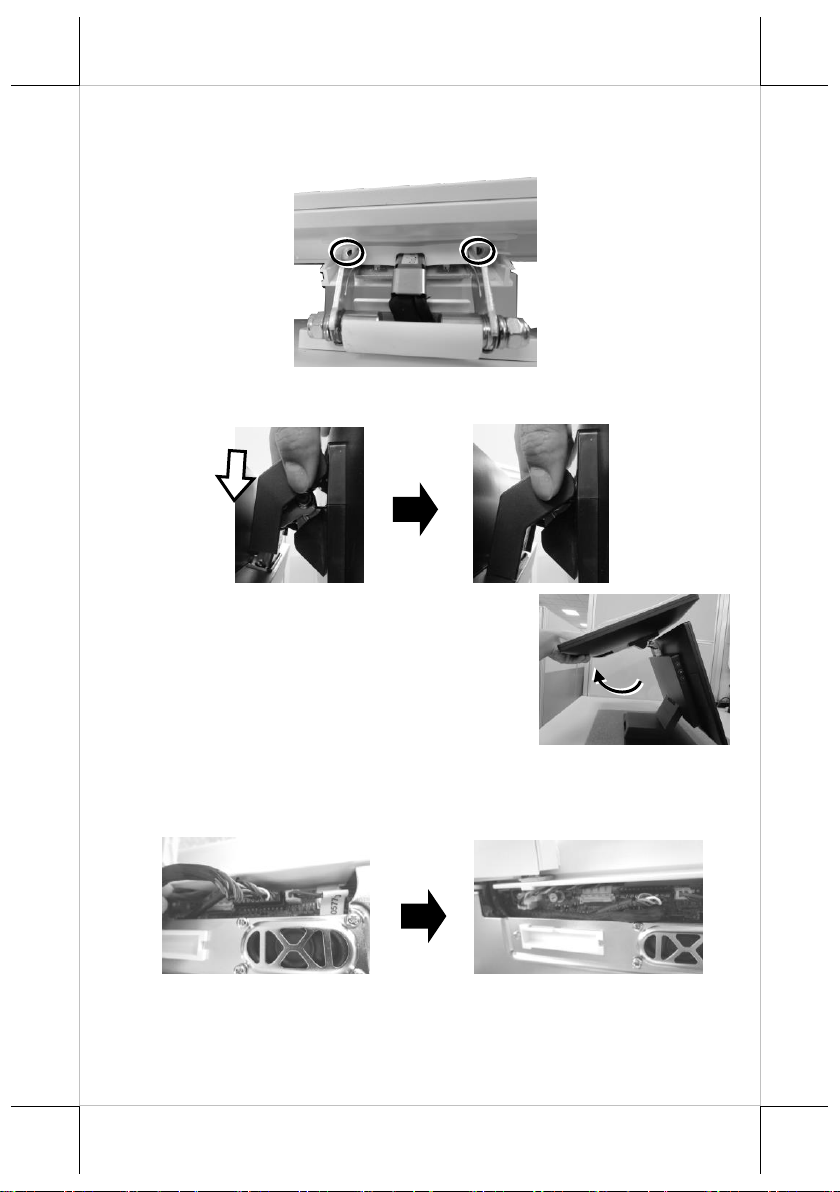

1. Tile the screen of your RT-series terminal to

the most upright position.

2. Remove the system cover by holding down

the release levers at the bottom of the cover

and then pulling the cover outwards.

3. Take the monitor out of package box, and remove the front cover for

mounting bracket.

4. Tear off the release liner from the protective

strip which is clipped onto the mounting

bracket.

5. Lift the monitor, align the two screws holes located on the mounting

bracket with those on the top of the system compartment of RT-series

terminals and then secure the monitor with two fixing screws.

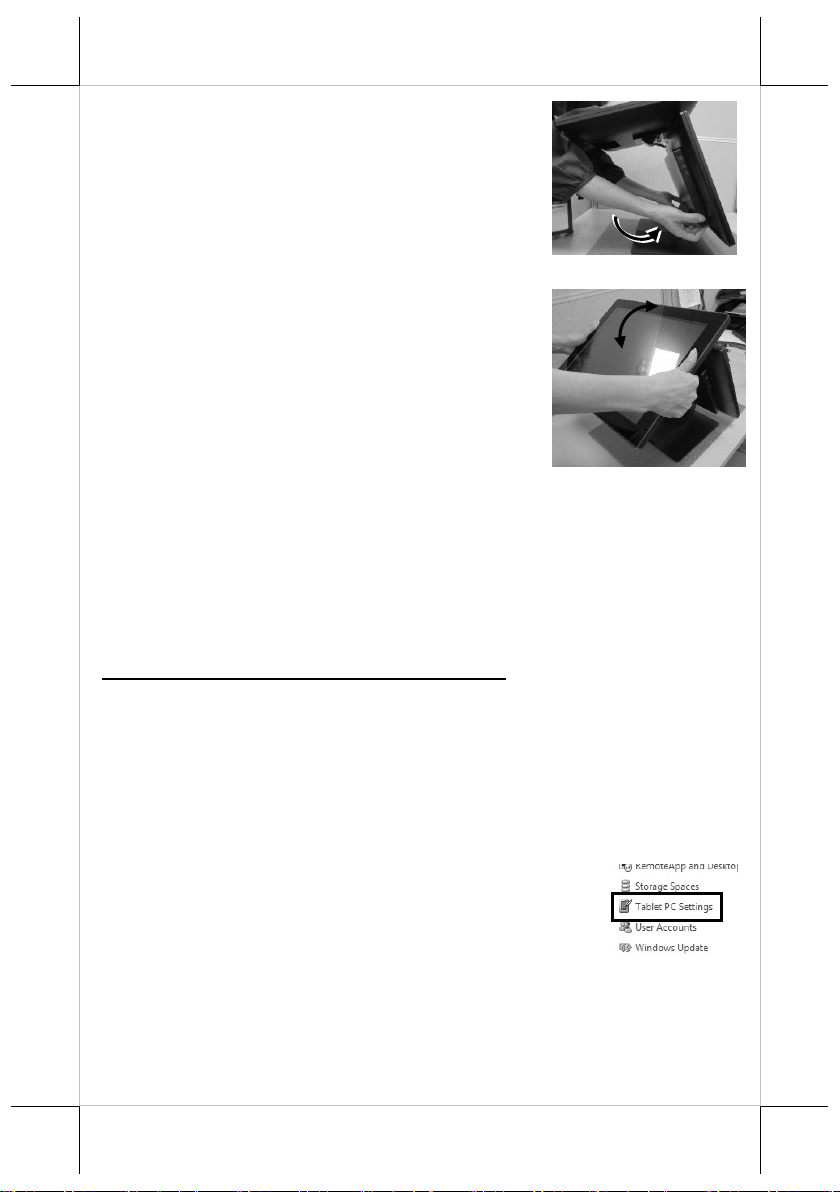

6. After ensuring the monitor is well mounted to RT-series terminal, push

back the front cover for the mounting bracket of TM/LM-4015.

7. Tile the monitor screen all the way up.

8. Well insert the cable to the internal VGA port from the mainboard of

RT-series terminal, and tuck the extra cable inside the system

compartment.

9. Place back the sytem cover to close the system

compartment of RT-Series terminal.

10. Tile the monitor screen to your desired angle.

While setting up the tilting adjustment, be

careful NOT to press on the LCD panel.

Identifying your Monitor as Secondary Touchscreen Monitor

in Extended Mode

In the following section the related descriptions will be offered to help you set

up TM series as the extended monitor when you attempt to extend the desktop

across multiple monitors

For TM-4015 Models with P-CAP Touchscreen

If your monitors are TM-4015 models, you may configure the display settings

from Control Panel in Microsoft Windows to identify the monitor as the

secondary touchscreen monitor. Please go through the below steps to complete

configuration.

1. Make sure that the monitor is well connected to your POS terminal.

2. Go to Control Panel>Display Settings, change your display settings to

extended mode.

3. Go to Control Panel, and then click on

Tablet PC Settings item.

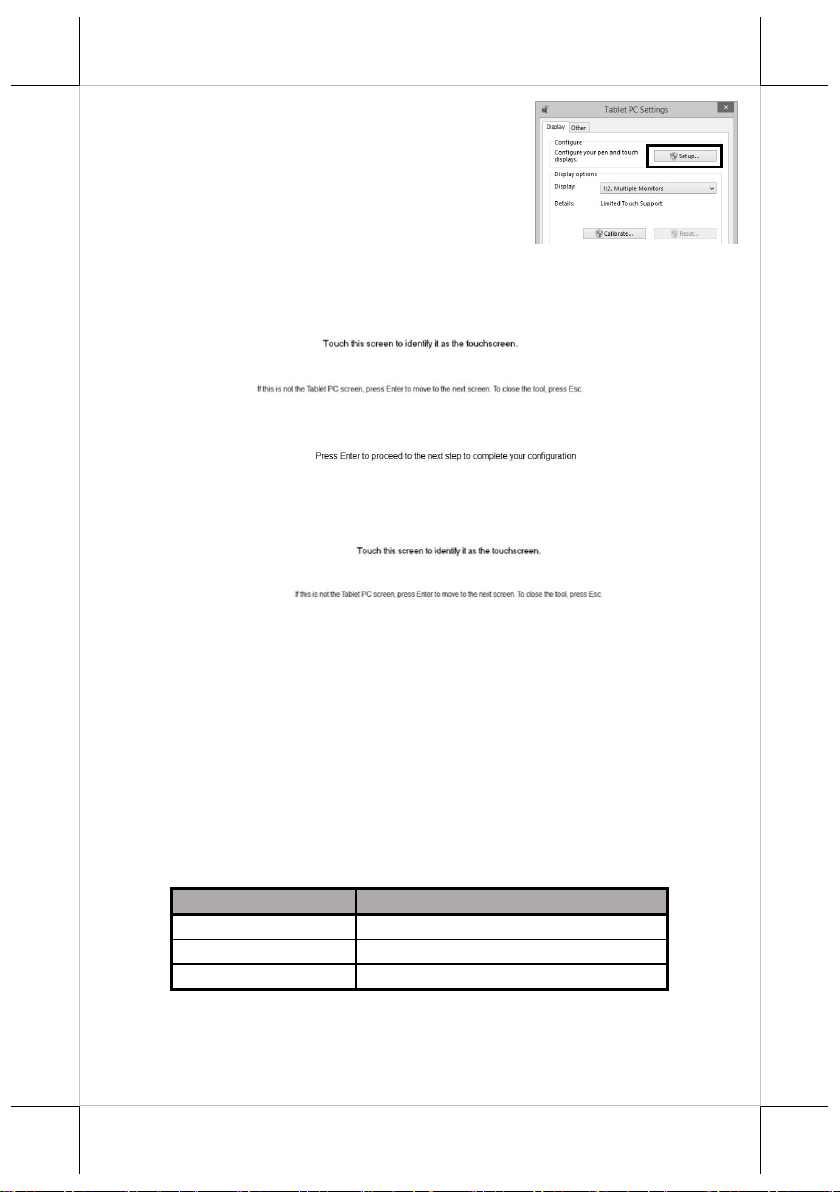

4. In Tablet PC Settings dialogue box, click

on Setup button.

5. Following the instruction shown on the screen, click on the screen that

you want to identify as the primary touchscreen display.

6. Press Enter button to proceed the configuration.

7. Click on the screen you want to use as the secondary touchscreen

display.

Powering ON/OFF your Monitor

To start up TM/LM-4015, please make sure that the monitor is well connected

to POS terminals and electricity is supplied to the monitor through POS

terminal.

Power LED Indicator

Power LED indicator, which is on the front side of the screen, is used to notify

users of the current status of your monitor by emitting various LED signals.

Please refer to the below chart to accurately interpret the of the indicators

status to facilitate your troubleshooting.

Status

Description

ON, solid blue

System power ON

ON, solid green

System Standby

OFF

System power OFF

Installing Drivers

Please visit Posiflex official website to download and install the related drivers.

http://www.posiflex.com/en-global/Download/download)

Setting up Display Resolution for Your Monitor

The below chart defines the list of recommended display settings for

TM/LM-4015. Improper display configuration will prevent the monitor from

properly displaying the image and lead to a warning message of “out of range”

prompted on the screen.

15” TM/LM-4015

Display Resolution

Horizontal Frequency (KHz)

Refresh Rate (Hz)

640 x 400

37.9

640 x 480

31.5

37.9

37.5

720 x 400

37.9

800 x 600

35.1

37.9

48.1

46.9

1024 x 768

48.4

Specification

TM-4015

LM-4015

Display

LCD Panel

15" TFT LCD

Resolution

1024 (H) x 768 (V)

Active Area

304.128mm (H) x 228.096mm (V)

Pixel Arrangement

R.G.B. Vertical Stripe

Viewing Angle

80/80/80/80 degree (U/D/L/R)

Contrast Ratio

600 : 1

Response time

8ms

Brightness

300 cd/m2

Display Interface

VGA

Power Supply

DC 12V

Touch

Touch type

P-CAP

N/A

Interface

USB

N/A

Mechanical

Dimension

368 x 292 x 34.5 mm

368 x 292 x 78.5 mm (with mounting bracket)

Weight

2.5 Kg

※

The product information and specifications are subject to change without

prior notice. To get the detailed information on TM/LM-4015, please check

this model from Posiflex Global Website

(http://www.posiflex.com/en-global/Download/download).
