Package Contents
15” KS-7415/7415IR or 17” KS-7417/7417IR fanless touch terminal with
Gen 5/Gen 6/Gen 8.5 base stand (x 1)
Power adapter (x 1)
Power cord (x 1)
User manual (x 1)
Product Features
15”or 17” Resistive or IR touch screen
Spill-resistant design to prevent careless spill and provide easy cleaning for a
wide range of applications
Equipped with Intel Bay Trail-D Quad Core J1900 2.0GHz CPU and DDR3L
memory
Fanless design boasting quiet and anti-dust features
Patent aluminum die casting design for efficient cooling
Optional UPS (Embedded on board developed by Posiflex)support to avoid
sudden power loss
Patent finger lever “Gear Lock” to adjust the terminal tilt angle from 15°to 70°
Push-open cover to protect power switch from accidental shutdown
Bottom cable guide design and cover for safety and neat outlook
User-friendly mechanism for system upgrade and easy maintenance
16390900010 Ver.Original
http://www.posiflex.com
KS-7415/7415IR/7417/7417IR
Fanless Touch Terminal
User Manual
2

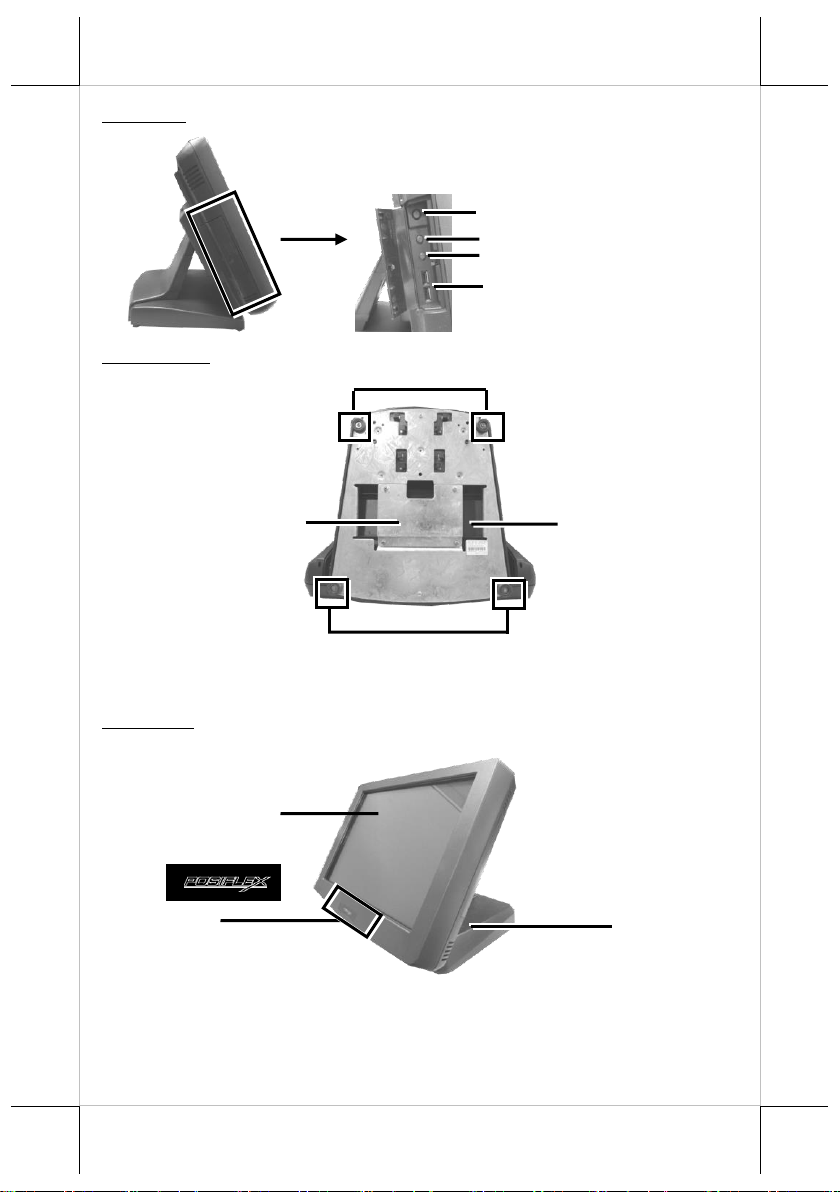

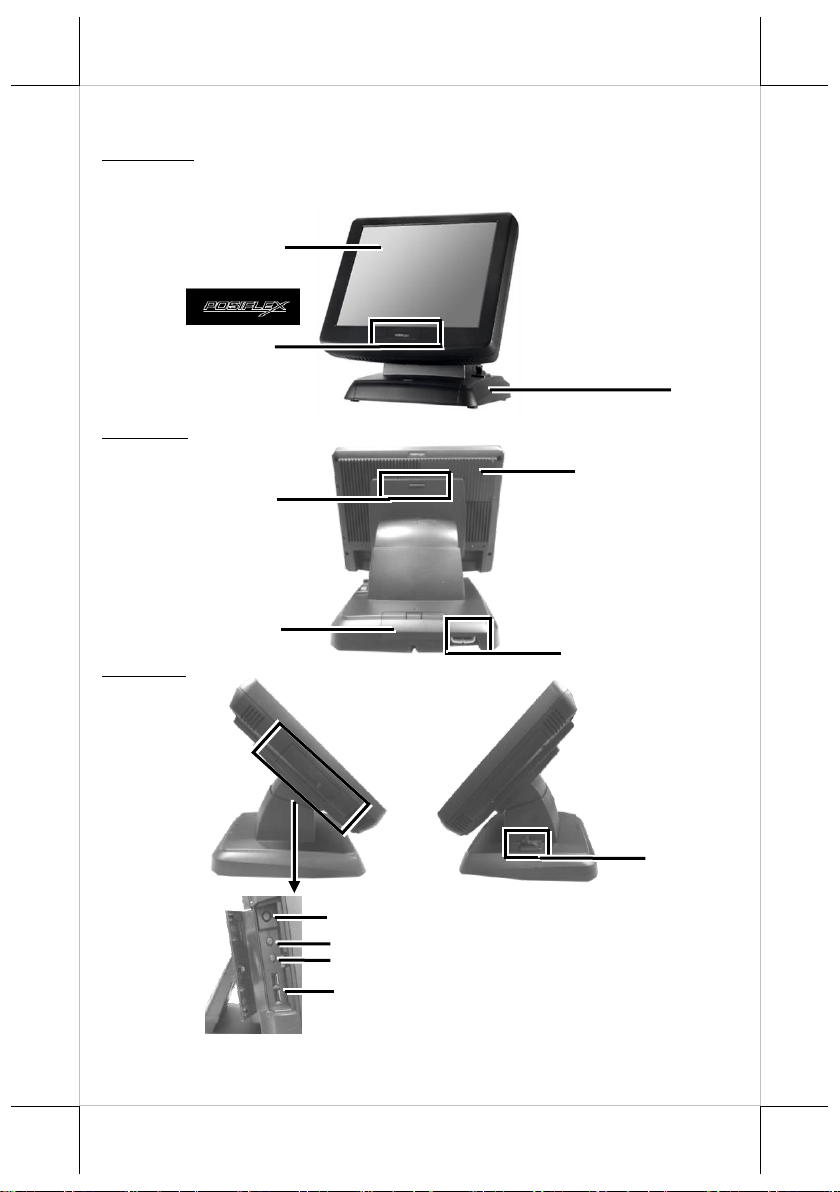

Views of KS-7415/7415IR/7417/7417IR with Gen 5 Base Stand
Front View
Rear View
Side View
Tilt Adjustment
Lever
Cable Cover
Release Button
Cable Exit
HDD Cover
Power Button
Brightness Adjustment Button ＋
Brightness Adjustment Button －
USB Ports
Resistive or IR Touch Panel
Gen 5 Base Stand
LED indicator
3
Bottom View
Views of KS-7415/7415IR/7417/7417IR with Gen 6 Base Stand
Front View
Rear View
Release Button
Cable Passage
Cable Holder
Rubber Feet with Fixing Screw
Rubber Feet with Fixing Screw
Cable Groove
Base Stand Cover
Cable Exit
HDD Cover
Gen 6 Base Stand
LED indicator
Resistive or IR Touch Panel
4
Side View
Bottom View

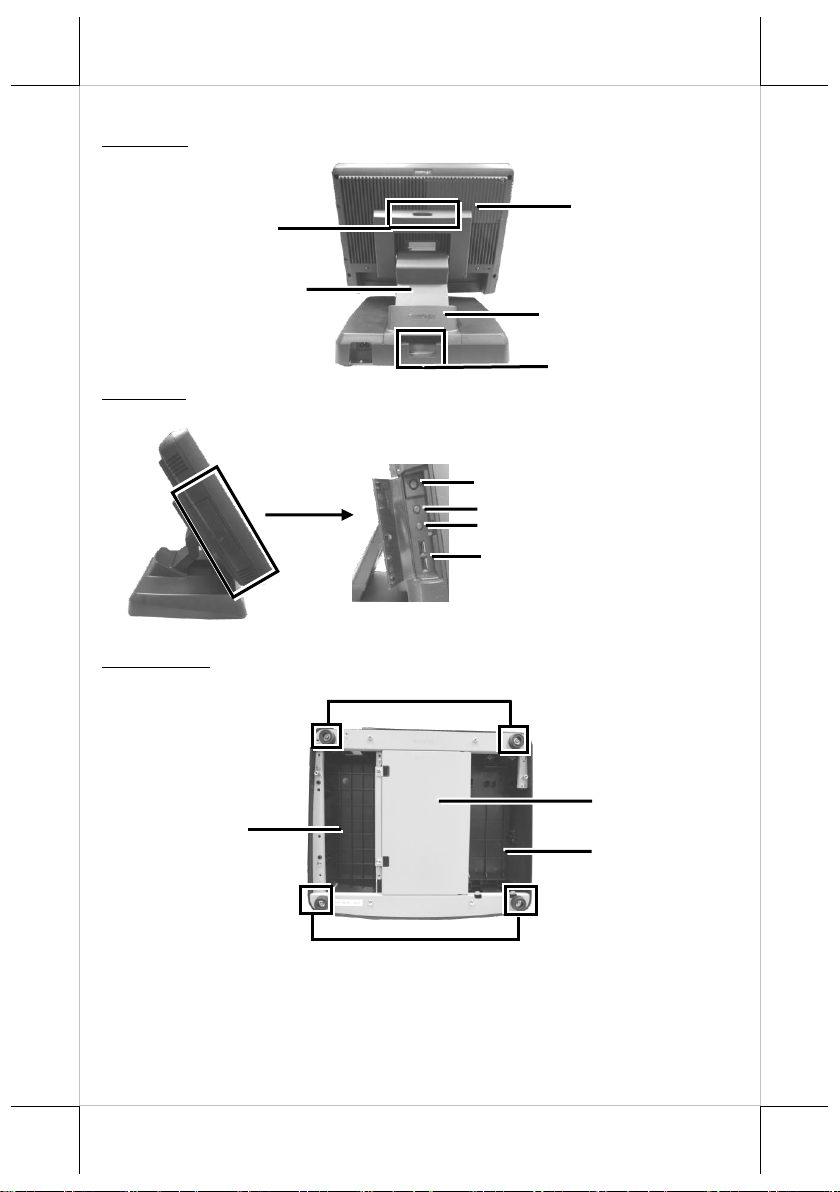

Views of KS-7415/7415IR/7417/7417IR with Gen 8.5 Base Stand
Front View
Rubber Feet with Fixing Screw
Rubber Feet with Fixing Screw
UPS Battery Compartment
UPS Battery Bracket
Power Button
Brightness Adjustment Button ＋
Brightness Adjustment Button －
USB Ports
Resistive or IR Touch Panel
Gen 8.5 Base Stand
LED indicator
5
Rear View
Side View
Bottom View
Release Button
Cable Cover
Base Stand Cover
UPS Battery Compartment
Rubber Feet with Fixing Screw
Rubber Feet with Fixing Screw
Cable Exit
HDD Cover
Power adapter
Compartment
Power Button
Brightness Adjustment Button ＋
Brightness Adjustment Button －
USB Ports
PoweredUSB
Compartment
6

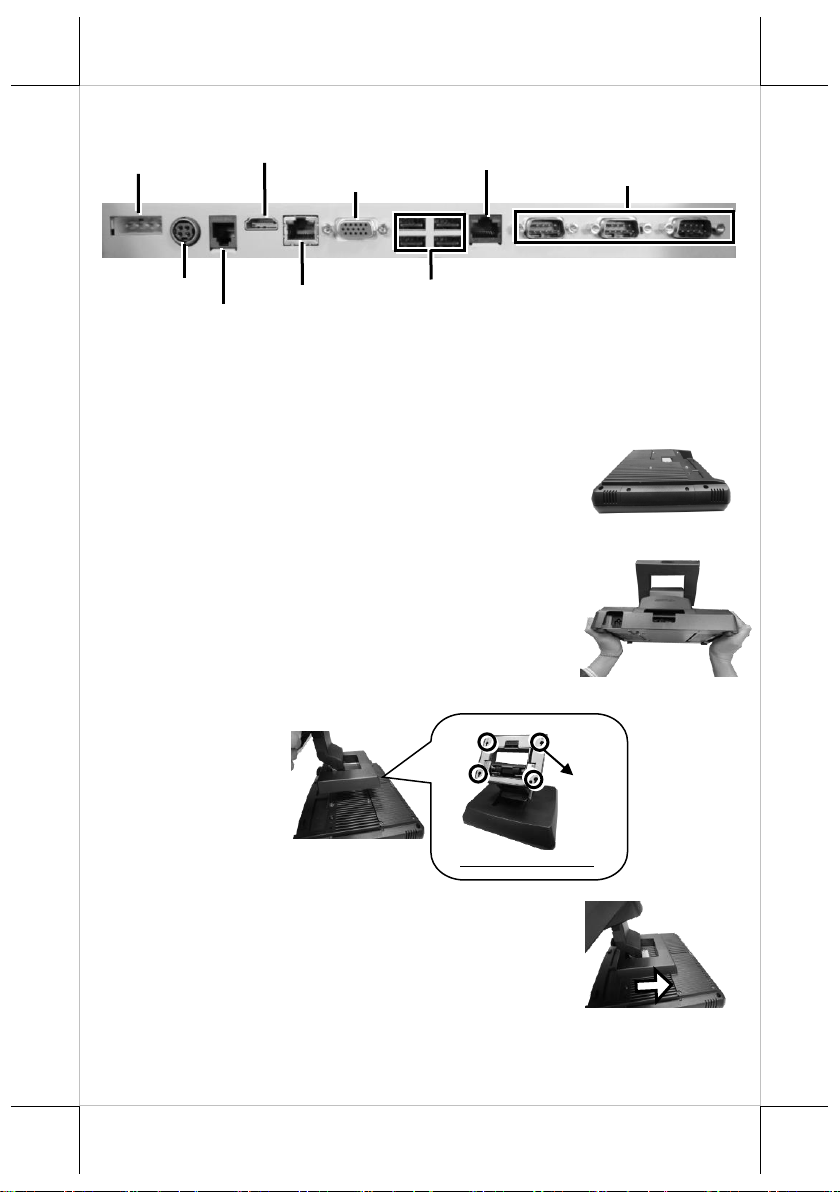

View of I/O Interface of KS-7415/7415IR/7417/7417IR
Mounting your Terminal onto Gen 5/6/8.5 Base Stand
Please refer to the instructions below to install the terminal onto the Gen 5/6/8.5 base
stand. KS-7415 and Gen 8.5 base will be used in the following demonstration.
1. Lay the terminal on a flat surface with its bottom I/O
plate facing you.
2. Hold the base stand steady with its rear facing towards
you.
3. Attach four rail slots of the base stand to four locking bolts on the rear of the
panel
4. Slide the base stand upwards along the rail slot until the
terminal is clicked into place.
UPS Battery
Connector
DC In Jack
CR Port
LAN Ports
VGA Port
DB9 COM Ports
RJ50 COM Port
USB 2.0 Ports
HDMI Connector
Gen 8.5 Front View
Rail slot
7
5. Make sure the terminal is well mounted onto the base
stand.
Positioning your POS for a Perfect Viewing Angle
The adjustable base stands designed for the terminal come in three different model, Gen
5/6/8.5, and allow you to determine an ideal position for your terminal using its unique
tilt adjustment mechanism. Below are the instructions on how to adjust the specific base
stand connected to the POS system. Please be careful not to touch the screen while
setting up the tilt angle
The terminal with Gen 5 Base
Follow the below steps to adjust the viewing angle for the terminal with Gen 5 base
using the tilt adjustment lever.
While pushing down the tilt adjustment lever on the right side
of the stand, tilt the screen up or back to your desired angle.
Then, release the adjustment lever to lock the terminal into
place.

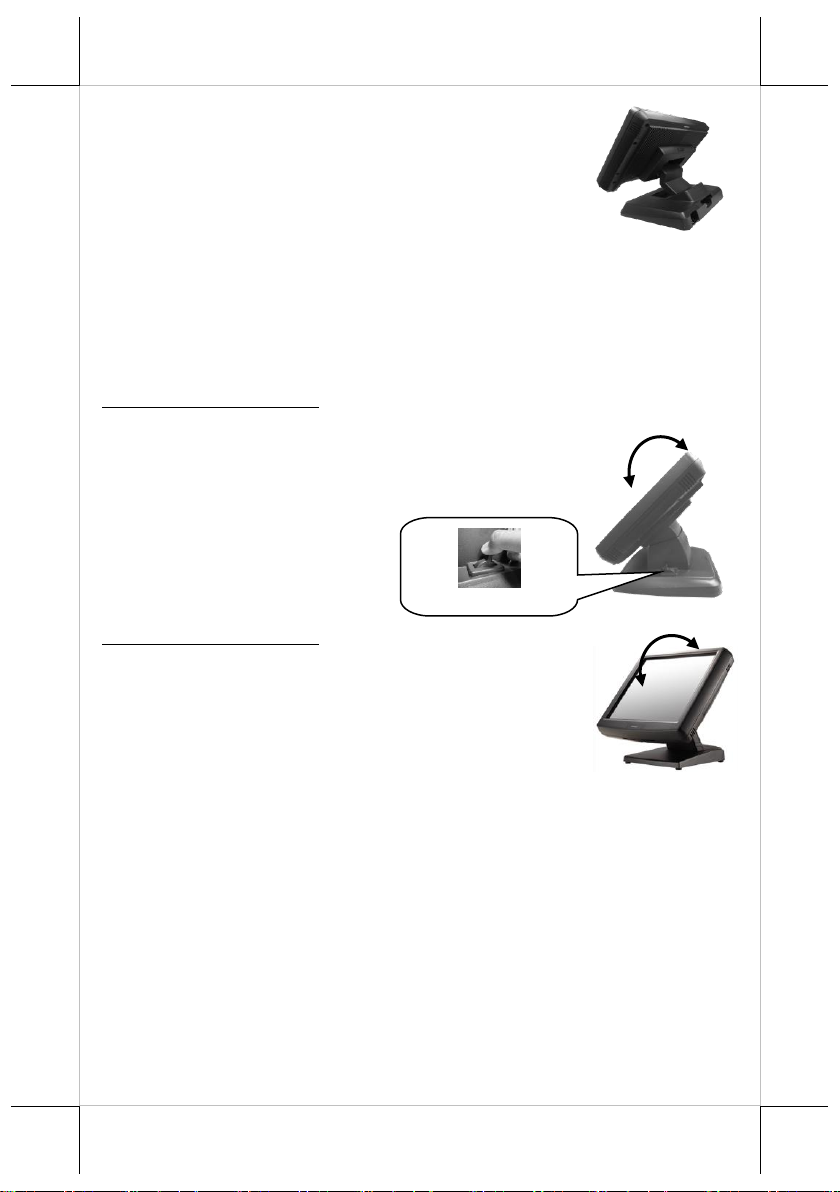

The terminal with Gen 6 Base
Tilt the screen in the direction shown by the arrow in the figure.
Tilt adjustment lever
8
The terminal with Gen 8.5 Base

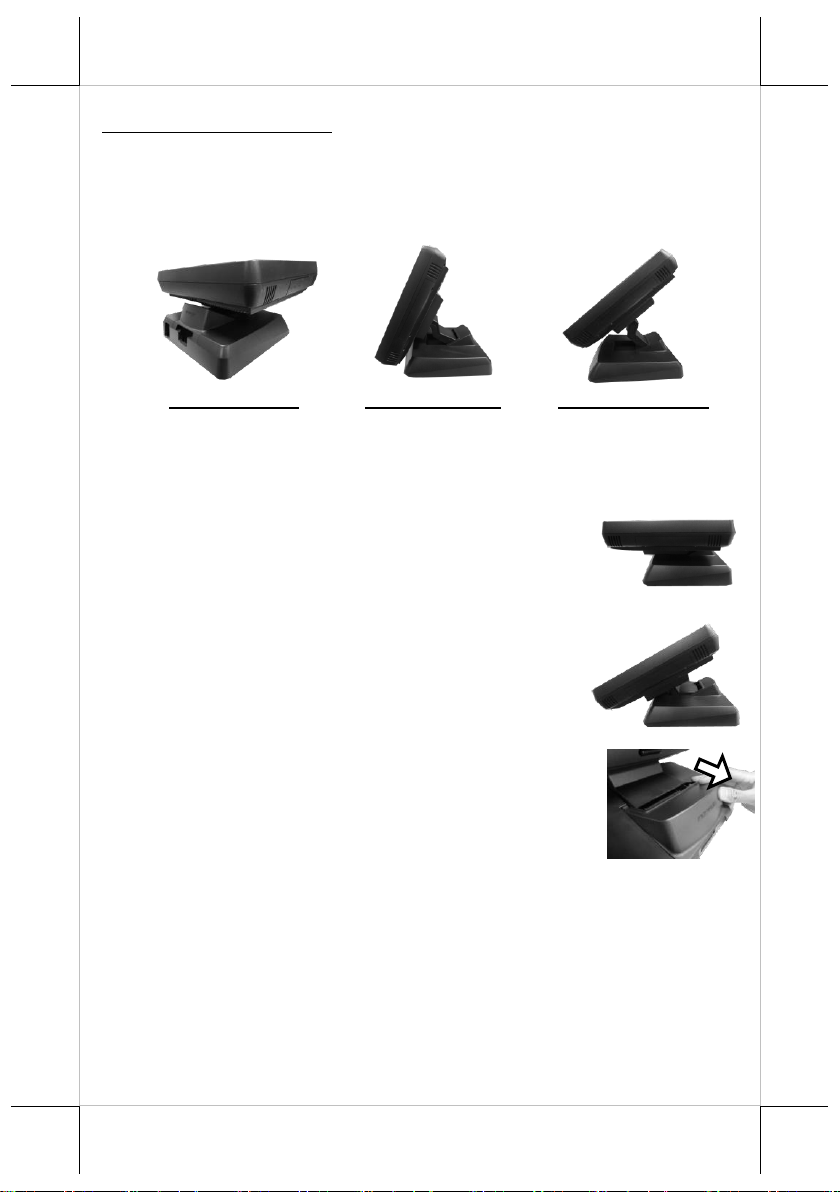

As the below figures suggest, Gen 8.5 base stand generally offers three positioning
solutions for your terminal: flat folded mode, low profile mode, and full extended mode.
In most cases, KS-7415/7415IR/7417/7417IR will be set up beforehand in flat folded
mode for shipping. After it is unpacked, you may re-adjust the terminal in either low
profile mode or full extended mode according to your situation.
Flat folded mode
Low profile mode
Full extended mode
Below offer some instructions on how to switch among different positioning modes to
find an ideal viewing angle for the terminal with Gen 8.5 base stand.
1. Unpack KS-7415/7415IR/7417/7417IR, which is
supposed to be set in flat folded mode, out of the
package box and then lay your POS system on a flat
surface.
2. Tilt the screen downwards.
3. Push the cable cover outwards to remove it from the
base stand.
9

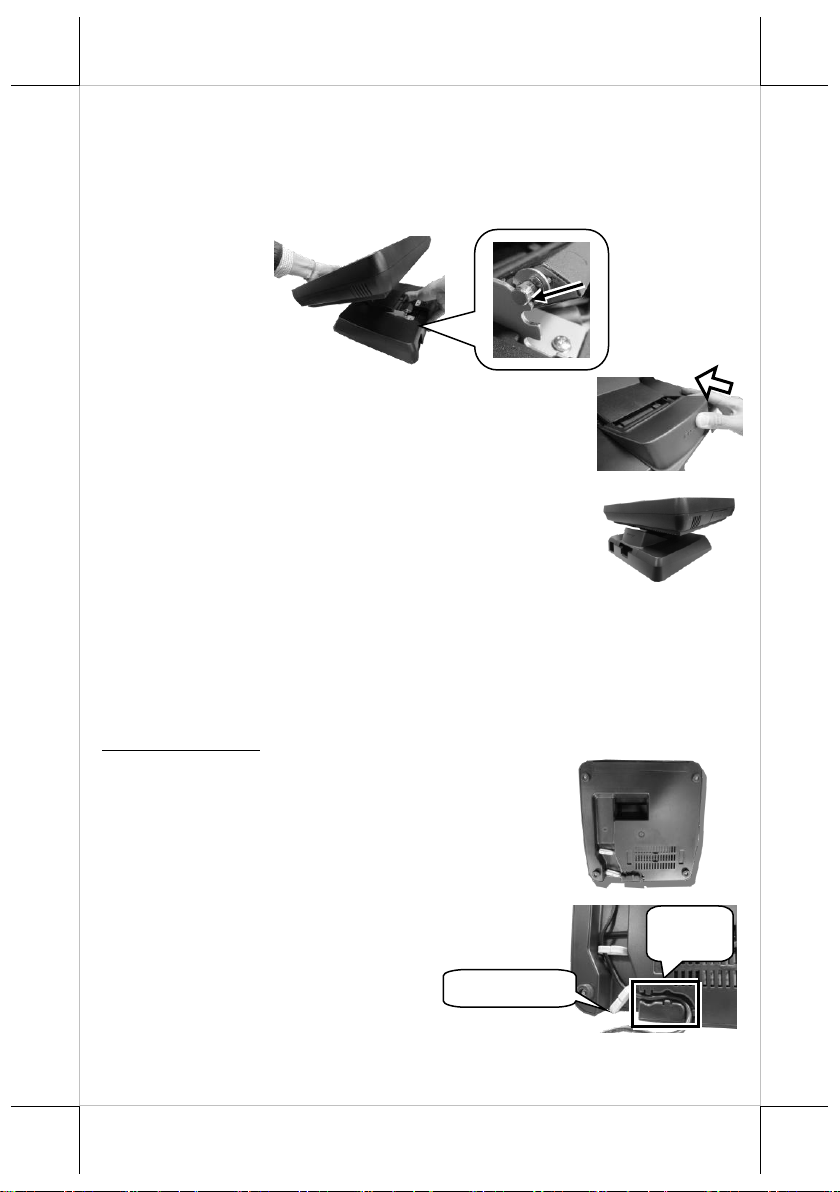

4. Position your terminal in Full Extended mode.
4.1 Support the screen with one hand holding onto its bottom edge. Then, while
pulling the lever backwards, move the display upwards until the lever is
snapped into the lower hook to raise the screen as shown in the below figure.
Upper
hook
4.2 Push the cable cover back.
4.3 Tilt the screen up or down to your desired angle.
Please do not press on the screen while setting up the
tilt angle.

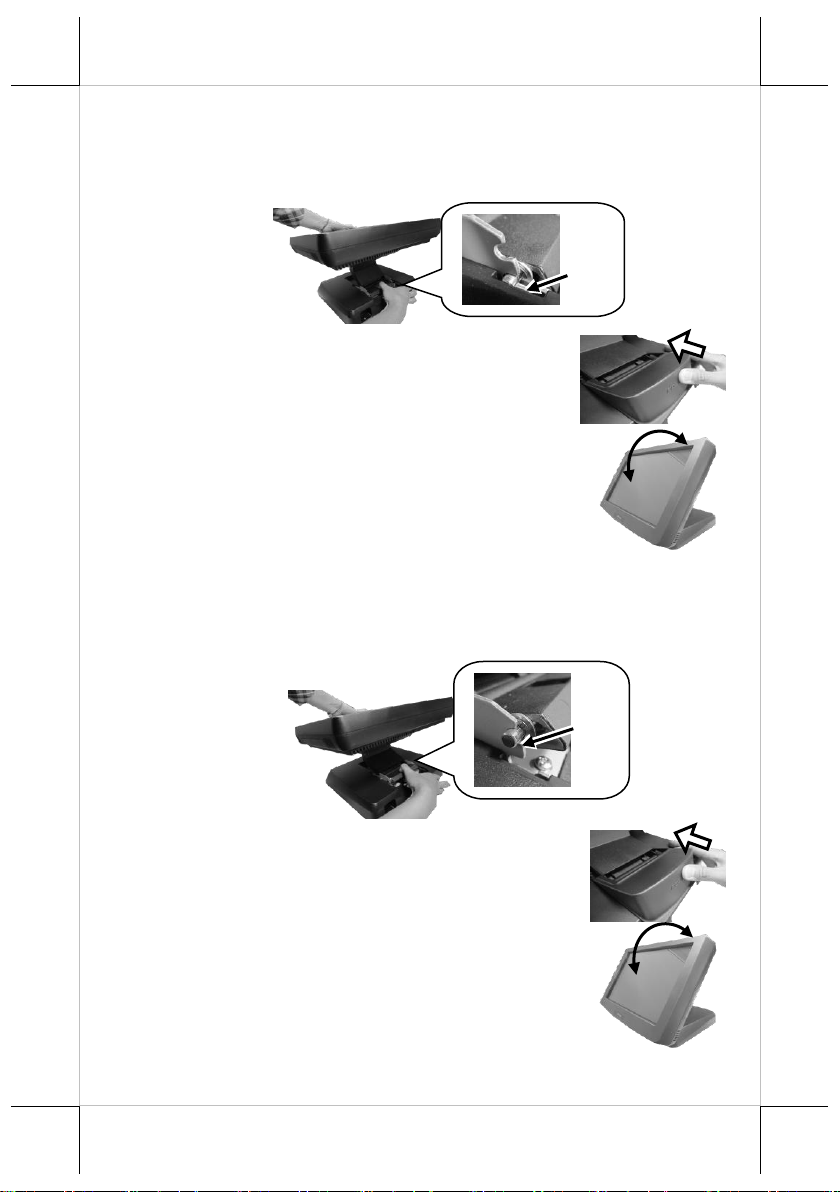

5. Position the terminal in Low Profile mode
5.1 First, remove the cable cover. Then, support the screen with one hand
holding onto its bottom edge. While pulling the lever backwards, move the
display upwards or downwards until the lever is snapped into the upper
hook as the below figure shows.
5.2 Push the cable cover back.
5.3 Tilt the screen up or down to your desired angle.
Please do not press on the screen while setting up
the tilt angle.
Upper
hook
Lower
hook
10
6. Return the terminal back to Flat Folded mode.
6.1 After ensuring the cable cover is removed, support the screen with one hand
holding onto its bottom edge. While pulling the lever backwards, release the
lever back to the point above the upper hook as shown in the figure
6.2 Push the cable cover back.
6.3 Tilt the screen to the horizontal position.
Routing and Arranging Cables
Each base stand features its own cable management to help you well organize the cords
whenever you need to connect peripheral devices to the terminal. Based on different
base stands, the following provides some useful cable-routing instructions required to
manage your cables.
For Gen 5 Base Stand
1. Make sure the terminal is released from Gen 5
base stand. Then, laying Gen5 base stand with its
bottom facing towards you.
2. Neatly thread the cable along the cable groove
first, and then snap it into the cable holder as
shown in the figure.
Cable
groove
Cable holder
