OWNER'S MANUAL
MODEL NUMBER:
961980021
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
420917 08.06.08 TH
Printed in the U.S.A.
20

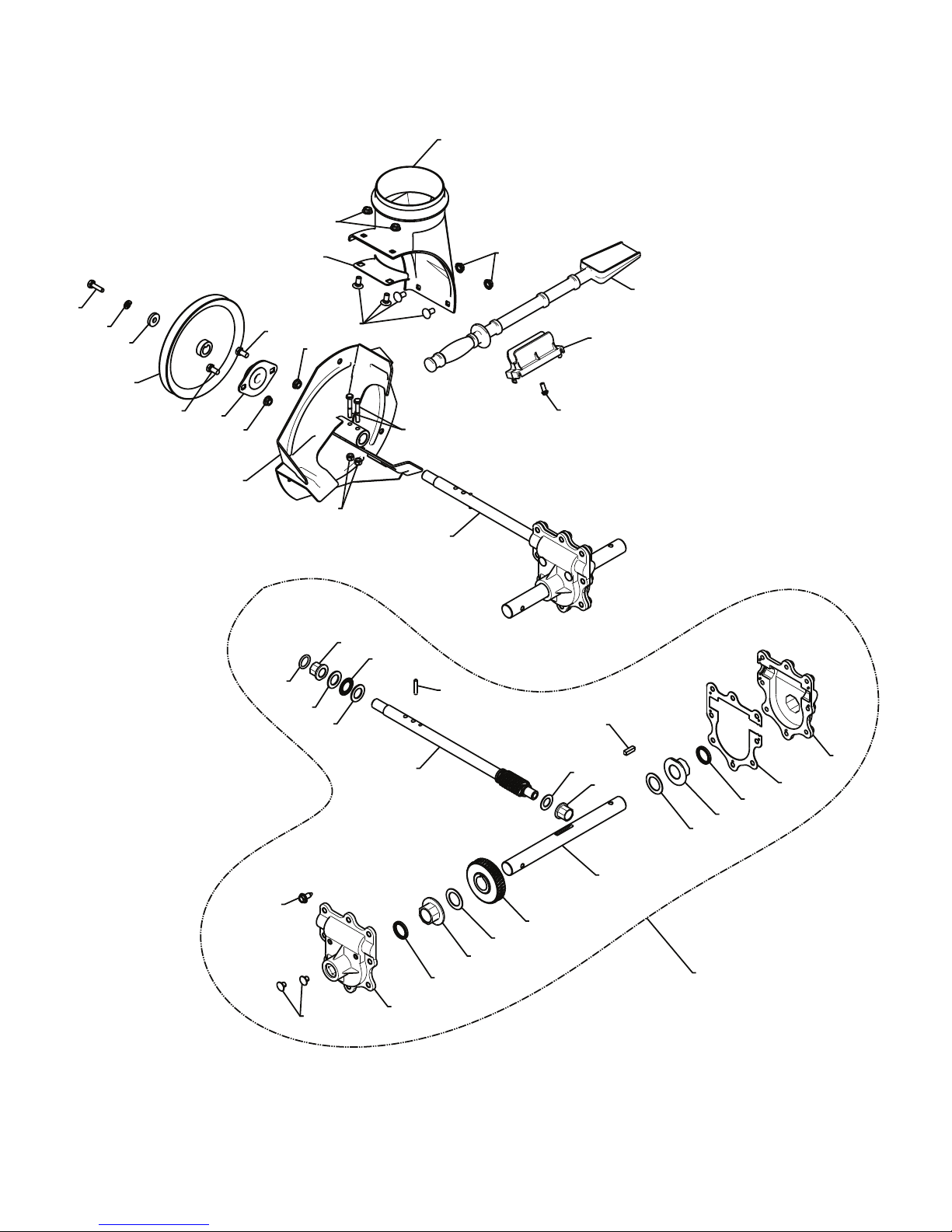

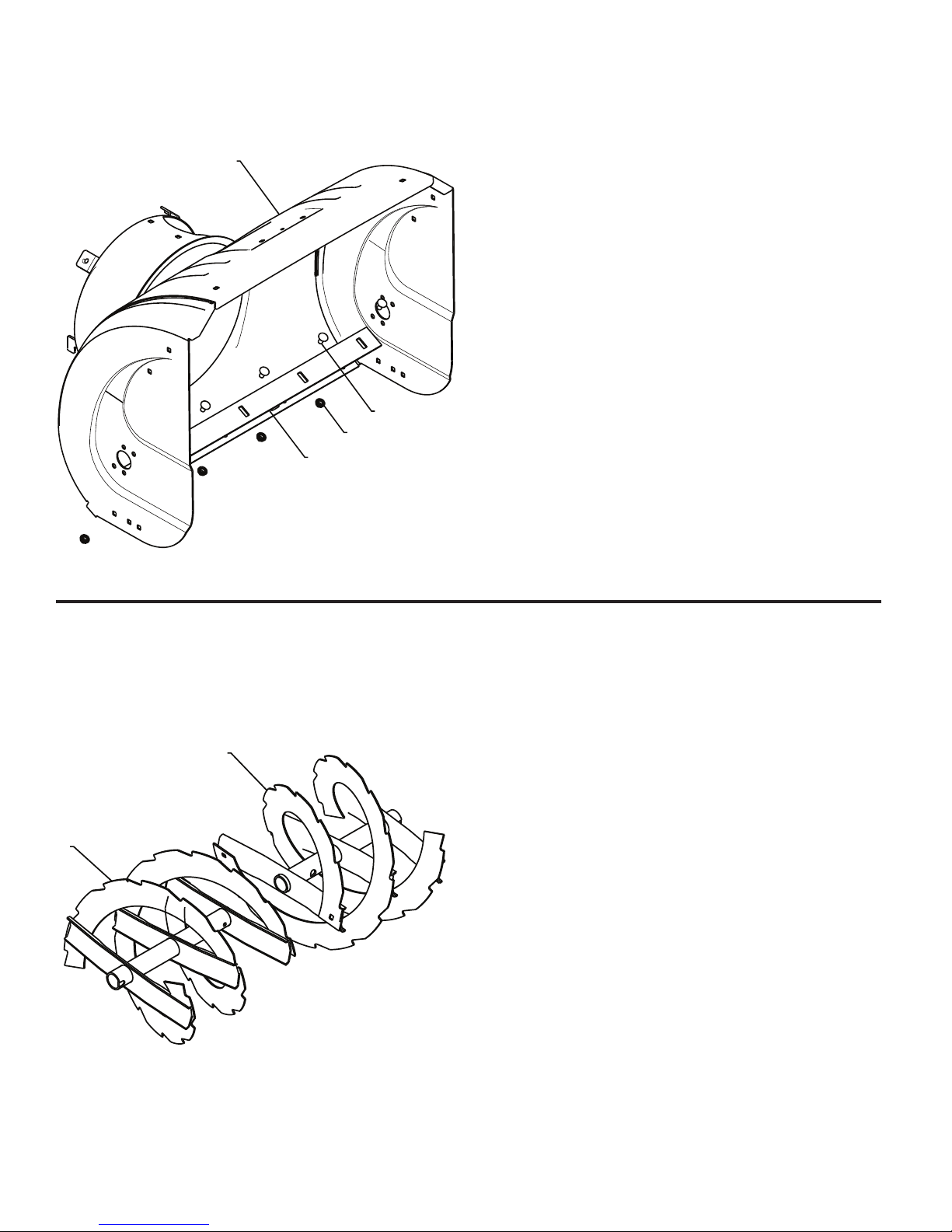

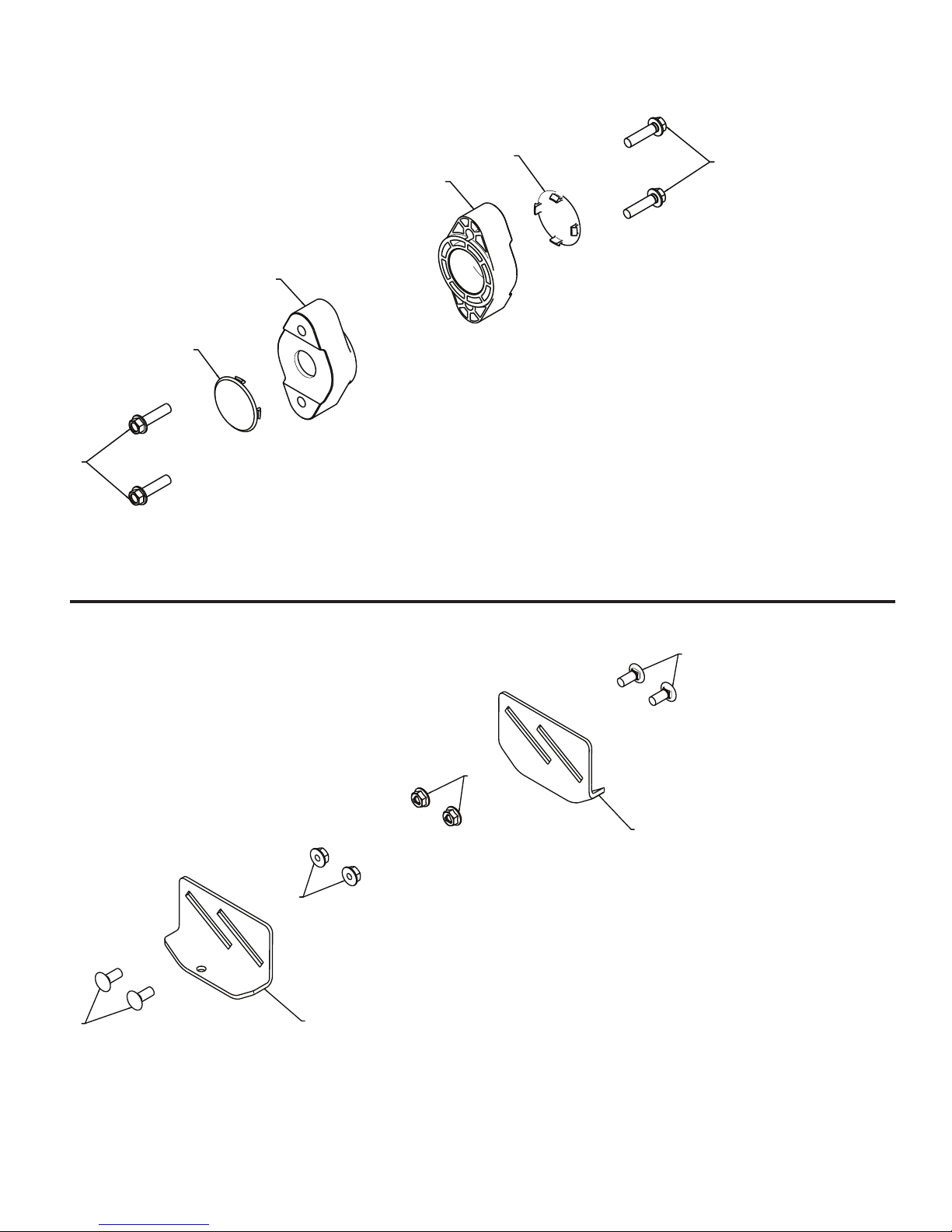

REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
AUGER HOUSING / IMPELLER ASSEMBLY
2 (EXPLODED)
2
10
9
1
11
11
3
12
12
4
13
14
15
17
8
7
11
5
6
11
16
18
35
19
21 22 23 24
25
23 22 21 20
36
26
27
28
30
29
31
31
32
33
34
01.07.004-B
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
21
REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 175321X479 IMPELLER
2 196710 GEARBOX ASSEMBLY
3 188909 BEARING
4 191079 IMPELLER PULLEY
5 175322 DISCHARGE BASE
6 178675X008 CORNER BRACKET
7 192199 CLEAN OUT TOOL
8 405400 TOOL CLIP
9 73800400 NUT 1/4−20
10 74780426 SCREW 1/4−20 X .625
11 155377 NUT 5/16−18
12 163183 SCREW 5/16−18 X .625
13 19111507 WASHER
14 10040500 LOCKWASHER 5/16
15 74940516 SCREW 5/16−18 X 1.00
16 180355 CARRIAGE BOLT
17 194189 SCREW 13−16 X .625
18 407760 PLUG
19 407761 GEARBOX COVER RH
20 407766 GASKET
21 407770 SEAL
22 407762 BEARING
23 174697 THRUST WASHER 1.00
24 407763 WORM GEAR
25 407764 AUGER SHAFT
26 189282 SQUARE KEY
27 407758 BEARING
28 174683 THRUST WASHER
29 407757 IMPELLER SHAFT
30 184205 ROLL PIN
31 174681 THRUST WASHER
32 174684 THRUST BEARING
33 407769 BEARING
34 407768 O−RING
35 407767 SCREW 5/16−18 X .750
36 407765 GEARBOX COVER LH
22
REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
2
1
01.07.018-A
1 420495X479 AUGER 27 LH
2 420496X479 AUGER 27 RH
1
2
3 (5x)
4 (5x)
01.07.002-A
1 404929X428 AUGER HOUSING 27
2 404932X479 SCRAPER BAR
3 72270505 CARRIAGEBOLT5/16−18X.625
4 155377 NUT 5/16−18
23
REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
1
2
3
23
01.07.024-B
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 420478 AUGER BEARING
2 411939 BEARING PLUG
3 179582 SCREW 5/16−18 X 1.00
1
2
3
4
4
3
01.11.001-A
1 174762X479 SKID PLATE LH
2 178777X479 SKID PLATE RH
3 72270506 CARRIAGE BOLT 5/16−18 X .75
4 751153 NUT 5/16−18
24

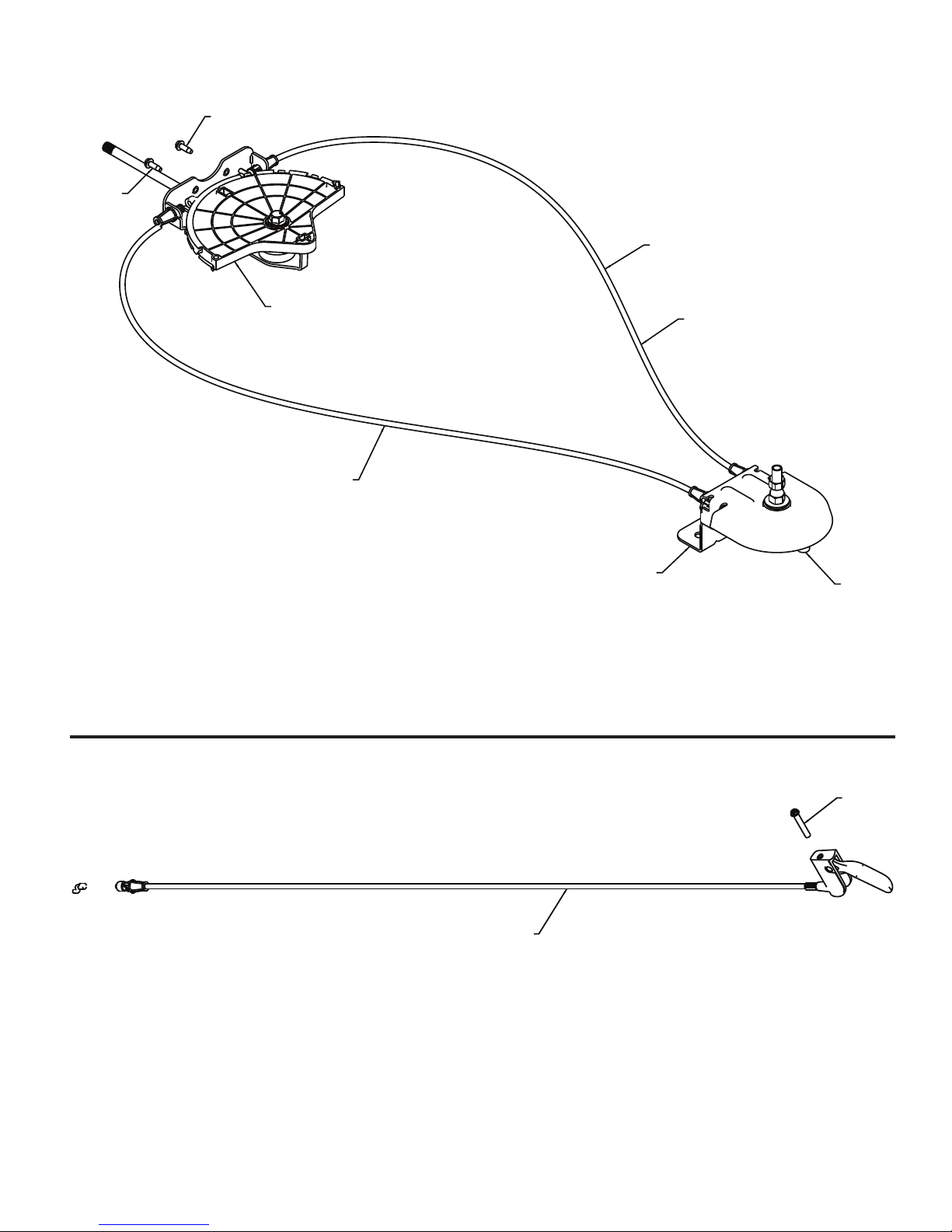

REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
46
6
*11
*12
*8
*9
*13 *10
3
5
7
14
15
01.09.002-B
KEY PART
NO. NO. DESCRIPTION
1 404770X428 CHUTE WELDMENT
2 178633X428 DEFLECTOR WELDMENT
3 420673 DEFLECTOR CONTROL ASSEMBLY
4 420325 DEFLECTOR SEAL
5 414280 KNOB BLACK
6 128415 POP RIVET
7 17501010 SCREW 10−24 X .625
*8 179829 SHOULDER SCREW
*9 179246 PLASTIC WASHER
*10 191730 NUT 1/4−20
*11 72250505 CARRIAGE BOLT 5/16−18 X .50
*12 751153 NUT 5/16−18
*13 184505 DEFLECTOR SPRING
14 420679 (SERVICE PART) DEFLECTOR CONTROL HEAD
15 420672 (SERVICE PART) DEFLECTOR CONTROL CABLE
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2.ITEMS 14AND 15ARE SERVICEPART NUMBERSTO ALLOW PURCHASEOF INDIVIDUALITEMS IFNECESSARY.
25
REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
2
*3 *6
*6
*4 *5
01.09.007-A
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 420337 LEVER/CABLE ROTATOR ASSEMBLY
2 17501010 SCREW 10−24 X .625
*3 420678 ROTATOR HEAD
*4 420677 ROTATOR PIVOT BRACKET
*5 420675 PULLEY PIVOT
*6 420674 CABLE ASSEMBLY
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
1
2
01.15.005-A
1 188303 STEER CABLE
2 74041024 SCREW 10−24 X 1.50
26

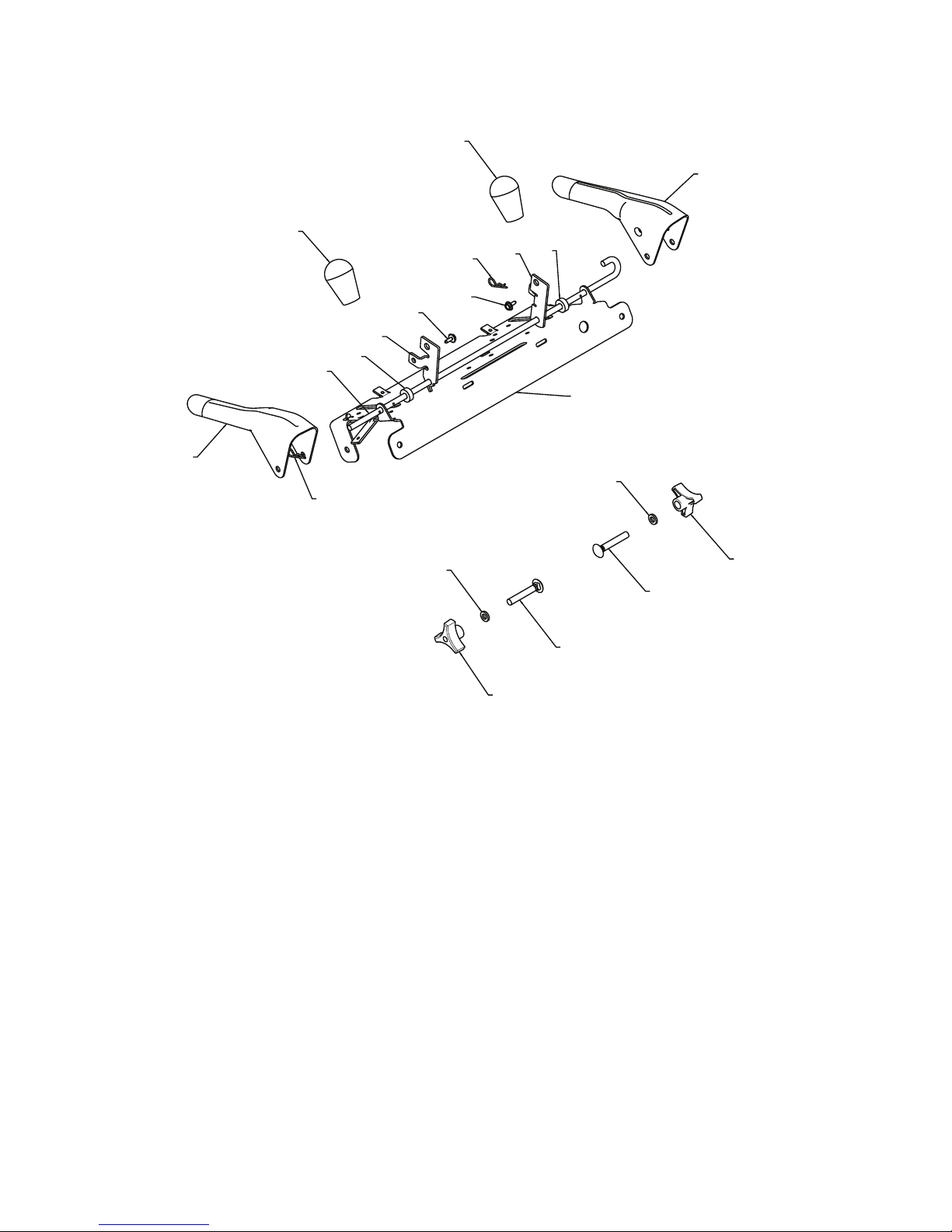

REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
5
5
3
4
5
5
01.08.004-A
1 419798X479 LOOP HANDLE LH
2 419799X479 LOOP HANDLE RH
3 74780524 SCREW 5/16−18 X 1.50
4 74780528 SCREW 5/16−18 X 1.75
5 751153 NUT 5/16−18
01.05.002-B
1
2
4
4
4
4
3
3
1 419797X479 LOWER HANDLE
2 405784X479 PIVOT SUPPORT WELDMENT
3 150078 SCREW 5/16−18 X .750
4 17000616 SCREW 3/8−16 X 1.00
27
REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
5
7
8
9
10
01.12.001-A
1 180480 IMPELLER ROD ASSEMBLY
2 405740 TRACTION ROD ASSEMBLY
3 180445 SHIFTER ROD TOP
4 187716 SHIFTER ROD BOTTOM
5 180447 SPRING SLEEVE
6 178669 IMPELLER SPRING
7 180926 TRACTION SPRING
8 72270506 CARRIAGE BOLT 5/16−18 X .75
9 155377 NUT 5/16−18
10 169675 RETAINER
28
REPAIR PARTS SNOW THROWER - MODEL 961980021 (96198002100)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
4
5
6
7
7
8
10
11
14
14
12
13
13
12
2
3
9
9
8
01.08.002-D
KEY PART
NO. NO. DESCRIPTION
1 412683X479 CONTROL PANEL
2 412681X479 CONTROL LEVER LH
3 412682X479 CONTROL LEVER RH
4 412679X008 TRACTION ROD ARM
5 420889X008 IMPELLER ROD ARM
6 412677 INTERLOCK ROD
7 412680 SPACER
8 169675 RETAINER
9 17060408 SCREW 1/4−20 X .50
10 414280 KNOB BLACK
11 414281 KNOB RED
12 178899 HANDLE KNOB
13 19131316 WASHER 3/8
14 72120618 CARRIAGE BOLT 3/8−16 X 2.25
