Powerbuilt 5000W Manuale utente

THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION,

MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND

UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO

COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.

1431 VIA PLATA

LONG BEACH, CA 90810-1462 USA

EGS0249 – 5000/6000 WATT 13 HP Generator _Rev 10/10/10

Printed in China

5000 / 6000W GENERATOR

INSTRUCTION MANUAL

EGS0249

AC 240V/50Hz

15A 15A 26A

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-33

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

LIMITED WARRANTIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34-36

CONGRATULATIONS!

You have purchased a heavy duty 5000 watt Generator featuring the POWERBUILT XT390

13 HP OHV 389CC engine for strong, steady performance. Additional features

include easy to use controls, heavy duty components and circuit protection.

Thanks for choosing this product. Our aim is to provide you with the highest quality

professional products, and we want you to be totally satisfied with your product and our

Customer Service.

INTRODUCTION

This instruction manual is intended for your benefit. Please read and follow the safe-

ty, installation, maintenance and troubleshooting steps described within to ensure

your safety and satisfaction. The contents of this instruction manual are based upon

the latest product information available at the time of publication. The manufactur-

er reserves the right to make product changes at any time without notice.

GENERAL SAFETY

READ AND FOLLOW ALL INSTRUCTIONS.

Failure to follow all instructions in this manual may result in severe per-

sonal injury or death. Keep this manual and refer to it for Safety

Instructions, Operating Procedures, and Warranty.

SAVE THESE INSTRUCTIONS FOR

FUTURE REFERENCE.

RECOGNISE SAFETY SYMBOLS, WORDS AND LABELS

The safety instructions provided in this manual are not intended to cover all possible condi-

tions and practices that may occur when operating, maintaining and cleaning power tools.

Always use common sense and pay particular attention to all the DANGER,

WARNING, CAUTION and NOTE statements in this manual.

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid

possible injury or death.

TABLE OF CONTENTS

CONGRATULATIONS! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GENERAL SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

RECOGNISE SAFETY SYMBOLS, WORDS AND LABELS . . . . . . . . 2-4

IMPORTANT INFORMATION ABOUT THIS MANUAL . . . . . . . . . . . 4

UNPACKING & INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SAFETY WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

SAFETY RULES FOR PETROL ENGINES . . . . . . . . . . . . . . . . . . . . . . . . 7-11

SYMPTOMS OF CARBON MONOXIDE POISONING . . . . . . . . . . . . 8

ADDING OR DRAINING PETROL TO OR FROM THE ENGINE . . . . . 8-9

STARTING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

MAKING ADJUSTMENTS OR REPAIRS TO THE ENGINE . . . . . . . . 10

TESTING SPARK PLUG FOR SPARK . . . . . . . . . . . . . . . . . . . . . . . 10

TRANSPORTING OR REPAIRING EQUIPMENT . . . . . . . . . . . . . . . . 11

STORING PETROL OR EQUIPMENT WITH PETROL IN PETROL TANK . . . . .11

SAFETY RULES FOR GENERATORS . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-14

FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

PREPARING THE PORTABLE GENERATOR . . . . . . . . . . . . . . . . . . . . . . 17-20

ADDING ENGINE OIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

LOW OIL SENSOR AND LED DISPLAY . . . . . . . . . . . . . . . . . . . . . . 17-18

ADDING PETROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SYSTEM GROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CONNECTING TO A BUILDING’S ELECTRICAL SYSTEM . . . . . . . . 19

HOUR METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

OPERATING THE GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-27

STARTING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21

OUTLETS AND CIRCUIT PROTECTORS . . . . . . . . . . . . . . . . . . . . . 21-22

CONNECTING TO GENERATOR OUTLETS . . . . . . . . . . . . . . . . . . . 22-23

GENERATOR CAPACITY AND APPLIANCE WATTAGE . . . . . . . . . . . 24-26

STOPPING THE GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29

CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

CLEANING GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30

GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

PREPARING FOR USE AFTER STORAGE . . . . . . . . . . . . . . . . . . . . 30

POISONOUS FUMES: This tool uses a petrol powered engine that

produces poisonous fumes from its exhaust. Always make sure there is

adequate ventilation when operating this equipment.

EXPLOSION HAZARD: Petrol and its vapors are extremely flammable and

explosive. Fire or explosion from these vapors can cause severe burns or

even death.

ROTATING PARTS: Starter and other rotating parts on this tool can

entangle loose clothing, long hair and accessories resulting in moderate

to severe injury.

HOT SURFACES: Engine muffler and other engine parts can become very

hot. Coming in contact with hot engine components can cause serious

burns. Hot exhaust gases from the engine can cause clothing to ignite if

in contact for any length of time.

KICKBACK: Starter cord can kickback (recoil) very rapidly. Kickback will

recoil starter cord quicker than you can let go. This action can result in

broken bones, bruises, sprains or fractures.

UNIT IS HEAVY: Take care when lifting or moving unit.

IMPORTANT INFORMATION ABOUT THIS MANUAL

Improper and unsafe use of this generator can result

in fire, bodily injury or death. This instruction manual contains important

information about product safety.Keep the instruction manual available for

others to read before they use the generator.

Improper maintenance and operation are responsible for the majority of accidents

involving petrol generators. The largest portion of these could be prevented by recog-

nizing the basic safety rules and precautions. Most accidents can be avoided if the

operator recognises a potentially hazardous situation before it happens and by

observing appropriate safety rules and procedures as outlined in this manual.

Basic safety precautions are outlined in the SAFETY portion of this manual and

throughout the text in this manual where a potential hazard might occur.

Hazards that MUST be avoided to prevent serious injury follow headers marked DANGER

or WARNING. These same precautions are placed as labels on the tool itself.

NEVER use this generator for applications that are NOT specified in this manual.

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which,

if not avoided, may result in property damage.

NOTE provides additional information that is useful

for proper use and maintenance of this tool. If a

NOTE is indicated, make sure it is fully under-

stood.

In addition to SAFETY ALERTS listed above, there could also be numerous symbols

alerting the operator that specific safety measures are required to safely operate this

tool. Learn these SAFETY SYMBOLS as well as the SAFETY ALERTS to prevent

injury to the operator and to bystanders.

READ OPERATING INSTRUCTIONS: Read and understand tool labels,

safety warnings and precautions in this manual before operating the tool.

Failure to follow WARNINGS could result in serious injury or even death

to the operator or bystanders.

FIRE HAZARD: Heat from engine exhaust can ignite combustible materi-

als, building structures or petrol tanks resulting in a fire. Place the tool on

a flat surface a safe distance from buildings or other combustible

material. Ensure exhaust is directed away from tool.

ELECTRICAL SHOCK: This tool produces hazardous electrical voltage.

Read and become familiar with this manual’s WARNINGS and CAUTIONS

so that it is installed and used properly.

WEAR APPROVED EYE PROTECTION: This tool has rotating and moving

parts that could become airborne if damaged. Always wear approved eye

protection when operating equipment with moving parts. Safety glasses

must conform to the requirements and provide protection against

flying particles from both front and side.

3 4

Keep work area clean and well lit. Messy areas and cluttered workbenches

invite personal injury and/or property damage. Clear all work areas of unneces-

sary tools, debris, furniture, etc.

Make sure the work area is well ventilated. Never operate in an enclosed area.

Do not place objects on top or against the tool.

Handle correctly. Always operate according to the instructions provided.

Never allow the tool to be operated by children, individuals unfamiliar with its

operation or unauthorized personnel.

Keep children and visitors away. All children should be kept away from the

work area. DO NOT let children handle the tool. Maintain a safe distance for any

person near the work area.

Childproof the workshop. The use of master switches and padlocks is highly

recommended. Remove starter keys where applicable.

Stay alert, watch what you are doing, and use common sense. Do not stand

on tool. Do not use tool while tired or under the influence of drugs, alcohol

or medication. A moment of inattention while operating the tool may result in

serious personal injury.

Operating any tools or equipment under the influence of drugs, alcohol, or

medication can cause personal injury to yourself and others.

Use the right tool. Use tools properly and for their intended task. Do not force

a small tool to do the job of a heavy-duty tool. Using the right tool to do the

right job will make doing the job safer.

Always make sure the tool is in the OFF position when making adjustments,

changing parts, or performing any maintenance.

Service must be performed only by qualified repair personnel. Service or

maintenance by unqualified personnel may result in a risk of injury.

Do not use the tool if the power switch does not turn it “ON” or “OFF”. A tool that

cannot be controlled with the switch is dangerous and must be repaired.

Store all maintenance tools away from the immediate area before turning ON

the tool.

Do not overreach. Proper footing and balance is a must at all times while using

tools. Unstable support may lead to personal injury. Do not stand on the tool.

Serious injury could result if the tool tips over or you accidentally contact tool.

When using accessories, consult the owner’s manual provided by the manufactur-

er. The use of improper accessories may cause risk of injury to yourself and others.

UNPACKING & INSPECTION

After opening the carton, unpack your new generator and related parts & acces-

sories. Please inspect it carefully for any damage that may have occurred

during transit.

Do not operate this generator if damaged during ship-

ment, handling or misuse. Damage may result in bursting, which can cause

serious injury or property damage. All damaged parts must be repaired or

replaced as needed prior to operating this generator.

Check to see that all nuts, bolts and fittings are secure before putting this genera-

tor into service.

Please have the serial number, model number, date of purchase, and parts list (with

missing parts identified) available for reference when calling.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

SAFETY WARNINGS

READ ALL SAFETY WARNINGS BEFORE

USING PETROL GENERATOR.

GENERAL SAFETY RULES

People with electronic devices, such as pacemakers, should consult their physi-

cian(s) before using this product. Operation of electrical equipment or the elec-

tromagnetic wave created by the engine spark plug in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

SYMPTOMS OF CARBON MONOXIDE POISONING

Carbon monoxide (CO) is a colorless, odorless, tasteless, extremely toxic gas that

can KILL in a matter of minutes. Breathing air containing carbon monoxide

produces symptoms of headache, dizziness, loss of muscular control, a sleepy

feeling and finally coma. Moderate or severe brain damage can result from inhaling

air containing carbon monoxide. Carbon monoxide is a product of incomplete

combustion of petrol and occurs in exhaust fumes of petrol-burning heaters and all

internal combustion engines. Carbon Monoxide collects in spaces where there is no

constant air flow or ventilation. If you start to feel sick, dizzy or weak due to

exposure to CO while using petrol engine, GET TO FRESH AIR IMMEDIATELY.

ADDING OR DRAINING PETROL TO OR FROM THE ENGINE

Petrol and petrol vapors are extremely flammable and

explosive. Fire and explosion can result in severe burns

and even death.

•Turn engine to the OFF position and let cool at least two minutes before

removing petrol cap. Loosen cap slowly to relieve pressure in petrol tank.

• DO NOT fill or drain petrol tank inside enclosed structures. Accidental sparks

can result in fires or explosions leading to severe burns and even death.

Keep protective guards in place and in proper working condition.

Maintain tools and equipment with care. They will function better and more

safely when kept clean and in good working condition. Keeping the tool clean,

dry, and free of grime will add to its life and performance.

Do not use the tool for applications other than specified.

SAFETY RULES FOR PETROL ENGINES

Carbon monoxide is a product of incomplete combustion, such as exhaust

fumes from the engine. Carbon monoxide is colorless, odorless and tasteless

and can kill in a matter of minutes

Gas particulate filters and respirators will not protect someone

from carbon monoxide poisoning. If symptoms of carbon monoxide

poisoning appear, take the affected person outdoors immediately

and away from all structures and equipment that could produce the

gas. Call for emergency medical treatment and make them aware of the

situation.

Operate generator only outdoors. Do not allow exhaust gas fumes from

entering confined areas through windows, open doors, ventilation ducts and

other openings.

Do not start or run engine indoors or in an enclosed area,such as agarage

(even if windows and doors are open). This also applies to the engine

compartment of a recreational vehicle (RV).

DO NOT tamper with Evaporation and Exhaust Assembly in the generator.

DANGER

Using a generator indoors WILL KILL YOU IN MINUTES.

Exhaust fumes contain carbon monoxide, a poisonous gas you

cannot see or smell.

NEVER use in the home or

in partly enclosed areas

such as garages.

Avoid other generator hazards.

READ MANUAL BEFORE USE.

ONLY use outdoors and far

from open windows, doors,

and vents.

Do not contact muffler area with engine running. Muffler gets

extremely hot and can cause severe burns. Exhaust gases can

ignite combustible items such as clothing or structures in close

proximity. Gases leaking from worn muffler can heat up and

damage petrol tank resulting in fire or explosion.

• DO NOT touch hot parts of engine or muffler.

• AVOID hot exhaust gases.

• Keep a minimum of 1.5M clearance on all sides of the engine including top.

Starter and other rotating parts of engine can entangle hair, hands,

clothing and accessories.

• NEVER operate with protective housing or covers removed.

• DO NOT use while wearing loose clothing or jewellery that may get caught up

in starter or other rotating parts. Tie up long hair or wear hair net or cap.

MAKING ADJUSTMENTS OR REPAIRS TO THE ENGINE

Excessively high operating speeds increase risk of injury and damage to

engine. Excessively low speeds produce heavy load on engine.

• DO NOT attempt to alter pre-set governed speed. Engine governor is factory

set to supply optimum output horse power (HP) when running at governed speed.

• DO NOT modify engine in any way.

TESTING SPARK PLUG FOR SPARK

•DO NOT check spark plug for spark by removing from cylinder head.

•Disconnect spark plug wire from spark plug and cover tip with

non-conducting material such as electrical tape to prevent it from coming in

contact with spark plug, petrol tank or other parts of the engine where

damage can result from sparking.

• Replace a defective spark plug only with authorized parts.

•Use approved spark plug tester.

• DO NOT overfill petrol tank. Leave ample space for expansion of petrol.

• DO NOT start engine in area of petrol spillage. Fire and explosion can occur.

• Keep petrol away from sparks, open flames, pilot lights, heat and other

ignition sources. DO NOT smoke while operating the engine.

• DO NOT tip engine or equipment at an angle that could result in petrol

spilling from petrol tank.

STARTING THE ENGINE

Starter cord kickback (rapid retraction) can

pull your hand and arm toward the engine faster than it can be let

go of. Failure to be aware of this function can result in broken

bones, fractures, bruises and sprains.

•When starting the engine, pull cord slowly until resistance is felt, then pull

rapidly to avoid kickback.

Unintentional sparking can result in fire or electric shock.

Failure to observe this warning can result in property

damage, severe burns and/or death.

•Ensure spark plug is in place before attempting to start engine.

•Ensure muffler is secured to engine before starting.

•Ensure petrol cap is on petrol tank and tightened securely.

•Ensure air cleaner is clean and properly attached to engine.

A dirty air cleaner element changes the air to pe dnaoitarlort

promotes incomplete combustion of petrol increasing the output of

carbon monoxide. Always make sure air cleaner element is clean

before every operation of the engine.

• DO NOT crank engine with spark plug wire removed. The resulting spark

could ignite spilled petrol.

910

TRANSPORTING OR REPAIRING EQUIPMENT

RISK OF PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR

Turn off the generator before transport. Use caution when moving the generator.

Oil/petrol can leak or spill and could result in fire or breathing hazard, serious injury

or death. Oil/petrol leaks will damage carpet, paint, or other surfaces in vehicles or

trailers. Be sure to use the handle to lift or carry the generator.

•The wheel kit is not designed for over-the-road use. generator

must be transported in a vehicle or on a trailer.

•Unit is heavy. Take care when lifting or moving unit.

•Transport or repair with petrol tank EMPTY to prevent an unintentional

spark igniting petrol vapors resulting in a fire or an explosion.

•Transport or repair with spark plug wire DISCONNECTED.

•Store away from furnaces, stoves, water heaters, clothes dryers, and all

other appliances with pilot lights or other ignition sources. These appliances

can heat petrol tanks and ignition sources can ignite petrol vapors.

STORING PETROL OR EQUIPMENT WITH PETROL IN PETROL TANK

Store away from furnaces, stoves, water heaters,

clothes dryers, and all other appliances with pilot lights or other ignition

sources. These appliances can heat petrol tanks and ignition sources can

ignite petrol vapors.

SAFETY RULES FOR GENERATORS

Do not operate the generator in explosive areas, such as in the

presence of flammable liquids, gases or dust. Generators can cre-

ate sparks which may ignite the dust or fumes.

Never use the generator in damp or wet locations.

Wear proper apparel. Remove your jewellery before using generator. Do not

wear loose clothing, necklaces, rings, bracelets, or other jewllery, which may get

caught in moving parts. Nonskid footwear and electrically non-conductive

gloves are highly suggested while working. Wear protective hair covering to

contain long hair.

Be responsible for your hearing. Wear hearing protection during extended

periods of operation.

Do not use the generator if it is emitting excessive noise or vibration.

Haveit

repaired immediately.

Never start or stop generator engine with electrical devices plugged in and/or

turned on. Damage to both electrical devices and generator can occur.

Never touch moving parts of the generator. This will cause the risk of injury.

Do not touch bare wires or outlets. Severe burns or even death can

result.

Do not use generator with electrical cords that are worn, frayed,

bare or otherwise damaged.

Store the generator indoors, in a dry, secured area away from other equip-

ment. Never store the generator near an open flame or flammable materials.

RISK OF FIRE OR EXPLOSION

Always store petrol away from the generator and in an

approved container.

Petrol and petrol vapors are extremely flammable and explosive.

Fire and explosion can result in severe burns and even

death.

Make sure all ventilation openings are clear and free from restrictions.

Restricted ventilation openings can cause overheating and/or fire.

11 12

RISK OF FALLING

Portable generators can fall from a table, workbench, or roof causing damage to

the generator and could result in serious injury or death to the operator. Always

operate generator in a stable and secure position to prevent accidental movement

of the unit. Never operate generator on a roof or other elevated position.

RISK OF PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR

Turn off the generator before transport. Use caution when moving the genera-

tor. Oil/petrol can leak or spill and could result in fire or breathing hazard, serious injury or

death.Oil/petrol leaks will damage carpet, paint, or other surfaces in vehicles or trailers. Be

sure to use the handle to lift or carry the generator.

In order to avoid damaging the generator, do not allow the unit to be tilted more

than 10º from the normal horizontal position when operating.

The generator must be run with the rubber feet resting on a flat and stable hor-

izontal surface.

The generator must be used in a clean and well-ventilated area. The generator

requires an unobstructed airflow and must be located a minimum of 0.5m

from any walls or other obstructions that may prevent proper ventilation.

DO NOT place generator in an area:

•Where there is evidence of oil or petrol leaks.

•Where flammable petrol vapors or materials may be present.

•Where extremely dirty air or water could be drawn into the generator.

RISK OF INJURY

High voltage is used in the operation of this equipment. Death on

contact may result if safety precautions are not observed. Whenever

possible, keep one hand from touching equipment to reduce the

hazard of dangerous current flowing through vital organs of the body.

Do not be misled by the term low voltage. Voltages as low as 50 volts can cause death.

Generator produces hazardous voltages. Failure to isolate the generator from

the power utility can result in serious injury or death to electric utility workers

due to backfeed of electrical energy.

When using generator for backup power, notify utility company. Use approved

transfer equipment to isolate generator from electric utility.

RISK OF BURNS

Touching exposed metal such as the generator head or exhaust tube can

result in serious burns. Keep hands and fingers away from exposed

metal parts on generator during or immediately after operation.

Generators generate significant heat during normal operation and will

remain hot for some time after use. Do not reach around protective shrouds or

attempt any maintenance until generator has been allowed to cool.

1413

ASSEMBLY

This generator requires some assembly and will be ready for use after servicing with

manufacturer approved oil and petrol.

1. Unpack Generator. Set carton on a rigid, flat surface. Remove all loose parts

and packing. Leave generator in carton.

Unit is heavy. Do not attempt to lift and remove

the generator unit from the carton.

2. Using a box cutter, open carton completely by cutting the four corners allowing

the sides to lay flat.

3. Carefully lift the generator from the engine side and place upright and proceed

with assembling the wheels, legs and handle using the provided tools (Not all

tools are supplied)and following the procedure in the assembly illustration.

Make sure all hardware is tightened properly.

4. After completion of the assembly, carefully

place the generator on its wheels and legs.

5. Lift the handle and move

the generator on a flat

surface to verify proper

wheel and handle assembly.

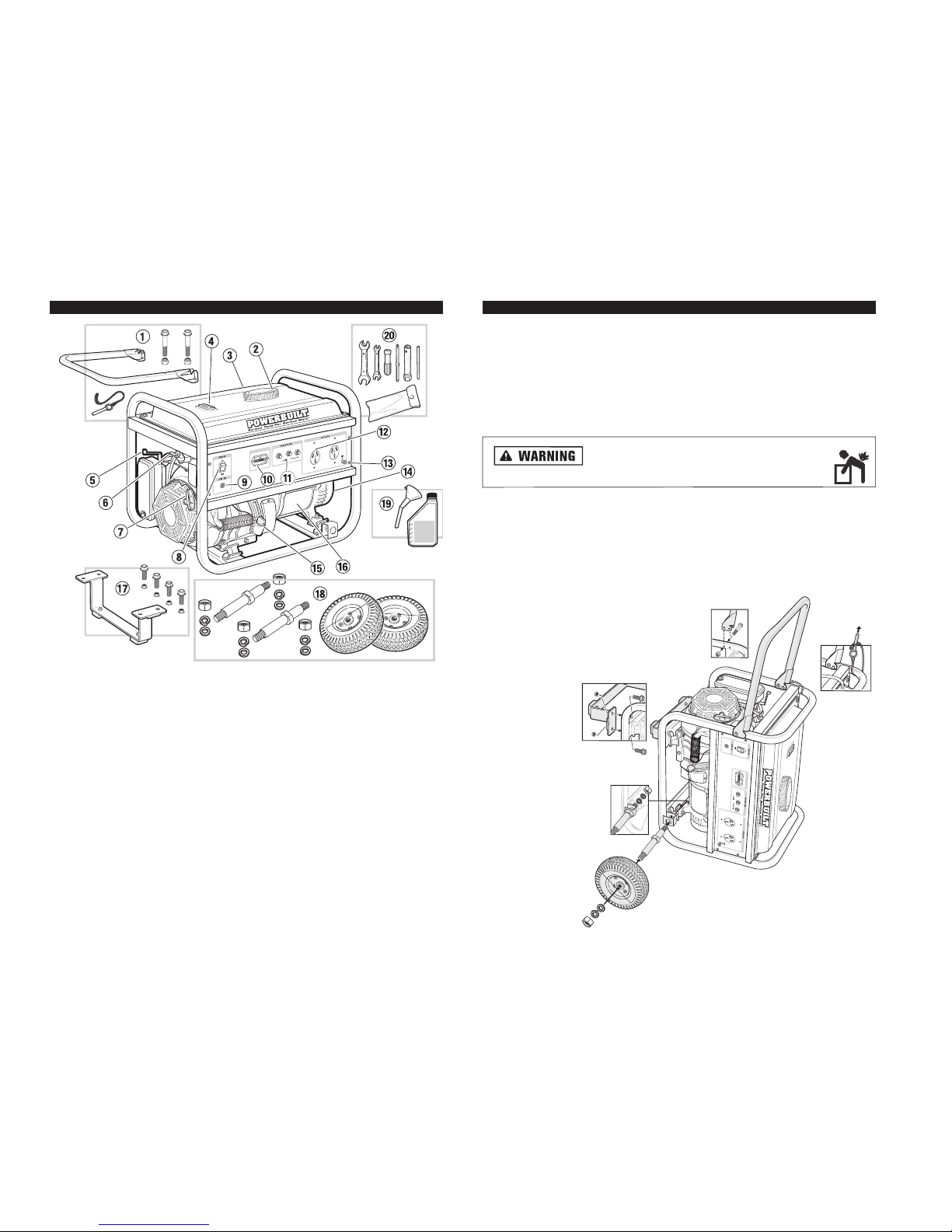

FUNCTIONAL DESCRIPTION

GENERATOR FEATURES:

1. Handle Kit

2. Petrol Tank

3. Petrol Tank Cap

4. Petrol Gauge

5. Choke Lever

6. Petrol Valve

7. Recoil Starter

8. Engine On/Off Switch

9. Low Oil Sensor LED

10.Hour Meter

11.Circuit Protectors

12.240V AC 15A, 2 x S223E-1 Outlets

13. Grounding Terminal

14. Alternator Rear Cover

15. Oil Fill Cap

16. Rating Label

17. Leg Kit

18. Wheel Kit

19. Engine Oil and Funnel

20. Tool Kit

OH E

OSR

AC 240V/50Hz

15A 15A 21A

HEM

AC 240V/50Hz

15A 15A 21A

Place on an even surface to correct this. If engine fails to start, the oil level may not be

sufficient to deactivate low oil level sensor. Add oil as described in previous section.

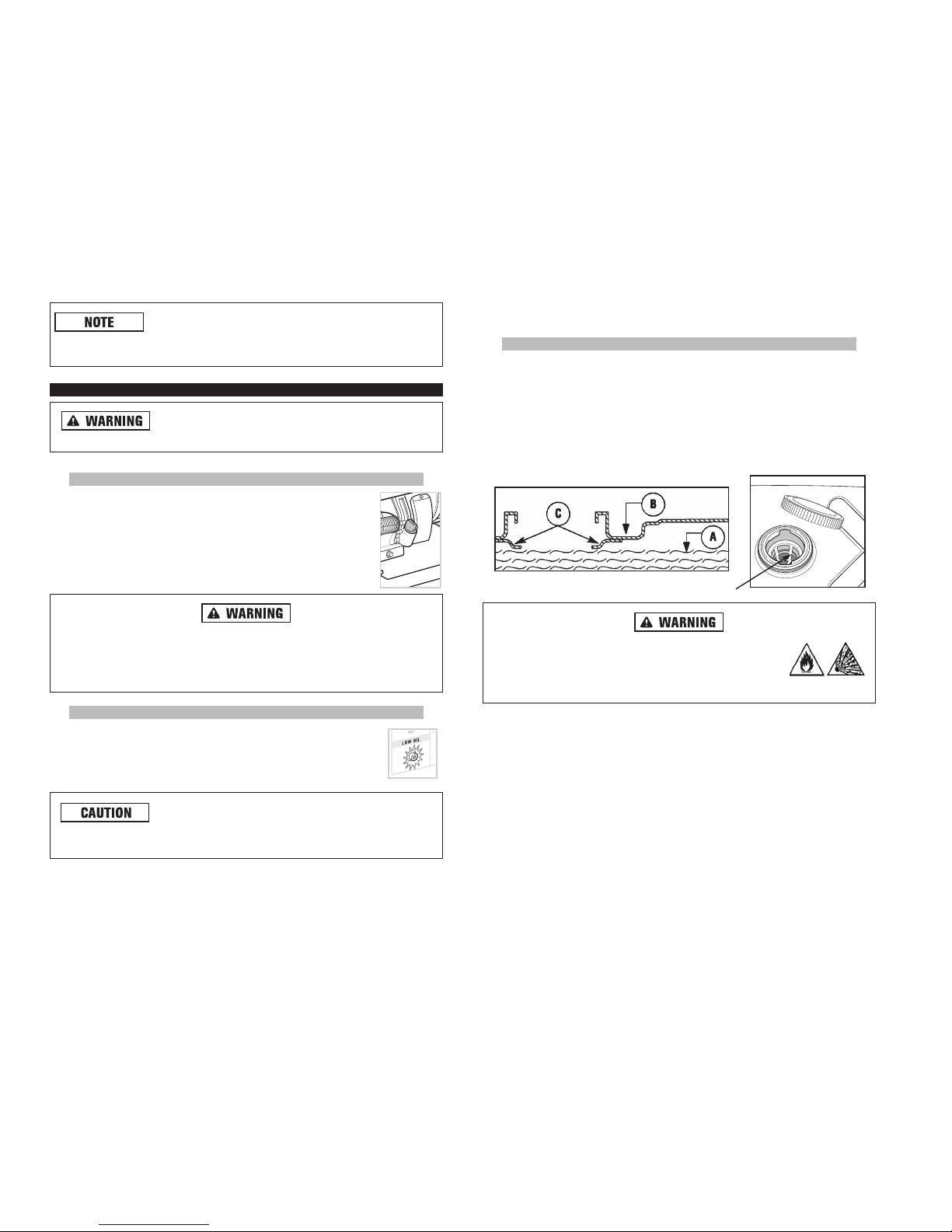

ADDING PETROL

1. Move the generator OUTSIDE and place on a flat and level surface.

2. Remove the petrol tank cap. Carefully add 87 Octane (or higher) grade petrol to

the tank. DO NOT OVERFILL. Leave room for the petrol to expand.

3. Replace and hand tighten petrol cap and wipe off any spilled petrol.

•DO NOT overfill petrol tank. Slowly add unleaded petrol (A) to petrol tank (B).Use

extreme caution not to fill petrol above baffle (C). This allow appropriate space for

petrol expansion.

Petrol and petrol vapor are extremely flammable and

explosive.Fire or explosion from misuse of petrol can cause

severe burns and even death.

Failure to use petrol as recommended in this manual will void the warranty.

WHEN ADDING PETROL TO GENERATOR, OBSERVE THE FOLLOWING:

•Turn generator OFF and let it cool for at least two minutes before removing petrol

cap. Loosen petrol cap slowly to release pressure.

•Keep petrol away from sparks, open flames, pilot lights, heat and other ignition

sources.

•DO NOT light a cigarette or smoke near open petrol tank or container.

•Clean area around petrol fill cap and slowly remove cap to allow any pressure to

escape.

•Install petrol cap and allow any spilled petrol to evaporate before starting engine.

DO NOT over tighten handles on generator frame. Handles

must be allowed to move up and down with ease but not too loose as to rattle

during operation of the generator.

PREPARING THE GENERATOR

Improper treatment of generator can damage internal

components and shorten the life of unit.

ADDING ENGINE OIL

1. Move the generator OUTSIDE and place on a flat and level surface.

2. Remove the engine oil dip stick and place funnel in the oil reservoir.

3. Pour the supplied engine oil (10W 30) until oil level reaches

the threads inside the oil reservoir.

4. Hand tighten oil dip stick and wipe off any spilled oil.

Improper treatment of generator can damage it and shorten its life.

DO NOT attempt to start generator engine before proper servicing using

recommended engine oil. Failure to observe this precaution can result in

engine failure.

LOW OIL SENSOR AND LED DISPLAY

To prevent engine damage caused by an insufficient amount of oil in

the crankcase, this generator is equipped with low oil sensor. If the

oil is below the safe amount, the sensor will activate and will prevent

engine start-up or will stop the running engine.

If the engine oil level is below a safe level and you attempt

to start the engine, the LED display on the front panel of the generator will blink.

Add oil as described in previous section.

If generator shuts off and the oil level is within specifications, check to see if

generator is sitting at an angle that forces oil to shift.

17 18

FILL LINE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Powerbuilt Generatore portatile

Powerbuilt

Powerbuilt EGS0248 Manuale utente

Manuali Generatore portatile popolari di altre marche

Kohler

Kohler 20EORZ Manuale di istruzioni

Powerhorse

Powerhorse 83171 Manuale utente

HURST

HURST ML-630-SI Manuale utente

ETQ

ETQ TG4000 Manuale utente

Briggs & Stratton

Briggs & Stratton 40265 Guida all'installazione

ConMed

ConMed 7550 Manuale utente

Owon

Owon Waveform Generator Manuale utente

evertz

evertz 7700 Series Manuale utente

Power Stroke

Power Stroke PS906025 Manuale utente

Firefly

Firefly Cygnus CYG2400/460/24 Manuale utente

Draper

Draper PG950S Aggiornamento firmware

PowerBoss

PowerBoss PowerBoss Manuale utente

SDMO

SDMO SH 4000 Manuale utente

EINHELL

EINHELL STE 5500 Manuale utente

Wanco

Wanco WI3000P Manuale utente

Full Boar

Full Boar FBT-3300 Manuale utente

Dwyer Instruments

Dwyer Instruments ASG Manuale utente

Westinghouse

Westinghouse WH1000i Series Manuale utente
