ORIGINAL INSTRUCTIONS

USER MANUAL

electric mower

PM-KSE-2000S / 2500S / 2600S

Table of Contents

WARNING / INFORMATION SYMBOLS .............................................. ........................................... 3

APPLICATION OF THE DEVICE ................................................ .................................................. ............... 4

TECHNICAL DATA ................................................ .................................................. ................................ 4

DESCRIPTION OF THE DEVICE ................................................ .................................................. ................................. 5

Model: PM-KSE-2000S ........................................... .................................................. ............................ 5

Model: PM-KSE-2500S + PM-KSE-2600S ..................................... .................................................. ...... 6

SAFETY ................................................. .................................................. ................................ 7

SAFETY RULES ................................................ .................................................. .................... 7

Other hazards ................................................ .................................................. ......................... 8

PRELIMINARY OPERATIONS ................................................ .................................................. ........................... 8

OPERATING THE DEVICE ................................................ .................................................. ......................... 8

INSTALLATION ................................................. .................................................. ............................................... 9

Mower handles assembly ............................................... .................................................. ................ 9

CUTTING HEIGHT ADJUSTMENT ............................................... .................................................. ............. 9

USE ................................................. .................................................. ................................... 10

Connecting an extension cable ................................................ .................................................. ................ 10

Attaching the grass catcher .............................................. .................................................. ............... 10

Fastening the cutting knife ............................................... .................................................. ................ 10

Starting the mower ................................................ .................................................. ..................... 11

The mowing process (Fig. 6). .................................................. .................................................. ................ 11

Notes on correct use (Fig. 7a - 7d). .................................................. ... 11

MAINTENANCE AND SERVICE ............................................... .................................................. ...................... 13

Maintenance ................................................. .................................................. ................................... 13

Service ................................................. .................................................. ............................................. 13

Storage ................................................. .................................................. ............................. 13

DECLARATION OF CONFORMITY ................................................ .................................................. .................... 13

EXPLODED VIEW DIAGRAM ............................................... .................................................. ..... 14

PM-KSE-2000S - General construction .......................................... .................................................. .......... 14

PM-KSE-2000S - Power switch .......................................... .................................................. ...... 15

PM-KSE-2000S - Engine ........................................... .................................................. .......................... 16

PM-KSE-2500S / 2600S - General construction ........................................ ................................................. 17

PM-KSE-2500S / 2600S - Power switch ........................................ ............................................. 18

PM-KSE-2500S / 2600S - Engine ......................................... .................................................. ............... 19

DISPOSAL OF USED DEVICES ............................................... .................................................. ....... 19

MANUFACTURER'S DATA ................................................ .................................................. ........................... 19

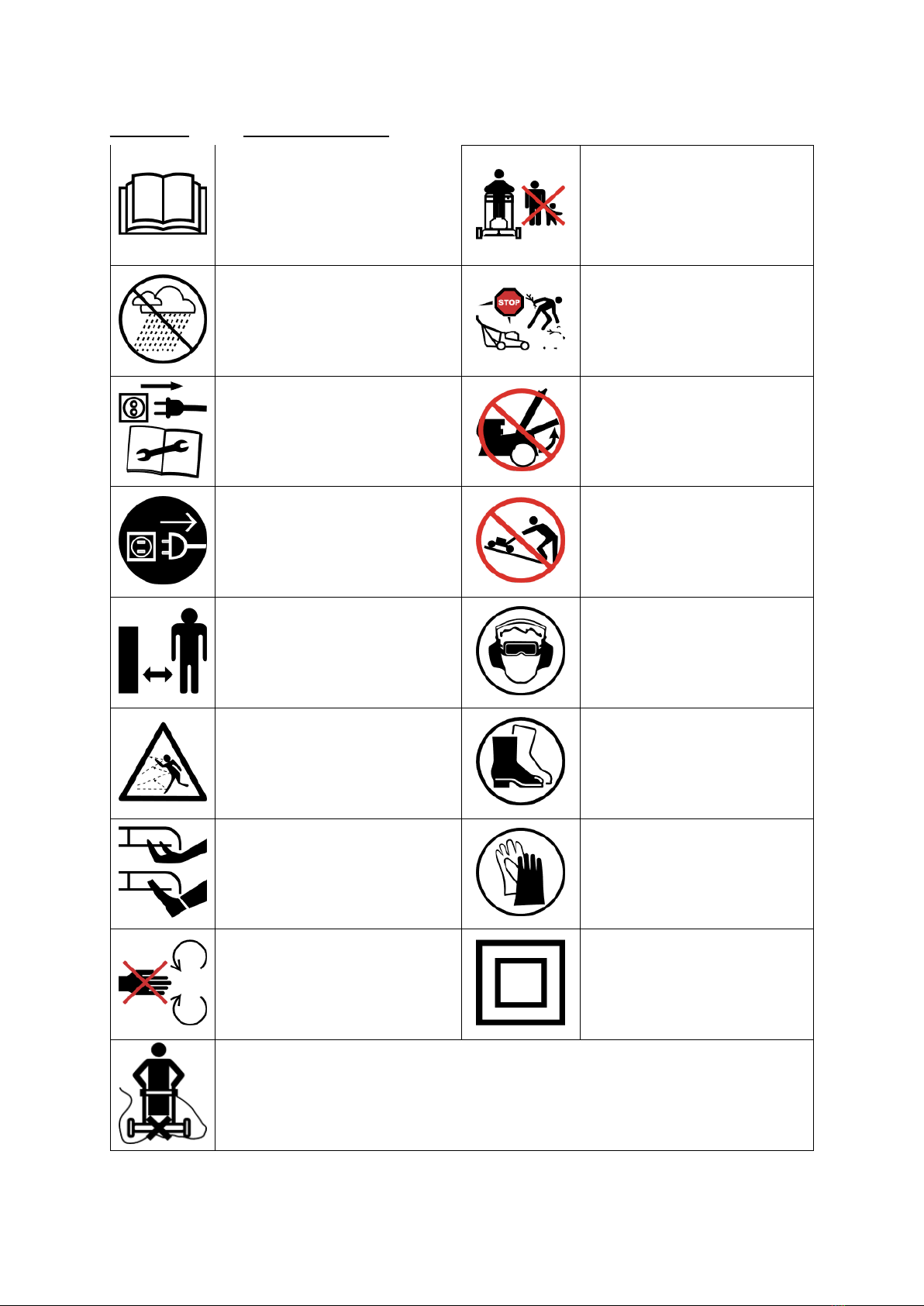

SYMBOLS ABOUT SHOOTING / INFOR MACYJNE SYMBOLS ABOUT SHOOTING / INFOR MACYJNE SYMBOLS ABOUT SHOOTING / INFOR MACYJNE SYMBOLS ABOUT SHOOTING / INFOR MACYJNE

WARNING: In front of using

read the instruction manual and

recommendations carefully

safety.

Keep the instructions.

WARNING: No third parties should WARNING: No third parties should

be near the working mower.

WARNING: Do not expose to rain or WARNING: Do not expose to rain or

other precipitation. WARNING: Clean the area before WARNING: Clean the area before

starting work.

WARNING: Disconnect the device from the network WARNING: Disconnect the device from the network

supply, in front of

proceeding to maintenance and

cleaning.

WARNING: No work allowed from

raised flap to the basket.

WARNING: In case of splitting either WARNING: In case of splitting either

damage cable

pull out the plug from the mains

socket.

WARNING: Do not mow on slopes WARNING: Do not mow on slopes

WARNING: Keep a safe distance from WARNING: Keep a safe distance from

bystanders during work. WARNING: Wear headphones and WARNING: Wear headphones and

safety goggles.

WARNING: For items rejected during WARNING: For items rejected during

work.

WARNING: Protective footwear should WARNING: Protective footwear should

be used.

WARNING: Keep hands and feet away from WARNING: Keep hands and feet away from

knife blades.

WARNING: Wear protective gloves.WARNING: Wear protective gloves.

WARNING: Keep hands and feet away WARNING: Keep hands and feet away

from moving and rotating parts. Protection class II

WARNING: Danger of damage to the power cord. Keep the mower's power cord at a safe WARNING: Danger of damage to the power cord. Keep the mower's power cord at a safe

distance from the blade and always watch it.

APPLICATION OF THE DEVICE

The device is used for mowing lawns, it is suitable for private use in home gardens and plots. However, not on public

squares, in parks, on sports fields or on farms and forestry.

Attention! Due to the danger to the user, the mower cannot be used for trimming scrubs, hedges, shrubs, for cutting Attention! Due to the danger to the user, the mower cannot be used for trimming scrubs, hedges, shrubs, for cutting

and shredding creepers or for mowing on roofed roofs or in balcony boxes or for cleaning (vacuuming) paths or as a

shredder for shredding tree fragments and hedges. The mower cannot be used as a tiller and for leveling unevenness

such as mole mounds.

Any use that deviates from the one described in this manual is not for the intended purpose of the device. The user /

owner, not the manufacturer, is responsible for any damage or injury caused by improper use or changes in the

device's design. As part of continuous improvement of its products, the manufacturer reserves the right to make minor

differences in this manual, which you should pay attention to.

The device may only be repaired and maintained at an authorized service center.

TECHNICAL DATA

Model PM-KSE-2000S PM-KSE-2500S PM-KSE-2600S

Power 230V ~ 50Hz

Maximum power 2000W 2500W 2600W

sales 3100 rpm 3300 rpm 3200 rpm

Cutting width 320mm 380mm 400mm

Cutting height 25/45 / 60mm 25/38/51/65 / 75mm

Degrees of height adjustment 3 5

Basket capacity 30L 35L 35L

Sound pressure level L pA K = 3 dB (A) Sound pressure level L pA K = 3 dB (A) Sound pressure level L pA K = 3 dB (A) 81,1dB (A)

Sound power level L wA K = 3 dB (A) Sound power level L wA K = 3 dB (A) Sound power level L wA K = 3 dB (A) 93,7dB (A)

Declared sound power level L wA Declared sound power level L wA

K = 3 dB (A)

96dB (A) 96dB (A) 96dB (A)

Net weight 8,4kg 11,5kg 12,8kg

DESCRIPTION OF THE DEVICE

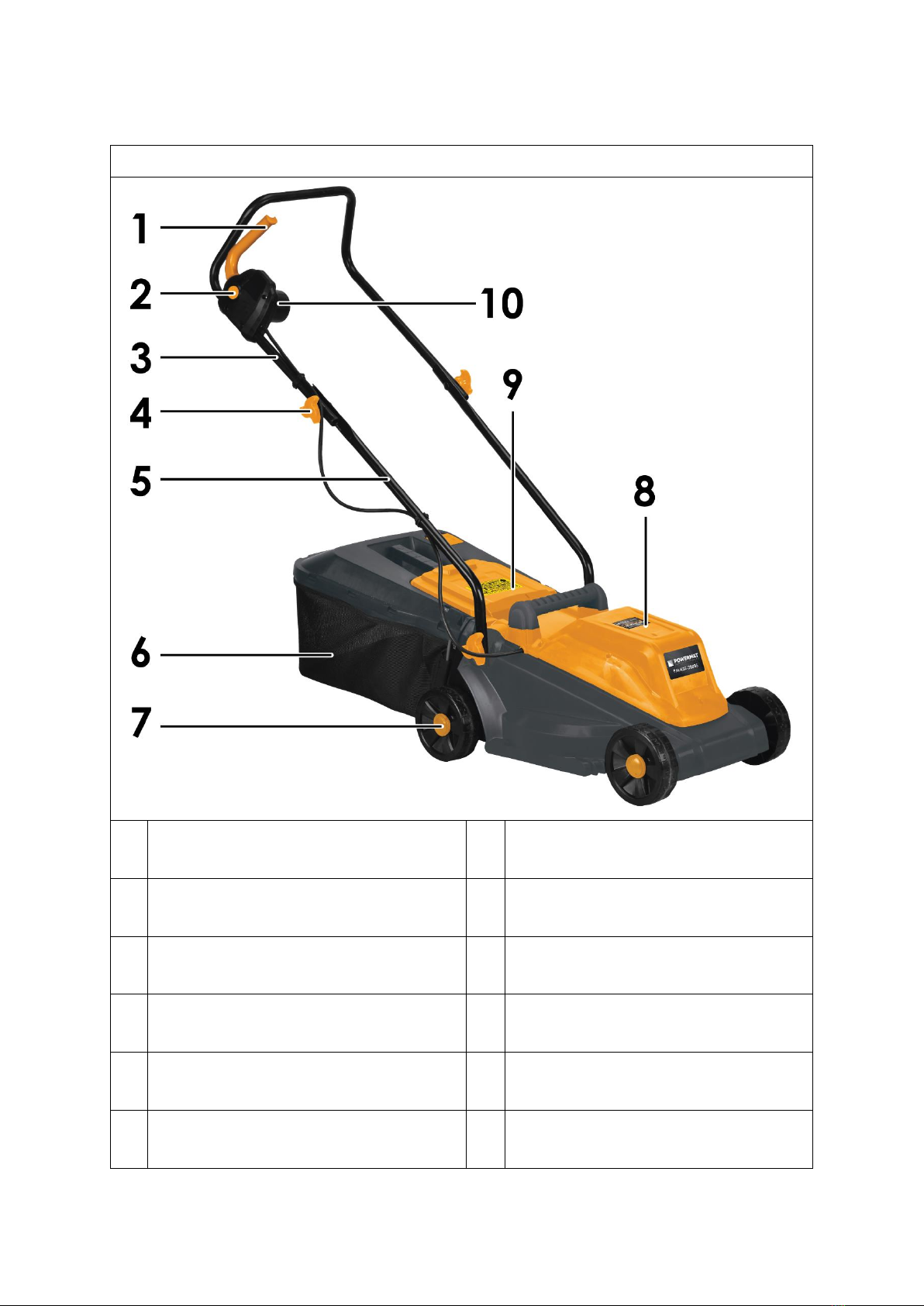

Model: PM-KSE-2000S

Lp. name of the element Lp. name of the element Lp. name of the element Lp. name of the element

1. Power switch lever 6. Grass basket

2. Power switch lock 7. Road wheel

3. Top handle 8. Engine housing

4. Fastening screw (star) 9. Tailgate

5. Bottom handle 10. Power socket 10. Power socket

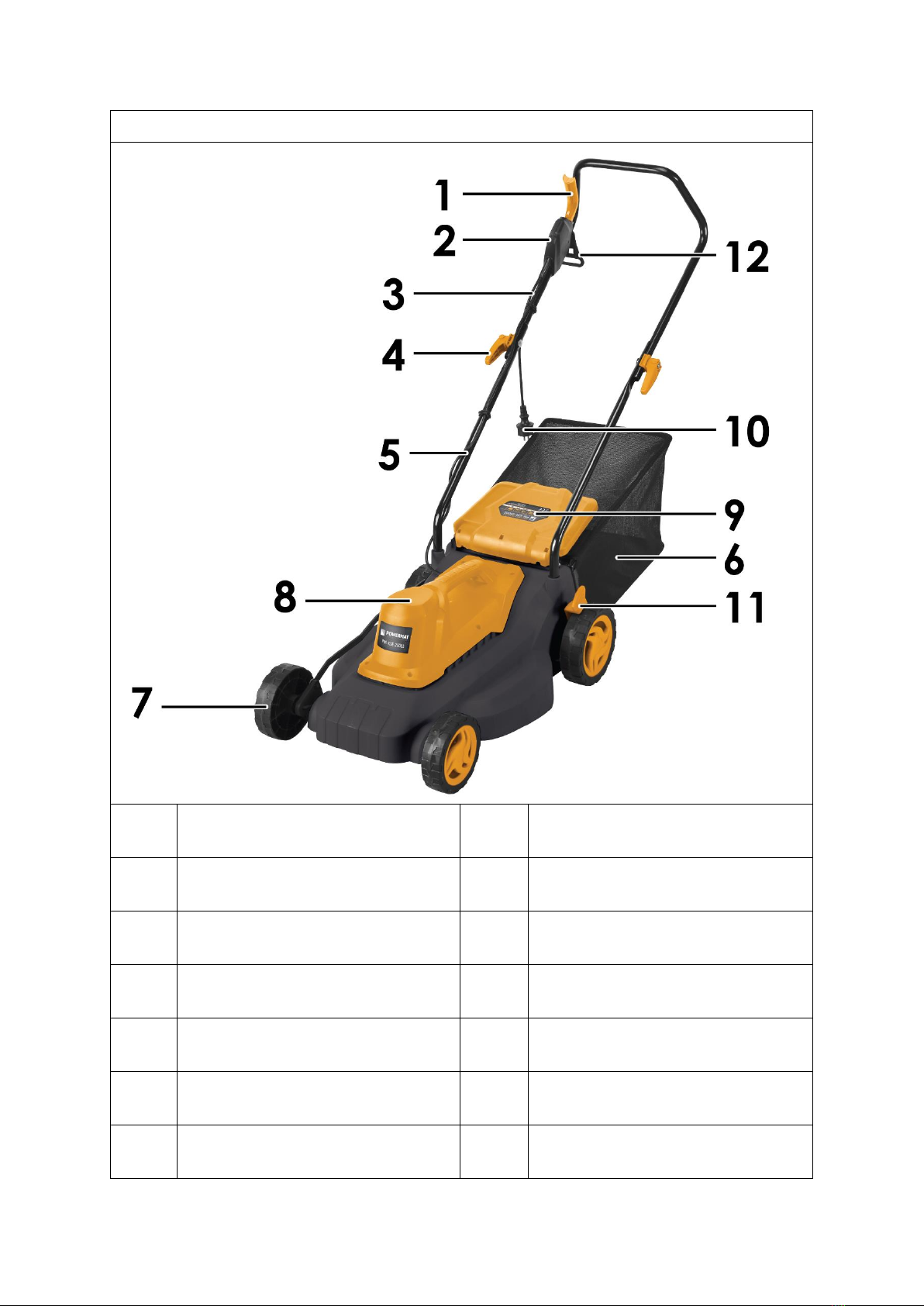

Model: PM-KSE-2500S + PM-KSE-2600S

Lp. name of the element Lp. name of the element

1. Power switch lever 7. Road wheel

2. Power switch lock 8. Engine housing

3. Top handle 9. Tailgate

4. Fastening screw with pressure clamp 10. Power supply plug

5. Bottom handle 11. Height adjustment lever

6. Grass basket 12. Cable strain relief

SECURITY

Before starting work, carefully read the operating manual of the electric mower hereinafter referred to as the mower.

Keep it for later reference. The manufacturer is not liable for damages resulting from failure to comply with these

instructions.

The greatest danger occurs when performing the following prohibited activities:

and) Use of the mower by children and people with limited manual skills, and) Use of the mower by children and people with limited manual skills,

physical and mental.

b) Use of the mower under the influence of alcohol, drugs or other intoxicants. b) Use of the mower under the influence of alcohol, drugs or other intoxicants.

c) Use the mower for purposes other than the mowing instructions described in the operating manual, when other people c) Use the mower for purposes other than the mowing instructions described in the operating manual, when other people

in particular children or pets are nearby.

d) Use of the mower by persons not acquainted with the user's manual. d) Use of the mower by persons not acquainted with the user's manual.

e) Using the mower without proper, protective attendant clothing and e) Using the mower without proper, protective attendant clothing and

Footwear.

f) Using the mower with damaged guards or the casing and without properly mounted ones f) Using the mower with damaged guards or the casing and without properly mounted ones

safety devices.

SAFETY RULES

• Read the user manual carefully before operating the device.

• The device is intended for trimming lawns.

• Wear suitable protective clothing during work.

•Keep your hands and feet away from moving parts.

• Be careful not to run over the power cord when mowing.

• Check the condition of the device and power cable before starting. If any of the elements is

damaged, replace it before starting work.

•Attention! After switching off the device, the cutting blades rotate for some time.

• Never turn on the device if it is lying on its side.

• Before mowing, remove stones and other objects from the lawn that could damage the device.

• Keep a stable position during work.

•Keep unauthorized persons and animals away from the workplace.

• The device may not be operated by children or persons under the influence of alcohol, drugs or

other intoxicants.

•Before connecting the device to the mains, make sure that the technical specifications of the network

correspond to the data on the rating plate of the device.

• Never carry the device by the power cord.

•Disconnect the device from the power supply before moving it to another location.

•Do not use the device for purposes other than those intended.

•Never work with the basket removed and the outlet lid open.

• Before emptying the basket turn off the mower and wait for the cutting blades to stop rotating.

• Before starting the machine, make sure that the cutting blade is not blocked and can rotate freely.

• Before cleaning and maintaining the device, disconnect it from the power supply and wait until the

cutting blades stop rotating.

• Work only in well-lit places.

•If a hard object hits the machine while mowing, switch off the mower and check whether any of the

components has been damaged.

• If the device vibrates abnormally, turn off the mower and check that no damage has occurred.

•Check the condition of the device regularly and replace worn parts.

• Never use the device during rain or in high humidity.

• Never mow wet grass.

• Use only extension cords intended for external use.

Other threats

Even when the power tool is operated according to the instructions, there is always a risk of danger. Depending on

the design and construction of the power tool, the following hazards may appear:

•Lung damage if a suitable dust mask is not used.

•Hearing damage if you do not wear appropriate ear protection.

•Negative impact on health due to vibration of the arms and hands, when the device is used for a long time or

in the wrong way and without maintenance.

PRELIMINARY OPERATIONS

and) Open the packaging and then pull out the device. and) Open the packaging and then pull out the device.

b) Remove the protective foil and transport protection (if any). b) Remove the protective foil and transport protection (if any).

c) Check if the package contains disassembled parts and keys. c) Check if the package contains disassembled parts and keys.

d) Check that the device and accessories have not been damaged during transport. d) Check that the device and accessories have not been damaged during transport.

e) Save the packaging. e) Save the packaging.

ATTENTION! The device and packaging are not for fun! Keep out of the reach of children, danger of

swallowing or suffocation.

OPERATING THE DEVICE

Before connecting the device to the mains, make sure that its parameters correspond to the parameters given on the

device's rating plate. Do not connect the device to a higher voltage network than required by the device, it may cause

electric shock and damage to the device. Connecting to a lower voltage network may damage the motor of the

device.

ASSEMBLY

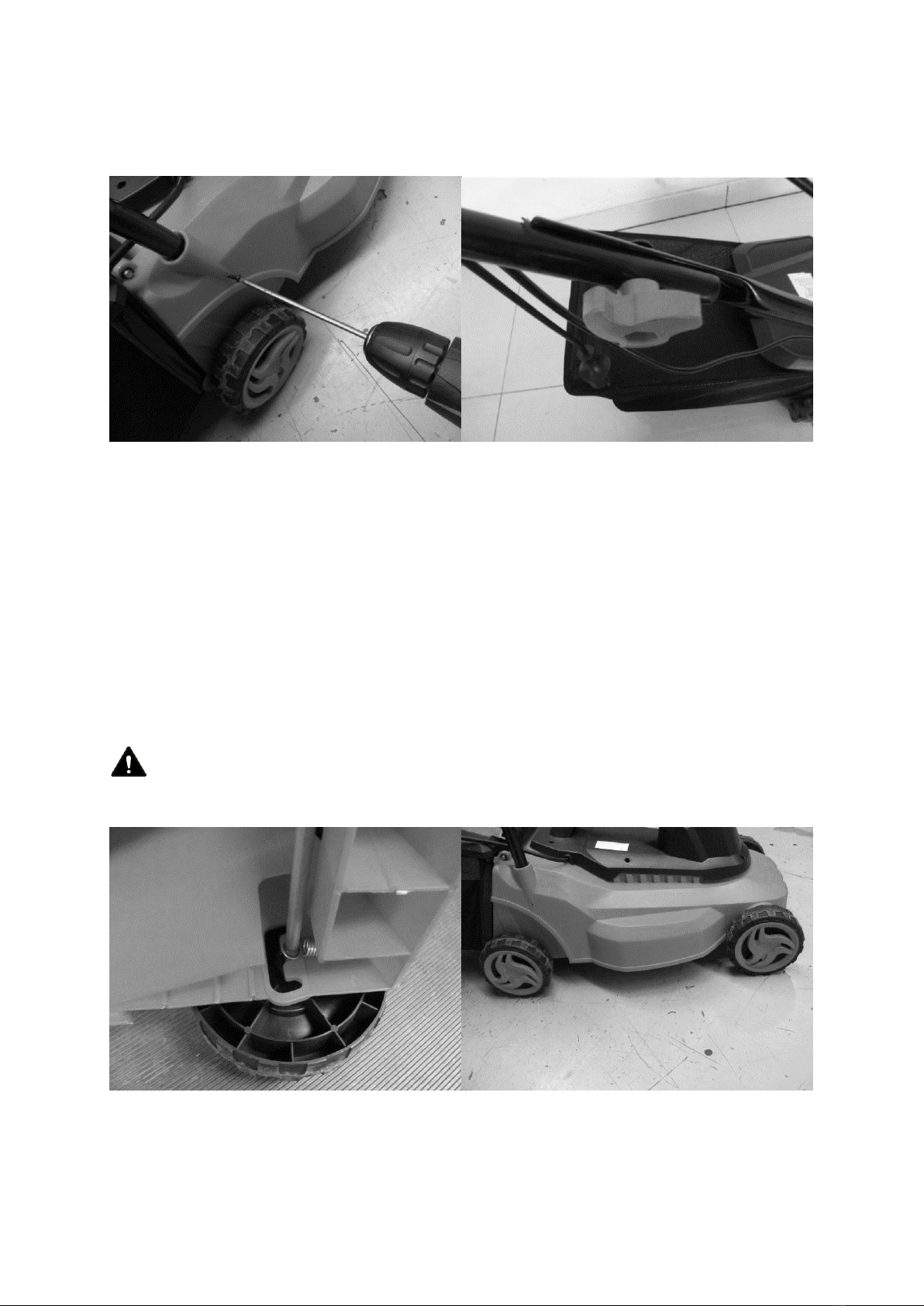

Mower handles assembly

1. Secure the lower handles to the mower housing with screws / or screw nuts 1. Secure the lower handles to the mower housing with screws / or screw nuts

star (depending on the model)

2. Connect the upper part of the handle with the lower part using star-bolted screws. 2. Connect the upper part of the handle with the lower part using star-bolted screws.

CUTTING HEIGHT ADJUSTMENT

Attention! Before changing the cutting height, always pull the plug out of the power socket.

1. To increase the cutting height, move the cutting height lever to the rear 1. To increase the cutting height, move the cutting height lever to the rear

mower parts.

2. To reduce the cutting height, move the cutting height levers w 2. To reduce the cutting height, move the cutting height levers w

the front of the mower.

ATTENTION! For mowers without central height adjustment, the front and rear axles must be raised or lowered

separately.

USE

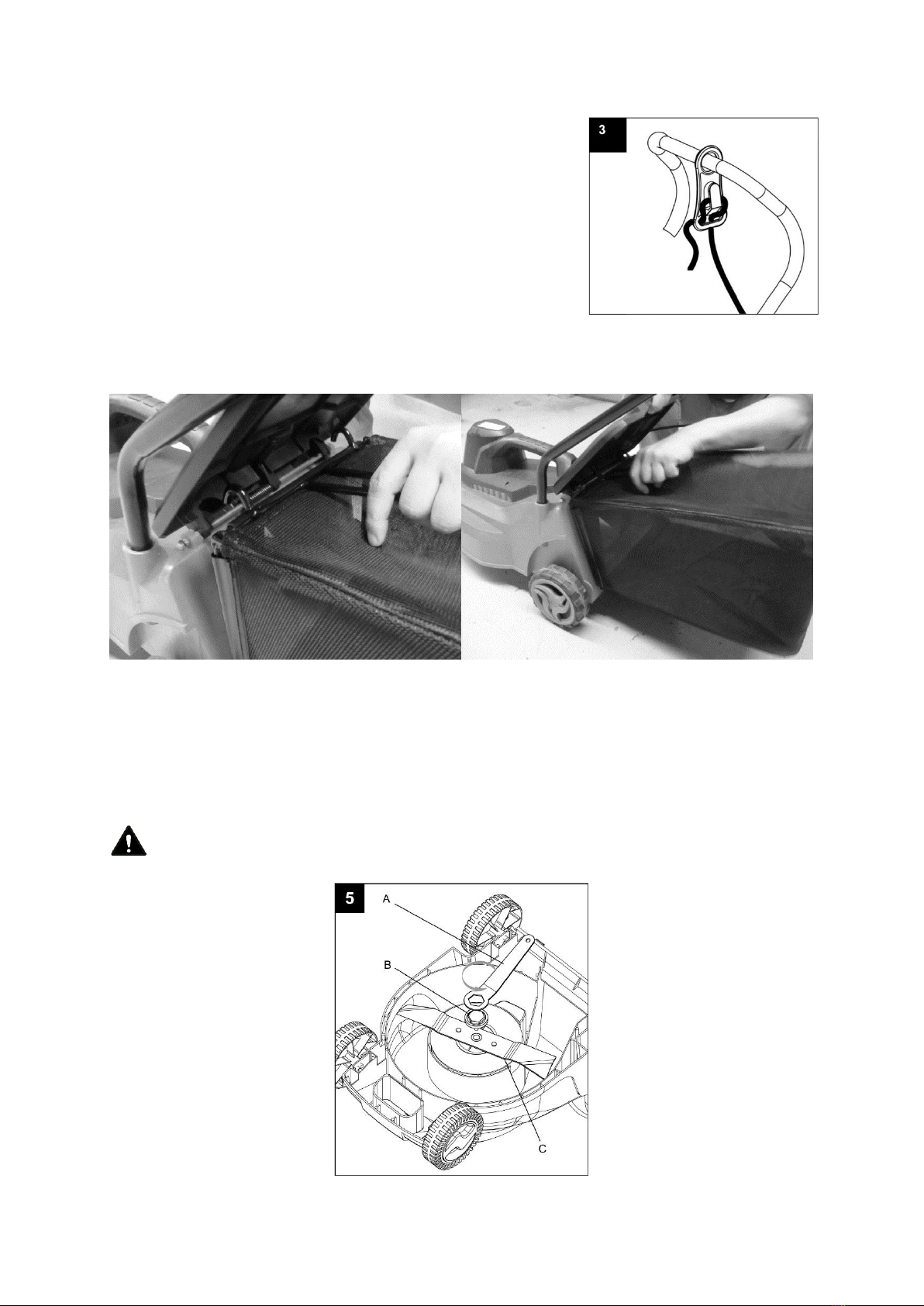

Connecting an extension cord

After connecting the power cord, hang the extension cord from the

cable holder to secure the plug from being pulled out of the power

outlet.

Attaching the grass catcher

To attach the grass catcher, raise the rear kalpa, apply the basket as in the picture above, then lower the tailgate.

Fastening the cutting knife

•With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).

• When assembling the knife, be sure to fit it properly in the mounting holes.

Always use work gloves when assembling / disassembling the cutting knife.
