Powernail 45 Manuale utente

Read this manual before you use this Nailer. Follow all safety warnings and instructions. If you

are uncertain about the operation of the Nailer, call us directly at 1-800-323-1653 for assistance or

contact the closest Powernail Dealer for help. Please retain this information for future reference.

WARNING

REV 4.08

Operation and Maintenance Manual

MODEL 45 TONGUE AND GROOVE NAILER

POWERNAIL

CO.

1300 Rose Road, Lake Zurich, IL 60047

Phone: 1-800-323-1653

Website: www.powernail.com

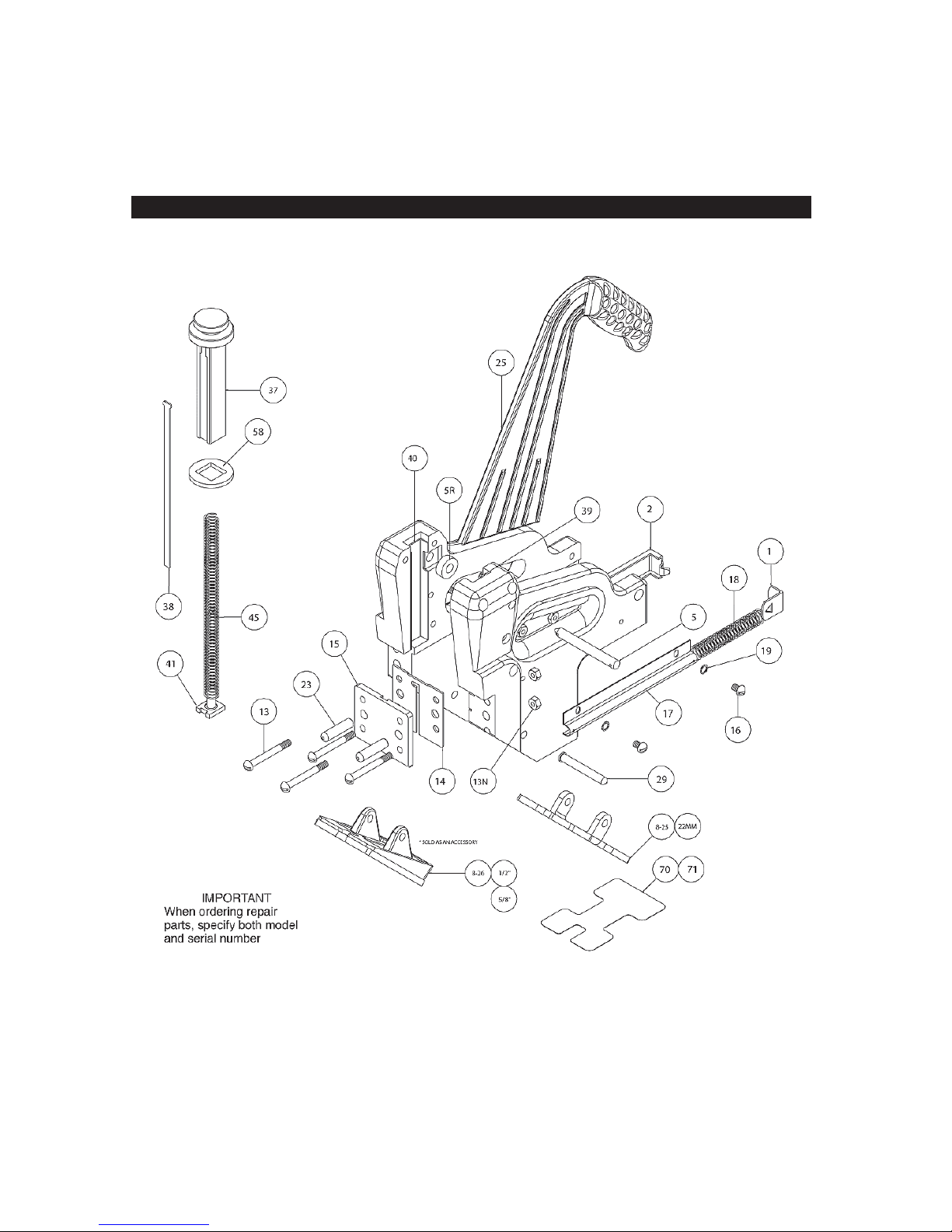

MODEL 45 EXPLODED VIEW

MODEL 45 PARTS LIST

ITEM # PART NO. DESCRIPTION QTY

REQ’D KEY Assembly

or Kit

1 08-45-00-010 SPRING CLIP 1 S/K TU / OVH

2 08-45-00-020 FEEDER CHANNEL 1 S/K OVH

5 08-45-00-050 ROLLER PIN ASSEMBLY 1 S/K OVH

5R 08-45-00-05R ROLLER 1 S/K OVH

13 08-45-00-130 FOOT SCREW 4 S/K OVH

13N 08-45-00-13N LOCKNUT 4 S/K OVH

14 08-45-00-140 GATE 1 S

15 08-45-00-150 FOOT 1 S

16 & 19 08-45-00-160 SCREW & WASHER SET FOR SPRING CONT. (2 EA) 1 S/K OVH

17 08-45-00-170 SPRING CONTAINER 1 S/K OVH

18 08-45-00-180 FEEDER SPRING 1 S/K TU / OVH

23 08-45-00-230 DOWEL PIN 2 S

25 08-45-00-250 HANDLE ASSEMBLY 1 S

29 08-45-00-290 ADAPTER PLATE PIN ASSEMBLY 1 S

37 07-45-00-370 PLUNGER 1 S/K OVH

38 08-45-00-380 DRIVING BLADE 1 S/K TU / OVH

39 08-45-00-400 LEFT PLUNGER LINER 1 S

40 08-45-00-390 RIGHT PLUNGER LINER 1 S

41 08-45-00-410 PLUNGER SPRING PIN 1 S/K OVH

45 08-45-00-450 PLUNGER SPRING 1 S/K TU / OVH

58 08-45-00-580 BLADE RETAINER 1 S/K TU / OVH

70 06-99-720 #825 NO-MAR PAD (STICK-ON) .015 THICK 1 S

# 8-25 06-99-010 #825 ADAPTER PLATE ASSEMBLY FOR 3/4” T&G 1 S

ITEM # PART NO. DESCRIPTION QTY.

REQ’D

# 8-26 06-99-040 #826 ADAPTER PLATE ASSEMBLY FOR 1/2” T&G 1

# 8-26 06-99-04A #826 ADAPTER PLATE ASSEMBLY FOR 5/8” T&G 1

# 8-25 06-99-04B #825 ADAPTER PLATE ASSEMBLY FOR 22MM T&G 1

71 06-99-721 #825 NO MAR PAD (STICK-ON) .060 THICK (ACCESSORY) 1

72 08-45-TU-KIT MODEL 45 TUNE-UP KIT 1

73 08-45-OVH-KIT MODEL 45 OVERHAUL KIT 1

74 06-99-430 NAILER SHOE WITH ADAPTER ASSEMBLY 1

MODEL 45 ACCESSORIES

KEY: S=Sold Separately, TU=Sold as part of a Tune Up Kit, OV=Sold in an Overhaul Kit

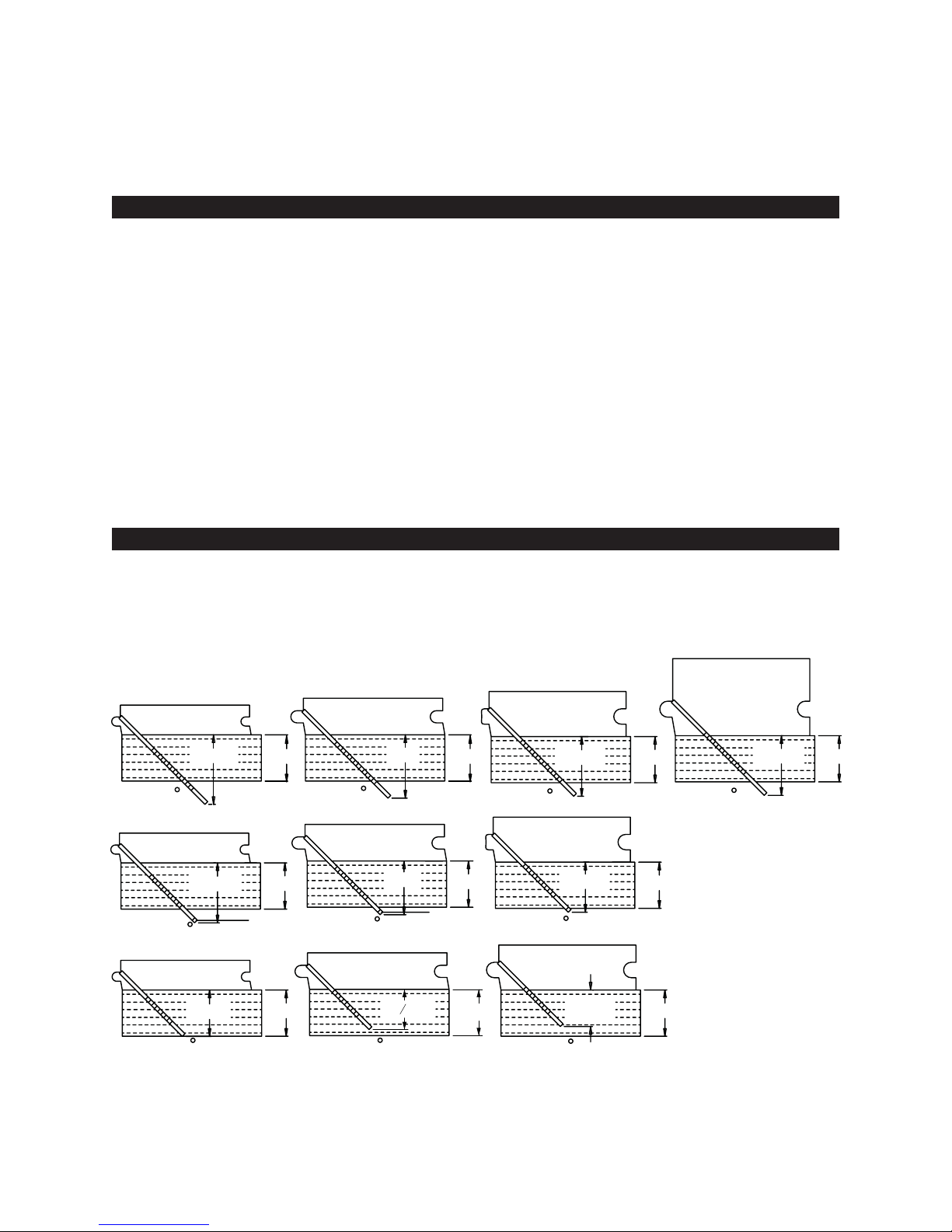

POWERCLEAT®NAIL LENGTH CHART

This chart will assist you in determining the proper length of Powercleat®nails

to use for various thicknesses of ﬂooring when sub-ﬂooring member varies as to

species and thickness. Vertical penetration of the Powercleat®nails under the

hardwood ﬂoor is shown for each application. This is only a guide. Results should be

tested in the ﬁeld before proceeding.

REPLACING #38 DRIVING BLADE

1. Remove #5 Roller Pin--save Cotter Pin.

2. Holding Nailer in left hand with Nailer tilted

so rear of Nailer is down, depress #37 Plunger

Head slightly so #5R Roller is released from

Plunger Head.

3. Remove #37 Plunger Head from Body of

Nailer by lifting straight out of Body.

4. Remove #38 Driving Blade from under #58

Rubber Blade Retainer. Discard Blade.

5. Insert new #38 Driving Blade with face of

Blade stamped “Front” facing front of Nailer,

under #58 Rubber Blade Retainer until the “T”

section at top of Blade ﬁts into milled slot under

Plunger Head. Push #58 Rubber Blade Retainer

ﬂush to underside of Plunger Head.

6. Holding Nailer in left hand with Nailer so rear

of Nailer is down, slowly insert Plunger Head and

Driving Blade Assembly into Nailer Body, making

certain the #45 Plunger Spring is inserted into

hole in Plunger Head.

7. While in this position, reinsert the #5 Roller Pin

and Cotter Pin.

8. Installation is complete and Nailer is ready to

use.

3/4"

1/2" FLOORING

UNDERLAYMENT

3/4"

19/32"

3/4" FLOORING

UNDERLAYMENT

3/4"

31/32"

3/4" FLOORING

UNDERLAYMENT

3/4"

31/32"

33/32" FLOORING

UNDERLAYMEN

3/4"

1-1/8"

1/2" FLOORING

UNDERLAYMENT

3/4"

UNDERLAYMENT

5/8" FLOORING

3/4"

13/16"

3/4" FLOORING

UNDERLAYMENT

3/4"

31/32"

1/2" FLOORING

UNDERLAYMENT

3/4"

7/8"

UNDERLAYMENT

5/8" FLOORING

1-1/2" POWERCLEAT

16 GAGE

1-1/2" POWERCLEAT

16 GAGE

2" POWERCLEAT

16 GAGE

2" POWERCLEAT

16 GAGE

2" POWERCLEAT

16 GAGE

2" POWERCLEAT

16 GAGE

1-3/4" POWERCLEAT

16 GAGE

1-3/4" POWERCLEAT

16 GAGE

1-3/4" POWERCLEAT

16 GAGE

1-1/2" POWERCLEAT

16 GAGE

5/8" FLOORING

UNDERLAYMENT

21 32

3/4"
