INSTRUCTION MANUAL

EN 21" 2-in-1 GAS PUSH LAWN MOWER

ES 21" 2-en-1 CORTADORA DE CÉSPED A GASOLINA

Model # DB2321CR

Have product questions or need technical support? Please feel free to contact us!

Website: www.Amerisuninc.com

www.powersmartusa.com

Toll free: 1-800-791-9458 Mon-Fri 9-5 EST

Email: [email protected]

CONTENTS

Technical data…...……………………………………………………….. 3

Introduction………………………………………………………………. 4

Safety information…….………………………………………………... 4

General safety procedures ……....……………………………………… 5

Important safety instructions……………………………………………. 6

Waring label instructions…………………………………..…………… 8

Knowing your lawn mower……………………………………………… 10

Lawn mower preparation………………………………………………... 11

Operation……………………....………………………………………… 13

Maintenance……………………………………………………………... 16

Storage……………………………………………………………………. 18

Troubleshooting…………………………………………………………. 19

Exploded view & parts list……………………………………………… 20

Warranty………………………………………………………………… 24

TECHNICAL DATA

21 inch 2-in-1 Gas Push Lawn Mower Model # DB2321CR

Engine type: 4 stroke, OHV, single cylinder with forced air-cooling system

Displacement: 170cc

Fuel tank capacity: 0.40 Gallon

Oil capacity: 16.9 fl.oz

Cutting width: 20.5 inch

Cutting height: 1.18 – 3 inch

Height adjustment: 5 Position

Drive type: Push

Wheel: Front: 7 inch / Rear: 8 inch

Package dimensions (L x W x H): 33.3 x 22.6 x 16 inches

Weight: 60 lb.

INTRODUCTION

Thank You for Purchasing a PowerSmart®Product. This manual provides information regarding the safe

operation and maintenance of this product. Every effort has been made to ensure the accuracy of the

information in this manual. PowerSmart®reserves the right to change this product and specifications at

any time without prior notice.

Please keep this manual available to all users during the entire life of the lawn mower.

This manual contains special messages to bring attention to potential safety concerns, lawn

mower damage as well as helpful operating and servicing information. Please read all the

information carefully to avoid injury and machine damage.

QUESTIONS? PROBLEMS?

Please contact our Customer Service Dept. with any questions and/or comments, either by Email:

[email protected], or Toll Free at (800)791-9458. We are available Mon-Fri 9am-5pm EST to

help solve any issues that you might encounter.

NOTICE REGARDING EMISSIONS

Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road

Equipment), are certified to operate on regular unleaded gasoline, and may include the following

emission control systems: (EM) Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).

SAFETY INFORMATION

Before operating this lawn mower, read and observe all warnings, cautions, and instructions on the lawn

mower and in this Owner’s Manual.

NOTE: The following safety information is not meant to cover all possible conditions and situations that

may occur. Read the entire Owner’s Manual for safety and operating instructions. Failure to follow

instructions and safety information could result in serious injury or death.

This safety alert symbol is used to identify safety information about hazards that can result in personal

injury.

A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to

indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may

be used to represent the type of hazard.

DANGER indicates a hazard, which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard, which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard, which, if not avoided, might result in minor or moderate injury.

CAUTION when used without the alert symbol, indicates a situation that could result in damage to the

engine.

GENERAL SAFETY PROCEDURES

For any questions regarding the hazard and safety notices listed in this manual or on the product, please

call (800) 791-9458 Mon-Fri 9-5 EST before using the engine.

DANGER: CARBON MONOXIDE

Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon monoxide

(CO). This is a poison gas you cannot see or smell. If you can smell the engine exhaust, you are breathing

CO. But even if you cannot smell the exhaust, you could be breathing CO.

NEVER use an engine inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan, or opening windows and/or doors will NOT

properly vent CO nor supply adequate fresh air. ONLY use an engine outside and far away from

windows, doors, and vents. These openings can pull in engine exhaust.

Even if you use an engine correctly, CO may leak into the home. ALWAYS use a battery-powered or

battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the engine has been

running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING: The exhaust from this product contains chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

WARNING: This engine may emit highly flammable and explosive gasoline vapors, which can cause

severe burns or even death if ignited. A nearby open flame can lead to explosion even if it isn’t directly in

contact with gasoline.

•Do not operate near an open flame.

•Do not smoke near the engine.

•Always operate on a firm, level surface.

•Always turn engine off before refueling. Allow engine to cool for at least 2 minutes before

removing fuel cap. Loosen cap slowly to relieve pressure in tank.

•Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank.

Allow for expansion.

•Always check for spilled fuel before operating.

•Empty fuel tank and carburetor bowl before storing or transporting the engine.

WARNING: This engine produces heat when running. Temperatures near exhaust can exceed 1500F

(650C).

Do not touch hot surfaces. Pay attention to warning labels on the engine identifying hot parts of the

machine.

Allow engine to cool down after use before touching engine or areas of the engine that become hot during

use.

CAUTION: Misuse of this engine can damage it or shorten its life.

Only use engine for its intended purposes.

IMPORTANT SAFETY INSTRUCTIONS

This machine is capable of amputating hands and feet and throwing objects. Failure to observe the

following safety instructions could result in serious injury or death.

I.General Operation

1. Read, understand, and follow instructions and warnings in this manual and on the machine, engine

and attachments.

2. Only allow operators, who are responsible, trained, familiar with the instructions, and physically

capable to operate the machine.

3. Do not carry passengers and keep bystanders away.

4. Do not operate the machine while under the influence of alcohol or drugs.

5. Follow the manufacturer’s recommendation for wheel weights or counterweights.

II. PREPARATION BEFORE OPERATING

1. Clear the operating area of any objects which could be thrown by or interfere with operation of the

machine

2. Keep the area of operation clear of all bystanders, particularly small children. Stop the machine and

attachment(s) if anyone enters the area.

3. Do not operate the machine without the entire grass catcher, discharge chute, or other safety devices

in place and functioning properly. Check frequently for signs of wear or deterioration and replace as

needed.

4. Wear appropriate personal protective equipment such as safety glasses, hearing protection, and

footwear.

III. OPERATING

1. Only operate the engine in well ventilated areas. Exhaust gases contain carbon monoxide, a deadly

poison.

2. Only operate the machine in daylight or good artificial light.

3. Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the machine,

or cause operator to lose their balance or footing.

4. Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening

at all times.

5. Do not direct discharge material toward anyone. Avoid discharging material against a wall or

obstruction. Material may ricochet back toward the operator. Stop the blade(s) when crossing gravel

surfaces.

6. Do not leave a running machine unattended. Always park on level ground, disengage the attachment,

set parking brake, and stop engine.

7. Do not mow in reverse unless absolutely necessary. Always look down and behind before and while

backing.

IV. CHILDREN SPECIFIC

1. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often

attracted to the machine and the mowing activity. Never assume that children will remain where you

last saw them.

2. Keep children out of the operating area and under the watchful care of a responsible adult other than

the operator.

V. SLOPE SPECIFIC

Slopes are a major factor related to accidents. Operation on slopes requires extra caution.

1. Travel in the manufacturer recommended direction on slopes. Use caution while operating near drop

offs.

2. Avoid mowing wet grass. (Poor footing could cause a slip and fall accident.)

3. Do not operate machine under any condition where traction, steering, or stability is in question. Tires

could slide even if the wheels are stopped.

4. Always keep the machine in gear when going down slopes. Do not coast downhill.

5. Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make

turns slowly and gradually.

6. Use extra care while operating machine with a grass catcher or other attachment(s). They can affect

the stability of the machine.

VI. FIRE AND FUEL SPECIFIC

1. Extinguish all cigarettes, cigars, pipes and other sources of ignition.

2. Use only an approved fuel container.

3. Do not remove fuel cap or add fuel with the engine running or while hot.

4. Do not refuel indoors or in enclosed spaces

5. Do not store the machine or fuel container, or refuel, where there is an open flame, spark, or pilot light

such as on a water heater or other appliance.

6. If fuel is spilled, do not attempt to start the engine and avoid creating any source of ignition until fuel

vapors have dissipated.

7. To help prevent fires: keep machine free of grass, leaves, or other debris build up; clean up oil or fuel

spillage and remove any fuel soaked debris; allow machine to cool before storing.

8. Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.

VII. HAULING

1. Use full width ramps for loading and unloading a machine for transport.

VIII. SERVICE

1. Keep machine in good working order. Replace worn or damaged parts.

2. Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades. Do

not repair or alter blade(s)

3. Machines with hydraulic pumps, hoses, or motors; and/or diesel injection systems:

WARNING: Fluid escaping under pressure may have sufficient force to penetrate skin and cause

serious injury. If fluid is injected into the skin, seek immediate medical attention. Keep body and

hands away from pin holes or nozzles that eject fluid under high pressure. If a leak occurs, have the

machine immediately serviced by a trained technician.

4. If equipped, disconnect spark plug wire(s) before making any repairs.

WARNING LABLE INSTRUCTIONS

Read carefully the manual before use.

Danger-flying objects;

keep safe distance from the machine as long as the engine is running.

Do not open or remove safety shields while engine is running.

Pay more attention to the operator’s hands and feet to avoid injury.

Do not open or remove safety shields while engine is running.

Fuel is flammable,keep fire away.

Never fill up the fuel tank while the engine is running.

Emission of toxic gas, do not use the mower in a close area or not well ventilated.

Look behind while backing

Steep slope hazard

When mowing,please wear the glasses ad ear plugs to defend the operator

himself

When repairing, please pull off the spark plug boot, then repair it according

to the operational manual

Hot surfaces

Keep bystanders away.

Safety label found on the lawn mower:

KEEP HANDS AND FEET AWAY.

Warning: Keep the safety signs clear and visible on the equipment.Replace the safety signs if they are

missing or illegible.

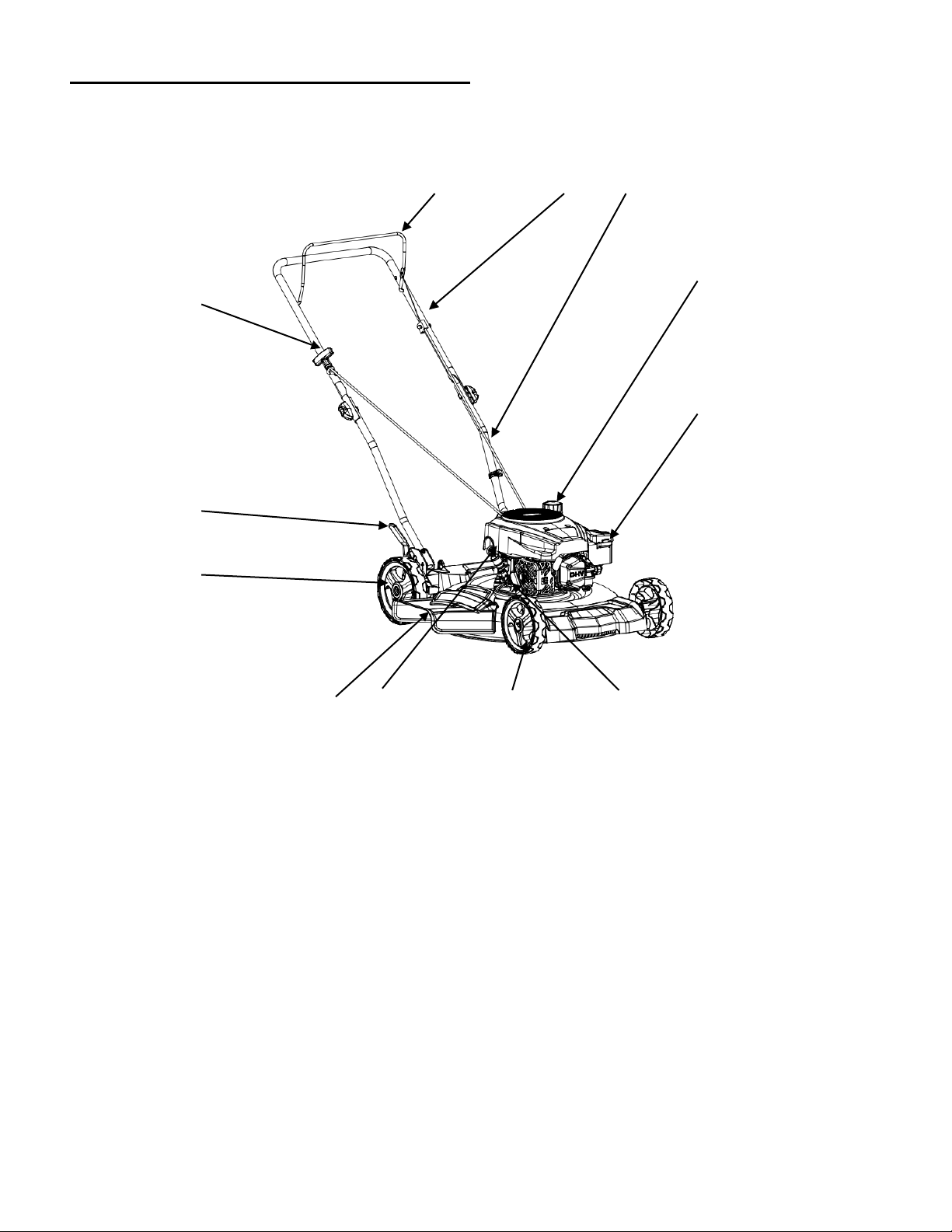

KNOWING YOUR LAWN MOWER

Please use the illustration below to familiarize yourself with the location and function of the components

that control of your lawn mower.

Recoil Starter handle

Cutting height adjustment lever

Primer bulb

Rear wheel

Lower handle

Side discharge chute

Upper handle

Oil dipstick

Engine start/stop control

Front wheel

Gas tank cap

11 10 9

4 5 6 7

Indice

Altri manuali Powersmart Taglia erba

Powersmart

Powersmart DB2194P Manuale utente

Powersmart

Powersmart DB8605 Manuale utente

Powersmart

Powersmart DB8621PH Manuale utente

Powersmart

Powersmart PSM2322SR Manuale utente

Powersmart

Powersmart DB2194PH Manuale utente

Powersmart

Powersmart DB2321PR Manuale utente

Powersmart

Powersmart DB2194SH Manuale utente

Powersmart

Powersmart DB8621PR Manuale utente

Powersmart

Powersmart DB8621P Manuale utente

Powersmart

Powersmart PS76821SRB Manuale utente

Powersmart

Powersmart DB8617P Manuale utente

Powersmart

Powersmart DB8621SH Manuale utente

Powersmart

Powersmart DB8617P Manuale utente

Powersmart

Powersmart PS76417AP Manuale utente

Powersmart

Powersmart DB8620 Manuale utente

Powersmart

Powersmart DB2321SR Manuale utente

Powersmart

Powersmart DB8621SH Manuale utente

Powersmart

Powersmart DB2194PR Manuale utente

Powersmart

Powersmart DB2321P Manuale utente

Powersmart

Powersmart DB8621PH Manuale utente

Powersmart

Powersmart DB8621SR Manuale utente

Powersmart

Powersmart DB6902 Manuale utente

Powersmart

Powersmart DB2194CR Manuale utente

Powersmart

Powersmart PS76826 Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
