PowerTech GH1600 Manuale utente

Portable Fridge/Freezer

User Manual

GH1600 – 30L

GH1602 – 40L

GH1604 – 50L

Distributed by:

Techbrands by Electus Distribution Pty Ltd

320 Victoria Road

Rydalmere, NSW 2116 Australia

Tel: 1300 738 555, Int’l: +61 2 8832 3200

Fax: 1300 735 500

www.techbrands.com

Congratulations on your purchase of a Powertech portable fridge/freezer.

Please take the time to read this user manual in full and familiarise yourself

with the features and operating of this unit to ensure many years of reliable

service with ice cold beverages and crisp, fresh food on all your adventures.

Features

•Danfoss (SECOP) BD35F compressor and genuine Danfoss control

module – the world’s most reliable mobile cooling system

•World leading electronic technology, with high efficiency and low energy

consumption

•Multi-voltage compatible, working on either 12VDC/24VDC, or 240VAC

•Automatic low voltage battery protection

Contents in box

•Powertech portable fridge/freezer unit

•Food basket with removable divider

•DC power input cord

•AC power input cord

•Detachable carry handles/tie down points and tool

Optional accessories

•Heavy duty insulated cover

•Powertech dual battery isolators

Index

Product safety………………………………………………………………………………………………4

General notes……………………………………………………………………………………………….4

Power Connections….……………………………………………………………………………………5

Operation……………………………………………………………………………………………………..6

Cleaning & maintenance……………………………………………………………………………….7

Troubleshooting…………………………………………………………………………………………….7

Technical data………………………………………………………………………………………………..8

GH1600 – 30L

GH1602 – 40L

GH1604 – 50L

Warranty……………………………………………………………………………………………………….8

Product safety

•Do NOT touch exposed wires with your bare hands, especially when operating from

240VAC mains power

•It is dangerous to touch the plug or power input panel with wet hands

•When operating the refrigerator in a vehicle or boat, ensure that the power supply

circuit is appropriately sized and fused

•The installation of AC power sources in a vehicle, trailer, caravan, or marine vessel

should be carried out by a qualified person

•Ensure the correct power supply is connected

•Do not immerse in water

•Do not place any electrical devices inside the refrigerator

•Only qualified personnel are to perform servicing, contact your agent for information

•This product is not intended for use by young children or infirm persons unless they

have been adequately supervised by a responsible person to ensure they can use the

appliance safely

•Young children should be supervised to ensure that they do not play with the

appliance

•The appliance must not be exposed to rain

General notes and operating tips

Always provide good ventilation to your Powertech Portable fridge/freezer, especially

around the rear section where the compressor is situated. Allow an air gap of at least

200mm around the rear of the unit and approximately 100mm gap to the right hand side

(where the ventilation slots are on the fridge body).

Avoid humidity inside the refrigerator: humidity inside the appliance can form frost and

impair cooling, therefore defrost regularly.

Never clean the refrigerator under running water or in a dishwasher.

Avoid placing the refrigerator near a heat source as this will impair cooling performance and

efficiency.

Always place the refrigerator on a flat surface away from edges.

When installing the unit in a vehicle or boat, ensure it is adequately secured.

REMEMBER: to maximise the efficiency of the refrigerator, avoid opening the lid too often,

and keep the fridge reasonable well filled, but not over filled.

Suitable for camping use.

Power connections

The appliance may be connected to more than one source of energy; there are

provisions for both 12/24Vdc power input and 240VAC mains power input at

the rear of the unit, allowing for operation on either DC or AC power sources.

Both AC and DC power sources can be connected at the same time, the unit

will automatically revert to 240VAC mains power as the priority.

The refrigerator unit must always be connected to an adequate power supply

and DC connections must always be fused and wired with appropriately sized

cable to avoid excess voltage drop. See table below for recommended cable

sizing from battery to fridge:

Cable Size

Max Cable Length 12V Max Cable Length 24Vmm2 AWG

2.5 14 2.5m 5m

6 10 6m 12m

10 8 10m 20m

Low voltage battery protection

This unit has an automatic low-voltage battery protection feature that will

automatically switch off the compressor if the DC supply voltage drops below

the Cut-Out level, and will automatically re-start operation when the DC supply

voltage comes back up to the Cut-In level. See table below:

Battery Protection 12V Cut-Out 12V Cut-In 24V Cut-Out 24V Cut-In

LOW 10.2V 11.2V 21.6V 23.0V

MED 10.7V 11.7V 22.6V 24.0V

HIGH 11.7V 12.7V 24.6V 26.0V

NOTE: If your refrigerator is cutting out prematurely, it could be due to

the low voltage protection being set too high, or your DC supply

wiring is not suitable enough to carry the current required. Check

supply wiring suitability and consider adjusting the battery

protection switch at the rear of the unit accordingly.

Operation

Temperature control range: -18ºC ~ 10ºC

Temperature display range: -20ºC ~ 45ºC

To operate, plug in the DC or AC power cord to the unit and connect the cord

to a suitable power supply. Press the ON/OFF power switch to turn the unit on

and the temperature display panel will illuminate and display the current

temperature inside the refrigerator.

Press the ▲and ▼buttons to set your desired fridge temperature, ▼will

reduce the temperature and ▲will increase the temperature, whilst the

temperature display will show what your current set temperature is. Once the

display shows your desired temperature, don’t press any buttons and after 3

seconds the display will flash and the unit will beep to confirm your setting.

Pressing both ▼and ▲at the same time will switch the display from ºC to ºF.

Pressing the ECO/MAX running mode button will toggle the operating mode

between ECO and MAX operating modes, with the indicators lighting up

according to which mode is currently selected.

ECO: This mode reduces power consumption and is best used once the

fridge has cooled down to operating temperature

MAX: Best used to cool down the internal temperature of the fridge

rapidly, however this mode will consume more power.

NOTE: If power is lost, the refrigerator will automatically re-start when power

is restored.

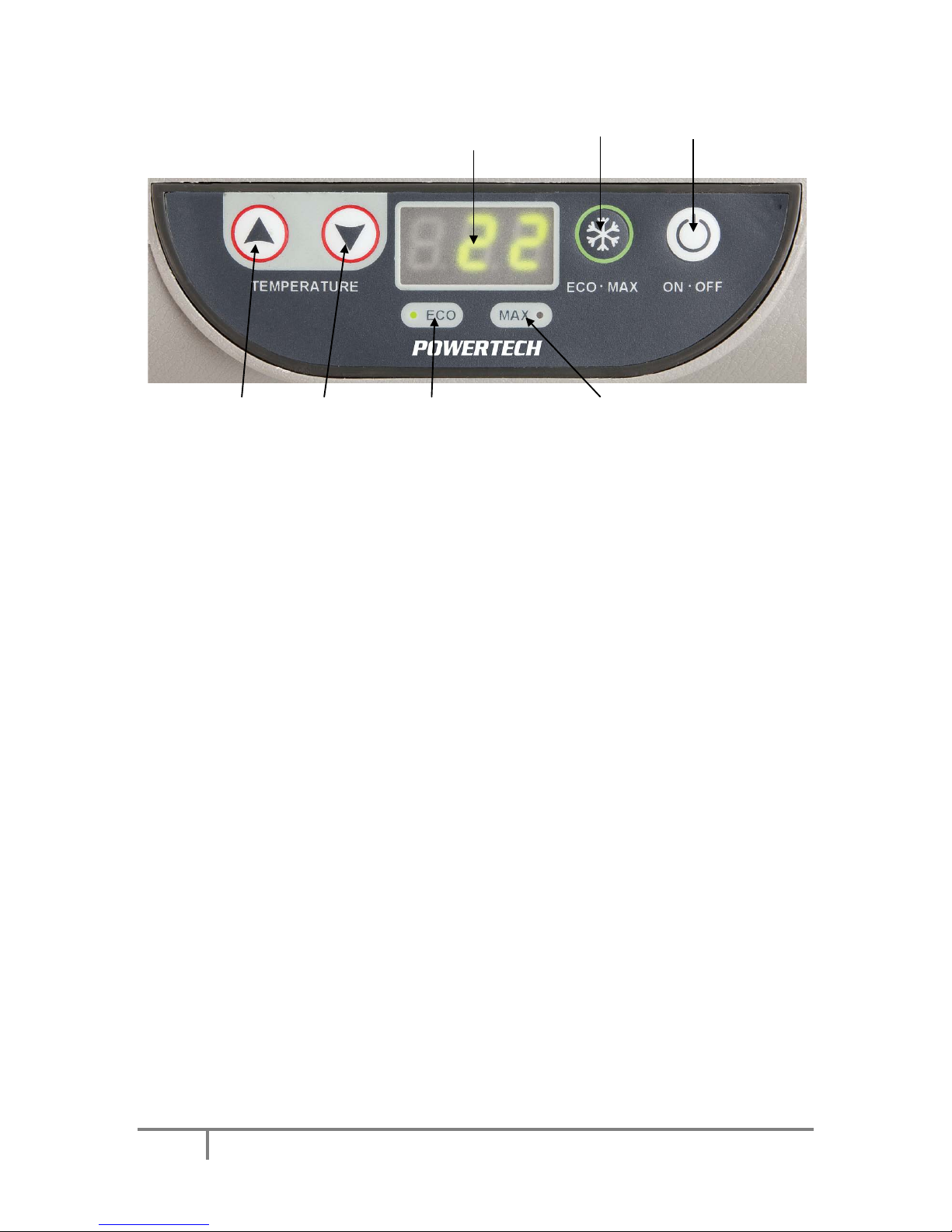

Power switch

Running mode

switch

Temperature display

Temperature controls Eco mode indicator

Max mode indicator

Cleaning & maintenance

Before cleaning, the power should always be switched off and disconnected.

Clean the unit inside and out with a damp cloth. For stubborn dirt, using some

sodium bicarbonate dissolved in lukewarm water may be used.

Never use abrasive products, detergents or soap. After washing, rinse with

clean water and dry carefully.

When storing the unit for a long period of time, do NOT fully close the lid. This

will prevent mould and odours.

Troubleshooting

If the unit will not turn on:

•Check the power supply (voltage may be too low)

•Check all connections from battery to fridge

•Check the fuse

•Check the unit is turned ON

If contents of the fridge are freezing:

•The temperature has been set too low

Poor refrigeration performance:

•Too much food has been put inside the unit

•Temperature of the food put inside the fridge is too high

•Lid is not closed properly

•Lid seal is damaged

•There is poor ventilation around the fridge (see info on page 4)

•Ambient temperature is very high

•Temperature is not set correctly

There is a “water flow” type of noise from inside the unit:

•This is normal, caused by the flow of refrigerant

There is a noise from the unit:

•Unit is not on a flat level surface

•Check for vibrations in surrounding objects

Technical data

Specification

GH1600

GH1602

GH1604

Internal Capacity 30L 40L 50L

Input voltage

12/24VDC, 240VAC 50Hz

Temperture control range -18ºC ~ 10ºC

Refrigerant

R134a

Insulation Polyurethane foam

Avg. Current draw (12Vdc, 5ºC inside, 20ºC outside)

0.7A/hour (approx 17Ah/day)

Weight 16kg 17kg 18.5kg

Dimensions (LxWxH)mm

585x350x380

585x350x490

585x350x530

Warranty

This Powertech portable fridge/freezer comes with a 5 year compressor warranty and a 3

year components warranty that commences from the date of purchase, under the following

conditions:

•That all defects are attributable to material or production defects/errors and not

improper use (warranty is void if the unit is run with supplementary parts or

accessories from other manufacturers)

•The warranty claim is made within the warranty period (proof of purchase required)

•Warranty does not cover loss of contents of the fridge

•Any unit covered under warranty will be repaired or replaced at our discretion

•Units claimed under warranty will be returned to Rydalmere, NSW, for assessment.

Where a false claim is made, the customer will bear costs of the unit being returned

to them.

•Warranty does not cover parts such as fuses, connectors, plugs, handles, etc

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any

other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to

a major failure.
