PowerWalker BPH S72T-12 Manuale utente

User Manual

Battery Pack

1. Important Safety Warnings

Please comply with all warnings and operating instructions in this

instruction strictly. Read carefully the following instructions before installing

the unit. Do not operate this unit before reading through all safety

information and operating instructions carefully.

Do not try to assemble or repair the unit yourself, contact your local

supplier, seek for help of qualified technician

To eliminate any overheating of the battery box, keep all ventilation

openings free from obstruction and do not place any foreign objects on

top of the battery bank. Keep the battery box 20 cm away from the wall.

Make sure the battery box is installed within the proper environment as

specified. (0-40°C and 30-90% non-condensing humidity)

Do not install the battery box under direct sunlight. Your warranty will be

void if the batteries fail due to overheating.

This battery box is not designed for use in dusty, corrosive and salty

environment.

The warranty for this battery bank will be void if water or other liquid is

spilled or poured directly onto the battery box. Similarly we do not

warrant any damage to the battery box if foreign objects are deliberately

or accidentally inserted into the battery box enclosure.

The battery will discharge naturally if the system is unused for a period of

time.

It should be recharged every 2-3 months if unused. If this is not done,

then the warranty will be null and void. During normal operation, the

batteries will be automatically remained in charged condition.

Servicing of batteries should be performed or supervised by trained

personnel with knowledge of batteries and the required precautions.

When replacing batteries, it is necessary to replace ALL batteries with the

same quantity, type & capacity.

CAUTION – Do not dispose of battery or batteries in a fire. The battery

may explode.

CAUTION – Do not open or mutilate the batteries. The electrolyte from

the batteries is toxic and harmful to the skin and eyes.

CAUTION – Risk of Electric Shock –Hazardous voltage may exist between

battery terminals and ground. Test before touching with bare hands.

Storage & Maintenance

The unit contains no user-serviceable parts. If the battery service life

(3~5 years at 25°C ambient temperature) has been exceeded, the

batteries must be replaced. In this case, please contact your dealer.

Storage

Before storing, charge the unit 4 hours. Store the unit covered and

upright in a cool, dry location. During storage, recharge the battery in

accordance with the following table:

Storage Temperature Recharge Frequency Charging Duration

-25°C - 40°C Every 3 months 1-2 hours

40°C - 45°C Every 2 months 1-2 hours

Be sure to deliver the spent battery to a recycling facility or ship

it to your dealer in the replacement battery packing material.

Installation and Setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside

the package is damaged. Please keep the original package in a safe place for

future use

CAUTION –A battery can present a risk of electrical shock and high short

circuit current. The following precaution should be observed when

working on batteries:

1. Remove watches, rings, or other metal objects.

2. Use tools with insulated handles.

3. Wear rubber gloves and boots.

4. Do not lay tools or metal parts on top of batteries.

5. Disconnect charging source prior to connecting or disconnecting

battery terminals.

Do not plug or unplug the battery connector if UPS works in DC

(discharging) mode.

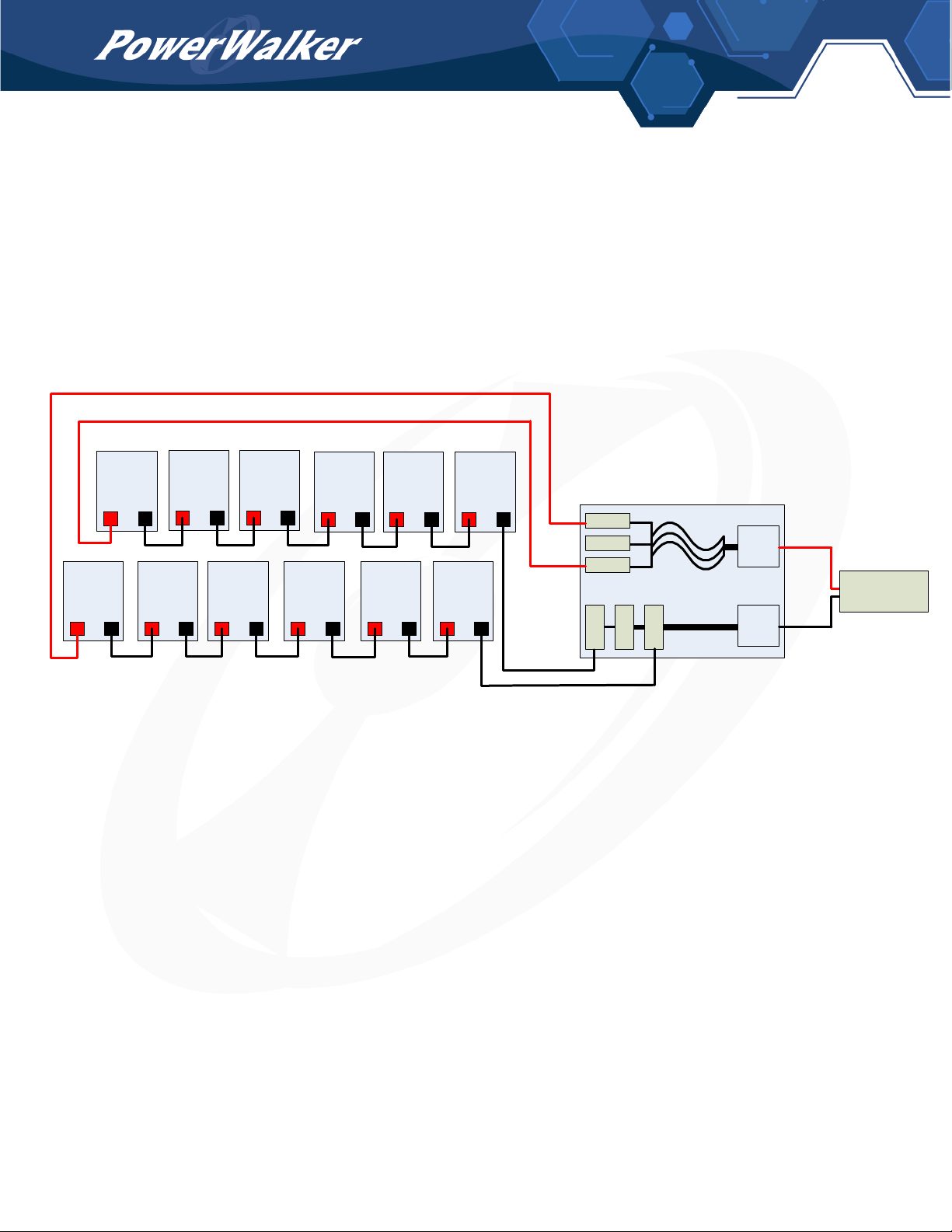

How to assemble BP S72T-12x9Ah

Warning:

Be careful when connect batteries, do not make batteries have short circuit.

1.The receptacle’s wires have been assembled, please do not dismantle them.

2.Please assemble the 12PCS batteries with black wire into the Battery Case as below.

a). Install the 8PCS batteries in battery case and connect it with cable, lock it by metal.

b). Connect the 4PCS batteries and put it into battery case, lock it by metal.

BAT No.1 (-) BAT No.2 (+) BAT No.2 (-) BAT No3. (+)

BAT No.3 (-) BAT No.4 (+) BAT No.4 (-) BAT No.9 (+)

BAT No.9 (-) BAT No.10 (+)

String 2:

BAT No.11 (-) BAT No.12 (+) BAT No.12 (-) BAT No.5 (+)

BAT No.5 (-) BAT No6. (+) BAT No.6 (-) BAT No7. (+)

BAT No.7 (-) BAT No.8 (+)

So you finish assembling batteries and you can fix the cover now.

Battery

NO.12

FUSE BOARD

P2 P11

P5P4 P6 P10

BAT-

BAT+

Battery

NO.3 +-

Battery

NO.4

Battery

NO.6

Battery

NO.5

Battery

NO.11

External

Connector

Battery

NO.1

Battery

NO.7

Battery

NO.2

Battery

NO.8

Battery

NO.9 +-

Battery

NO.10

Note:

String 1:
