Powerware 5115 Manuale utente

500–1400 VA

User’s Manual

User’s Manual 500-1400 VA

1015715

Revision B

Table of Contents

1 Powerware 5115 — Introduction ...................................................................5

Special Symbols .................................................................................................. 6

2 Installation ......................................................................................................7

Inspecting the Equipment .................................................................................. 7

Safety Precautions .............................................................................................. 7

Installing the UPS ............................................................................................... 7

UPS Rear Panels.................................................................................................. 9

3 Operation and Configuration .........................................................................10

Turning the UPS On .......................................................................................... 10

Starting the UPS on Battery ............................................................................... 10

Turning the UPS Off .......................................................................................... 10

Standby Mode.................................................................................................... 10

UPS Front Panel ................................................................................................ 10

Initiating the Self–Test ....................................................................................... 11

Voltage Configuration ........................................................................................ 11

4 Communication options.................................................................................12

Communication Port ......................................................................................... 12

USB Port ............................................................................................................ 13

Network Transient Protector ............................................................................. 13

5 UPS Maintenance ...........................................................................................14

UPS and Battery Care ........................................................................................ 14

Storing the UPS and Batteries ............................................................................ 14

Replacing Batteries............................................................................................. 14

Testing New Batteries ........................................................................................ 15

Recycling the Used Battery ................................................................................ 17

6 Troubleshooting .............................................................................................17

Audible Alarms and UPS Conditions ................................................................. 17

Silencing an Audible Alarm ............................................................................... 17

Service and Support .......................................................................................... 19

Warranty ............................................................................................................ 19

7 Specifications .................................................................................................19

Class B EMC Statements

FCC Part 15

NOTE This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

ICES-003

This Class B Interference Causing Equipment meets all requirements of the Canadian

Interference Causing Equipment Regulations ICES–003.

Cet appareil numérique de la classe B respecte toutes les exigences du Reglement sur le

matériel brouilleur du Canada.

Requesting a Declaration of Conformity

Units that are labeled with a CE mark comply with the following harmonic standards

and EU directives:

•Harmonic Standards: EN 50091-1-1 and EN 50091-2

•EU Directives:73/23/EEC, Council Directive on equipment designed for use

within certain voltage limits

93/68/EEC, Amending Directive 73/23/EEC

89/336/EEC, Council Directive relating to electromagneticcompatibility

92/31/EEC, Amending Directive 89/336/EEC relating to EMC

The EC Declaration of Conformity is available upon request for products with a CE

mark. For copies of the EC Declaration of Conformity, contact:

Powerware Oy

Koskelontie 13, FIN-02920 Espoo

Finland

Phone: +358-9-452 661

Fax: +358-9-452 66 396

The contents of this manual are the copyright of the publisher and

may not bee reproduced (even extracts) unless permission is

granted. Every care has been taken to ensure the accuracy of the

information contained in this manual, but no liability can be

accepted for any errors or omission. The right to make design

modifications is reserved.

500 - 1400 VA

User’s manual

1015715

Revision B

1. Powerware® 5115 — Introduction

The Powerware 5115 uninterruptible power system (UPS) protects your sensitive

electronic equipment from basic power problems such as power failures, power sags,

power surges, brownouts, and line noise.

Power outages can occur when you least expect it and power quality can be erratic.

These power problems have the potential to corrupt critical data, destroy unsaved work

sessions, and damage hardware — causing hours of lost productivity and expensive

repairs.

With the Powerware 5115, you can safely eliminate the effects of power disturbances

and guard the integrity of your equipment. The Powerware 5115’s flexibility to handle

an array of network devices makes it the perfect choice to protect your LANs, servers,

workstations, and other electrical equipment.

Figure 1. Powerware 5115

Because an integral part of power protection is power management software, the

Powerware 5115 comes fully equipped with a communication port, serial cable, and a

CD containing both LanSafe III for networked systems and FailSafe III for standalone

systems.

Providing outstanding performance and reliability, the Powerware 5115’s unique

benefits include the following:

•Advanced Battery Management (ABM™) doubles battery service life, optimizes

recharge time, and provides advanced warning before the end of battery life.

•Buck and Boost voltage regulation ensures consistent voltage to your load by

correcting voltage fluctuations.

•Hot–swappable batteries simplify maintenance by allowing you to replace batteries

safely without powering down the critical load.

•Network Transient Protector guards your network equipment from surges.

•Start–on–battery capability allows you to power up the UPS even if utility power is

not available.

•The Powerware 5115 is backed by worldwide agency approvals.

500 - 1400 VA

User’s Manual

1015715

Revision B

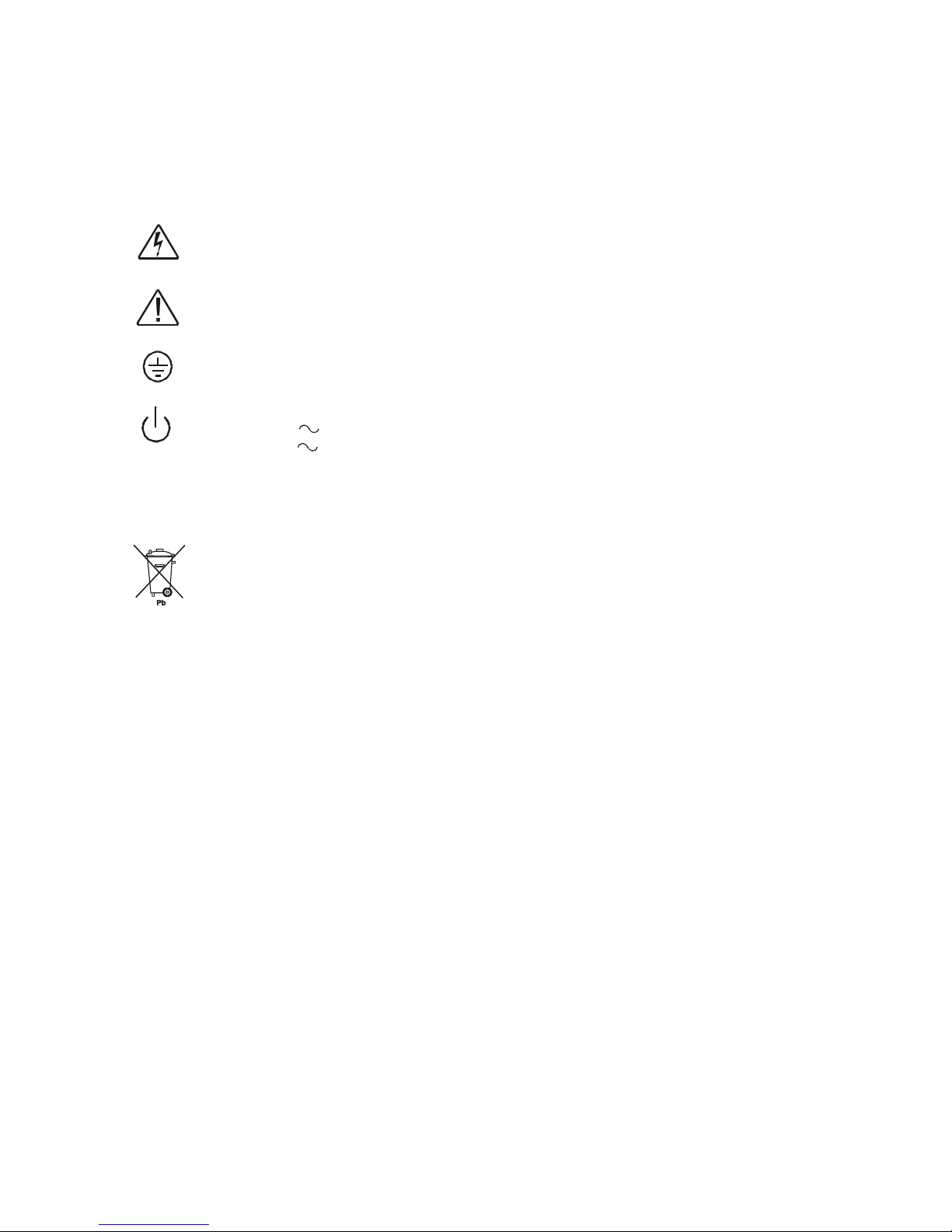

Special Symbols

The following are examples of symbols used on the UPS to alert you to important

information:

RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is

present and the associated warning should be observed.

CAUTION: REFERTO OPERATOR’S MANUAL - Refer to your

operator’s manual for additional information, such as important operating

and maintenance instructions.

SAFETY EARTHINGTERMINAL - Indicates the primary safety ground.

LOAD ON/OFF - Press the button with this symbol to energize the output

receptacles ( indicator illuminates) or to de–energize the output

receptacles ( indicator is off).

RJ-45 RECEPTACLE - This receptacle provides network interface

connections. Do not plug telephone or telecommunications equipment into

this receptacle.

This symbol indicates that you should not discard the UPS or the UPS

batteries in the trash. The UPS may contain sealed, lead–acid batteries.

Batteries must be recycled.

500 - 1400 VA

User’s manual

1015715

Revision B

2. Installation

Inspecting the Equipment

If any equipment has been damaged during shipment, keep the shipping cartons and

packing materials for the carrier or place of purchase and file a claim for shipping

damage. If you discover damage after acceptance, file a claim for concealed damage.

To file a claim for shipping damage or concealed damage: 1) File with the carrier

within 15 days of receipt of the equipment; 2) Send a copy of the damage claim within

15 days to your service representative.

Safety Precautions

Read the following precautions before you install the UPS.

SAVE THESE INSTRUCTIONS. This manual contains important instructions that you

should follow during installation and maintenance of the UPS and batteries.

Please read all instructions before operating the equipment and save this manual for

future reference.

WARNING

This UPS contains its own energy source (batteries). The output receptacles

may carry live voltage even when the UPS is not connected to an AC supply.

Do not remove or unplug the input cord when the UPS is turned on. This

removes the safety ground from the UPS and the equipment connected to

the UPS.

To reduce the risk of fire or electric shock, install this UPS in a temperature

and humidity controlled, indoor environment, free of conductive

contaminants. Ambient temperature must not exceed 40°C (104°F). Do not

operate near water or excessive humidity (95% max).

To comply with international standards, the sum of earth leakage current

from the load connected to the UPS must not exceed 1.5 mA.

Installing the UPS

The following steps explain how to install the UPS. See “UPS Rear Panels” on page 9 for

the rear panel of each model.

Please see a typical installation (fig 2)

1. If you are installing power management software, connect your computer to the

USB port or UPS communication port using the supplied cable(see page12 and 13).

NOTE

If you need to change the factory–set defaults for the output voltage or input

voltage range, see “Voltage Configuration” on page 11 before installing the UPS.

2. Unplug the power cord from your largest load. Plug this power cord into the male

inlet of your UPS. You do not need to remove the cord from the wall outlet.

500 - 1400 VA

User’s Manual

1015715

Revision B

3. Plug the equipment to be protected into the UPS output receptacles.

DO NOT protect laser printers with the UPS because of the exceptionally high

power requirements of the heating elements.

4. Start the UPS by pressing the button. The indicator illuminates indicating

that power is available from the UPS output receptacles.

The UPS conducts a self–test and enters Normal mode. If the alarm beeps or a

UPS alarm indicator stays on, see Table 3 on page 16.

The installation is complete. To learn how to operate the UPS, see “Operation” on

page 10.

NOTE

The batteries charge to 90% capacity in approximately 3 hours. However, it is

recommended that the batteries charge for 6 to 24 hours after installation or long-

term storage.

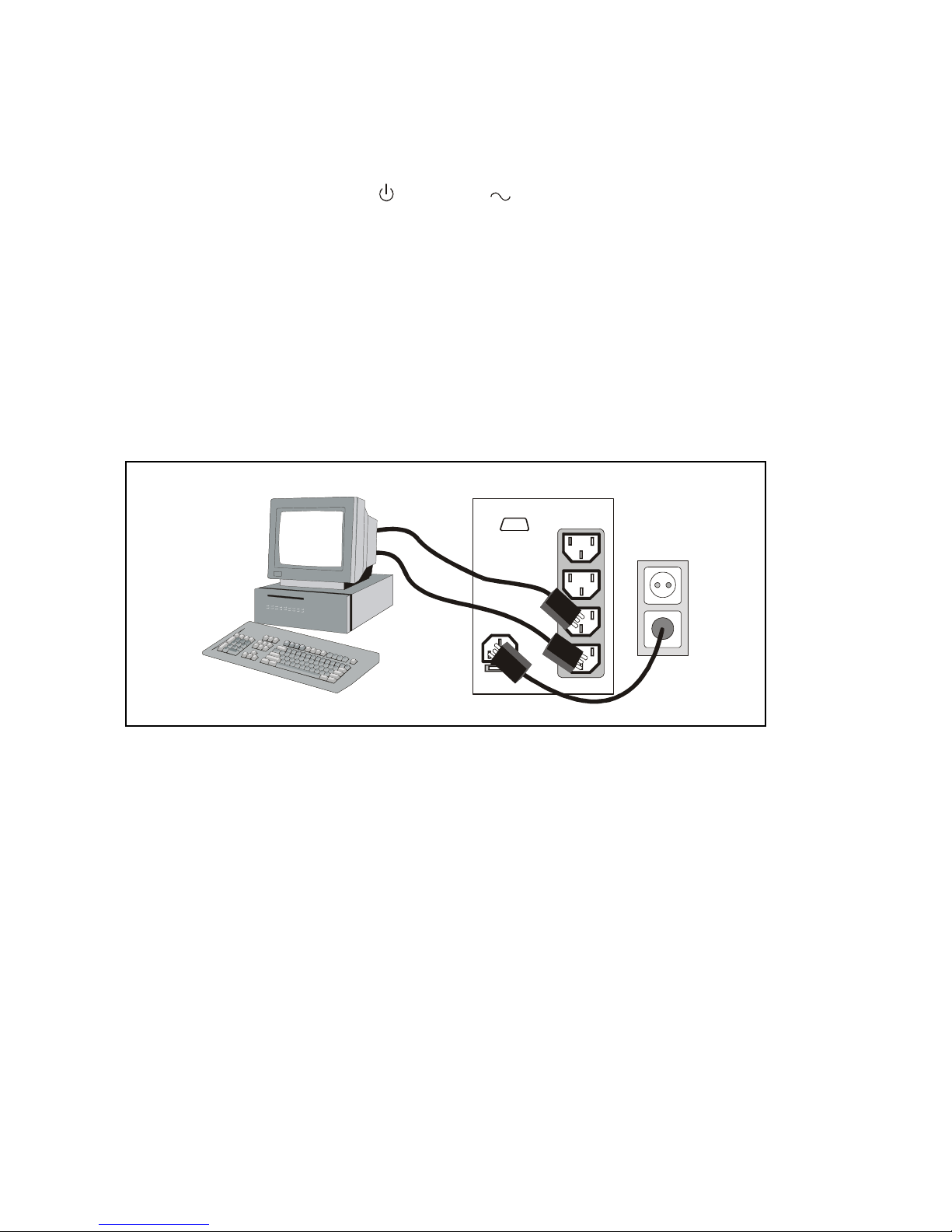

Figure 2. Installation

Your Load

LS3

500 - 1400 VA

User’s manual

1015715

Revision B

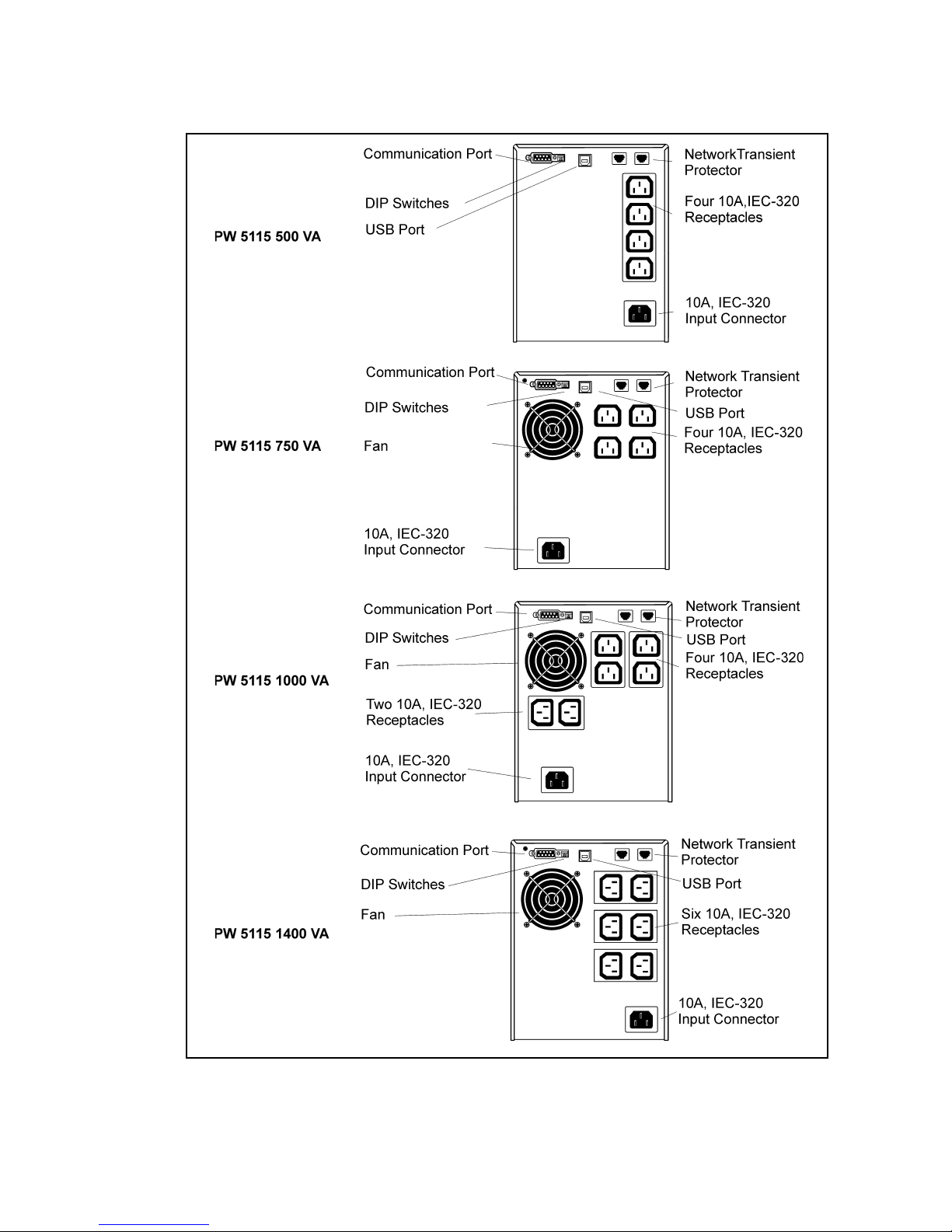

UPS Rear Panels

Figure 3. Rear panels

500 - 1400 VA

User’s Manual

1015715

Revision B

3. Operation and Configuration

Turning the UPS On

To turn on the UPS, press the button on the front panel (shown in Figure 4). After

the UPS is turned on, it conducts a self–test and enters Normal mode. The indicator

illuminates indicating that power is available from the UPS output receptacles.

Starting the UPS on Battery

To turn on the UPS without using utility power, press and hold the button for two

seconds. When the UPS starts on battery, it does not conduct a self–test to conserve

battery power.

NOTE

The UPS does not automatically detect the input frequency when starting on

battery. The default frequency for 230V models is 50 Hz;

Turning the UPS Off

To turn off the UPS, press the button on the front panel and then unplug the UPS

from the power outlet. If you do not unplug the UPS, it remains in Standby mode.

Standby Mode

When the UPS is turned off and plugged into a power outlet, the UPS is in Standby

mode. The battery recharges when necessary and the indicator is off, indicating that

power is not available from the UPS output receptacles.

UPS Front Panel

The UPS front panel indicates the UPS status and also identifies potential power

problems. Figure 4 shows the UPS front panel indicators and controls. If the alarm

beeps or any alarm indicators are on, see Table 3 on page 17 to identify and correct the

problem.

Figure 4. UPS Front Panel

On/Off Button

Test/Alarm Reset Button

Power On Indicator

On Battery Indicator

Overload Indicator

Service Indicator

Altri manuali per 5115

Indice

Altri manuali Powerware UPS

Powerware

Powerware 5140 Manuale utente

Powerware

Powerware 9335 Manuale utente

Powerware

Powerware Ferrups FE/QFE 500VA Manuale utente

Powerware

Powerware Prestige 6000 Guida all'installazione

Powerware

Powerware Prestige series 9 Manuale utente

Powerware

Powerware 9910 p Series Manuale utente

Powerware

Powerware 9390 Manuale utente

Powerware

Powerware 300 VA Manuale utente

Powerware

Powerware 9125 Manuale utente

Powerware

Powerware Prestige series 9 Manuale utente

Powerware

Powerware 5105 Manuale utente

Powerware

Powerware 9315 Manuale utente

Powerware

Powerware 9390 Manuale utente

Powerware

Powerware UPS 1000 - 2200 Manuale utente

Powerware

Powerware 700 3000 VA Manuale utente

Powerware

Powerware 9330 Manuale utente

Powerware

Powerware 9305 Manuale operativo

Powerware

Powerware 3110 Manuale utente

Powerware

Powerware 8 - 15 kVA Manuale utente

Powerware

Powerware 5125 P33 Manuale utente

Powerware

Powerware 9120 Manuale utente

Powerware

Powerware 9125 Manuale utente

Powerware

Powerware 9120 Manuale utente

Powerware

Powerware 5119 RM Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
