C534. C534i Self Powered Elliptical Fitness Crosstrainerl

C534, C534i Elliptical Fitness Crosstrainer

Warning: This service manual

for use by Precor trained service providers only.

Ifyou are notaPrecorTrained Servicer, you must notattemptto serviceany PrecorProduct;

Call your dealer for service.

This document contains information required to perform the majority of troubleshooting, and

replacement procedures required to repair and maintain this product.

This document contains general product information, software diagnostic procedures (when

available), preventative maintenance procedures, inspection and adjustment procedures,

troubleshooting procedures, replacement procedures and electrical block and wiring diagrams.

To move directly to aprocedure. click the appropriate procedure in the bookmark section to the

left of this page. You may "drag" the separator bar between this page and the bookmark section

to change the size of the page being viewed.

Unauthorized Reproduction and Distribution Prohibited

Law

Page 1

C534, C534i Self Powered Elliptical Fitness Crosstrainer

•Section One -Things

You

Should Know

Right, Left, Front, and Back Conventions

this manual, right, left, front, and back are from the perspective of auser standing on the EFX,

facing the display enclosure.

General System Information

•The generator performs three functions

the EFX. First, by controlling the amount of

electrical load applied to the generator, the user's pedalling resistance is controlled.

Second, the generator is used to charge the EFX's internal battery. Lastly, one of the

generators three phase output windings is monitored to determine when the unit is

use

and when it is idle. This system also determines the stride rate by determining the operating

speed (output frequency) of the monitored generator winding.

Warning and Caution Statements and General Safety Guidelines

Warning statements indicate aparticularly dangerous activity. Warning statements you will find in

this manual include:

••If the EFX has been in recent use, the load resistors and load resistor mounting bracket may

be extremely hot.

•Because this is aself powered unit, it will either be necessary to either equip the unit with

the optional external power supply or have an assistant pedal on the unit while voltage

measurements are being taken. Because of the danger of working on the unit while it

motion using the optional external power supply

strongly recommended.

•When the unit is used, stairarms are in motion, the generator will operate and produce

potentially hazardous voltages even when the battery

disconnected.

•To remove power from the EFX, the optional external power supply (when equipped) must

be disconnected from the wall outlet and the red (positive) lead must be disconnected from

the battery. Always ensure that the EFX external power supply is unplugged from the wall

outlet and the red (positive) lead is removed from the battery when you inspect or adjust the

EFX,

when you isolate, remove, or replace an EFX component.

•Removing the covers exposes high voltage components and potentially dangerous

machinery. Exercise extreme caution when you perform maintenance procedures with the

cover(s) removed.

••During service operations you will be very close to moving machinery and voltage bearing

components. When you perform maintenance procedures with the covers removed, remove

jewelry (especially from ears and neck), tie up long hair, remove neck ties, and do not wear

loose clothing.

Page 2

••

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Exercise caution when touching any wire or electrical component during EFX operation.

• A pinching hazard exists when the unit

operated by turning the crankarms by hand. It is

possible to seriously pinch afinger between the crankarm and stairarm. The stairarms

should be removed before operating the crankarms by hand.

Caution statements are intended to prevent damage to the EFX as aresult

the current activity.

Caution statements included in this manual are listed below:

•When it is necessary to lift or move the EFX, ensure that the EFX has adequate support and

that you use proper lifting techniques.

Safety guidelines you should know and follow include:

•Read the owner's manual and follow all operating instructions.

•Operate the EFX on asolid, level surface.

•Visually check the EFX before beginning service or maintenance operations. If it is not

completely assembled or is damaged in any way, exercise extreme caution while operating

and checking the EFX.

••When operating the EFX, do not wear loose clothing. Do not wear shoes with heels or

leather soles. Check the soles of your shoes and remove any embedded stones. Tie long

hair back.

•

•Do not rock the unit. Do not stand or climb on the handlebars, display enclosure,

cover.

•Do not set anything on the handlebars, display enclosure,

cover. Never place liquids on

any part

the EFX, while performing service.

•To prevent electrical shock, keep all electrical components away from water and other

liquids.

•Do not use accessory attachments that are not recommended by the manufacturer-such

attachments might cause injuries.

Page 3

C534, C534i Self Powered Elliptical Fitness Crosstrainer

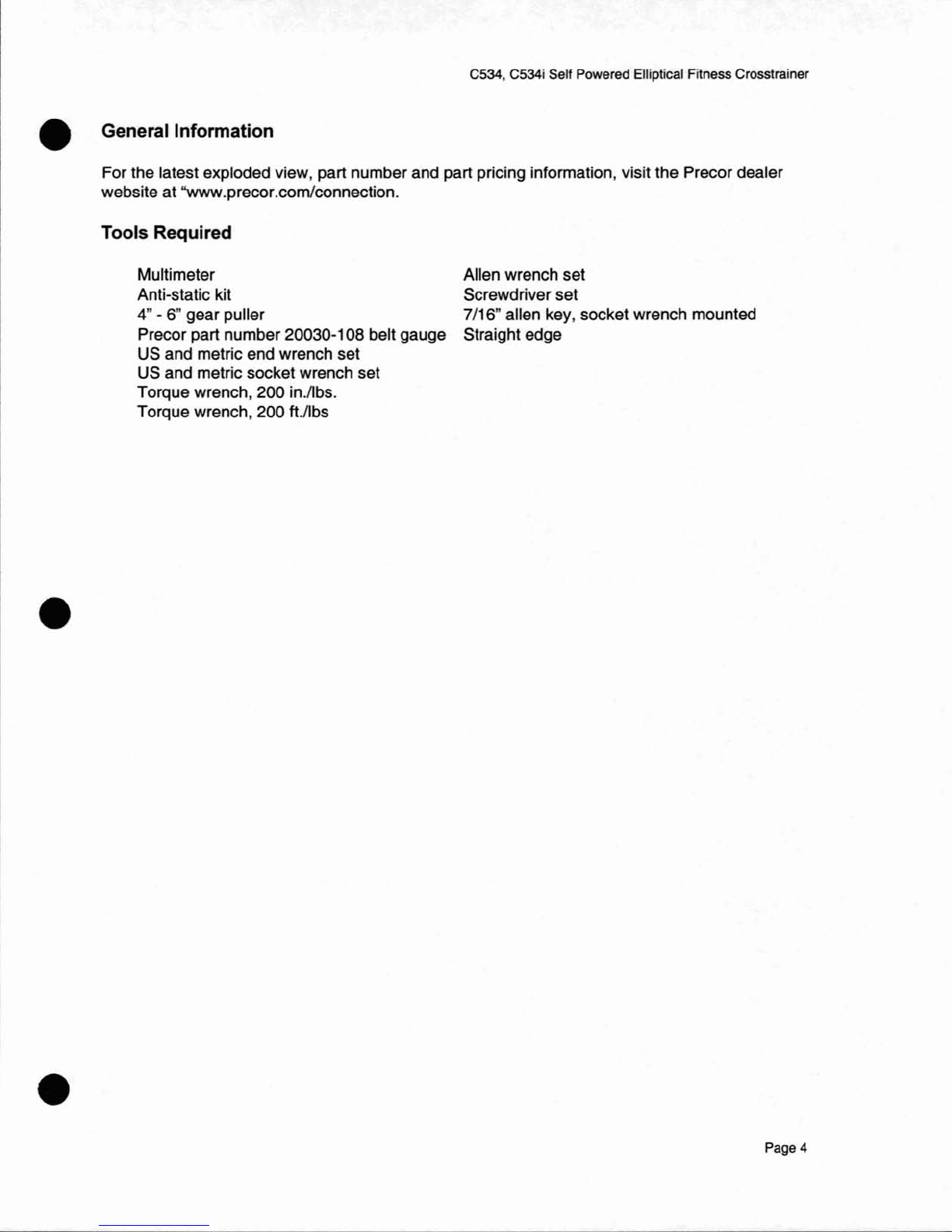

•General Information

For the latest exploded view, part number and part pricing information, visit the Precor dealer

website at "www.precor.comlconnection.

Tools Required

•

Multimeter

Anti-static kit

-6" gear puller

Precor part number 20030-108 belt gauge

US and metric end wrench set

US and metric socket wrench set

Torque wrench, 200 in.llbs.

Torque wrench, 200 ft./Ibs

Allen wrench set

Screwdriver set

7/16" allen key, socket wrench mounted

Straight edge

Page 4

•

C534, C534i Self Powered Elliptical Fitness Crosstrainerl

Section Two -Preventive Maintenance

Preventive maintenance measures are either scheduled or unscheduled. Scheduled preventive

maintenance activities are included here so that you are aware of preventive measures

performed on aregular basis.

Regular Preventive Maintenance (Owner)

Cleanliness of the EFX and its operating environment will keep maintenance problems and

service calls to aminimum. Precor recommends that you perform the following preventive

maintenance schedule.

After Each Use

•Unplug the optional external power supply (when equipped) from the AC outlet.

•Wipe down the covers, handlebars, stairarm wheels and stairarm ramps with adamp cloth.

Daily Maintenance

Clean the EFX's frame, covers, stairarms, stairarm ramps and stairarm wheels using water or a

30:1

solution of Simple Green® and water. Wipe the surface of the electronic console with a

damp sponge or soft cloth. Dry with aclean towel. A30:1solution of Simple Green® and water

the only cleaning solution that has been tested and approved for use on the C534 ramps. Use of

any other cleaner, may cause degradation of the ramp anodizing and void the ramp warranty.

The use of an acid (citric) based cleaner will cause ramp anodizing damage and

not authorized

by Precor.

Weekly Maintenance

•Vacuum underneath the EFX, following these steps:

1.Unplug the optional external power supply (when equipped) from the AC outlet.

Place the EFX on its side.

Note:

Place adrop cloth under the EFX to protect the flooring and to ensure that the EFX handrail

is not scratched or damaged.

Vacuum the rug or damp mop the floor.

Make sure that the floor

dry before returning the EFX to an upright position.

Page 5

C534, C534i Self Powered Elliptical Fitness Crosstrainer

•Quarterly Maintenance

1. Remove the rear covers.

Check the step up and input belt alignment and tension as

Procedure 5.3.

Replace the rear cover.

On-Site Preventive Maintenance (Service Technician)

When you are called to service aEFX, perform these preventive maintenance activities:

•Perform the software diagnostics. Check LED and keypad function. Record the odometer

reading.

•Check speed sensor function

(is

the stride rate displayed when the unit is

operation?). If

not, see Procedure 6.3 (C534) or Procedure 6.4 (C534i).

•Visually inspect the drive belts for cracks, fraying or excessive wear.

•When furnished, inspect the optional power supply cords. If apower supply cord(s)

damaged, install anew power supply.

•

•Visually examine all wires and check connectors and wire connections. Secure connections

and replace wiring as necessary.

Page 6

•C534, C534i Self Powered Elliptical Fitness Crosstrainerl

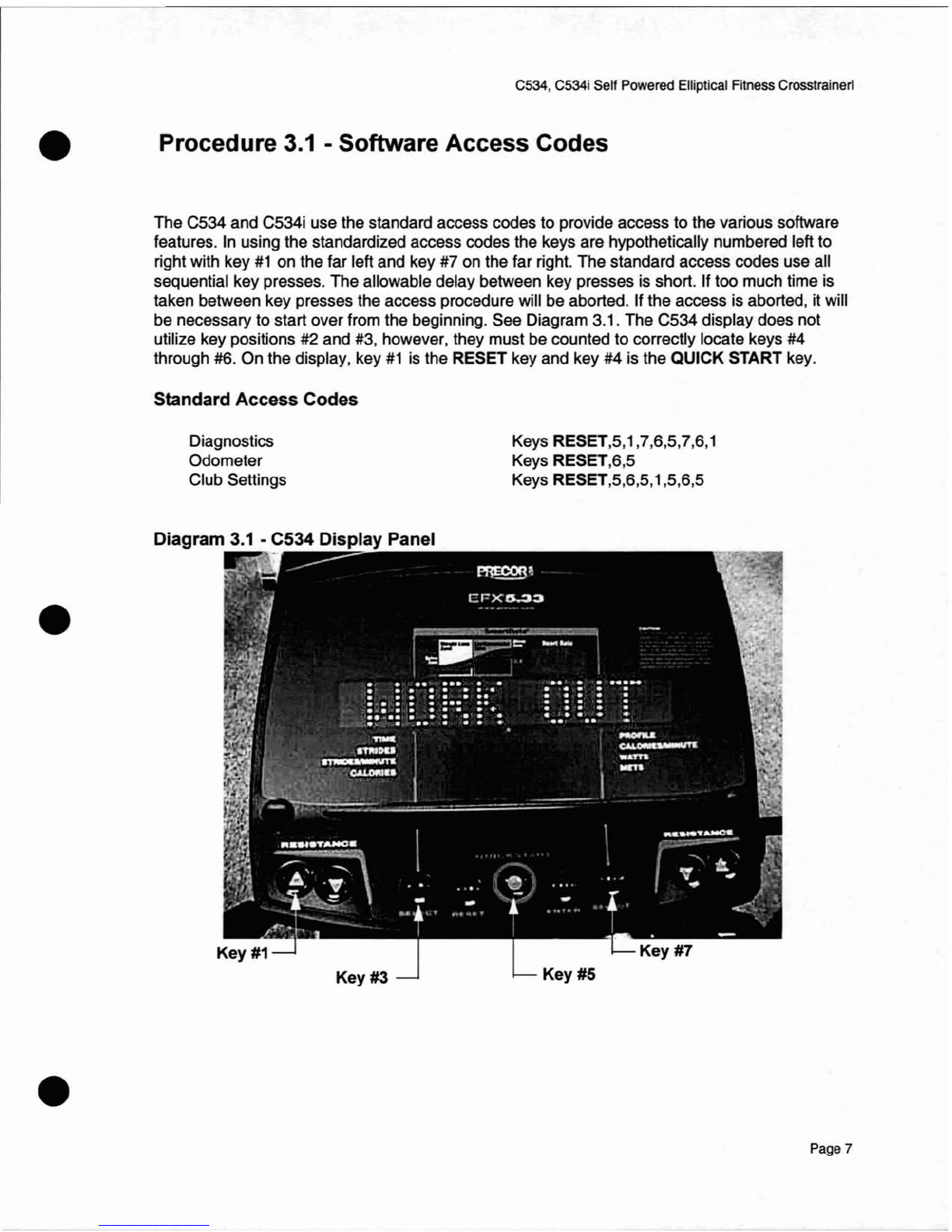

Procedure

3.1

-Software Access Codes

The C534 and C534i use the standard access codes to provide access to the various software

features.

using the standardized access codes the keys are hypothetically numbered left to

right with key

on the far left and key #7 on the far right. The standard access codes use all

sequential key presses. The allowable delay between key presses is short. If too much time

taken between key presses the access procedure will be aborted. If the access is aborted, it will

be necessary to start over from the beginning. See Diagram 3.1. The C534 display does not

utilize key positions #2 and #3, however, they must be counted to correctly locate keys #4

through #6. On the display, key

is the RESET key and key #4 is the QUICK START key.

Standard

Access

Codes

•

Diagnostics

Odometer

Club Settings

Diagram

3.1

-C534 Display Panel

Keys RESET

,5,1

,7,6,5,7,6,1

Keys RESET,6,5

Keys RESET,5,6,5,1 ,5,6,5

Page?

C534. C534i Self Powered Elliptical Fitness Crosstrainer

•Procedure 3.2 -Accessing the Diagnostic Program

The EFX diagnostic software cycles through the following tests:

•Display Test

•Keyboard Test

•Heart Rate Test

•Battery Test

•

RPM

Test

•Brake Test

Procedure

Start pedalling and continue to pedal as you perform step

With the PRECOR banner scrolling, press keys RESET,5,1,7,6,5,7,6,1., sequentially.

The message HARDWARE VALIDATION will be displayed for afew seconds.

The message DISPLAY TEST will be displayed followed by every LED on the display being

illuminated. Check each LED segment to ensure that all of the segments are illuminated.

Press the ENTER key to advance to the keyboard test.

The message KEYBOARD TEST will be displayed followed by agraphical representation of

each key position on the display housing. As each key

the display is pressed the key

representation is turned "off', indicating that the key

functioning. Check each key

this

manner, including the numeric keyboard. Press and hold the ENTER key for 2seconds to

advance to the heart rate test.

e5.

The message HEART RATE TEST will be displayed followed by the unfiltered (U), filtered

(F) and polar (P) heart rate readings if the heart rate option

installed

the C534 and a

chest strap transmitter or atest transmitter is being used. If the heart rate option

not

installed

the C534, the message NO HEART RATE RECEIVER will be displayed instead

of the heart rate readings. Press the ENTER key to advance to the brake test.

The message BATTERY TEST will be displayed followed by the battery voltage. Press the

ENTER key to advance to the RPM test.

The message RPM TEST will be displayed followed by the pulse (power bit) reading and the

RPM

reading. Press the ENTER key to advance to the brake test.

The message BRAKE TEST will be displayed followed the resistance level and brake level

readings. This test allows you to test the brake (resistance) at each resistance level. Press

the ENTER key to exit the diagnostics program.

•Page 8

•

C534. C534i Self Powered Elliptical Fitness Crosstrainerl

Procedure 3.3 -Displaying the Odometer

Procedure

1. Start pedalling and continue to pedal as you perform step 2.

2. With the PRECOR banner scrolling, press keys RESET,6,5, sequentially.

The message INFORMATION DISPLAY will be displayed for afew seconds.

The message ODOMETER will be displayed followed by the total number of strides

accumulated. The total number of strides can be converted to miles by dividing by

2241

to kilometers by dividing by 1392.5. Press the ENTER key to advance to total strides.

The message TOTAL STRIDES will be displayed followed by the total number of strides

logged on the EFX. Press the ENTER key to advance to hour meter.

The message HOUR METER will be displayed followed by the total number of hours that

the C534 has been

use. Press the ENTER key to advance to software version.

The message SOFTWARE VERSION will be displayed followed by the software versions of

the upperand lower PCA's. For example, UPPER 1.01 LOWER 1.01. Press the ENTER key

to advance to error log.

The message ERROR LOG will be displayed followed by the error in log position

Each

log entry shows the log position, the stride count when the error occurred and the hour

meter when the error occurred. For example; 1ER21 123456 STR 45678 HRS. The error

log can record up to ten error conditions. The error code in position one will be the most

recent error and the error in position ten will be the oldest error. If more than ten errors have

been logged. only the ten most recent will be displayed. When anew error is logged. each

existing error

pushed down one position and the error in position 10, if any,

lost. Use the

and£.

keys to move through the log. Pressing and holding the QUICK START key for

four seconds will clear the log. Press the ENTER key to exit the odometer program.

Page 9

C534, C534i Self Powered Elliptical Fitness Crosstrainer

•Procedure 3.4 -Club Settings

Start pedalling and continue to pedal as you perform step

With the PRECOR banner scrolling, press keys RESET,5,6,5,1,5,6,5, sequentially.

The message SET CLUB PARAMETERS will be displayed for afew seconds.

The message SELECT LANGUAGE will be displayed followed by the currently selected

language. Use

the"

and...

keys to select the language preference. Press the ENTER

key to advance to units of measurement.

The message SELECT UNITS will be displayed followed by the currently selected unit of

measurement. Use

the"

and

...

keys to select either U.S. Standard

METRIC

measurements. Press the ENTER key to advance to maximum workout time.

•

The message SET MAX WORKOUT TIME will be displayed followed by the currently

selected maximum workout time. Use

the"

and

...

keys to select the maximum workout

time. The maximum workout time may be set between 1and 240 minutes or no limit. Press

ENTER to advance to maximum pause time.

The message SET MAX PAUSE TIME will be displayed followed by the currently selected

maximum pause time. Use

the..

and

...

keys to select the maximum pause time. The

maximum pause time

the that will elapse after the pause key has been pressed until the

unit resets. The maximum pause time may be set between 1and 120 seconds. Press

ENTER to exit the club settings program.

Page 10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Precor Ellittica

Precor

Precor EFX Manuale utente

Precor

Precor C576i Manuale utente

Precor

Precor Resolute RSL 215 Manuale utente

Precor

Precor EFX524 Manuale utente

Precor

Precor Resolute RSL 714 Manuale utente

Precor

Precor Move Beyond EFX556 NAVY Manuale utente

Precor

Precor HANDBOEK EFX 556i Istruzioni per l'installazione e il funzionamento

Precor

Precor EFX524 Manuale utente

Precor

Precor EFX EFX 5.23 Manuale utente

Precor

Precor Resolute RSL 314 Manuale utente

Precor

Precor Resolute RSL 208 Manuale utente

Precor

Precor Experience EFX 556i Manuale utente

Precor

Precor EFX 883 Istruzioni di montaggio

Precor

Precor Precision 400 Series Manuale utente

Precor

Precor Resolute RSL 324 Manuale operativo

Precor

Precor EFX EFX 821 Istruzioni di montaggio

Precor

Precor EFX 245 Manuale utente

Precor

Precor Experience EFX 700 SERIES Manuale utente

Precor

Precor EFX 425 Manuale utente

Precor

Precor EFX5.21s Manuale utente

Precor

Precor EFX 835 Istruzioni di montaggio

Precor

Precor C524 Manuale utente

Precor

Precor Experience Series Manuale utente

Precor

Precor PRECISIONSERIES Manuale tecnico

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente

Reebok

Reebok 1000 Zx Elliptical Manuale utente
