PDS-010 Projector Bracket

Installation Instructions Page 1

Premier Mounts

3130 E. Miraloma Ave.

Anaheim, CA 92806

Phone: (800) 368-9700 Fax: (800) 832-4888

[email protected] www.mounts.com

PDS-010 Projector Bracket Installation Instructions

PDS-010 Bracket

(Qty 1)

M4 x 10mm Phillips

Head Screws

(Qty 3)

1. Invert the projector and place it on a soft and flat surface. Remove any foot

levelers that might possibly prevent the correct installation of the bracket.

2. Locate the three mounting points located on the bottom of the projector.

3. Line up the mounting points on the projector with the mounting holes on

the PDS-010 mounting bracket.

1. Using a screwdriver, secure the PDS-010 mounting bracket using three (3)

M4 x 10mm Phillips Head screws. Do not over tighten these screws.

Overtightening the screws may result in damaging the threaded inserts on

the projector.

NOTE: Please refer to the PDS Base Box installation Instructions to attach

the PDS Base Box to the PDS-010 mounting bracket.

NOTE: The projector (shown above) is for illustration purposes only.

IN-PDS010.R0

M4 x 10mm Security

Head Screws

(Qty 3)

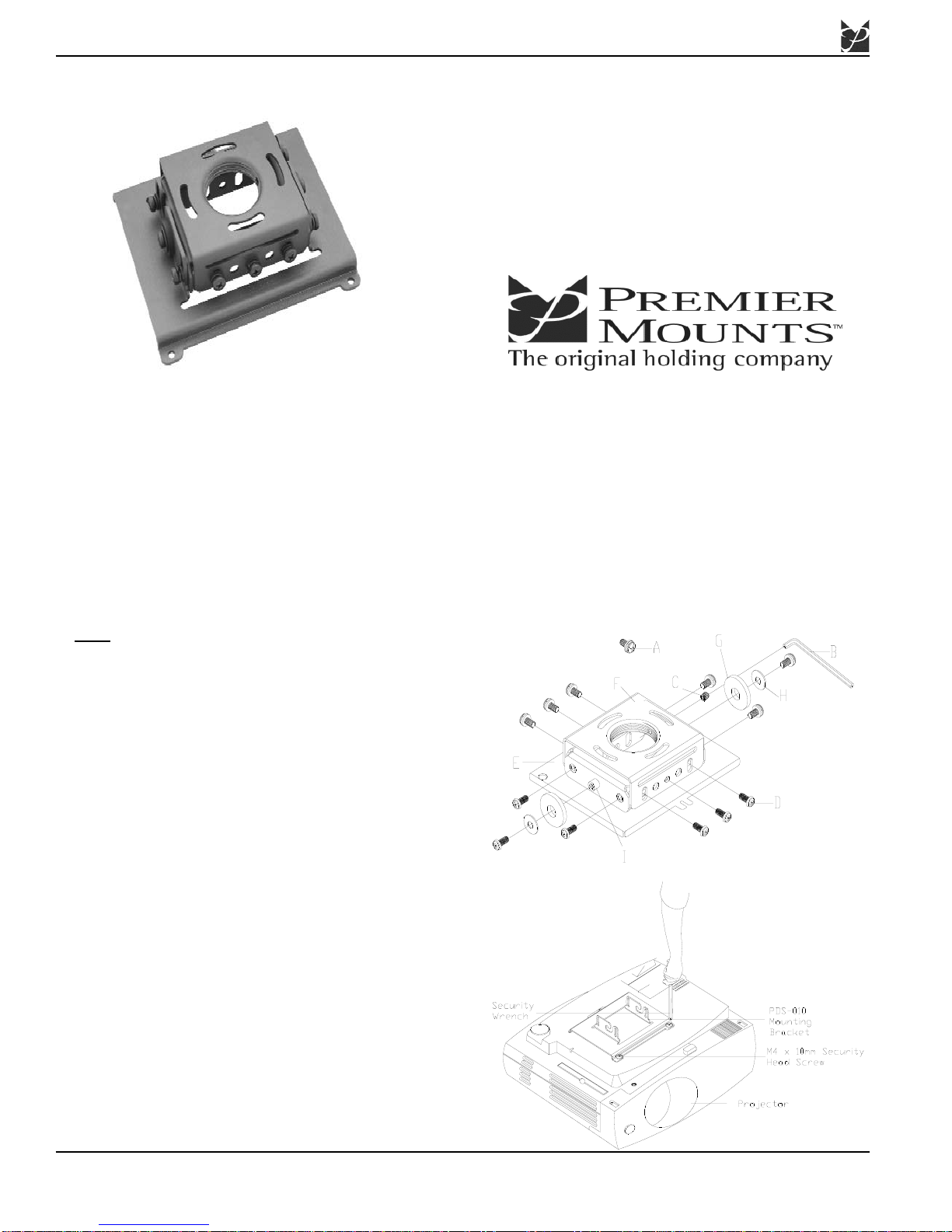

LOCK-IT™ Security System

Page 2 Installation Instructions

LOCK-IT™

Security System

NOTE: To utilize the LOCK-IT™ Security System, all M6 x 12mm

Phillips Pan Head screws (A) must be removed prior to

installing the M6 x 12mm Security Screws (D).

1. Remove all pre-installed M6 x 12mm Phillips Pan Head screws

(A- 6 total).

2. Use the M5 Security Wrench (B- supplied) to install and tighten the

M6 x 12mm Security Screws (D).

3. Using the security wrench (supplied), remove the M6 x 8mm standard

set screw and replace it with the M6 x 8mm security set screw (C).

4. Insert the nylon washer (G), 1/4” flat washer (H) and the M6 x 12mm

Security Screw (D) into the pivot point (I).

5. Attach bracket to projector using security screws.

6. Once the Phillips Pan Head screws have been replaced with the

security screws, re-attach the bracket (E) to the mount (F).

7. Insert the four tilt adjustment security screws (two per side).

8. Follow the instructions in the PDS Manual to complete the installation.

Premier Mounts

3130 E. Miraloma Ave.

Anaheim, CA 92806

Phone: (800) 368-9700 Fax: (800) 832-4888

[email protected] www.mounts.com

Mounting Bracket Security Screws

1. Using a security wrench (supplied), secure the PDS-010 mounting

bracket using three (3) M4 x 10mm Security Head screws. Do not over

tighten these screws. Overtightening the screws may result in damaging

the threaded inserts on the projector.
