Installation Guide
Flat Large Matrix Video Wall Mount
LMVF
500 W Central Ave, Suite A, Brea, CA 92821 USA
5/16” x 3” Lag Bolts
(Qty 4)
Thread Depth Indicator
(Qty 1)
Universal Spacers
(Qty 8)
Finned Anchors
(Qty 4)
5/16” Flat Washers
(Qty 4)
Universal Washers
(Qty 4)
Pencil Protective Eyewear
Electronic Stud Finder M6 or 1/4” Drill Bit 3/8” Masonry Drill Bit
Portable DrillPhillips Head Screwdriver Socket Wrench
13mm or 1/2” Socket
Level
M5 Allen Driver
(Qty 1)
M4 x 12mm (Qty 4)
M4 x 16mm (Qty 4)
M4 x 25mm (Qty 4)
M6 x 12mm (Qty 4)
M6 x 16mm (Qty 4)
M6 x 25mm (Qty 4)
M8 x 12mm (Qty 4)
M8 x 16mm (Qty 4)
M8 x 25mm (Qty 4)
Wall Mount
(Qty 1)
Bracket
(Qty 1 Pair)

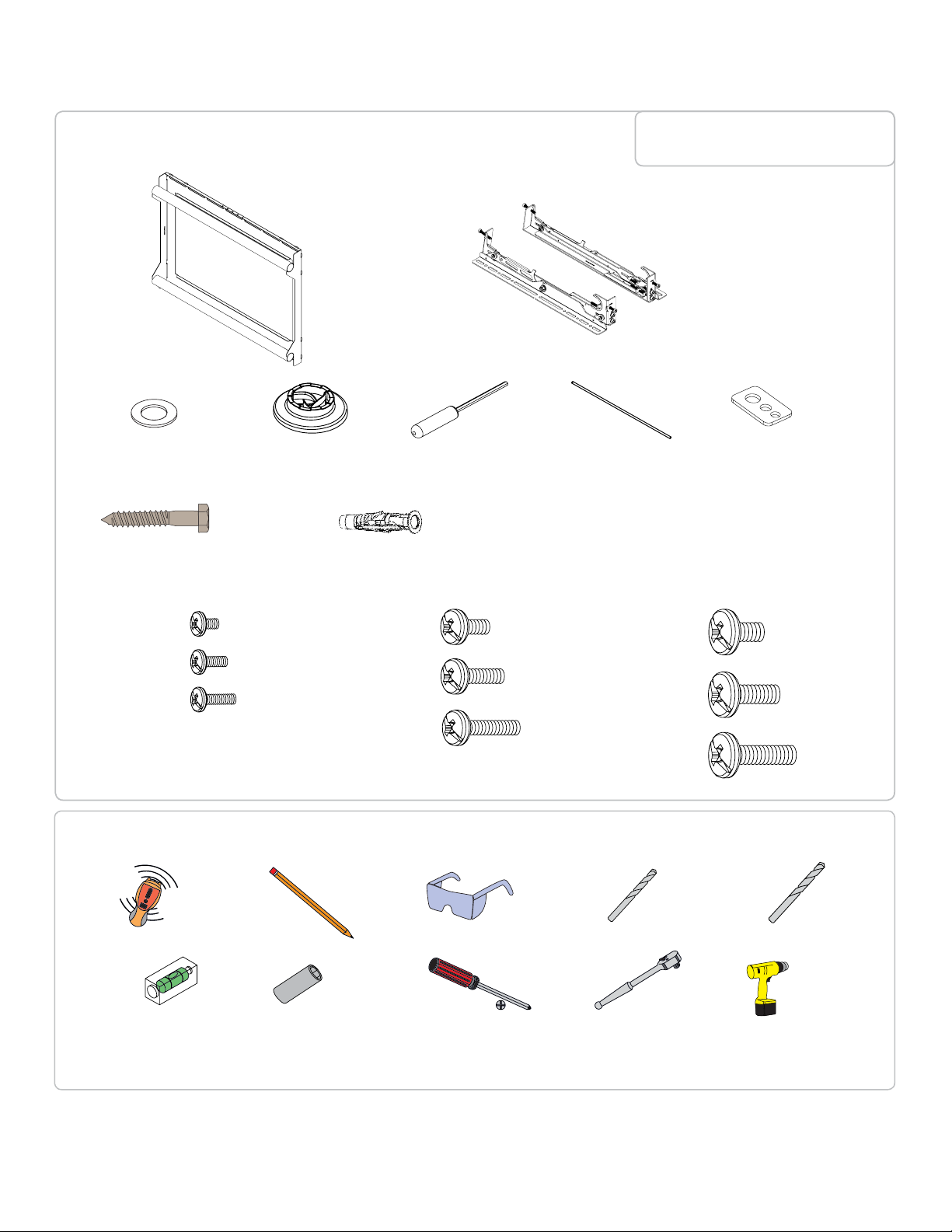

Included Components
Required for installation
Maximum Flat Panel Weight:
160 lb. / 72.57 kg.
Installation Guide
LMVF
1
3
2
4
1.
the vicinity of the mount.

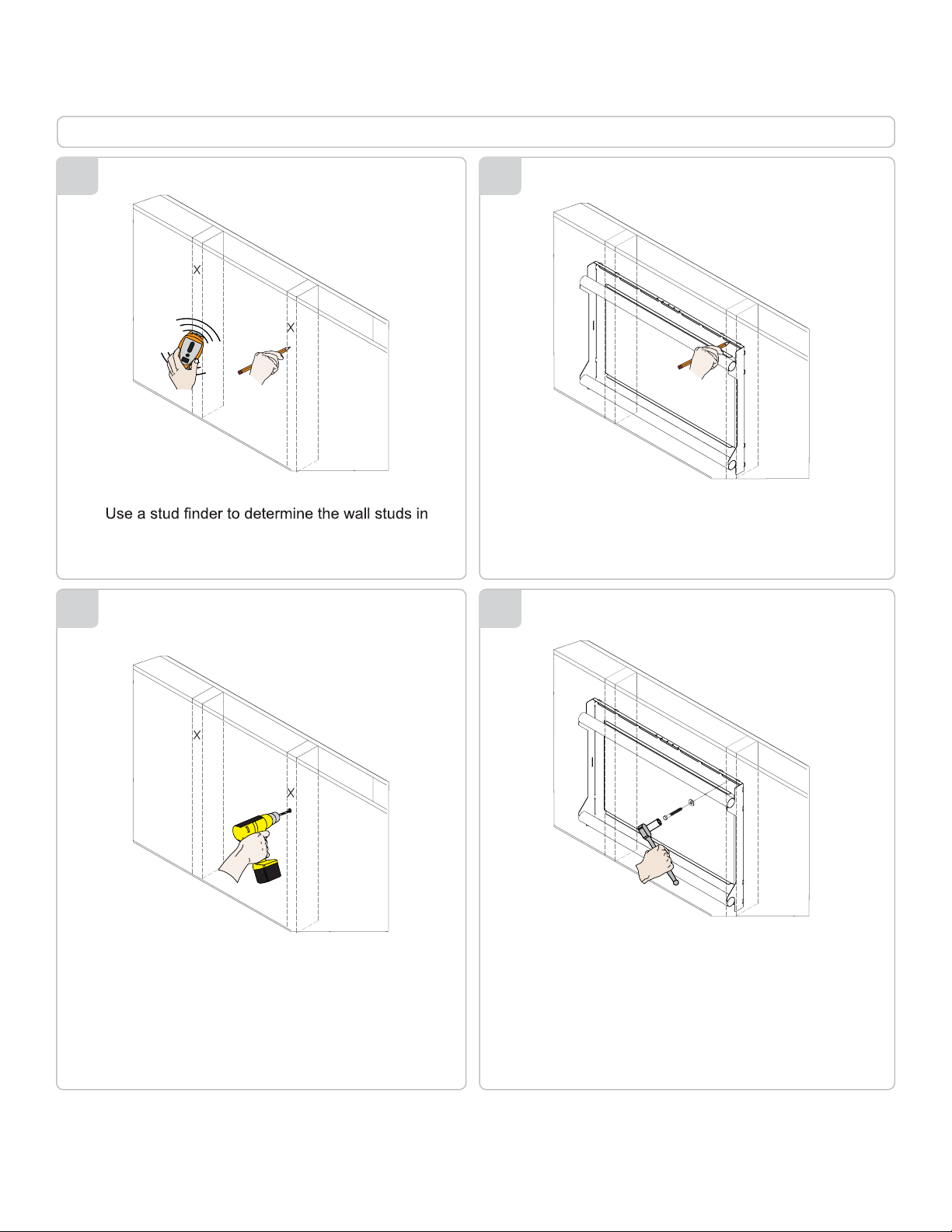

2. Use a pencil to mark each of the wall studs.
Wood Stud Installation
Use a pencil to mark the upper right mounting location
of the wall stud.
Drill a pilot hole using a M6 or 1/4” drill bit on the
stud that was marked on the upper right.
1. Place the mount against the wall and align it
with the pilot hole.
2. Insert one (1) 5/16” x 3” lag bolt one (1) 5/16”
washer into the upper right pilot hole.
3. Use a socket wrench and a 1/2” socket to
tighten the lag bolt.
4. Do not over tighten the lag bolt.
Installation Guide
LMVF
Page 3
5
7
6
1. Level the mount
2. Use a pencil to mark the remaining three (3)
mounting locations
1. Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”
washer into each pilot hole.
2. Tighten all lag bolts using a socket wrench and
1/2” socket.
3. Do not over tighten the lag bolts
Drill a pilot hole in each of the three (3) marks with a
power drill and a M6 or 1/4” drill bit.
2
3
1
2
3
1
Installation Guide
LMVF
10
9
8
11
Two people recommended for this step; one person
to level the mount and another person to mark the
mounting locations.

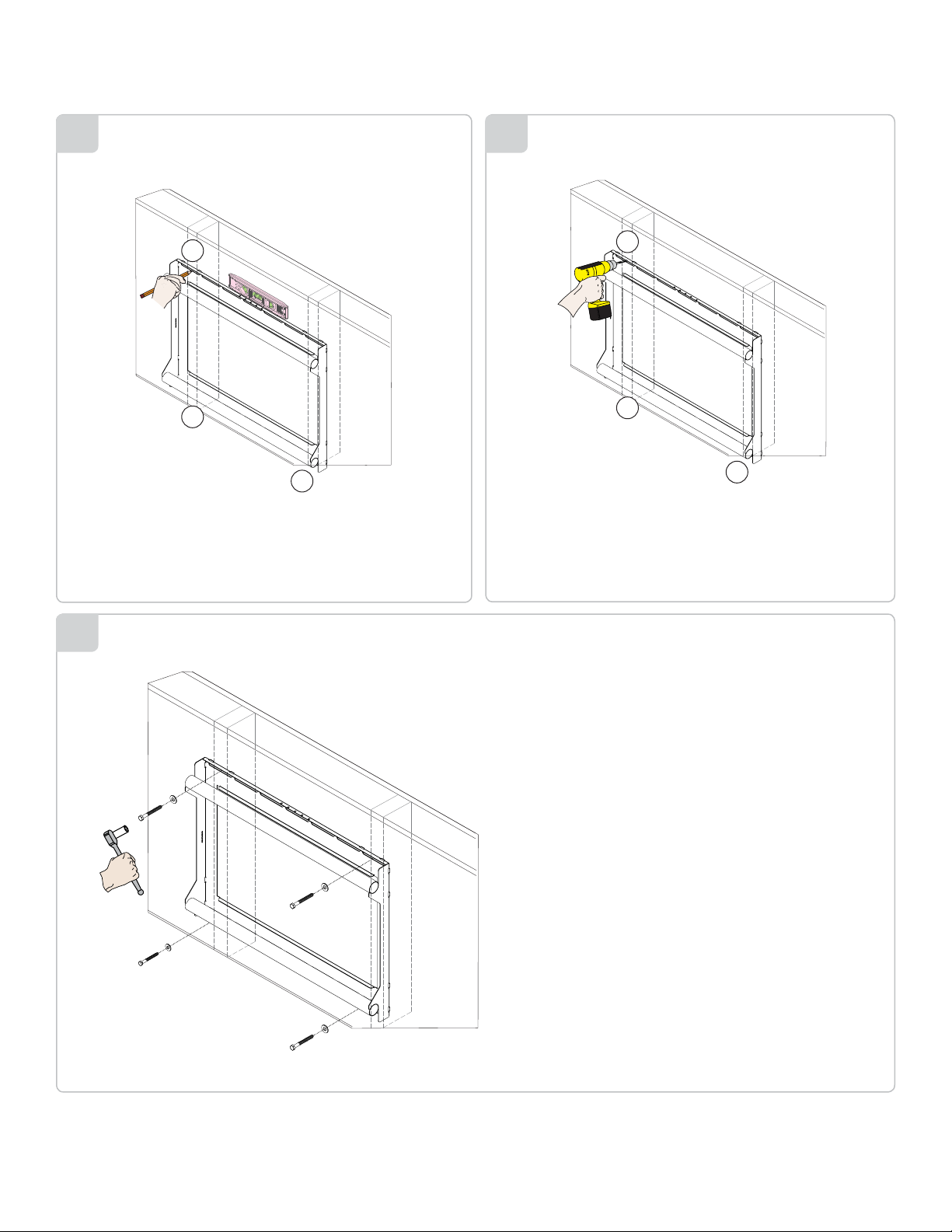

Drill a pilot hole in each of the four (4) mark areas
with a 3/8” masonry drill bit.
Insert the Finned anchors into each pilot holes.
Lightly tap each Finned anchors into place with a
hammer.
1. Insert one (1) 5/16” x 3” Lag Bolt and one (1) 5/16”
washer into Finned Anchors.
2. Tighten all lag bolts using a socket wrench and
1/2” socket.
Concrete Wall Installation
3
4
1
2
3
4
1
2
Installation Guide
LMVF
Page 5
Use commercially available hardware to secure the spacer.
Utilize the same spacer for multiple LMVF installations.
For illustration only. LMVF Spacer will vary.
spacers. Simply repeat step one when installing each of the
surrounding LMVF mounts. Use one spacer for each 2x2
installation by mounting it to the wall, or utilize the same spacer as
many times needed to complete an unlimited LMVF large matrix
video wall.
1. Plumb and level and mark each corner where the LMVF will
be mounted (or secure to the wall).
2. Install the second mount working in a horizontal direction.
3. Square, Level, and Plumb.
4. Repeat this step for each mount horizontally
1) Mount the LMVF to the desired location.
2) Align and Level the spacer to the corner register tabs
of the mount.
Level
For ease of installation
installation tim on large video wall array. Contact Customer
Installation Guide
LMVF
Page 6
12
14
13
1) Insert a small straw or toothpick into the threaded inserts found
2) Use a pencil to mark the depth of the threaded insert on the
small straw or toothpick.
3) Mark the straw or toothpick 1/8” above the depth of the
threaded insert, as shown in Figure 1.
4) Insert the small straw or toothpick into the remaining threaded
inserts to compare and verify their depth using the straw or
toothpick’s 1/8” allowance mark.
5) Locate the correct diameter screw for the threaded insert.
If the selected screw is longer than the 1/8” allowance mark
on the small straw or toothpick, as shown in Figure 2 and
Figure 3, do not use this screw. The screw length must not
bypass the mark.
6) Test each size of the screws provided.
The correct screws should thread easily into the mounting
point and not pull out when tension is applied.
Small Straw or Toothpick
Marking the 1/8”
Allowance
Small Straw
or Toothpick
Small Straw
or Toothpick Depth Plus 1/8” Allowance
Mark
Depth Plus 1/8” Allowance
Mark
Selecting the Mounting Hardware
Installation Guide
LMVF
Page 7
15

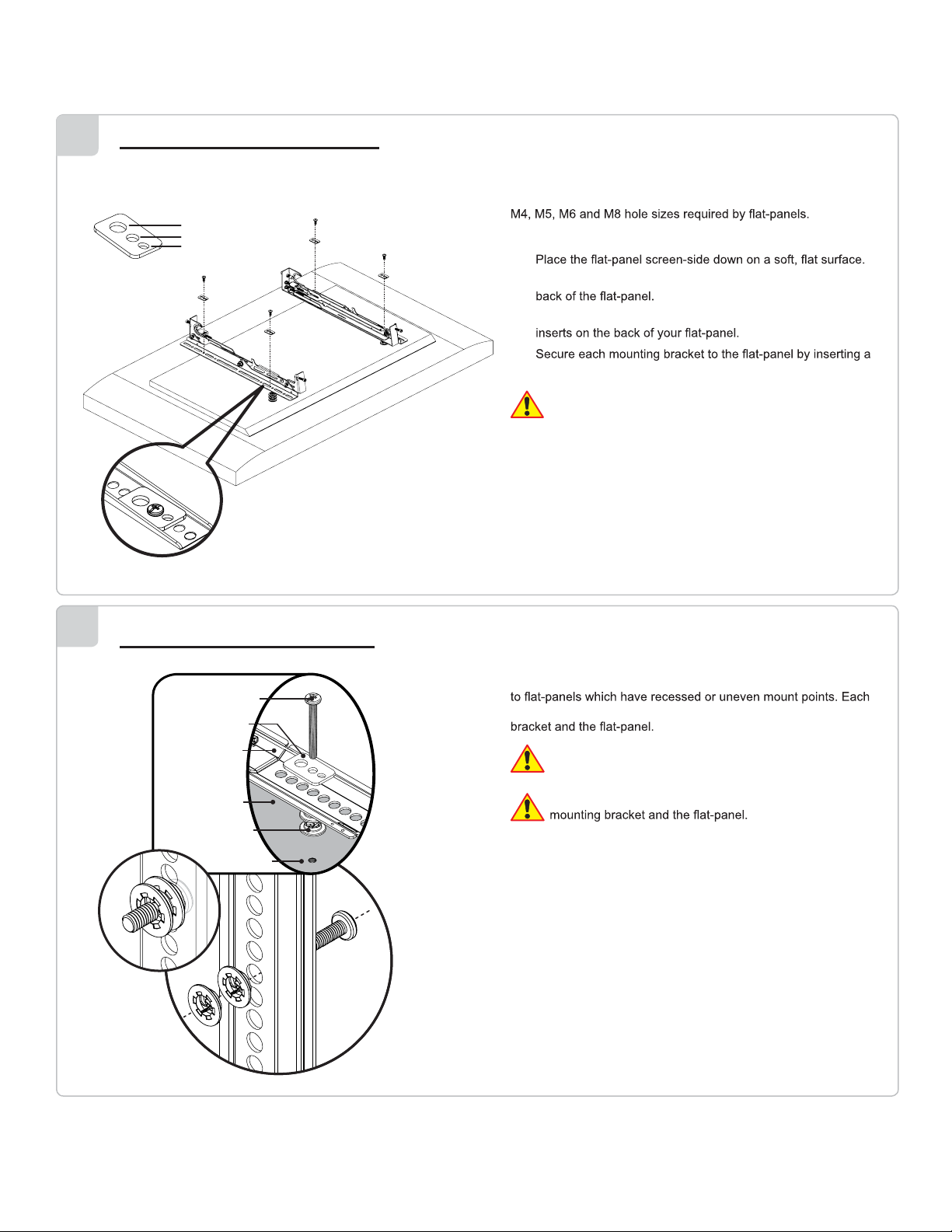

Universal Spacer Installation
Flat Panel
Universal Washer
Universal Spacer
Mounting Bracket
Mount Point
Mounting Screw
1)
2) Identify the number and location of the thread inserts on the
3) Aligning the holes on each mounting bracket with the thread
4)
minimum of two (2) screws per bracket.
Do not over tighten the mounting hardware.
Make sure the directional arrows on the mounting brackets
are facing up.
Universal Washer Installation
M8
M5, M6
M4
Universal Washers are designed to accommodate the various
17
Installation Guide
LMVF
Page 8
Universal Spacers allow the user to attach the mounting bracket
Universal Spacer adds 1/4” to the distance between the mounting
The Universal Spacers must be stacked and oriented as
shown.
The Universal Spacers must only be installed between the
16
Mounting bracket adjustments are factory pre-set (see Note).
This section requires two people.
hooks of both mounting brackets must be securely seated on
the upper and lower mounting rails.
1)
wall panel.
2)
3) Engage the top and bottom mounting brackets to the rails of the
mount.
Note: These registers must
align prior to installation.
They are factory set.
Check to determine proper
alignment
Attaching the Flat-Panel to the Mount
being accidently dislodged from the LMVF.
1) Locate the pre-installed security locking safety screw at
the bottom of each of the mounting brackets.
2) Use the M5 Allen driver (supplied) to tighten the locking
safety screw.
Locking Safety Screw Installation
Do not overtighten the locking safety screws.
Note: Tighten screw to surface, then tighten 1/4” turn
Pre-installed
Locking Safety Screw
( 1 per Bracket )
18
19
Installation Guide
LMVF
Page 9
Left
Control
Right
Control
TOP
BOTTOM
Left
Control
TOP
BOTTOM
TOP
BOTTOM
TOP
BOTTOM
Right
Control
Left
Control
Right
Control
TOP
BOTTOM
Left
Control
TOP
BOTTOM
TOP
BOTTOM
TOP
BOTTOM
Right
Control

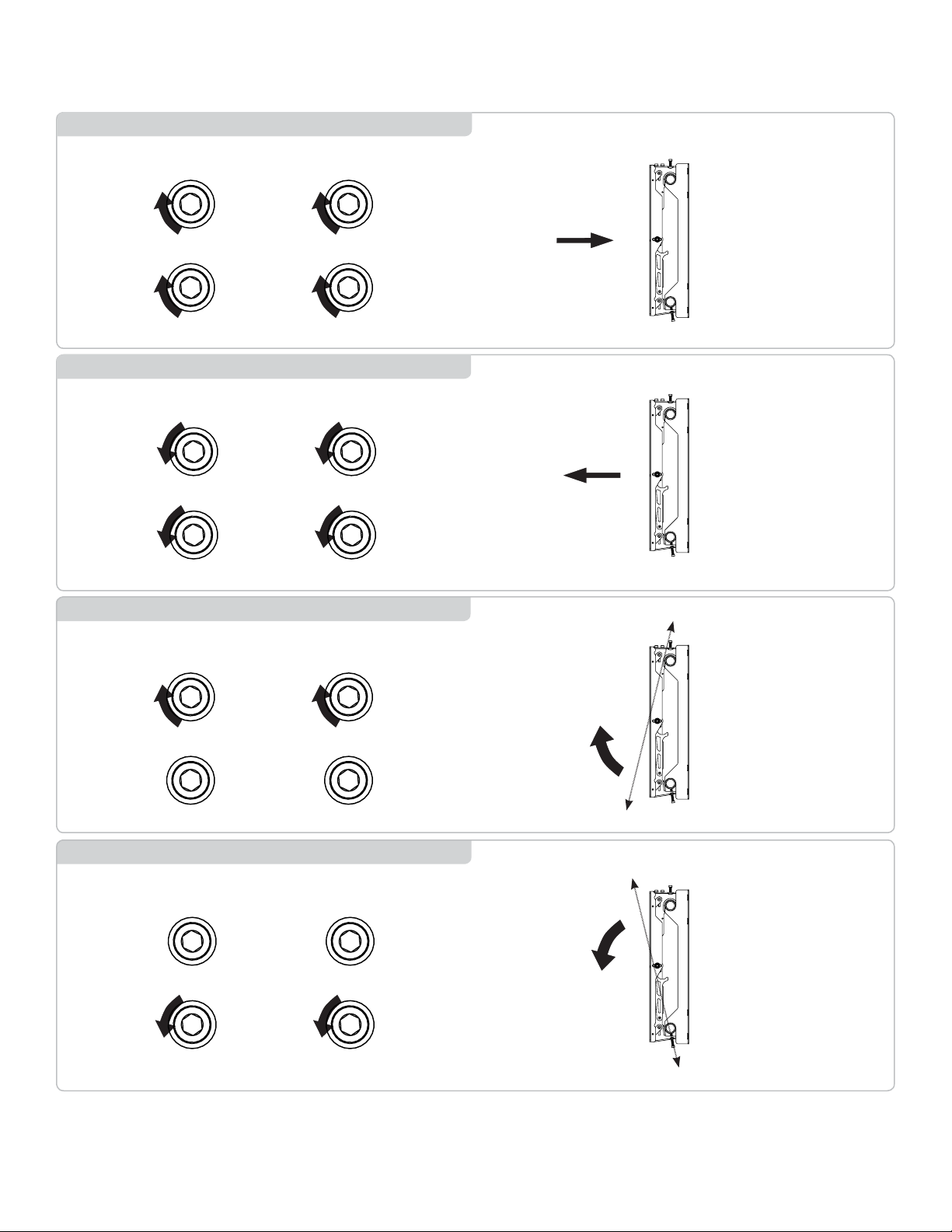

TILT DOWN
TILT UP
MOVE OUTWARD
MOVE INWARD
Installation Guide
LMVF
