Premier Mounts UNI Manuale utente

Universal Short Throw Projector Wall Mount

Model: UNI/UNIE

9533-019-011-01

INSTALLATION INSTRUCTIONS

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada

Phone: 1-800-368-9700

Fax: 1-800-832-4888

Other Locations

Phone: (001) 714-632-7100

Fax: (001) 714-632-1044

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

Page 2 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

Table of Contents

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR

PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR

MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION

OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR

MODIFICATIONS.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER

SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualied people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the

projector.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud nder is

recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in

wall. Cutting/drilling into an electrical line may cause serious injury.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

[email protected]

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY UN-

DERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP

THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water

damage to the mounting surface.

UNI/UNIE

Weight Capacity

Maximum projector weight: 50 lb. THE WALL STRUCTURE MUST BE CAPABLE OF HOLDING FIVE

(5) TIMES THE WEIGHT OF THE PROJECTOR. IF NOT, THEN THE

WALL STRUCTURE MUST BE REINFORCED.

Warning Statements

Weight Capacity 2

Warning Statements 2

Installation Tools 3

Parts List 3

Features 4

Determining the Installation Height 5

Wood Stud Installation 6

Attaching the Projector Arm 7

Throw Distance Calculation 8

Attaching the Projector Mount 9

Extension Arm Installation (Optional) 12

Adjustable Mounting Bracket Installation 13

Utilizing the Storage Feature 14

Cable Management 15

Technical Specifications 16

Warranty 17

Disclaimer 17

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 3

Wall Plate

(Qty 1)

Arm Assembly

(Qty 1)

Adjustable Mounting Assembly

- Pre-Assembled (Qty 1)

End Cover

(Qty 1)

M5 x 8mm Security

Screws (Qty 7)

Internal Slide Plate

(Qty 1)

Phillips Screwdriver ¼˝ Drill Bit Electronic Stud Finder

Drill

Level

½˝ Socket and Socket

Wrench

Extension Arm - Optional (Qty 1)

included with the UNIE

Back Plate Covers

(Qty 2)

UNI/UNIE

M5 Allen Wrench

(Qty 1)

Extension Hardware Pack

M6 x 12mm Security

Screws (pre-assembled)

(Qty 2)

M6 x 16mm Security

Screws (Qty 2)

M6 Flat Washer

(Qty 2)

External Slide Plate

(Qty 1)

Parts List

Installation Tools

The following tools may be required depending upon your particular installation. They are not included.

Make sure your Premier Mounts product has the following hardware and components before beginning installation. If

there are parts missing and/or damaged, stop the installation and call Premier Mounts at (800) 368-9700.

UNI/UNIE Hardware

16˝ x 3˝ Lag Bolts

(Qty 4)

¼˝ Nylon Spacer

(Qty 2)

Square Washers

(Qty 4)

M4 x 10mm

Security Screws for

FTP Install (Qty 4)

M6 x 12mm Security

Screws for PDS

Install (Qty 2)

UNI/UNIE

Features

Premier Mounts’ universal short-throw projector arm (UNI/UNIE) is one of the most exible and installer-friendly short-

throw arms on the market. It adjusts from 7” to 27” [up to 67” from the wall when used with an arm extension (UNIE)].

To make installatins even easier, an array of mounting points at the top and bottom of the GearBox™ allows you to

mount the UNI/UNIE off-center from the whiteboard/screen, if needed. The UNI/UNIE mounts to a single stud or dual

studs at 16”, 18” or 24” spacing, and includes a Fine-Tune Projector (FTP), PDS or SpiroLock™ projector mount.

UNI

UNIE

A/V Equipment

Security

Patent-pending

GearBox™ for

PC, Mac mini™ or

control modules

is secured with

Lock-It™ security

hardware

Universal Projector

Capability

Attach an FTP, PDS

or SpiroLock™

universal projector

mount to t most

short-throw

projectors on the

market.

Cable Routing

Discreetly manage

signal and power

cables through the

arm and into the

GearBox™

Flexible Mounting

Options

Mounts to dual wood

studs (16”, 18” or 24”

spacing)

Arm Extension

Optional arm

extension extends

the projector up to

67” from the wall

Page 4 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 5

 Measure distance from center of lens to the top of the projector mounting bracket (C).

® Add the distance from the ground to the top of the screen (A). Add the projector manufacturers recommended

offset from the projector manual (B), then add the measurement from Step 1 (C). Lastly, add 2.5” if you are using

a PDS mount, 2.8” if SpiroLock™ or 3.8” if FTP.

(Example: A + B + C + 2.5˝ or 2.8” or 3.8” = ?)

¯ Add the measurements to determine the mounting height mark. Place a mark at the top of the total calculated

height measurement starting from the ground up. This mark will represent the lower edge of the wall plate.

Refer to the projector’s user’s manual to determine the offset of the projector lens to the top of the

screen/whiteboard (B).

Lens

Projector Bracket

Projector

The UNI/UNIE is designed for use with the Fine-Tune Projector (FTP), PDS or SpiroLock™ projector mounts. In

order to determine the installation height and throw distance, their projector mounting bracket must be mounted

to the projector. Please refer to the projector mount installation instructions prior to performing the following

steps.

Top of Screen

Mark

Legend

A - Distance from ground to the top of the

screen/whiteboard (viewable area).

B - Manufacturers recommended offset

measurement. This measurement will

be listed in the Users Manual.

C - Center of the lens to the top of the

projector bracket.

Add 2.5˝ (PDS), 2.8” (SpiroLock™) or

3.8” (FTP) to the calculated total.

This total distance will be the location for

the bottom rail on the wall plate.

Proceed to the “Wood Stud Installation”

section.

Ground

Determining the Installation Height

UNI/UNIE

+2.5"/+2.8"/+3.8"

Page 6 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

UNI/UNIE

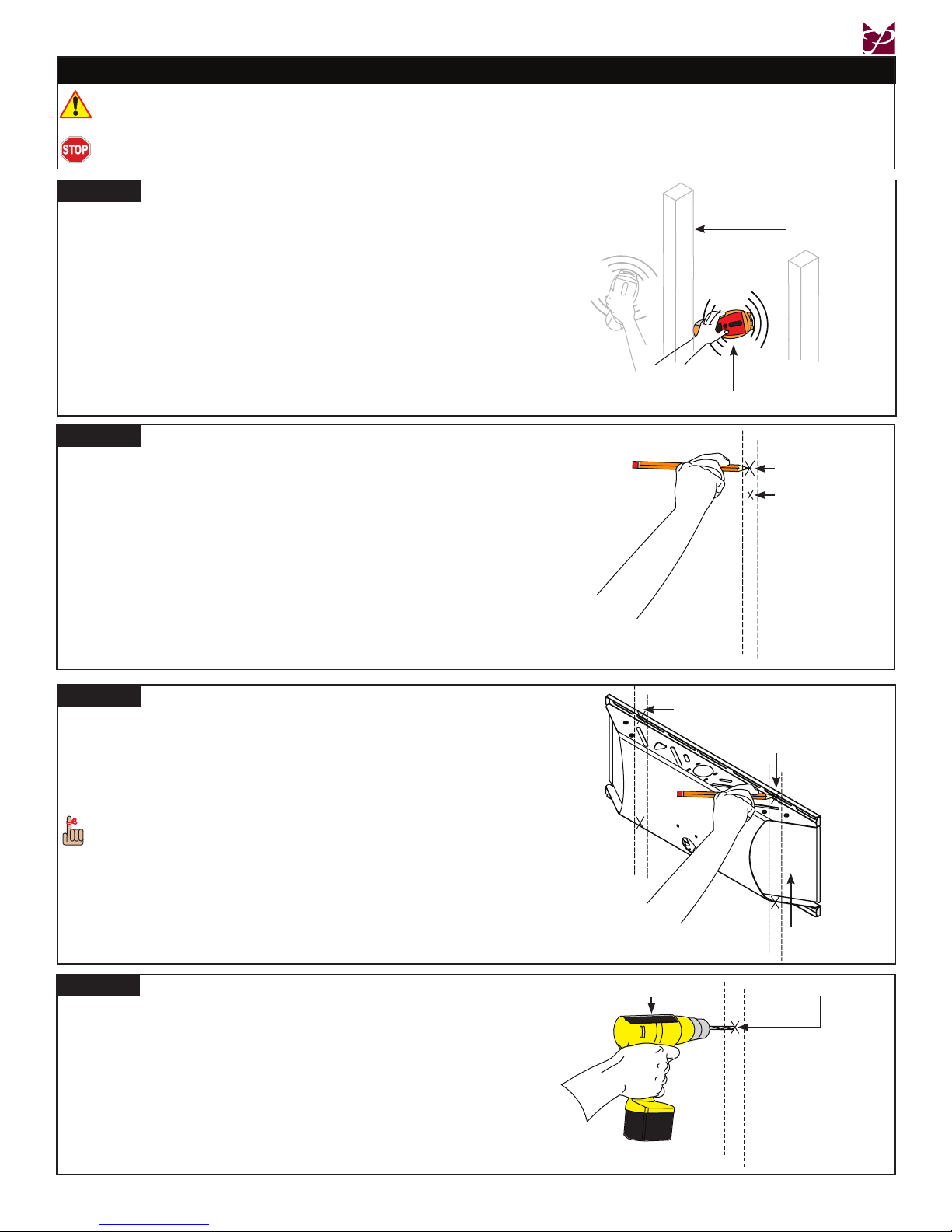

THE EXACT CENTER OF THE STUD MUST BE LOCATED FOR CORRECT AND SAFE INSTALLATION.

Use an electronic stud nder (not supplied) to

locate the center of the stud that is in the wall. Wood Stud

Stud nder

Height

Mark

(from page 5)

Wood Stud

Marking

Wall

Plate

Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal

injury or damage to property.

Once the mounting points have been marked, use a

¼˝ drill bit and portable drill to drill the pilot holes.

Drill Marking

Wood Stud Installation

Mounting Point

Mark

Step 1

Step 2

Step 4

Use a pencil to mark the rst mounting point, just

above your height mark (from page 5).

Step 3

 Use the level to make sure the wall plate is level from

side to side.

® Place the wall plate over the rst mounting point mark

and use a pencil to mark the rest of the mounting

points.

Four (4) mounting points must be used. Two (2)

upper mounting points and two (2) lower mounting

points.

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 7

 Locate the mounting hook cutout on the top of the

wall plate.

® Tilt the arm slightly and gently insert the mounting

hooks into the mounting hook cutouts.

¯ Slowly lower and let the projector arm rest against

the wall plate.

Mounting Hook Cutout

Mounting Hooks

Wall Plate

Projector Arm

MAKE SURE THE PROJECTOR ARM IS FULLY

SEATED BEFORE RELEASING THE UNIT.

Attaching the Projector Arm

UNI/UNIE

If using the storage feature of the product, it

may be easier to route any wiring at this time

(please see Page 15).

After the pilot holes have been drilled, use four (4)

16˝ x 3˝ lag bolts and four (4) square washers to

mount the wall plate to the wooden studs.

Use a ½˝ socket and socket wrench to nish this step.

Socket

Lag Bolt and Square Washer

Wall

Plate

Proceed to the “Attaching the Projector Arm”

section.

Back Plate Covers

Step 6

Step 5

Insert and gently tap the upper and lower back plate

covers into place.

Step 1

UNI/UNIE

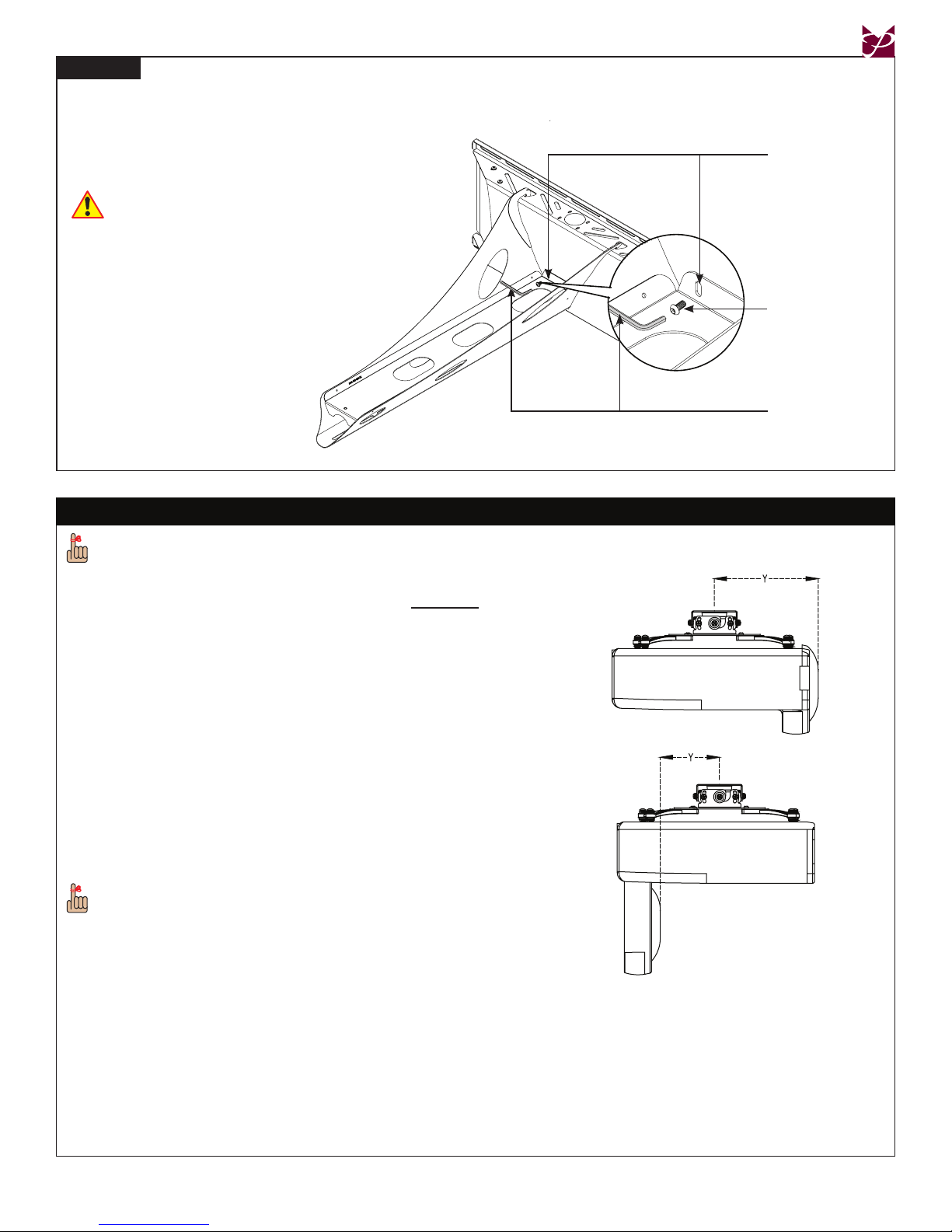

 Locate the two (2) lock mounting points on the

projector arm. These two points will be aligned with

the lock mounting points on the wall plate.

® Using a security wrench, insert and tighten two (2)

M5 x 8mm security head screws.

Do NOT overtighten these screws.

Step 2

Lock Mounting

Point

M5 x 8mm Security

Head Screw

Security Wrench

Page 8 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

Please review your projector mount’s user manual before attaching the upper

mounting bracket. The correct throw distance (the distance from the projector to the screen) must be

determined prior to mounting the projector.

 Refer to the projector’s user’s manual to

determine the distance from the lens to

the front of the screen (X).

® Measure the distance from the front of

the lens to the center of the projector (Y).

¯ Measure the distance from the wall to the

face of the whiteboard/screen (Z).

° Add all measurements (X + Y + Z) to

determine projector placement on the

arm assembly. This measurement

will determine where the center of the

mount bracket will be located on the

arm assembly. Please make note of this

measurement.

Front Lens

Rear Lens

Calculations

X = Manufacturers recommended

throw distance

Z = Distance from wall to face of

whiteboard/screen

Front Lens Throw Distance =

(X + Y + Z)

Rear Lens Throw Distance =

(X - Y + Z)

Throw Distance Calculation

The UNI/UNIE can be also used as

a wall-mounted standard projector mount as

well as a short throw projector mount. Align

the projector facing the opposite direction

from the wall plate to project the image

across the room. Please take into account

the projectors throw capabilities prior to

mounting in the projector opposite direction.

Continue to the “Attaching the Projector

Mount” section.

UNI/UNIE

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 9

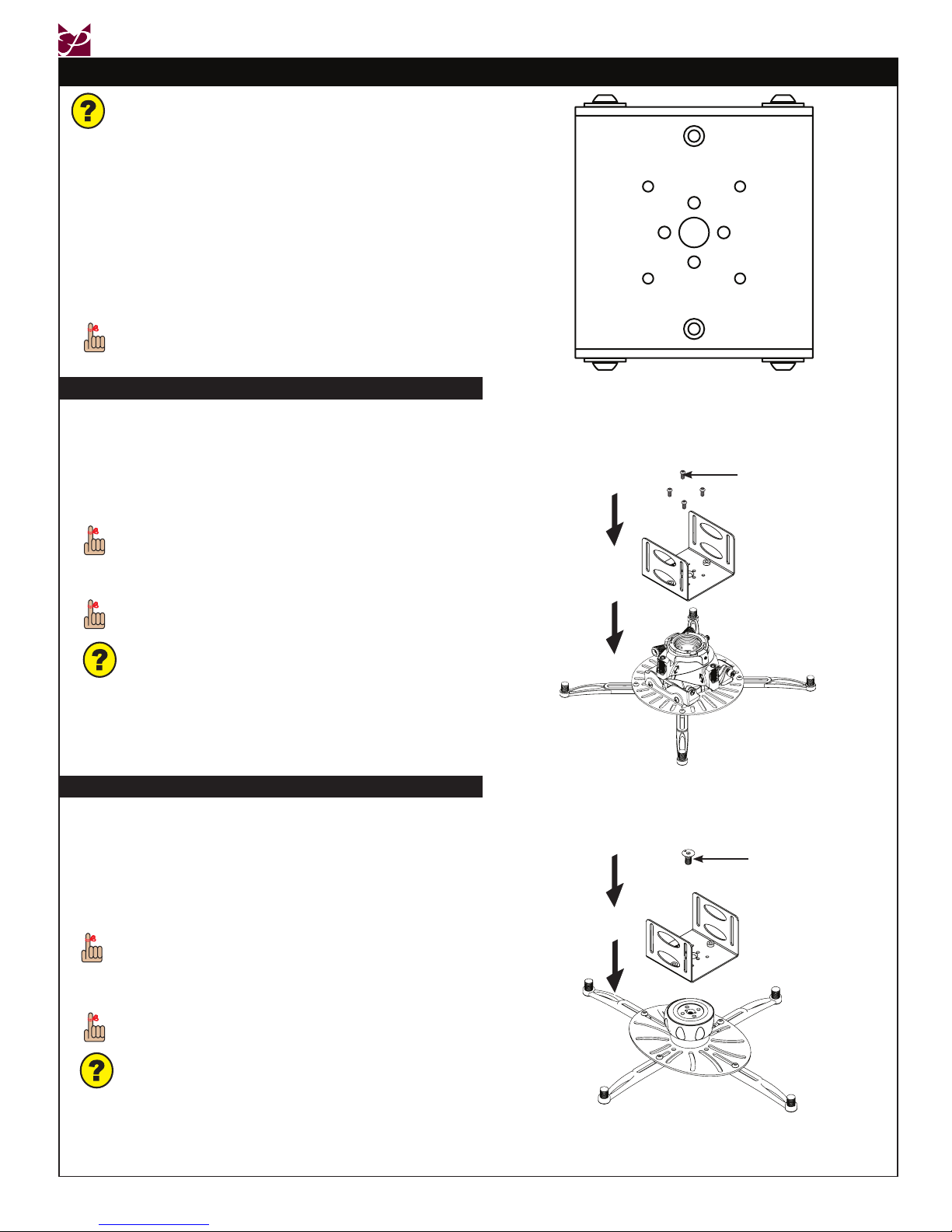

What kind of projector mount are you attaching to

the adjustable mounting assembly?

If it is a Fine-Tune Projector (FTP) mount, continue to the

“Installing an FTP Mount” section below.

If it is a SpiroLock™ mount, proceed to the “Installing

an SpiroLock™ Mount” below.

If it is a PDS mount, proceed to the “Installing a PDS

Mount” section on page 10.

Attach the projector mount to the mounting assembly

before attaching the projector itself.

Attaching the Projector Mount

Installing an FTP Mount

 Detach the upper half of the mounting assembly from

the lower half.

® Following the “A” mounting-hole pattern (Figure 1),

use four (4) M4 x 10mm security screws to attach the

FTP projector mount to the lower half of the mounting

assembly (Figure 2). Do not overtighten.

Use the four mounting holes on the collar of the FTP.

¯ Re-attach both components of the mounting

assembly.

Refer to the FTP user manual for instructions on

attaching the projector to the mount.

Installing a SpiroLock™ Mount

 Detach the upper half of the mounting assembly from

the lower half.

® Following the “B” mounting-hole pattern (Figure 1),

use one (1) M8 x 16mm athead security screw to

attach the SpiroLock™ projector mount to the lower

half of the mounting assembly (Figure 3). Do not

overtighten.

The M8 x 16mm athead security screw is included

with the SpiroLock™.

¯ Re-attach both components of the mounting

assembly.

Refer to the SpiroLock™ user manual for instructions

on attaching the projector to the mount.

Figure 1

Figure 2

Figure 3

Bottom view of the adjustable

mounting assembly

M4 x 10mm security screw

M8 x 16mm athead

security screw

Are you attaching an extension arm?

If yes, continue to the “Extension Arm Installation

(Optional)” section on page 12.

If no, proceed to the “Adjustable Mounting

Bracket Installation” section on page 13.

Are you attaching an extension arm?

If yes, continue to the “Extension Arm Installation

(Optional)” section on page 12.

If no, proceed to the “Adjustable Mounting

Bracket Installation” section on page 13.

UNI/UNIE

Page 10 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

Installing a PDS Mount

Attaching the Projector Mount (cont’d)

Figure 1

Bottom view of the adjustable

mounting assembly

Figure 2

 Detach the upper half of the mounting

assembly from the lower half.

® Following the “C” mounting-hole pattern

(Figure 1), use two (2) M6 x 12mm

security head screws to attach the PDS

base box to the lower half of the mounting

assembly (Figure 2).

You must insert the screws from the

bottom of the PDS base box. Detach the

base box from the mount, if needed.

¯ Re-attach both components of the

mounting assembly.

Refer to the PDS user manual for

instructions on attaching the projector to

the mount.

Do NOT overtighten these screws.

M6 x 12mm security

screw

How will you attach the PDS mount?

If you are using the adjustable mounting assembly,

continue to the “Attaching the PDS to the

Adjustable Mounting Assembly” section below.

If you are using only the upper mounting plate for an

even lower prole, proceed to the “Attaching the

PDS to the Upper Mounting Plate” section on

page 11.

Attaching the PDS to the Adjustable Mounting

Assembly

Are you attaching an extension arm?

If yes, continue to the “Extension Arm

Installation (Optional)” section on

page 12.

If no, proceed to the “Adjustable

Mounting Bracket Installation” section

on page 13.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Premier Mounts Rack e supporto

Premier Mounts

Premier Mounts Universal Projector Mount PBL-UMS Manuale utente

Premier Mounts

Premier Mounts PDS-PLUS Manuale utente

Premier Mounts

Premier Mounts ECM-3763T Manuale utente

Premier Mounts

Premier Mounts PSD-EB Manuale utente

Premier Mounts

Premier Mounts PBL-200 Manuale utente

Premier Mounts

Premier Mounts ECM-3000 Manuale utente

Premier Mounts

Premier Mounts AM500 Manuale utente

Premier Mounts

Premier Mounts GB-AVSTOR4 Manuale utente

Premier Mounts

Premier Mounts INW-AM200 Manuale utente

Premier Mounts

Premier Mounts PRC Manuale utente

Premier Mounts

Premier Mounts AM50 Manuale utente

Premier Mounts

Premier Mounts PCM-MS2 Manuale utente

Premier Mounts

Premier Mounts Convergent Series Manuale utente

Premier Mounts

Premier Mounts AM100 Manuale utente

Premier Mounts

Premier Mounts FLIP Manuale utente

Premier Mounts

Premier Mounts PSD-TS Manuale utente

Premier Mounts

Premier Mounts SpiroLock SPI-PRO Manuale utente

Premier Mounts

Premier Mounts CONVERGENT TVF Series Manuale utente

Premier Mounts

Premier Mounts PP-FCTA Manuale utente

Premier Mounts

Premier Mounts MM-HP15 Manuale utente

Premier Mounts

Premier Mounts PBC-UM Series Manuale utente

Premier Mounts

Premier Mounts Convergent Series Manuale utente

Premier Mounts

Premier Mounts CTM-600 Manuale utente

Premier Mounts

Premier Mounts PBC-1.5 Series Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
