Prestige PR1-GH Manuale utente
Instructions for use
Installation advice
BUILT-IN
COOKING
HOB
PR1-GH
GB
Before operating this cooktop,
please read these instructions carefully
KEEP IN A SAFE PLACE
2
Dear Customer,
Thank you for purchasing a Prestige Cooking Hob.
The safety precautions and recommendations in these
instructions are for your own safety and that of others. They
will also provide a means by which to make full use of the
features offered by your appliance.
Please keep this booklet in a safe place. It may be useful in
future, either to yourself or to others in the event that doubts
should arise relating to its operation.
This appliance must be used only for its intended purpose,
that is for the domestic cooking of foodstuffs. Any other form
of usage is to be considered as inappropriate and therefore
dangerous.
The manufacturer declines all responsibility in the event of
damage caused by improper or incorrect use of the appliance.
CE Declaration of conformity
•This cooking hob has been designed to be used only for cooking. Any other use (such
as heating a room) is improper and dangerous.
•This cooking hob has been designed, constructed, and marketed in compliance with:
-Safety requirements of the "Gas" Directive 90/396/EC;
-Safety requirements of the “Low voltage” Directive 2006/95/EC;
-Safety requirements of the “EMC” Directive 89/336/EC;
-Requirements of the Directive 93/68/EC.
GB
3
IMPORTANT PRECAUTIONS AND REC-
OMMENDATIONS
•After having unpacked the appliance,
check to ensure that it is not dam-
aged.
If you have any doubts, do not use it
and consult your supplier or a profes-
sionally qualified technician.
•Packing elements (i.e. plastic bags,
polystyrene foam, nails, packing
straps, etc.) should not be left around
within easy reach of children, as these
may cause serious injuries.
•The packaging material is recyclable
and is marked with the recycling sym-
bol
.
•Do not attempt to modify the technical
characteristics of the appliance as this
may become dangerous to use.
•The appliance was designed for non-
professional use by private individuals
in communal dwellings.
•The manufacturer cannot be consid-
ered responsible for damage caused
by unreasonable, incorrect or rash use
of the appliance.
•If you should decide not to use this
appliance any longer (or decide to
substitute an older model), before dis-
posing of it, it is recommended that it
be made inoperative in an appropriate
manner in accordance to health and
environmental protection regulations,
ensuring in particular that all potential-
ly hazardous parts be made harmless,
especially in relation to children who
could play with old appliances.
•The appliance should be installed and
all the gas/electrical connections
made by a qualified engineer in com-
pliance with local regulations in force
and following the manufacturer's
instructions.
TIPS FOR THE USER
•During and after use of the cooktop,
certain parts will become very hot. Do
not touch hot parts.
•Keep children away from the cooking
hob when it is in use.
•After use, ensure that the knobs are in
position ●(off), and close the main gas
delivery valve or the gas cylinder valve.
•When the appliance is not being used,
it is advisable to keep the gas tap
closed.
•The periodic lubrication of the gas taps
must be done only by specialized per-
sonnel. In case of difficulty in the gas
taps operation, call Service.
•Before any cleaning or maintenance,
switch off the electricity to the cook-
top.
Risk of fire!
•Do not leave inflammable material on
the cooktop.
•Make sure that the electrical cables of
other appliances installed nearby can-
not come into contact with the cook-
top.
IMPORTANT PRECAUTIONS AND
RECOMMENDATIONS FOR USE OF
ELECTRICAL APPLIANCES
Use of any electrical appliance implies the
necessity to follow a series of fundamental
rules. In particular:
•
Never touch the appliance with wet
hands or feet;
•
do not operate the appliance barefooted;
•
do not allow children or disabled people
to use the appliance without your super-
vision.
The manufacturer cannot be held responsi-
ble for any damages caused by improper,
incorrect or unreasonable use of the appli-
ance.
4

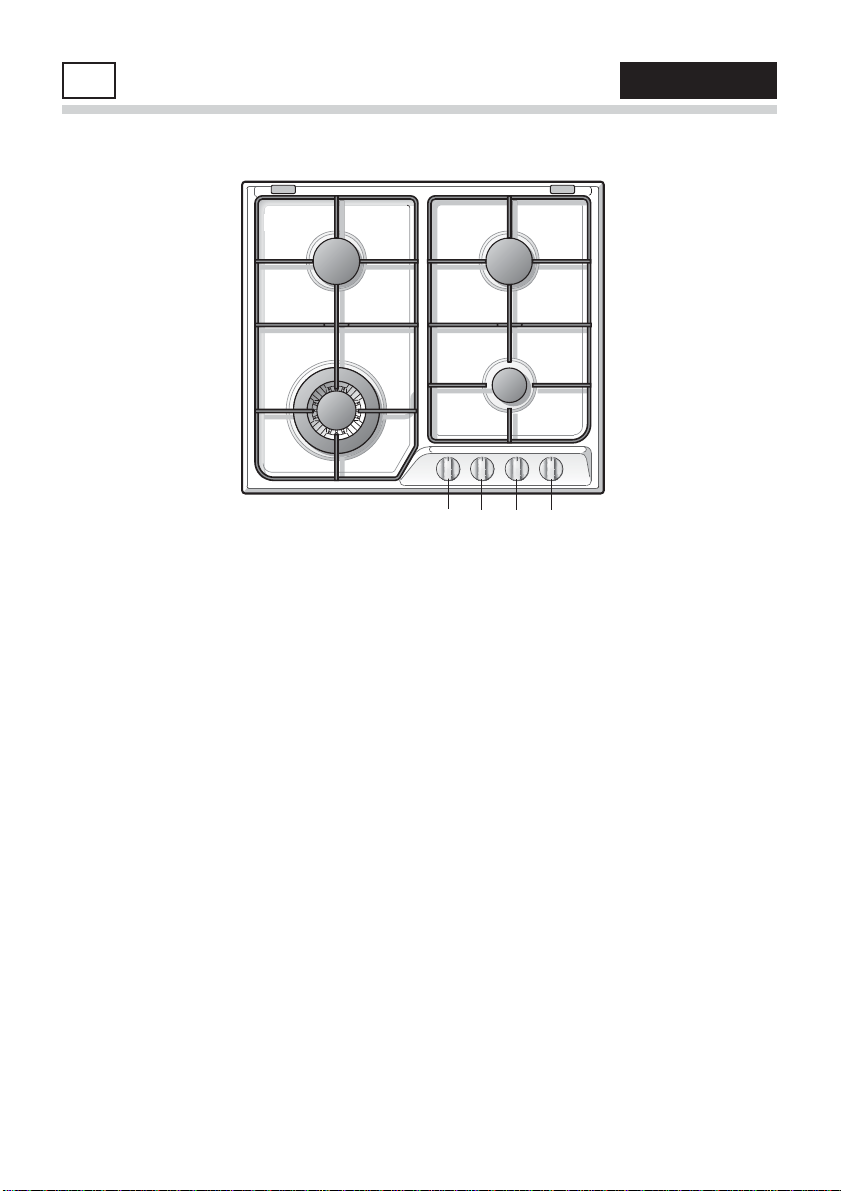

FEATURES
1
2 2
7
6
54
3
1
Fig. 1.1
COOKING SPOTS
1. Auxiliary burner
(A)
- 1,00 kW
2. Semirapid burner (SR) - 1,75 kW
3. Triple-ring burner (TR) - 3,30 kW
CONTROL PANEL DESCRIPTION
4.
Triple-ring burner
3 (TR) control knob
5. Left semirapid burner 2 (SR) control knob
6.
Right
semirapid burner 2 (SR) control
knob
7. Auxiliary burner 1 (A) control knob)
NOTE:
•The electric ignition is incorporated in
the knobs.
CAUTION:
If the burner is accidentally extin-
guished, turn the gas off at the
control knob and wait at least 1
minute before attempting to relight.
CAUTION:
Gas hobs produce heat and
humidity in the environment in
which they are installed.
Ensure that the cooking area is well
ventilated by opening the natural
ventilation grilles or by installing an
extractor hood connected to an
outlet duct.
CAUTION:
If the hob is used for a prolonged
time it may be necessary to pro-
vide further ventilation by opening
a window or by increasing the suc-
tion power of the extractor hood (if
fitted).
5

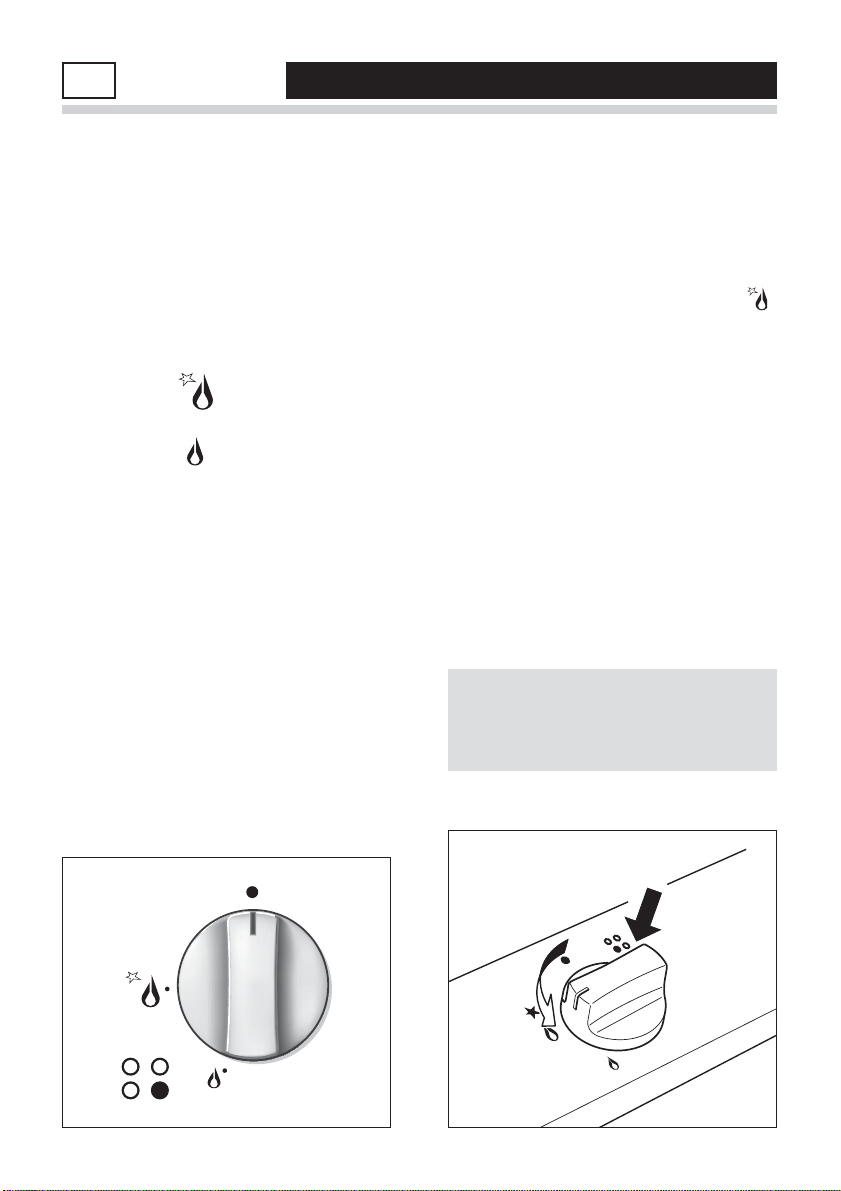

HOW TO USE THE GAS BURNERS
2
GAS BURNERS
Gas flow to the burners is adjusted by
turning the knob illustrated in fig. 2.1
which control the safety valves.
Turning the knob so that the indicator
line points to the symbols printed on the
panel achieves the following functions:
– full circle ●=closed valve
– symbol = maximum
aperture or flow
– symbol = minimum
aperture or flow
•To reduce the gas flow to minimum,
rotate the knob further anti-clockwise
to point the indicator towards the
small flame symbol.
•The maximum aperture position per-
mits rapid boiling of liquids, whereas
the minimum aperture position allows
slower warming of food or maintain-
ing boiling conditions of liquids.
•Other intermediate operating adjust-
ments can be achieved by positioning
the indicator between the maximum
and minimum aperture positions, and
never between the maximum aperture
and closed positions.
Fig. 2.1 Fig. 2.2
Caution!
the cooking hob becomes very
hot during operation.
Keep children well out of reach.
LIGHTING THE BURNERS
To ignite the burners follow these
instructions:
•Lightly press and turn the knob (fig.
2.2) in an anti-clockwise direction up
to the maximum aperture (symbol );
press the knob right down to prime the
electric ignition until the burner lights.
In case of power cut manually light the
burner.
•Adjust the burner according to the set-
ting required.
6

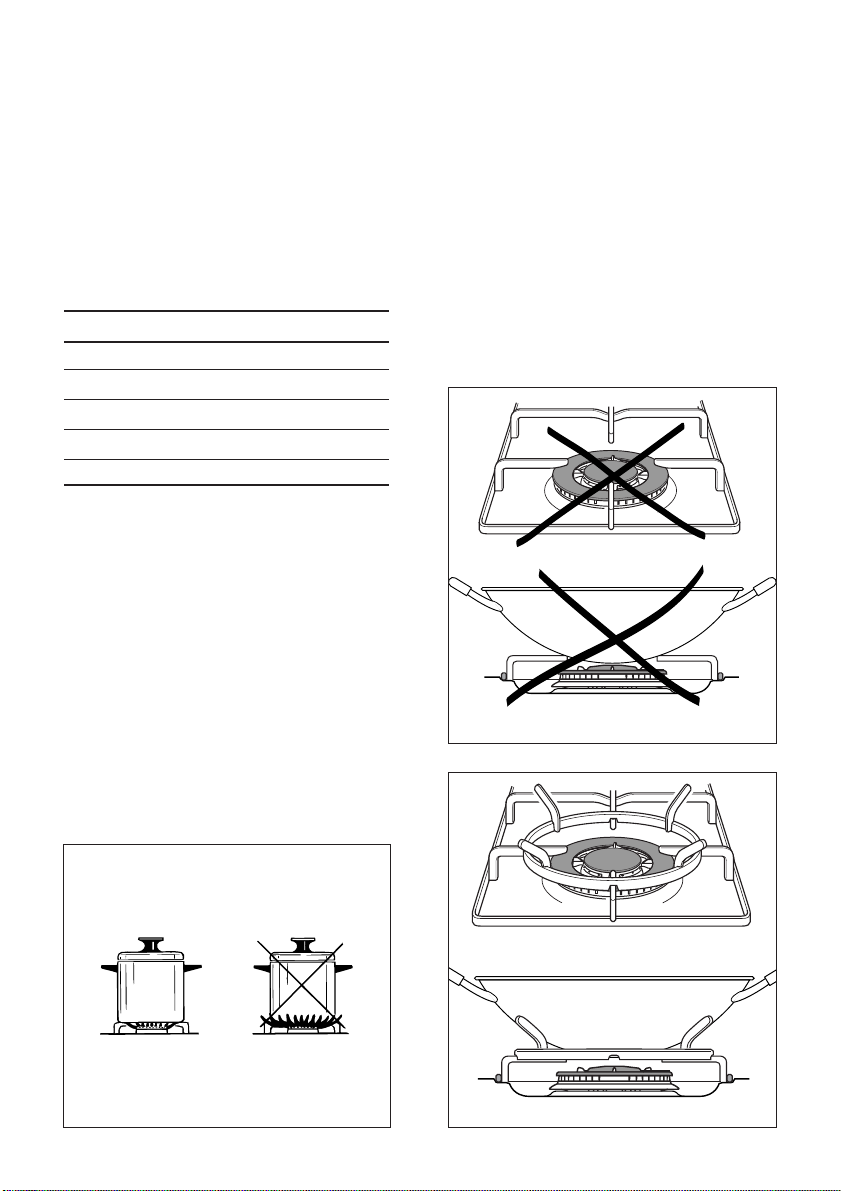

CHOICE OF THE BURNER
On the control panel, near every knob,
there is a diagram that indicates which
burner is controlled by that knob.
The suitable burner must be chosen
according to the diameter and the
capacity used.
As an indication, the burners and the
pots must be used in the following way:
BURNERS POT DIAMETER
Auxiliary 12 - 14 cm
Semi-rapid 16 - 20 cm
Triple-ring 24 - 28 cm
Wok
(*)
max 36 cm
do not use pans with concave or convex bases
(*): wok pans have to be used only with the spe-
cial grille fitted ( see “correct use of triple-ring
burner”).
Fig. 2.3
It is important that the base diameter of
the pot is at least the same diameter as
the burner ring to obtain an efficient
heat transfer.
Always position pans centrally over the
burners.
Adjust the size of the flame so that it
does not lick up the side of the pan.
Position pan handles so that they
cannot be accidentally knocked.
CORRECT USE OF TRIPLE-RING
BURNER (Fig. 2.4a - 2.4b)
Flat-bottomed pans should be placed
directly onto the pan-support.
When using a WOK always place the
supplied stand in position over the burn-
er to maintain the correct operation of
the triple-ring burner (Fig. 2.4a - 2.4b).
IMPORTANT:
The special grille for wok pans (fig. 2.4b)
MUST BE PLACED ONLY over the pan-
rest for the triple-ring burner.
Fig. 2.4b
Fig. 2.4a
WRONG
CORRECT
7
CLEANING AND MAINTENANCE
3
Important:
Before cleaning or carrying out
any maintenance disconnect the
appliance from the electrical sup-
ply and wait for it to cool down.
Attention
The appliance gets very hot,
mainly around the cooking areas.
It is very important that children
are not left alone in the kitchen
when you are cooking.
Do not use a steam cleaner
because the moisture can get
into the appliance thus make it
unsafe.
GENERAL ADVICE
•When the appliance is not being
used, it is advisable to keep the gas
tap closed.
•Every now and then check to make
sure that the flexible tube that con-
nects the gas line or the gas cylinder
to the appliance is in perfect condi-
tion and get it replaced if it shows
any signs of wearing or damage.
•The periodical lubrication of the gas
taps must be done only by spe-
cialised personnel.
•If a tap becomes stiff, do not force;
contact your local Service Centre.
ENAMELLED PARTS
All the enamelled parts must be cleaned
with a sponge and soapy water or other
non-abrasive products.
Dry preferably with a soft cloth.
Acidic substances like lemon juice,
tomato sauce, vinegar etc. can damage
the enamel if left too long.
STAINLESS STEEL, ALUMINIUM
PARTS AND SILK-SCREEN PRINTED
SURFACES
Clean using an appropriate product.
Always dry thoroughly.
IMPORTANT: these parts must be
cleaned very carefully to avoid scratch-
ing and abrasion. You are advised to use
a soft cloth and neutral soap.
CAUTION: Do not use abrasive sub-
stances or non-neutral detergents as
these will irreparably damage the sur-
face.
GAS TAPS
In the event of operating faults in the gas
taps, call the After Sales Service
Department.
8
Fig. 3.2
Fig. 3.1
S
F
C

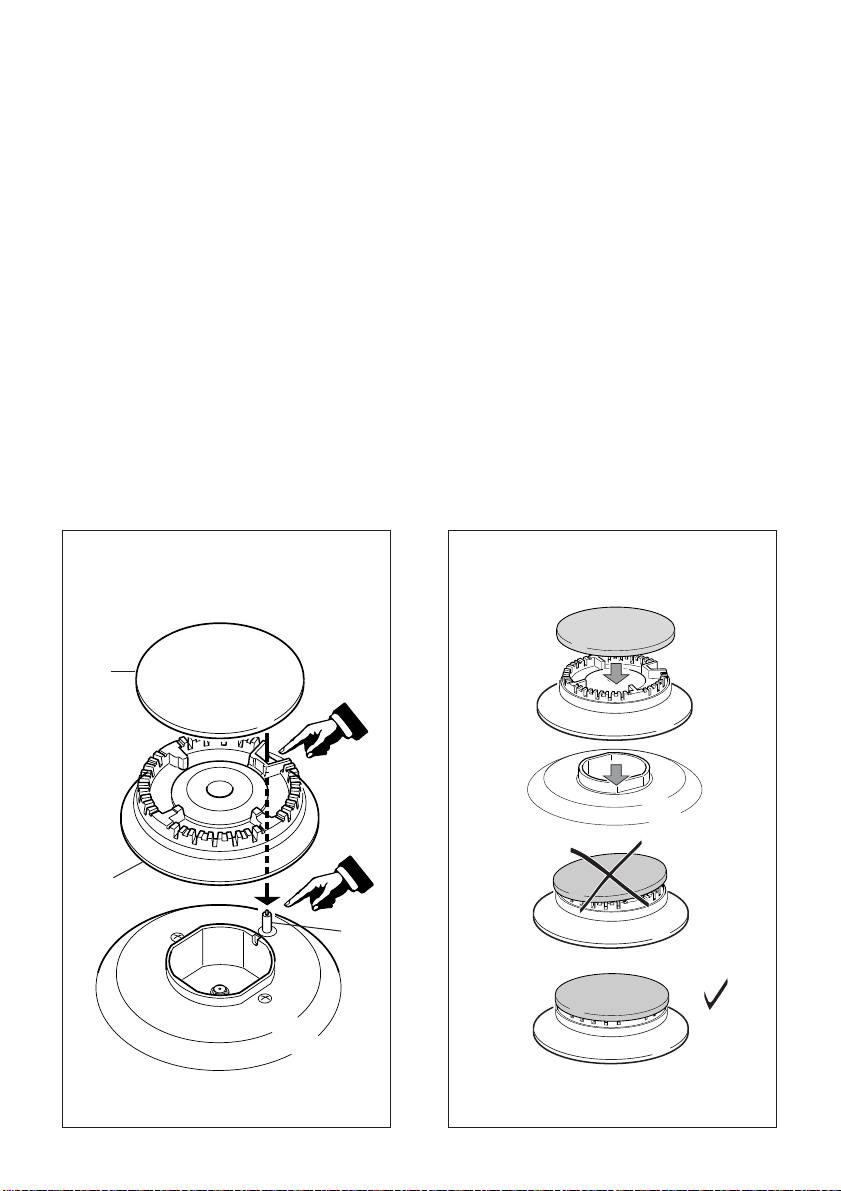

BURNERS
The burners can be removed and washed
with soapy water only.
They will remain perfect if always
cleaned with products used for silver-
ware.
After cleaning, check that the burner-
caps and burner-heads are dry before
placing them in the respective hous-
ings.
CORRECT REPLACEMENT OF THE
BURNERS
It is very important to check that the
burner flame distributor F and the cap C
has been correctly positioned (see figs.
3.1 - 3.2) - failure to do so can cause a
poor burner flame and/or damage to the
burner and hob.
Check that the electrode “S” (fig. 3.1) is
always clean to ensure trouble-free
sparking.
Note: To avoid damage to the electric
ignition do not use it when the burn-
ers are not in place.
9
Fig. 3.5

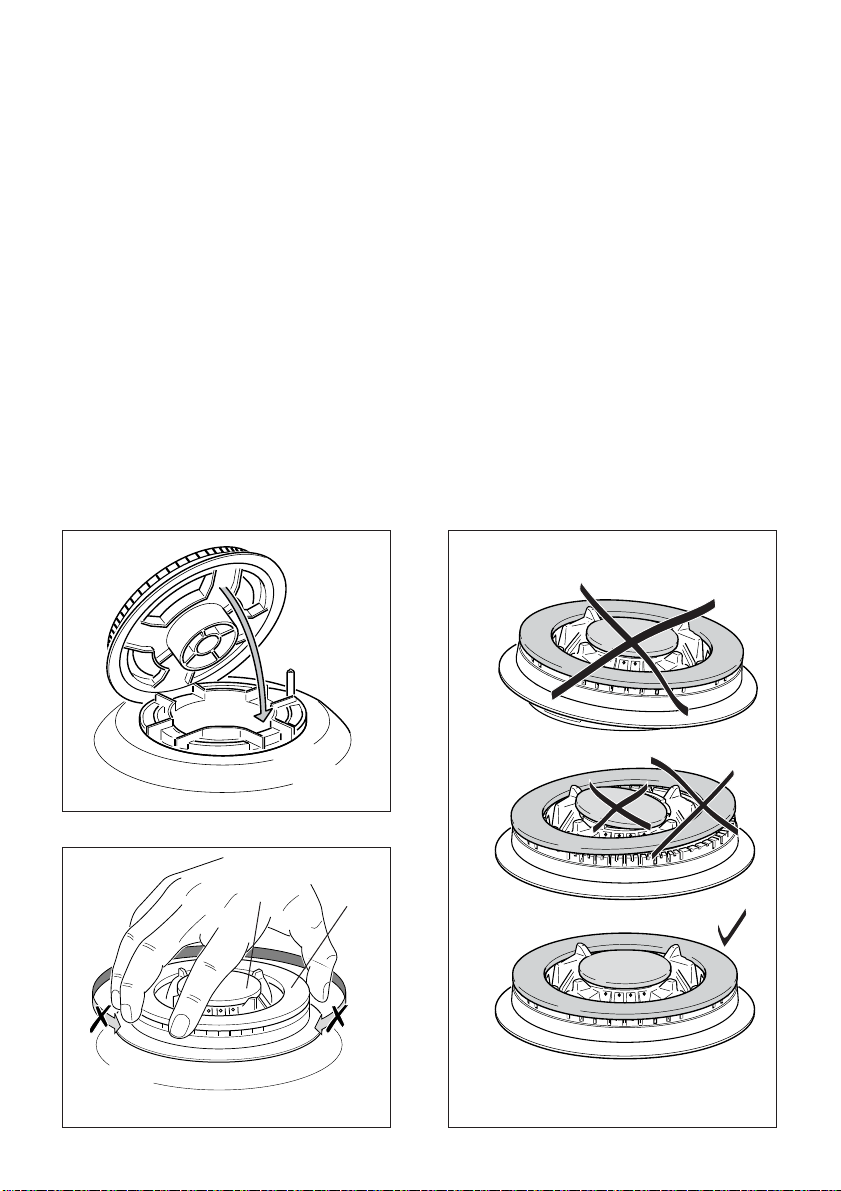

TRIPLE RING BURNER
The triple ring burner must be correctly positioned (see fig. 3.3); the burner rib must be
enter in their logement as shown by the arrow.
The burners must be correctly positioned so that they cannot rotate (fig. 3.4).
Then position the cap Aand the ring B(fig. 3.4 - 3.5).
Fig. 3.3
Fig. 3.4
AB
10
IMPORTANT
•The appliance should be installed, regulated and adapted to function with other types
of gas by a QUALIFIED INSTALLATION TECHNICIAN.
Failure to comply with this condition will render the guarantee invalid.
•The hob should only be installed by a C.O.R.G.I. registered installer.
•The appliance must be installed in compliance with regulations in force.
•Installation technicians must comply to current laws in force concerning ventilation
and the evacuation of exhaust gases.
•Always unplug the appliance before carrying out any maintenance operations or
repairs.
•The appliance must be housed in heat-resistant units.
•These tops are designed to be embedded into kitchen fixtures measuring 600
mm in depth.
•The walls of the units must not be higher than work top and must be capable of
resisting temperatures of 75 °C above room temperature.
•Do not install the appliance near inflammable materials (eg. curtains).
ADVICE FOR THE INSTALLER
Indice
Altri manuali Prestige Piano cottura
