Prestigio GEOVISION 150 Manuale utente

ENGLISH

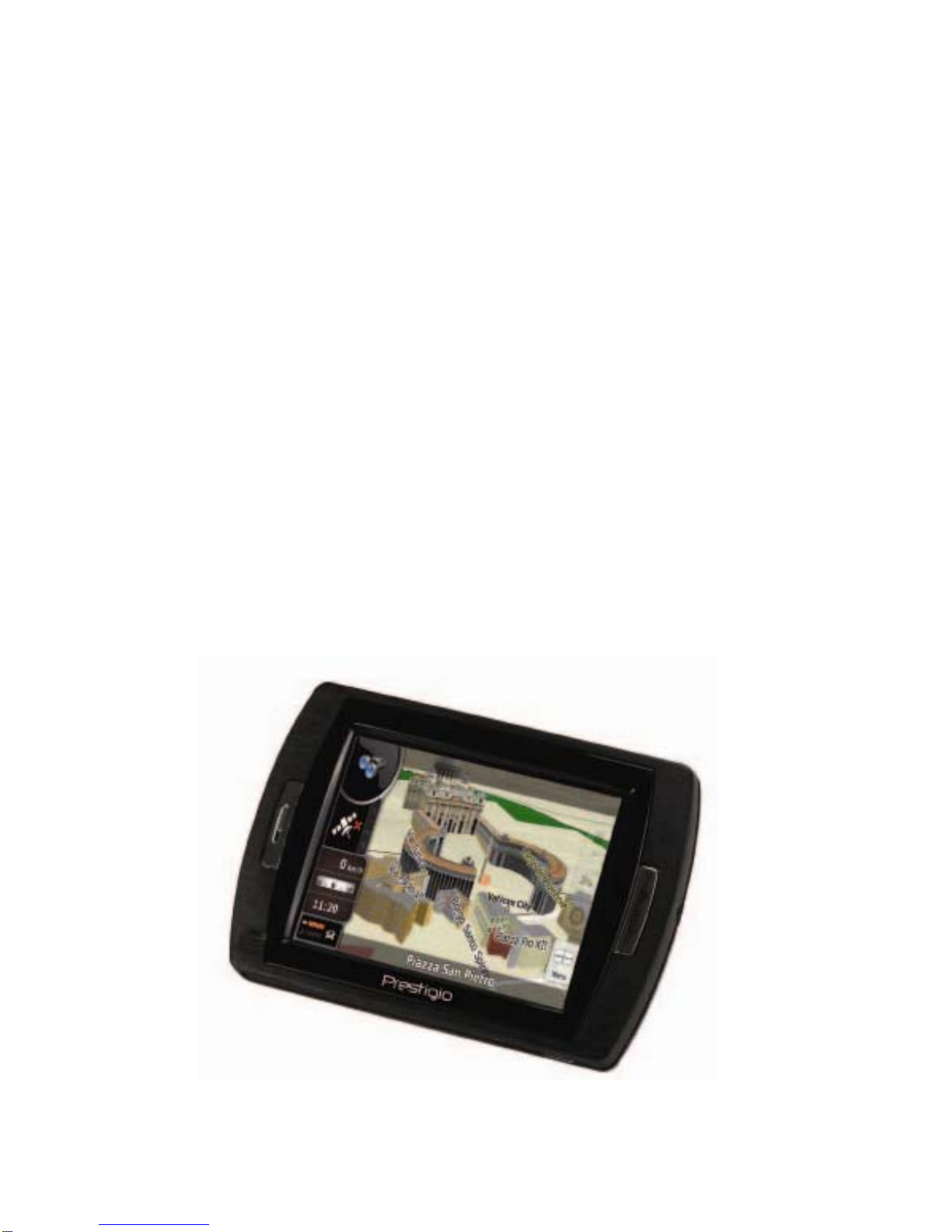

PRESTIGIO GEOVISION 150/450

USER MANUAL

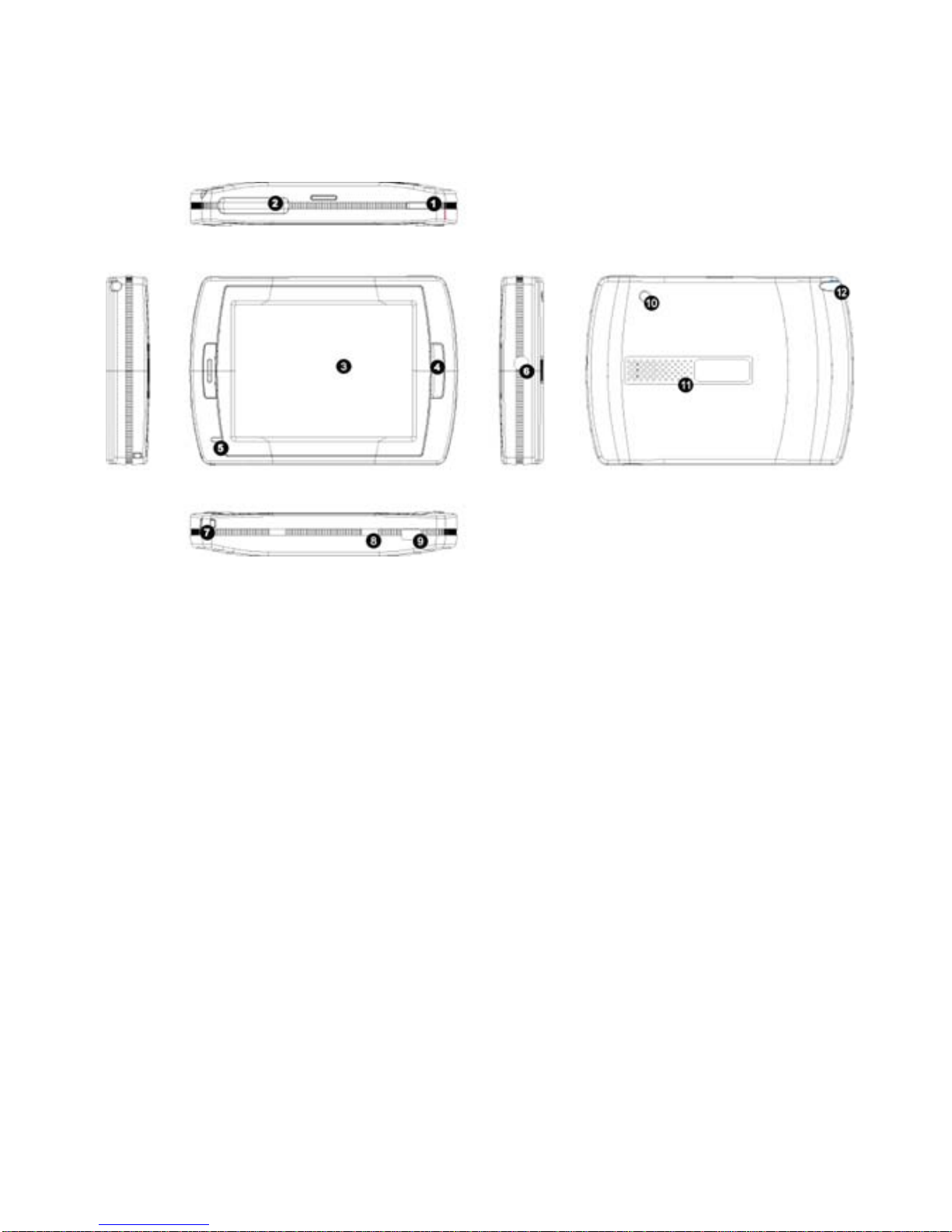

Prestigio GeoVision 150 - Position of the controls

1. Power Button

2. SD Card Slot

3. Touch Panel

4. Menu Button

5. Indicator Light (When it charges the red light will be on; when fully

charged the green light will be on.)

6. Headphone Jack

7. Strap Hole

8. Battery Switch (For leaving long term unused, switch it to off. Or, switch

it to off and on for reset.)

9. USB Port

10. External GPS Antenna Port

11. Speaker

12. Stylus Pen/ Slot (Slides the stylus pen out of the slot for operation.)

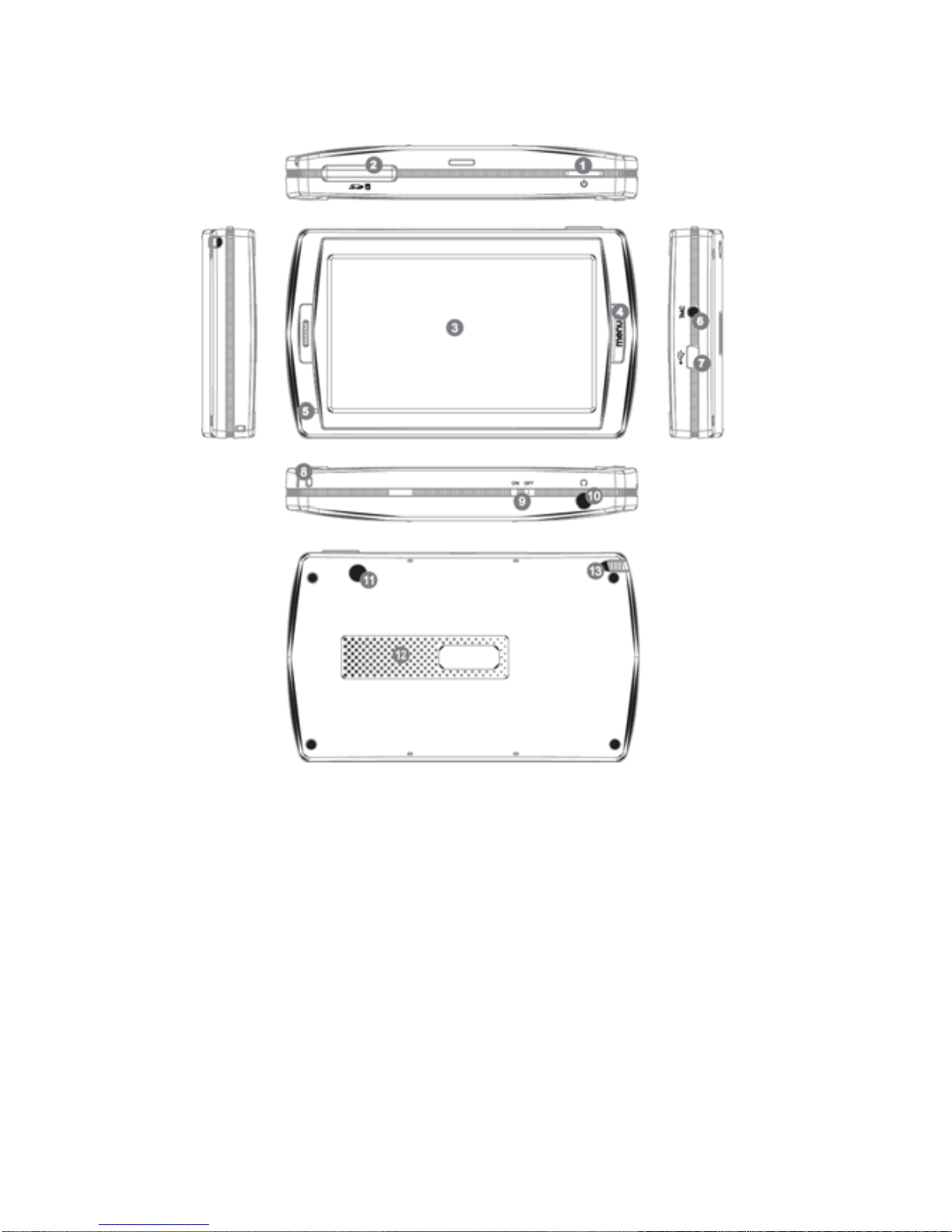

Prestigio GeoVision 450 - Position of the controls

1. Power Button

2. SD Card Slot

3. Touch Panel

4. Menu Button

5. Indicator Light*

6. TMC Antenna Jack

7. USB Port

8. Strap Hole

9. Battery Switch

10. Headphone Jack

11. External GPS Antenna Port

12. Speaker

13. Stylus Pen/ Slot (Slide the stylus pen out of the slot when needed.)

IMPORTANT:

Charging the Battery

Before using your PND for the first time, we recommend you to charge the

unit for 5 hours via the USB cable or 2 hours via the car charger in order to

charge the battery.

Car charger

When using your PND in the car we recommend that you always use the

in-car charger to power the unit, especially on long journeys.

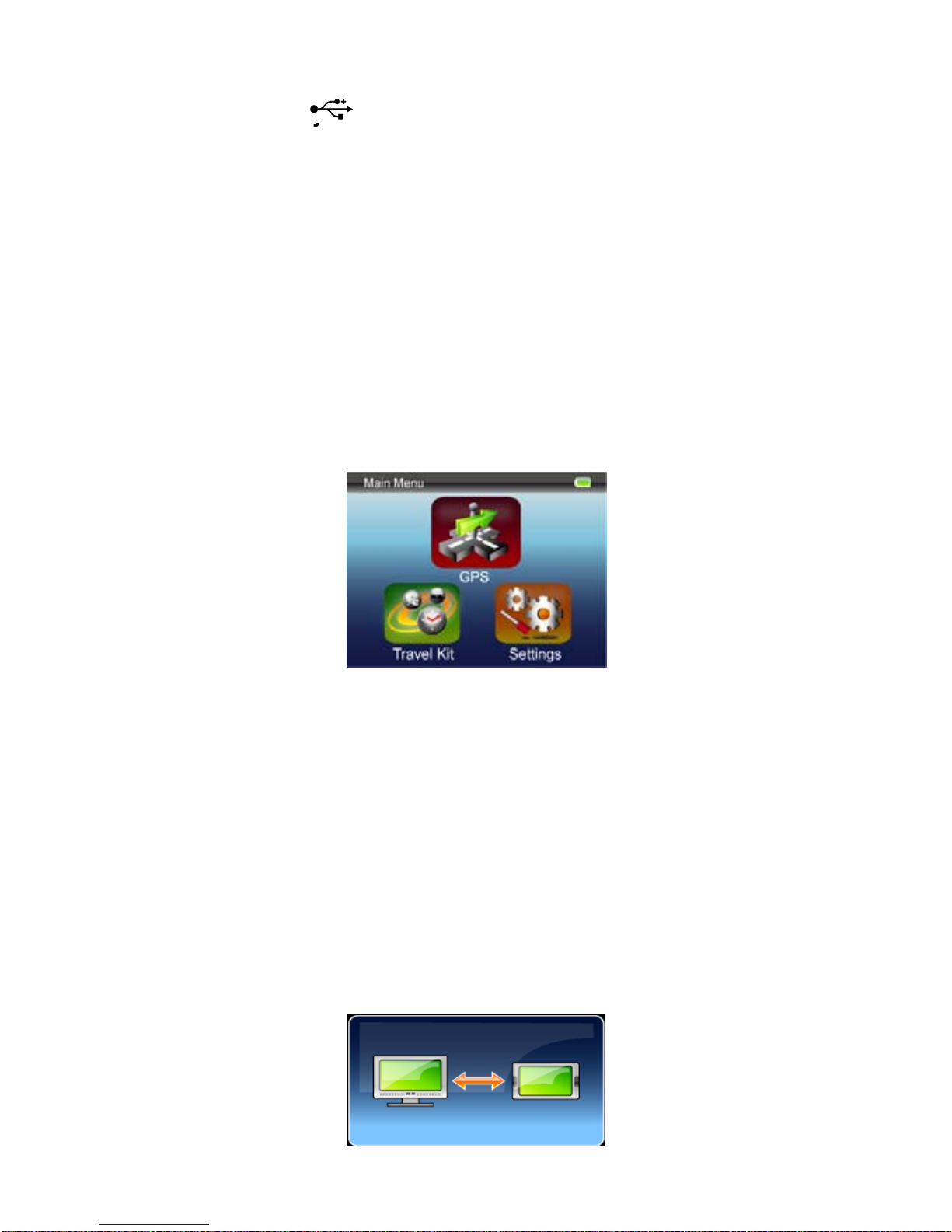

Main Menu

When the Hardware Reset Switch is at ON position, press the Power Button

for 3 seconds to turn the unit on. The following screens will be displayed,

and the unit is ready to be used. Tap on an icon to enter the function.

This device integrates several multimedia programs. You can use it for

navigation, to watch video clips, view photo, and also listen to music.

Connect to PC

You can connect the unit to PC for transferring data. Insert a SD/ MMC card

to the card slot, you can use the unit as a card reader.

1.Power on the unit.

2.Plug B-type end of the supplied USB cable to the mini USB port of the

unit, and plug the other end to your computer.

3.The system will try to recognize and connect the device; the display will

show as the figure below.

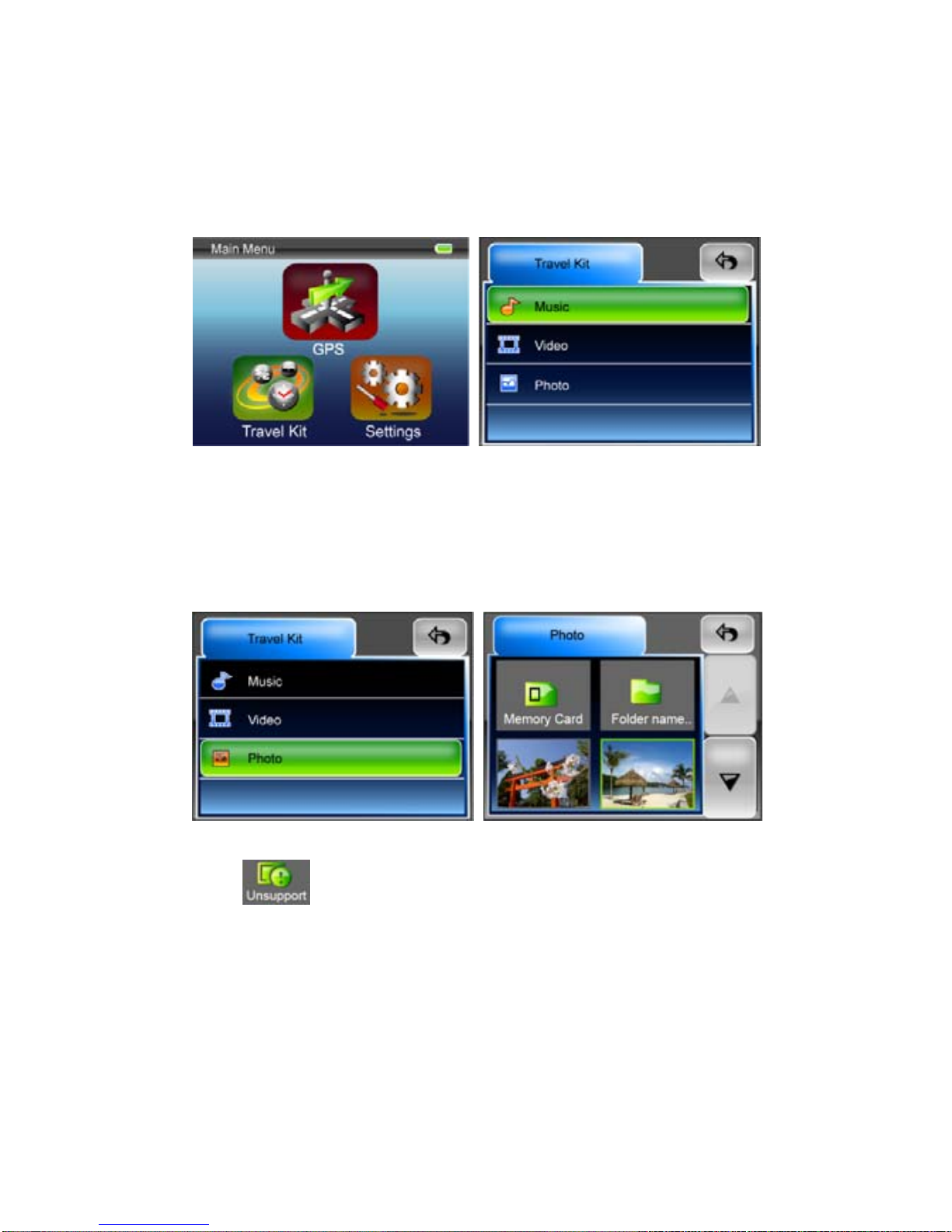

Travel Kit

Enter each function to enjoy your media files.


This device supports jpg, bmp, png, gif formats (up to 12MegaPixel file).

Enter "Photo" function to see thumbnails for all the photo files.

Note: press Menu button to go back main menu.

If you see an icon on the list, it means that photo is unsupported.

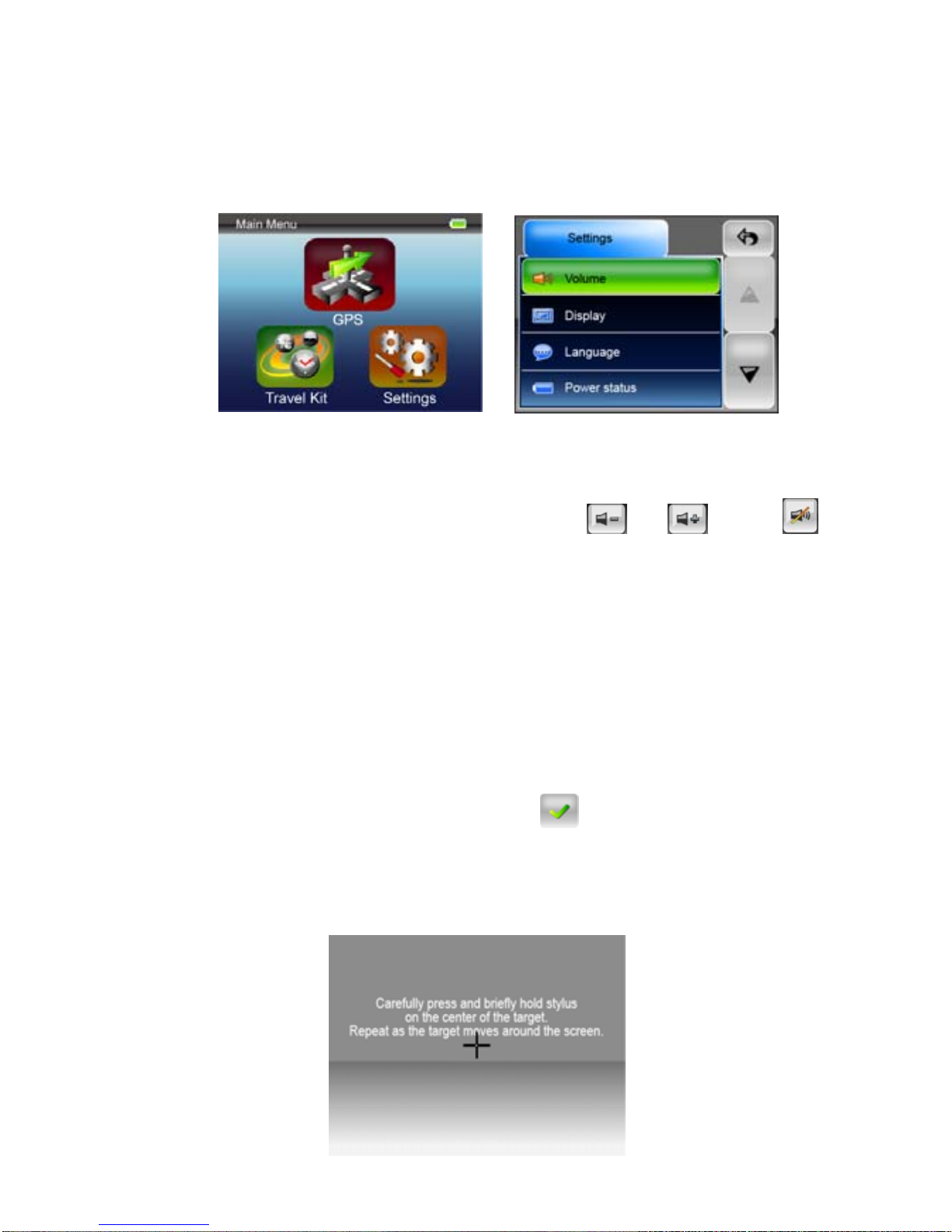

Settings

Tap on the Settings icon on the Main Menu, the following screen is

displayed.

Volume

Press 'Volume' you can modify the volume level of the voice prompts. You

can increase or decrease the level by clicking or . Click to

mute.

Display

Tap on the Display option to enter display submenu. There are 3 items to

adjust: Brightness, Backlight Timeout, and Screen Calibration.

Select Backlight Timeout to set idling time to shut down the display to

save battery consuming. Select “Never” to disable this option.

Select Screen Calibration to calibrate the unit to respond to your screen

taps. You will need to use this function only if the unit begins to respond

inconsistently to your screen taps. Tap on button to start. Follow the

on screen directions to tap on the center of the cross to calibrate. When the

steps are done, you will see the second figure, tap on screen to save and

apply the new calibration.

Language

Tap to select a language from the list to suit your need.

Power Status

Enter this filed to know the battery status.

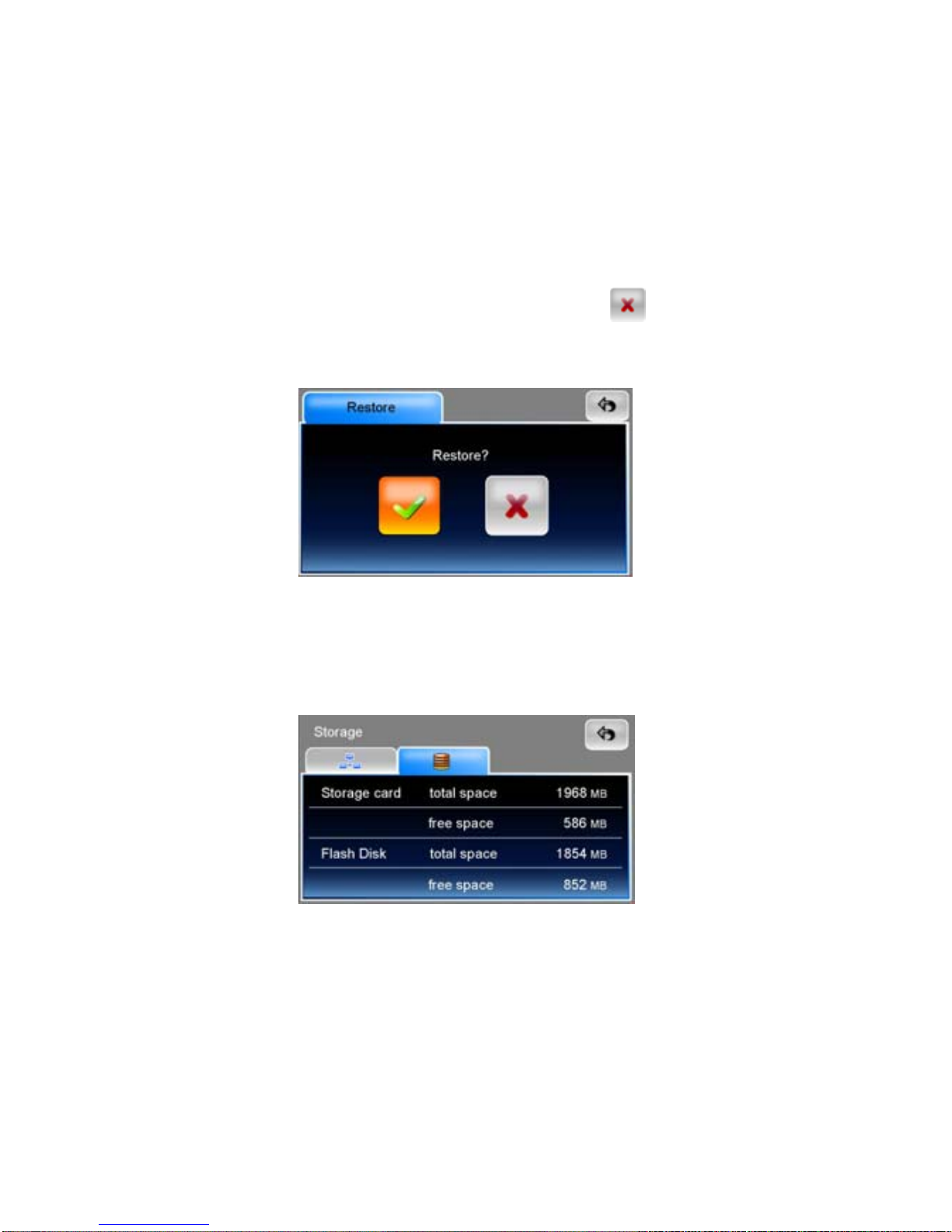

Restore

This field is for you to restore the settings to default values. When

necessary, tap on “Restore” item to enter or tap on to cancel and exit.

System Info

Tap on System Info to know the information of the unit and the inserted

memory card. There are 2 items to read: Device and Storage

Note:

This manual contains only the main guidelines for operation of your

Prestigio GeoVision GPS. For more detailed information about the

navigation options please read the instructions into the CD included on the

set
